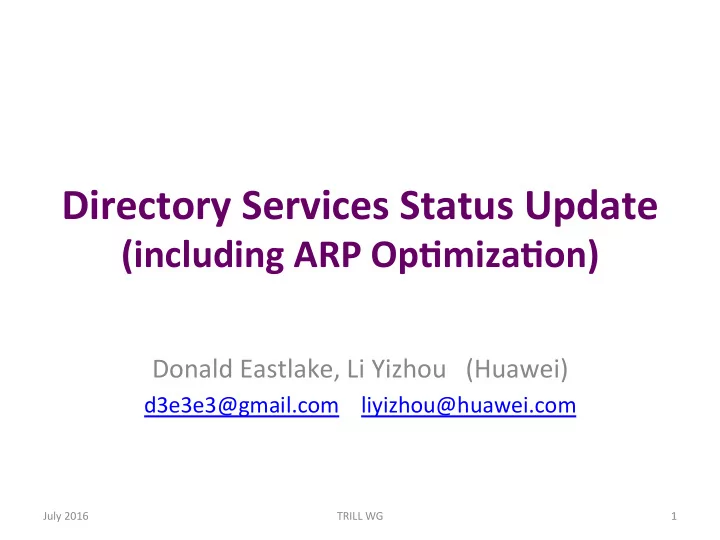

Directory Services Status Update

(including ARP Op:miza:on)

Donald Eastlake, Li Yizhou (Huawei)

d3e3e3@gmail.com liyizhou@huawei.com

July 2016 TRILL WG 1

Directory Services Related Dra>s

• In RFC Editor’s queue

– draN-ieP-trill-ia-appsubtlv

• Provides a data format for transmiVng directory

informaWon

• In/Past IETF LC

– draN-ieP-trill-channel-tunnel

• Provides security for Pull Directory requests and

responses

• In 2nd IETF LC due to a downref

July 2016 TRILL WG 2

Directory Services Related Dra>s

• Past WG LC

– draN-ieP-trill-directory-assist-mechanisms

• Provides the actual mechanisms for Push and Pull

directories with services to RBridges

• Push directories hosted on RBridges, Pull directories

hosted by RBridges or end staWons

• WG DraN

– draN-trill-directory-extensions

• Provides Push and Pull directory services to end

staWons

July 2016 TRILL WG 3

Directory Services Related Dra>s

July 2016 TRILL WG 4

RBridge Push/Pull Directory Server RBridge Push/Pull Directory Client RBridge Pull Directory Proxy End StaWon Pull Directory Yellow = Directory Assist Mechanisms DraN Ordinary End StaWon

Directory Services Related Dra>s

July 2016 TRILL WG 5

RBridge Push/Pull Directory Server RBridge Push/Pull Directory Client RBridge Pull Directory Proxy End StaWon Pull Directory Yellow = Directory Assist Mechanisms DraN Red = Directory Extensions DraN Ordinary End StaWon RBridge Push/Pull Client Proxy End StaWon Push/ Pull Client End StaWon Push/ Pull Client

Directory Services Related Dra>s

• WG DraNs – users of directory services

– draN-ieP-trill-arp-opWmizaWon

• Local RBridge can locally handle some ARP/ND requests

– draN-ieP-trill-directory-assisted-encap

• Directory assisted encapsulaWon by end staWon
• DecapsulaWon sWll be edge RBridge

– draN-ieP-trill-smart-endnodes

• Directory assisted encapsulaWon and decapsulaWon by

end staWon.

July 2016 TRILL WG 6

Directory Services Related Dra>s

IA APPsubTLV Channel Tunnel Directory Assist Mechanisms Directory Extensions ARP/ND OpWmizaWon Directory Assted Encap Smart Endnodes

In RFC Ed Queue Past WG LC

July 2016 TRILL WG 7

Past IETF LC

ARP/ND Op:miza:on Dra>

• DraN returned to the WG from the IESG. 3 DISCUSSes with the

following points:

– ANer an edge RBridge learns that an IP address is connected to it, what does it do about tesWng that it is sWll there?

• Various possibiliWes: Time-outs reset on seeing locally originated IP traffic;

periodic ARP/ND pings to the local staWon; …

– Needs guidance as to when to pick which of the a1 through a5

• pWons in SecWon 3.2.

– Needs guidance as to the source address of responses synthesized by edge Rbridge. – Needs to more clearly specify what to do in the case of SEND (Secure ND). That case rules out some opWons.

July 2016 TRILL WG 8

ARP/ND Op:miza:on Dra>

• (conWnued)

– MulWple cases of quesWonable RFC 2119 key words (MUST / SHOULD / MAY) need to be reviewed/fixed.

July 2016 TRILL WG 9

Plan Going Forward

• Respond to the 1 IESG DISCUSS (out of 3 DISCUSSes)

not yet responded to.

• Produce and post updated draN incorporaWng

changes agreed to by Area Directors who had posted a discuss. (Agreement already reach for 2 out of 3.)

• Run WG Last Call.

– Resolve any comments.

• Request PublicaWon

July 2016 TRILL WG 10

END

Donald Eastlake, Li Yizhou (Huawei)

d3e3e3@gmail.com liyizhou@huawei.com

July 2016 TRILL WG 11
