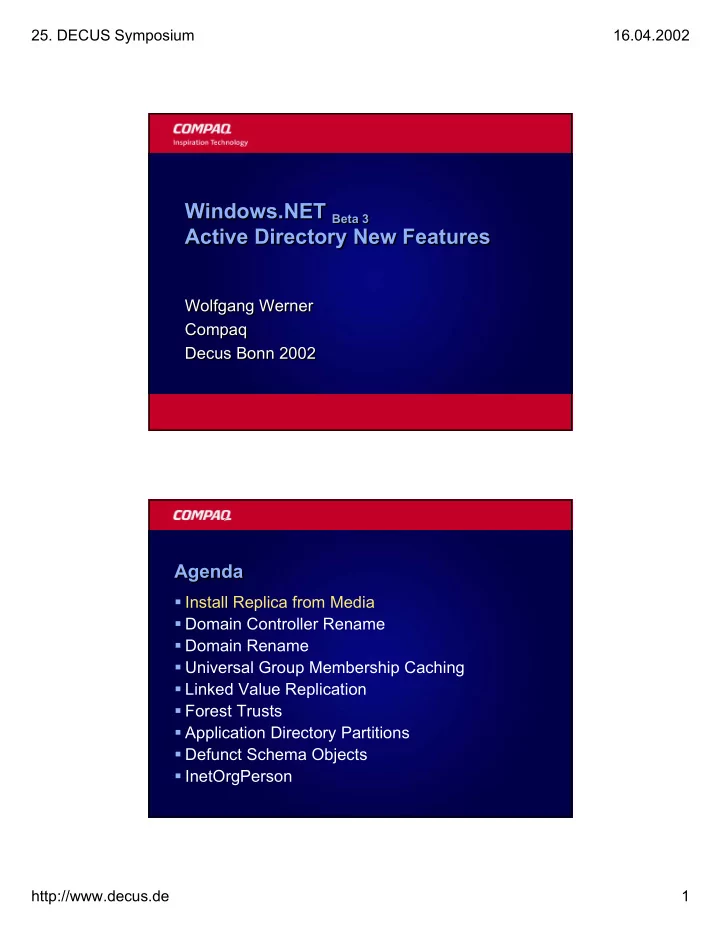

  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 1

Windows.NET Beta 3 Active Directory New Features Windows.NET Windows.NET Beta 3

Beta 3

Active Active Directory New Features Directory New Features

Wolfgang Werner Compaq Decus Bonn 2002 Wolfgang Werner Compaq Decus Bonn 2002

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

slide-2
SLIDE 2
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 2

Install Replica from Media Install Replica from Install Replica from Media Media

Problem: Installing a Domain Controller at a site with slow network connection Windows 2000 replicates a complete copy of the Active Directory database and possibly the Global Catalog over the network 1

Install Replica from Media Install Replica from Install Replica from Media Media

Windows.NET Server allows loading the Active Directory database from a backup of an existing Domain Controller or Global Catalog server

– Backup the system state of an existing DC – Restore system state on an alternate location on target server

slide-3
SLIDE 3
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 3

Install Replica from Media Install Replica from Install Replica from Media Media

Run DCPROMO in Advanced Mode

– DCPROMO /ADV

Install Replica from Media Install Replica from Install Replica from Media Media

Network connectivity still required for up-to-date information

– Changes in the AD databases and SYSVOL folder updates are replicated over the network

Restrictions

– The backup cannot be older than the tombstone lifetime (default 60 days) – Application directory partitions will not be restored

slide-4
SLIDE 4
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 4

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

Domain Controller Rename Domain Controller Domain Controller Rename Rename

Windows 2000 a domain controller (DC) can't be renamed In Windows.NET DCs can be renamed without being demoted first New name is automatically updated to DNS and Active Directory

slide-5
SLIDE 5
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 5

Domain Controller Rename Domain Controller Domain Controller Rename Rename

No Explorer like features Procedure:

– Add a new name – Wait for the new name to propagate through the network – Remove the old name

Domain Controller Rename Domain Controller Domain Controller Rename Rename

Add new name

– NETDOM COMPUTERNAME oldname /ADD:newname

Wait for replication of

– DNS host (A) records

servicePrincipalName attribute to all DCs in the domain and all Global Catalog servers in the forest

slide-6
SLIDE 6
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 6

Domain Controller Rename Domain Controller Domain Controller Rename Rename

Update computer account in AD

– NETDOM COMPUTERNAME oldname /MAKEPRIMARY:newname

Reboot Wait for the replication of the DNS Locator resource records

– Defined in system32\config\netlogon.dns

Domain Controller Rename Domain Controller Domain Controller Rename Rename

Remove old name

– NETDOM COMPUTEENAME newname /REMOVE:oldname – Removes old DNS host (A) records – Removes the old name in Active Directory

Change "Computer Name" in System Control Panel

slide-7
SLIDE 7
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 7

Domain Controller Rename Domain Controller Domain Controller Rename Rename

Moving DCs between domains was planned but will not be implemented Certification Authorities can not be renamed DNS and Active Directory replication latency may cause a temporary inavailability

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

slide-8
SLIDE 8
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 8

Renaming Domains R Renaming enaming D Domains

  • mains

Change the DNS and NetBIOS names

– of the forest-root domain – any tree-root domains – any parent and child domains

Restructure a domain's position within a forest

Renaming Domains R Renaming enaming D Domains

  • mains

No Pruning and Grafting capabilities Windows.Net Help and Support: "A domain rename will affect every domain controller in your forest and is a thorough multi-step process that requires a detailed understanding of the operation" Resources from http://www.microsoft.com/windows2000/downloads/tools/ domainrename/default.asp

– Understanding How Domain Rename Works (28 pages) – Step-by-Step Guide to Implementing Domain Rename (69 pages) – rendom.exe utility

slide-9
SLIDE 9
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 9

Renaming Domains R Renaming enaming D Domains

  • mains

Identity of the forest root domain cannot be changed If Exchange 2000 is deployed in the same forest domain rename is blocked Each domain controller in the forest will be out-of-service briefly All Domain Controllers in the forest that where unreachable during the operation or finished in the Error state must be demoted Any external trust relationships must be re-established ...

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

slide-10
SLIDE 10
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 10

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

In Windows 2000 a Global Catalog Server is required for logging on to a domain

– To determine the users membership in universal groups – If no local GC is available a server in the remote site will be used

Recommendation: at least one GC per site

– Adds replication traffic

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

If no Global Catalog is available:

– If the user is an administrator logon succeeds – If only a Domain Controller is available the user fails to log on to the workstation – If no Domain Controller is available, the user is logged on with cached credentials

slide-11
SLIDE 11
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 11

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

Workaround in Windows 2000: HKLM\System\CCS\Control\Lsa\ IgnoreGCFailures 1 Q241789 How to Disable Requirement that a Global Catalog Server Be Available to Validate User Logons Potential security vulnerability if universal groups are also used

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

Windows.NET adds the ability to cache the Universal Memberships of the users Enabling this caching process is done on a Site- by-Site basis To enable GC-less logon modify AD Sites NTDS Site Settings object

slide-12
SLIDE 12
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 12

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

The DC will use the cached information even if a GC is available Cache is updated in eight-hour intervals (default)

– This caching mechanism may allow stale data

Cached data expires from lack of use

– No logon in 180 days (default)

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

To adjust the default refresh interval

HKLM\System\CCS\Services\NTDS\Parameters\ Cached Membership Refresh Interval DWORD in minutes

To adjust the default expiration time period

HKLM\System\CCS\Services\NTDS\Parameters\ Cached Membership Site Stickiness DWORD in minutes

slide-13
SLIDE 13
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 13

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

msDS-Cached-Membership single valued attribute added to the user object

– Stores the SIDs of the Universal Groups to which the user belongs – To populate the attribute the DC must contact a GC when a user first logs on – Not replicated between Domain Controllers

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

No GUI to control an update of the cached msDS-Cached-Membership attributes Use ADSI set objRoot = GetObject("LDAP://RootDSE")

  • bjRoot.Put "UpdateCachedMemberships", 1
  • bjRoot.SetInfo
slide-14
SLIDE 14
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 14

Universal Group Membership Caching Universal Universal G Group roup M Membership embership C Caching aching

To diagnose Group membership caching HKLM\SYSTEM\CCS\Services\NTDS\ Diagnostics\20 Group Caching 5 (full diagnostic) Information is written to the Directory Service Event Log

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

slide-15
SLIDE 15
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 15

Linked Value Replication Linked Value Replication Linked Value Replication

Novell's Claims against Active Directory (December 1999):

DID YOU KNOW that Microsoft recommends against distributed group management? MS recommends that all group membership should be done from a single machine. WHY? If two administrators manage an AD group (add/delete a user to/from the group) before the group COMPLETELY synchronizes to ALL AD domain controllers, changes will be lost.

Linked Value Replication Linked Value Replication Linked Value Replication

In Windows 2000 group membership is stored as a single multi-valued attribute If the group membership is modified the complete membership attribute is replicated

– Even adding or removing a single member

If membership is modified on two different DCs simultaneously changes might be lost Windows 2000 workaround: use only one Domain Controller to change group membership

slide-16
SLIDE 16
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 16

Linked Value Replication Linked Value Replication Linked Value Replication

Windows.NET removes this issue

– A linked-value is a pointer to other objects in the directory – A multi-value linked-value attribute is a list of pointers to other objects in the directory – Replication metadata is is stored in every single value of that list – Now this single value can be replicated

Linked Value Replication Linked Value Replication Linked Value Replication

Novell's Claims against Active Directory (December 1999):

DID YOU KNOW that Microsoft recommends no more than 5000 users in an Active Directory group? WHY? Because group membership is sent out as a single attribute value. So, if you add the 5000th user to a group of 4999 members, instead of sending just the new user, the entire group (all 5000 users) is sent to ALL domain controllers.

slide-17
SLIDE 17
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 17

Linked Value Replication Linked Value Replication Linked Value Replication

5000 members is not a hard limit The attribute becomes too large to be replicated in a single transaction Windows 2000 workaround: using smaller groups to compose larger groups Windows .NET removes the issue by only replicating updates to the group membership

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

slide-18
SLIDE 18
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 18

Forest Trusts Forest Forest T Trust rusts s

Windows 2000 Kerberos authentication is only forest wide To create trusts between forests NTLM trusts between every domain in each forest must be created

Forest Trusts Forest Forest T Trust rusts s

In Windows.NET Transitive Kerberos trust between two forests' root domains can be created

– Authorization and authentication occur transparently between the linked forests

Forest trusts are targeted for companies

– Undergoing mergers or acquisitions – Seeking a solution to administrative autonomy

Cross-forest trust can be 1-way or 2-way

slide-19
SLIDE 19
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 19

Forest Trusts Forest Forest T Trust rusts s

Two-way

– All users in both forests are able to access all resources anywhere in either forest

One-way: incoming

– Only users in the first forest are able to access resources anywhere in the second forest – Users in the second forest will not be able to access any resources in the first forest

One-way: outgoing

– Only users in the second forest are able to access resources anywhere in the first forest – Users in the first forest will not be able to access any resources in the second forest.

Forest Trusts Forest Forest T Trust rusts s

To define trust relationships use the new Trust Wizard

slide-20
SLIDE 20
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 20

Forest Trusts Forest Forest T Trust rusts s

Forest trusts can only be created between two forests Relationship is not transitive between forests Exchange Server still see two different

  • rganizations

No way to unify forests into one forest

– Still two Global Catalogs – Still two Schemas

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

slide-21
SLIDE 21
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 21

Application Directory Partitions Application Directory Partitions Application Directory Partitions

A naming context (also called a directory partition) – Stores application-specific data in the Active Directory – Used for redundancy, availability, or fault tolerance Windows 2000: only three choices of replication scope – Not replicated – Domain-wide (domain naming context) – Forest-wide (configuration naming context)

Application Directory Partitions Application Directory Partitions Application Directory Partitions

In Windows 2000 data may go to places where it is not used – All application data replicated to every DC in the domain – Every object in Active Directory is put into the GC Inappropriate to store volatile data in DS – Gets replicated widely – Data may not be up to date on various domain controllers – May cause lot of replication traffic

slide-22
SLIDE 22
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 22

Application Directory Partitions Application Directory Partitions Application Directory Partitions

In Windows.NET additional naming contexts can be created

– Used for Active Directory enabled application to store and replicate data – Usually created by the applications that will use them – Contain any hierarchy of objects, except security principals – Replicated only to specific domain controllers in a forest – Objects not replicated to GC

Application Directory Partitions Application Directory Partitions Application Directory Partitions

Naming

– Part of the forest namespace – Like domain directory partition – Same DNS and LDAP naming conventions

DNS: adp1.microsoft.com DN: dc=adp1,dc=microsoft,dc=com

slide-23
SLIDE 23
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 23

Application Directory Partitions Application Directory Partitions Application Directory Partitions

Three possible placements within the forest namespace:

– A child of a domain directory partition. – A child of an application directory partition. – A new tree in the forest. – Domain directory partitions cannot be children of an application directory partition

Application Directory Partitions Application Directory Partitions Application Directory Partitions

Ntdsutil can be used to perform various

  • perations

– For testing and troubleshooting purposes only – Applications will provide the utilities

DCPROMO demote will not remove replicas or delete application directory partitions

slide-24
SLIDE 24
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 24

Application Directory Partitions Application Directory Partitions Application Directory Partitions

The Knowledge Consistency Checker (KCC) automatically generates and maintains the replication topology for all application directory partitions Replicas follow the same intersite replication schedule as the domain directory partition.

Application Directory Partitions Application Directory Partitions Application Directory Partitions

Example: Active Directory integrated DNS Ability to replicate zones

– Among a given set of DNS servers of different domains

dnscmd.exe (/CreateDirectoryPartition /EnlistDirectoryPartition /UnEnlistDirectoryPartition)

– All DNS servers in the forest

Default DNS application partition DomainDnsZones dnsmgmt.msc or dnscmd.exe

– All DNS servers in the forest

Default DNS application partition ForestDnsZones dnsmgmt.msc or dnscmd.exe

slide-25
SLIDE 25
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 25

Application Directory Partitions Application Directory Partitions Application Directory Partitions

Example: List partitions with ntdsutil.exe

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

slide-26
SLIDE 26
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 26

Defunct Schema Objects Defunct Defunct Schema Schema Objects Objects

The directory schema describes the kinds of

  • bjects that can reside in a directory

– Allowable parent object types for an object – Mandatory and optional attributes for an object – Syntax for an attribute

Schema objects: classes and attributes 1

Defunct Schema Objects Defunct Defunct Schema Schema Objects Objects

Schema additions are permanent 1

– No way back – In both Windows 2000 and Windows.NET

In Windows.NET schema objects

– Can be disabled (marked "defunct") – Can be redefined – Can be reactivated

slide-27
SLIDE 27
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 27

Defunct Schema Objects Defunct Defunct Schema Schema Objects Objects

Redefining Schema Objects

– The object identifier and the ldapDisplayName can be reused

Example:

– Active Directory does not permit you to change the syntax

  • f an attribute after it has been defined in the schema

– Deactivate the attribute and create a new attribute that reuses the same object identifier and LDAP display name as the old attribute, but with the desired attribute syntax

Defunct Schema Objects Defunct Defunct Schema Schema Objects Objects

To deactivated Schema objects set the isDefunct property to "True"

– Programmatically With the Active Directory Schema snap-in

Only objects that have been added to the base schema can de deactivated or redefined

slide-28
SLIDE 28
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 28

Defunct Schema Objects Defunct Defunct Schema Schema Objects Objects

To reactivated Schema objects set the isDefunct property to "False" Any instances become valid, normal objects again There must be no collisions with active Schema

  • bjects (ldapDisplayName, schemaIdGuid,...)

Agenda Agenda Agenda

Install Replica from Media Domain Controller Rename Domain Rename Universal Group Membership Caching Linked Value Replication Forest Trusts Application Directory Partitions Defunct Schema Objects InetOrgPerson

slide-29
SLIDE 29
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 29

inetOrgPerson inetOrgPerson inetOrgPerson

Novell's Claims against Active Directory (December 1999):

DID YOU KNOW that Windows2000 does not conform to LDAP standards? This means that many off the shelf LDAP applications (Netscape, Oblix, Netegrity, etc) cannot run against Active Directory? It seems that Windows2000 doesn’t derive users from InetOrgPerson, which is the LDAP standard. Therefore, most LDAP applications won’t recognize Active Directory users.

inetOrgPerson inetOrgPerson inetOrgPerson

Windows 2000 Active Directory

– The user account object is implement as the 'user' class1

Other LDAP implementations

– The user account object is implement as the inetOrgPerson class (RFC 2798) 2 – Do not recognize AD users

In Windows.NET Active Directory:

– new inetOrgPerson class compatible with the user class 3

slide-30
SLIDE 30
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 30

inetOrgPerson inetOrgPerson inetOrgPerson

In Windows.NET inheritance chain

top (abstract)

  • > person (abstract)
  • > organizationalPerson (abstract)
  • > user (structural)
  • > inetOrgPerson (structural)

RFC 2798 inheritance chain:

top (abstract)

  • > person (structural)
  • > organizationalPerson (structural)
  • > inetOrgPerson (structural)

inetOrgPerson inetOrgPerson inetOrgPerson

Exchange 2000 schema extension

– secretary: 1.2.840.113556.1.2.444 – labeledURI: 1.2.840.113556.1.2.593

inetOrgPerson RFC 2798

– secretary: 0.9.2342.19200300.100.1.21 – labeledURI: 1.3.6.1.4.1.250.1.57

Solution: Change lDAPDisplayName

– secretary -> msExchangeAssistantName – labeledURI -> msExchlabeledURI

slide-31
SLIDE 31
  • 25. DECUS Symposium

16.04.2002 http://www.decus.de 31

inetOrgPerson inetOrgPerson inetOrgPerson

inetOrgPerson and user objects are different entities Up to now there is NO Exchange 2000 support for inetOrgPerson objects
