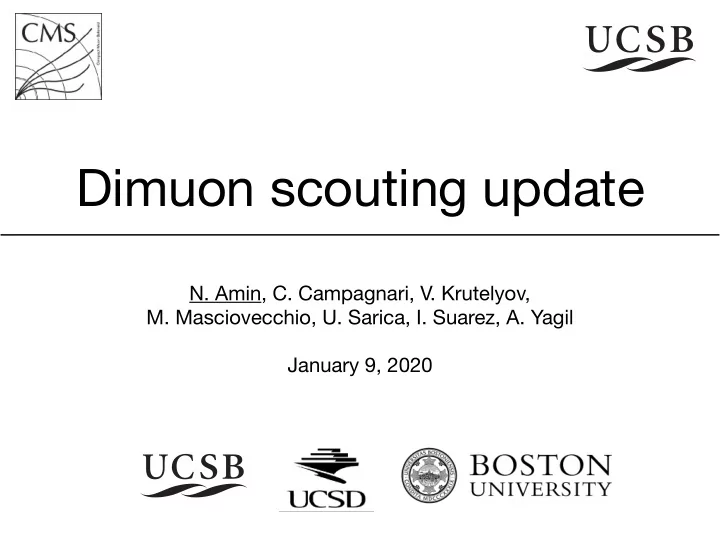

Dimuon scouting update

  • N. Amin, C. Campagnari, V. Krutelyov,
  • M. Masciovecchio, U. Sarica, I. Suarez, A. Yagil

January 9, 2020

slide-2
SLIDE 2

⚫ Previous update ⚫ Reminder of baseline selections →

  • Note: took out "Num. muon system hits

> 0" because it turns out nMatchedStations is hardcoded to 0 (https://github.com/cms-sw/cmssw/ blob/CMSSW_9_2_10/HLTrigger/Muon/ src/ HLTScoutingMuonProducer.cc#L161), and nValidMuonHits is also always 0, during 2017 data-taking

⚫ In the following slides

  • Follow-up on 𝛦𝜃/𝛦𝜚 variable
  • Signal information
  • Some 2017 and 2018 data comparisons
  • Synchronization exercise

Overview of progress/baseline

2

Baseline selections

Exactly 2 OS muons and 1 DV in collections, then

  • DV
  • (x, y, z) errors < (0.05, 0.05, 0.1) cm
  • chi2/ndof < 5
  • 𝜍 < 11 cm
  • Muon (pT > 3 GeV, |𝜃| < 2.4)
  • ID
  • Num. tracker layers with meas. > 5
  • chi2/ndof < 3
  • Isolation
  • Track isolation < 0.1
  • 𝛦R with closest jet > 0.3
  • Dimuon kinematics
  • cos(𝛦𝜚(dimuon, DV vector)) > 0
  • |𝛦𝜚(muon 1, muon 2)| < 2.8
  • |𝛦𝜚(dimuon, DV vector)| < 0.02

2018 trigger seeds

L1 — OR of

  • DoubleMu4p5_SQ_OS_dR_Max1p2
  • DoubleMu0er1p4_SQ_OS_dR_Max1p4
  • DoubleMu_15_7
slide-3
SLIDE 3

Followup on 𝛦𝜃12/𝛦𝜚12

3

⚫ Background tracks from PV are characterized by large values of

log10(abs(𝛦𝜃12/𝛦𝜚12)) between the two muons

⚫ Proposed a cut to reject events with logabsetaphi>2.0 ⚫ This is pretty independent of signal kinematics (flat ~0.7% efficiency

loss), so it does not induce mass-sculpting

10

slide-4
SLIDE 4

⚫ We are able to successfully run on your signal in

  • root://cmseos.fnal.gov//store/user/hroutray/DirectGluonFusion_PhiToMuMu/

ggPhimumu_Phimass2_Phictau0_5_part1

⚫ If it is useful, we have put some signal with a H→ZdZd→2𝜈+2X model in

  • env -i gfal-ls -lH root://redirector.t2.ucsd.edu//store/user/namin/ProjectMetis/

HToZdZdTo2Mu2X_params_mzd20_ctau50mm_RAWSIM_v9/

  • mzd can be replaced with {2, 5, 8, 10, 15, 20} GeV, ctau with {1, 5,

10, 25, 50} mm (30 points in total)

  • Generated with 2018 MC configuration

Signals

4

slide-5
SLIDE 5

⚫ The DoubleMu4 L1 seed was active/unprescaled for only 75% of

2018 data-taking

⚫ In subsequent slides, use the two separate ORs listed below

2017 vs 2018: triggers

5

2018 trigger seeds

L1 — OR of

  • DoubleMu4p5_SQ_OS_dR_Max1p2
  • DoubleMu0er1p4_SQ_OS_dR_Max1p4
  • DoubleMu_15_7

2017 trigger seeds

L1 — OR of

  • DoubleMu4_SQ_OS_dR_Max1p2
  • DoubleMu0er1p4_SQ_OS_dR_Max1p4
  • DoubleMu_15_7
slide-6
SLIDE 6

⚫ Compare key variables for small subsets of data in eras 2017D and 2018C after the baseline

selection with relaxed isolation

  • More plots here

2017 vs 2018: kinematics

6 leading muon pT dimuon mass subleading muon pT DV 𝜍 log10(abs(𝛦𝜃12/𝛦𝜚12))

slide-7
SLIDE 7

⚫ Subleading muon track isolation shown below for all masses

(left) and for mass > 5 GeV (right)

⚫ Consistent track isolation quantities between the two years

2017 vs 2018: isolation

7

slide-8
SLIDE 8 ⚫ Propose a synchronization exercise to agree on a selection and have consistency

in calculation of a few variables

  • E.g., what displacement variable to use, and how is it corrected?
⚫ One file from 2017D: /store/data/Run2017D/ScoutingCaloMuon/RAW/

v1/000/302/033/00000/9C0FCC26-8B8D-E711-8A1F-02163E01273D.root

  • Lumis: {"302033": [[1, 39]]} (in golden json, ~5pb-1)
  • ~3.2M events in the file
  • ~400k events when requiring ≥1 DV, ≥2 muons)
  • ~7k events with baseline requirements on the right
⚫ Make baseline selection on right and dump table of relevant quantities to
  • compare. Some details:
  • DV_rhoCorr: DV 𝜍 corrected wrt beamspot
  • lxy: Lxy, corrected wrt first PV
  • Muon1_pt, Muon1_eta, …: muons pT-ordered
  • absdphimumu: |𝛦𝜚(muon1, muon2)|
  • absdphimudv: |𝛦𝜚(dimuon, DV vector)|
  • logabsetaphi: log10(|𝛦𝜃12/𝛦𝜚12|)
  • minabsdxy: min(|dxy,muon1|, |dxy,muon2|)
  • excesshits: one of the muons has valid pixel hits > expected pixel hits

(only if DV_rhoCorr > 3.5)

  • expected hits computed with code here
⚫ Full .csv file with 6700 events located at http://uaf-1.t2.ucsd.edu/~namin/dump/

scouting/synchronization/data_2017D_v1.csv

  • Small excerpt below

Synchronization exercise

8

Baseline selections

Exactly 2 OS muons and 1 DV in collections, then

  • DV
  • (x, y, z) errors < (0.05, 0.05, 0.1) cm
  • chi2/ndof < 5
  • 𝜍 < 11 cm (corrected wrt beamspot)
  • Muon (pT > 3 GeV, |𝜃| < 2.4)
  • ID
  • Num. tracker layers with meas. > 5
  • chi2/ndof < 3
  • Isolation
  • Track isolation < 0.1
  • 𝛦R with closest jet > 0.3
  • Dimuon kinematics
  • cos(𝛦𝜚(dimuon, DV vector)) > 0
  • |𝛦𝜚(muon 1, muon 2)| < 2.8
  • |𝛦𝜚(dimuon, DV vector)| < 0.02

2017 trigger seeds

L1 — OR of

  • DoubleMu4_SQ_OS_dR_Max1p2
  • DoubleMu0er1p4_SQ_OS_dR_Max1p4
  • DoubleMu_15_7

event lumi run mass DV_x DV_y DV_rhoCorr lxy Muon1_pt Muon1_eta Muon2_pt Muon2_eta absdphimumu absdphimudv logabsetaphi minabsdxy excesshits 275917 1 302033 1.998553 0.041384

  • 0.118164

0.095345 0.096442 3.777374

  • 1.525164

3.693338

  • 1.935441

0.336688 0.017988 0.085850 0.014101 FALSE 557404 1 302033 3.114660 0.086439

  • 0.024343

0.008920 0.007603 3.534004 1.285894 3.492911 1.239324 0.914805 0.000662

  • 1.293223

0.003911 FALSE ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 31731494 39 302033 3.090746 0.144525

  • 0.168947

0.148740 0.150040 8.232279 1.198552 3.358588 1.584871 0.442521 0.015190

  • 0.058988

0.021072 FALSE 31837797 39 302033 2.872157 0.063578

  • 0.009160

0.031519 0.030407 5.625279

  • 1.265867

4.952267

  • 0.736468

0.086819 0.014454 0.785169 0.001000 FALSE

slide-9
SLIDE 9

⚫ Checked consistency between 2017 and 2018

  • Updated baseline selection
  • Should finalize L1 seeds for the two years

⚫ Synchronization exercise

Summary

9

slide-10
SLIDE 10

Backup

10

slide-11
SLIDE 11

⚫ H(125)→ZDZD→2𝜈+2X

  • Efficiency of generator-level fiducial denominator requirement with respect to full sample

is ~64%

  • Reco*trigger efficiency below shows efficiency dropping to ~30% due to pixel bias cuts

Signal generation/efficiencies

11

slide-12
SLIDE 12

⚫ c𝜐=50mm, mZD=20GeV signal MC ⚫ ~12 (38)% of signal has pT<10 (20) GeV

Signal kinematics

12

slide-13
SLIDE 13

⚫ Track isolation computation based on the

hltIter2L3MuonMergedNoVtx track collection

  • Calculated within a cone of 𝛦R<0.3 for tracks

within dz<0.2 and d0<0.1

  • Exclude 𝛦R<0.01 tracks
  • Exclude leading track if it has pT>2 GeV and

𝛦R<0.025

⚫ However, stored ScoutingTrack collection from

hltIterL3MuonAndMuonFromL1MergedNoVtx

⚫ Sanity cuts on DV errors eliminate the majority of

the peak at 1

Track isolation

13

max(DV x error, DV y error) DV z error

slide-14
SLIDE 14

⚫ Using the baseline selection with mass > 5 GeV, DV 𝜍 > 1 cm, further require

  • log10|𝛦𝜃12/𝛦𝜚12| < 2.0
  • no excess pixel hits for either muon
  • min(|dxy,muon1|, |dxy,muon2|) > 0.05 cm

⚫ With respect to (baseline, mass > 5GeV, DV 𝜍 > 1 cm), these 3 selections are ~90% efficient on the

signal

⚫ Plot mass distributions separately for baseline selection with isolation requirements, and with relaxed

isolation requirements

  • No data in either case for the 1fb-1 subset of 2018 data
  • In fact, no data down to DV 𝜍 = 0.3 in isolated case (though low statistics…)

Mass distribution

14 require isolation relax isolation
