SLIDE 1

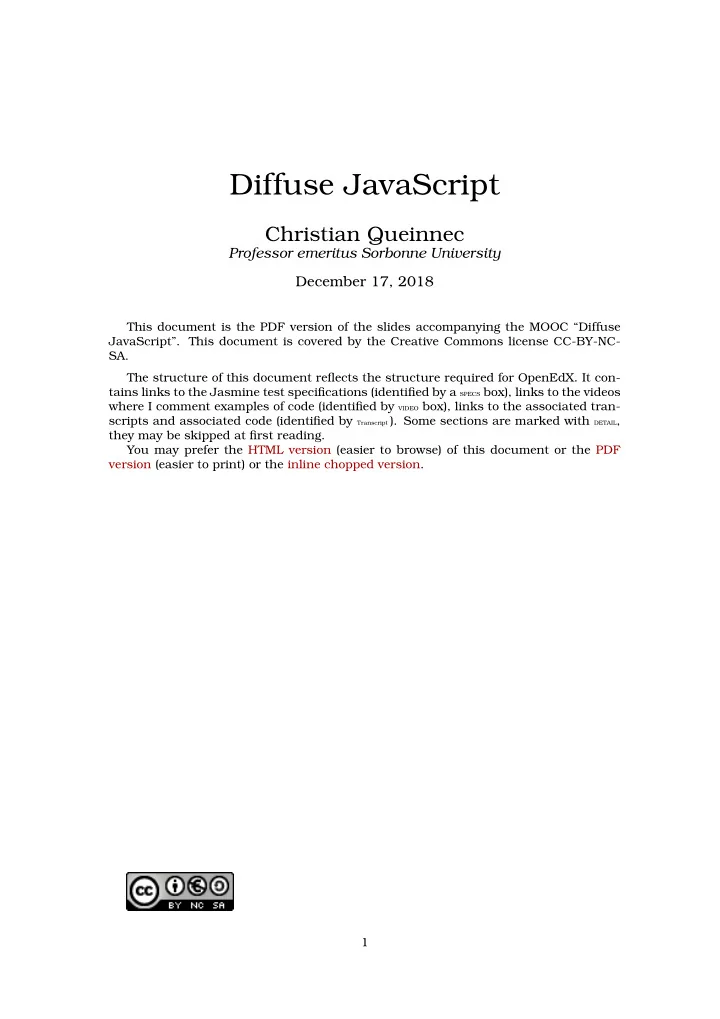

Diffuse JavaScript

Christian Queinnec

Professor emeritus Sorbonne University December 17, 2018

This document is the PDF version of the slides accompanying the MOOC “Diffuse JavaScript”. This document is covered by the Creative Commons license CC-BY-NC- SA. The structure of this document reflects the structure required for OpenEdX. It contains links to the Jasmine test specifications (identified by a SPECS box), links to the videos where I comment examples of code (identified by VIDEO box), links to the associated tran- scripts and associated code (identified by Transcript ). Some sections are marked with DETAIL, they may be skipped at first reading. You may prefer the HTML version (easier to browse) of this document or the PDF version (easier to print) or the inline chopped version. 1

SLIDE 2

Diffuse Javascript CONTENTS

1 Before we start... 5 1.1 Preliminaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.2 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.2.1 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.3 Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2 JavaScript - the language 8 2.1 Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.2 Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.2.1 JavaScript: a programming language . . . . . . . . . . . . . . . . . 8 2.3 Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.3.1 Taxonomy of values . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.3.2 Boolean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.3.3 Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.3.4 Strings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2.3.5 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.4 Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.4.1 Main syntactic features . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.5 Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.5.1 Characteristics of objects . . . . . . . . . . . . . . . . . . . . . . . . 13 2.5.2 Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.6 Special values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.6.1 Special values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.7 Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.7.1 Characteristics of arrays . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.8 Regular expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.8.1 Regular expressions aka RegExps . . . . . . . . . . . . . . . . . . . 16 2.9 Classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.9.1 Predefined classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.10 Comparisons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.10.1 Equalities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.11 Coercions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.11.1 Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.12 Expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.12.1 About expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.13 Functions and variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.13.1 Variables and scope . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 2.14 Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.14.1 The typeof operator . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.15 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.15.1 The function declaration . . . . . . . . . . . . . . . . . . . . . . . . 21 2.15.2 Embedded scopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.16 Global environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.16.1 Characteristics of global environments . . . . . . . . . . . . . . . . 23 2.17 Closures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 2.17.1 Characteristics of closures . . . . . . . . . . . . . . . . . . . . . . . . 23 2.18 Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 2.18.1 Generation of objects . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 2.18.2 Functions and hashtables . . . . . . . . . . . . . . . . . . . . . . . . 27 2.19 Prototypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 2.19.1 The new keyword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 2.19.2 Property lookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 by Christian Queinnec 2

SLIDE 3

Diffuse Javascript CONTENTS 2.19.3 Iterator and iterable . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 2.20 Inheritance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 2.20.1 Class inheritance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 2.21 Exercises of style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 2.21.1 Interlude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 2.22 Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 2.22.1 Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 2.23 Conclusions on the language . . . . . . . . . . . . . . . . . . . . . . . . . . 40 2.23.1 Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 3 Concurrency 41 3.1 Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.2 Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.2.1 Event loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.3 Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 3.3.1 Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 3.4 Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 3.4.1 Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 3.4.2 Event in browsers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 3.5 Promise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 3.5.1 Promise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 3.5.2 Promise composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 3.5.3 Creation of promises . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 3.6 Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 3.6.1 Coroutine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 3.6.2 Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 3.6.3 Generator delegation . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 3.7 Exercises of style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 3.7.1 Interlude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 3.8 Worker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 3.8.1 Worker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 3.8.2 Workers in browsers . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 3.8.3 Workers in Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 3.8.4 Workers use cases . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 3.9 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 4 Distribution 65 4.1 Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 4.2 Client-Server relationships . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 4.2.1 Client-Server model . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 4.3 HTTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 4.3.1 HTTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 4.3.2 HTTP and caching . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 4.4 Model-View-Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 4.4.1 MVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 4.4.2 Servers architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 4.4.3 REST style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 4.4.4 Multiple MVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 4.5 WebSocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 4.5.1 WebSocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 4.6 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 4.6.1 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 4.6.2 Same Origin Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 4.6.3 Cross-origin resource sharing . . . . . . . . . . . . . . . . . . . . . . 76 by Christian Queinnec 3

SLIDE 4

Diffuse Javascript CONTENTS 4.6.4 API protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 4.7 Exercises of style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 4.7.1 Interlude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 4.7.2 Interlude - dbobject . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 4.7.3 Interlude - webapi . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 4.7.4 Interlude - browserobj . . . . . . . . . . . . . . . . . . . . . . . . . . 81 4.7.5 Interlude - wsapi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 4.7.6 Interlude - summary . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 4.8 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 5 Appendices 84 5.1 Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 5.1.1 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 5.2 Debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 5.2.1 Debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 5.3 Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 5.3.1 Testing frameworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 5.3.2 Jasmine framework . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 5.4 Modularity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 5.4.1 Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 5.4.2 Packages namespaces . . . . . . . . . . . . . . . . . . . . . . . . . . 87 5.4.3 Modules of Node.js . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 by Christian Queinnec 4

SLIDE 5

Diffuse Javascript 1 BEFORE WE START...

1 Before we start...

1.1 Preliminaries

Thanks for your registration and welcome to the “Diffuse JavaScript” MOOC. I therefore assume that

You want to master JavaScript so you can use this skill to write diffuse appli-

cations that is, applications that run on both sides of the HTTP or WebSocket protocols.

You want to have a strong grip on events, callbacks, promises and generators that

make the new version of JavaScript, known as ECMAscript 2015, so powerful. All these reasons are excellent so welcome again to this MOOC! Foreword This course is not an initiation to programming, I expect that you know a little about programming (loops, functions, classes, methods, etc.). I also assume that you know the difference between a browser and a server, connected via GET or POST requests, according to the HTTP protocol, though this will only be useful after mid-course. I will mainly write JavaScript code in ECMAscript 2015 (nicknamed ES6) and further

revisions. I will not insist on the usual linguistic features of ES6 (those features that you

can find in nearly every other programming language), I will not review the many usual methods but will focus and describe more thoroughly what makes ES6 so different. Another important feature of that course is that we focus on the JavaScript language and its enormous potentialities that can be revealed and put to use rather sim-

ply. Therefore we will avoid using sophisticated frameworks that, though very useful,

encumbers code with tons of extra conventions. Outline This MOOC is self paced but you may also practise it in four weeks:

The first two weeks are devoted to JavaScript, the language by itself.
Concurrency is the topic of the third week,
while distribution will be seen in the fourth and last week.

Caveats Some caveats before we start:

There are so many features in JavaScript that forward references cannot be avoided!
Whole truth cannot be revealed immediately!
Ultimate truth does not fit in a four-week course!
JavaScript looks apparently simple but is full of oddities!

So, after this MOOC, you won’t know every corner detail but, you will master the main and most useful features of JavaScript and be able to write complex diffuse applications. by Christian Queinnec 5

SLIDE 6

Diffuse Javascript 1 BEFORE WE START...

1.2 Requirements

1.2.1 Requirements For this course, in order to be able to run JavaScript code, you need to have Node.js available. Instructions to install Node.js on your computer can be found on the Node.js site. Please take the most recent LTS 10.* version (LTS stands for Long Term Support) that implements ECMAscript 2015 and further features. Installing Node.js also installs npm, the Node package manager, you will need it to adjoin useful libraries to JavaScript such as Jasmine a framework for unit testing. Install jasmine with npm install jasmine You may also use online JavaScript code editor such as jsfiddle or jsbin. However parts of the MOOC are specific to Node.js and require it to be run. In that case, you probably need an IDE. Alternatively, you may also use the following Docker container that contains all the software required to solve all the proposed exercises.

1.3 Learning

Learning alone is not easy and there is more than one way to learn. Lot of material is present in this MOOC to allow you to choose your own particular way of learning.

You may read the chopped inline HTML version displayed with OpenEdX,
Alternatively, you may prefer to read or print the PDF version or HTML version of

the MOOC.

Examine code examples,
Examine the Jasmine tests to go deeper in JavaScript and get examples.
Watch the video commenting these codes
Study the exercises and test them with the grading infrastructure CodeGradX.

You may also change the way you learn every other day! Links The Web is full of documents related to JavaScript. Alas not all of them are worth reading. Below you may find some links I regularly use.

Documentation on Node.js
Documentation on JavaScript (Mozilla Developper Network)
ECMAscript standard
NPM: Node Package Manager
The Jasmine unit test framework
The Eloquent JavaScript book
ECMAscript 6 cheat sheet

by Christian Queinnec 6

SLIDE 7

Diffuse Javascript 1 BEFORE WE START... Exercises Below is a link to an exercise served by the CodeGradX infrastructure. The CodeGradX infrastructure proposes exercises that are mechanically graded. You will be presented the stem of an exercise, then you write (or paste) your code in a JavaScript editor, send it to the mechanical grader and get back (roughly 15 seconds after) a grading report (containing a numeric mark if you are interested). The CodeGradX infrastructure is currently run by a constellation of servers hosted

elsewhere. In order to be able to return your achievements to EdX and to memorize

your answers in your history, CodeGradX requires that you communicate your name and email. Your name will become your pseudo on CodeGradX, your email can be used if you forget your password and want to access directly CodeGradX. So before trying the exercise, register with CodeGradX with the following button. After reading and accepting the User Agreement, you will have access to the whole set

f programming exercises accompanying this MOOC.

REGISTER

The exercise proposed below is very simple: write a function that takes three numbers and return the lowest of them. Try it but don’t forget to register first!

Exercise: min3.3

by Christian Queinnec 7

SLIDE 8

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

2 JavaScript - the language

2.1 Foreword

JavaScript is a rich language with numerous concepts. Unfortunately, most of the time, to show how to use one of these concepts requires to use other concepts so forward references cannot be avoided and quite often at the beginning, you will have to use concepts not entirely explained. This is life! Moreover, JavaScript is a language that looks apparently very simple and similar to many other programming languages. However, this is wrong, JavaScript is full of

ddities and definitely not trivial at all!

Therefore the first two weeks of that MOOC will present JavaScript, the language, topics after topics with two mantras:

Whole truth cannot be revealed immediately! But layer by layer.
Ultimate whole truth will not fit in a four-week course! Learning an evolving lan-

guage is a full-time job. During the first two weeks you are encouraged to peruse the documents, to hear the video commentaries and, concurrently, to code again and again; lots of exercises mechanically graded are available. During the first week, I suggest that you study till the “Objects” section (See also note #1) but of course you are free to go further and study the rest of weeks 1&2. Do not forget to also scan the appendices where you will find links towards useful documentation and information about testing, modules. The third week is dedicated to concurrence-related features such as events, call- backs, promises, generators and workers. The fourth and last week is dedicated to distribution that is harmony between browsers and servers including the use of WebSocket. Eventually, you will have a very precise control of the JavaScript language in its ECMAscript 2015 incarnation, you will have first class knowledge of its most recent features and know how to use them to build multi-servers and multi-clients applications.

2.2 Presentation

2.2.1 JavaScript: a programming language

Dynamically typed
Automatic memory management
Safe though lax
No classes but prototypes
Good compilation was not an initial goal
Created in 1995 by Brendan Eich for Netscape,
variants in every browser
now also usable for servers (Node.js)
Major overhaul with ECMAscript 2015 (ES6)
Funnier than ever!

by Christian Queinnec 8

SLIDE 9

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

2.3 Values

2.3.1 Taxonomy of values

primitive: boolean, number, string, function, object
special, singleton: null, undefined, NaN
with syntactic support: array, regular expression
Predefined classes: Error, Date, Boolean, String, Object, etc.

2.3.2 Boolean

SPECS

Two values: true and false
Keywords for these two values: true, false
However some values are considered falsy, they are: false, 0, "" (the empty

string), undefined, null and NaN

All values not falsy are considered truthy
typeof true is the string ’boolean’
Possible operators (à la C): &&, ||, !
Shortcircuit semantics for &&, ||

2.3.3 Numbers

Internally only double precision (64 bits) floating point numbers (aka floats)
Hence integers on 54 bits [−253

. . . 2+53 − 1]

Special values: NaN, Infinity. both have type number
Some syntactic prefixes for integers 0x, 0o, 0b for non decimal bases
Possible operators (à la C) on numbers: +, -, *, /, %, ==, <, <=, etc.

Computing with numbers

All computations operate on floats
NaN (not a number) contagion
Infinity may be positive or negative
NaN is not equal to NaN

typeof 1 === "number" typeof 1.2 === "number" typeof 1/0 === "number" typeof Math.sqrt(-1) === "number" 3 === 6/2 1.5 === 3/2 1/0 === 2/0

by Christian Queinnec 9

SLIDE 10

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Useful utilities around numbers

VIDEO Transcript Code

// number -> string 1.0.toString() === ’1’ (1).toString() === ’1’ // string -> number parseInt("12.3") === 12 parseFloat("12.3e-2") === 0.123 // number -> integer Math.round(1.53) === 2 Math.floor(1.53) === 1 // recognizers: typeof 2.3 === ’number’ Number.isInteger(2.3) === false isFinite(4/0) === false isNaN("foo"/2) === true

2.3.4 Strings

Strings are immutable sequences of Unicode characters
Syntactic support enclosed with single or double quotes
and backslash (à la C). Special meaning for some backslashed characters such as

\n, \’, \", etc.

Insert Unicode characters with \uXX or \uXXXX
Syntactically restrained to a single (logical) line (except for backticked (or back-

quoted) characters)

No character only strings of length 1

Computing with strings

Concatenation with +
comparison with <, <=, >, >= and == according to Unicode ordering (see also the

localeCompare() function)

String contagion: result is a string as soon as one argument is a string (or can be

converted into a string)

Length (in characters) with the .length property
Characters counted (à la C) from zero
Strings can also be seen as arrays of characters
(interpolated) creation with backquotes

Strings examples

VIDEO Transcript Code

"foo" + 42 === "foo42" "\u03c0 is PI".length === 7 "sin\ gle".length === 6 ‘1+2=${1+2}‘ === "1+2=3" "foobar".substring(3, 5) === "ba"

by Christian Queinnec 10

SLIDE 11

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

typeof "foobar" === "string" "foobar".indexOf(’b’) === 3 "foobar"[3] === ’b’ === true console.log("a\nbc\n"); // prints a bc

2.3.5 Functions

Defined with function
May have a name or be anonymous
Functions are first-class citizens (given as argument, returned as result or stored)
Result defined explicitly with return
Functions introduce a scope

(See also note #1)

And remember,

– values have types – but variables don’t have types! Function examples

SPECS VIDEO Transcript Code

Function invocation

Arity is not checked at invocation
Missing arguments become undefined
Superfluous arguments are ignored
However all arguments (even superfluous) can be obtained through the pseudo-

array arguments by Christian Queinnec 11

SLIDE 12

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

function sum () { let result = 0; for ( let i=0 ; i<arguments.length ; i++ ) { result += arguments[i]; } return result; } sum(sum(), sum(1, 2), 3); // 6 // parameters are sum(), sum(1,2) and 3 // arguments are 0, 3 and 3 // Other version of sum see seq-array-methods Exercise: min3.3 Exercise: min4.2 Exercise: circlefn.1 Exercise: strcut.1

arguments and arrays

SPECS VIDEO Transcript Code DETAIL

arguments is not an array though it offers the length property.
A real array might be directly obtained with rest parameters (see uses of ... below)

Function creation

VIDEO Transcript Code DETAIL

Functions can also be synthetized from text. This is inefficient and should be rare.
The returned function is not a closure and cannot use the local environment.

by Christian Queinnec 12

SLIDE 13

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

2.4 Syntax

2.4.1 Main syntactic features

Syntax a la C
Comments a la C /* */ or C++ //
Instructions may be explicitly separated with semi-colons or implicitly with end of

lines.

Most people recommend semi-colons at the end of instructions but that does not

help as in:

// bad writing: return a(x, f(y)) + b(y, f(x)); // better writing return a(x, f(y)) + b(y, f(x));

2.5 Objects

2.5.1 Characteristics of objects

Objects (in JavaScript) are associative arrays also known as hashtables
Objects are not objects (as in Object-Oriented Programming languages)
JavaScript objects contain properties, properties have a name and a value
Syntactic support for object creation with { key: expression, ... }
Access to properties with dotted syntax
Caution with final comma
As usual for hashtables, key-value pairs can be added, deleted, checked for exis-

tence (with keyword in) or enumerated (See also note #2) Objects examples

VIDEO Transcript Code

let point = { x: 11, y: 22 }; typeof point === ’object’ point.x === point.y / 2; point.z = 33; ’z’ in point === true; delete point.x; ’x’ in point === false point.x === undefined typeof point.x === ’undefined’

by Christian Queinnec 13

SLIDE 14

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Shortcut syntax

DETAIL

A shortcut syntax exists to create an object with properties initialized by variables

when the properties and the variables have the same name.

Another shortcut syntax exists to set a property which name is computed.

let a = 1, b = ’c’; let o = { a, [b]: 2 }; // is the same as let o = { a: a, c: 2 };

2.5.2 Properties

Properties names are strings (or anything that can be converted into a string)
Access to a property with a computed name is also available with square brackets

(but less efficient!)

let me = { firstname: "Christian", nickname: "QNC" }; me[’first’ + ’name’] === "Christian" (’last’ + ’name’) in me === false

Enumerations

Properties may be enumerated with a loop such as for (let variable in object) ...
The array of property names can also be obtained with Object.keys()
Order of keys is implementation dependent

let me = { firstname: "Christian", nickname: "QNC" }; Object.keys(me) === [’nickname’, ’firstname’] for ( let key in me ) { me[key] += ’.’; } me.nickname === ’QNC.’

(See also note #7)

2.6 Special values

2.6.1 Special values

undefined is returned by JavaScript when fetching a missing thing such as an

unexistent property or an uninitialized variable.

undefined has type ’undefined’
You may use null in places that require an object and you don’t want to provide
ne or you want to provide an orphan object without any inherited property. See

call or apply.

null has type ’object’
NaN is returned where a number is expected and the intended computation could

not yield a number

NaN has type ’number’
NaN is not equal to NaN

by Christian Queinnec 14

SLIDE 15

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

2.7 Arrays

2.7.1 Characteristics of arrays

SPECS

Arrays are ordered sequence of values
They may contain heterogeneous values
Created with new Array(initialLength) or square brackets
Accessed with a square brackets syntax
Arrays are objects with positive integer property names (starting with 0)
Arrays possess a .length property (also writable)
Dynamic structure with lots of methods mimicking stacks or queues

Arrays examples

VIDEO Transcript Code

let t = [ ’a’, ’b’, [5+6, ’b’] ]; typeof t === ’object’ Array.isArray(t) === true t[1] === t[2][1] t.length === 3 t[9] = ’d’; t.length === 10 t.length = 2; t[2] === undefined t[’c’] = 33; t[’c’] === t.c t.length === 2 Exercise: hash2array.1 Exercise: histogram.1 Exercise: shuffle.2

Arrays length

The length of an array is the first available index greater than all existing indexes.
Modifying the length may reduce the number of terms in the array.
Maximal length is 232 − 1

Arrays keys

DETAIL

Arrays are objects hence indexes are keys are strings
Numeric keys are converted into strings

let t = [ ’z’, ’a’, ’b’ ]; t[1] === ’a’ t[1.0] === ’a’ t[1 + 1e-16] === ’a’ t[1 + 1e-15] === undefined t[’1’] === ’a’ t[’1.0’] === undefined Exercise: purify.1 Exercise: invertobject.1

by Christian Queinnec 15

SLIDE 16

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Array methods

Stacks and queues with push, pop, shift, unshift
Browsing with forEach, entries, map, reduce
Search with index
Extraction/modification with splice and slice
and many others...

function sum () { return [...arguments].reduce((a, b) => a+b, 0); } sum(sum(), sum(1, 2), 3); // 6

2.8 Regular expressions

2.8.1 Regular expressions aka RegExps

Regular Expressions are syntactically supported, enclosed with /
They may also be created with new RegExp()
Regular expressions adopt the syntax of Perl regexps
Regexps are regular values: first-class citizens
Two main binary methods:

– search on strings – exec on regexps

typeof /^fo+/ === ’object’ i f ( "foobar".search(/^fo+/) >= 0 ) { let r2 = new RegExp("f(o+)(.*)a"); return r2.exec("foobar", "g"); // [ ’fooba’, ’oo’, ’b’, index: 0, input: ’foobar’ ] }

2.9 Classes

2.9.1 Predefined classes

Types are not classes!
Numerous predefined classes exist such as Date, Array, RegExp, Symbol, Error,

TypeError, etc.

Besides types boolean, string, number exist predefined wrapper classes such as

Boolean, String, Number

There are some automatic conversions between typed values and wrapped objects

but they can be distinguished!

Predefined classes are often containers for utility functions and just used for them
The valueOf() method unwraps wrapped values.

by Christian Queinnec 16

SLIDE 17

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Predefined classes specifics

SPECS VIDEO Transcript Code

let s = "a string"; typeof s === ’string’ s instanceof String === false let S = new String(s); typeof S === ’object’ S instanceof String === true s + S === "a stringa string" S.length === s.length typeof S.valueOf() === ’string’

2.10 Comparisons

2.10.1 Equalities

Identity is checked with ===. Identity means

– same type, – same value for booleans or numbers (except NaN), – both null or both undefined – same content for strings – same reference for all other values (objects, arrays, functions)

Equality is checked with ==.
Identity implies equality
null and undefined are equal
If not identical, operands are converted to a common ground (strings or boolean

towards numbers, objects to primitive values with toString() or valueOf()) and then compared again for equality. Equalities examples

VIDEO Transcript Code

All these expressions are truthy:

NaN !== NaN 11 > 3 NaN != NaN "11" < "3" 3 !== 1/0 "11" > 3 3 != 1/0 1 < 1 + 1e-15 undefined === undefined 1 === 1 + 1e-16 null !== undefined null == undefined [1] != [1] {a: 1} != {a: 1} "chaine" == "cha" + "ine" "chaine" === "cha" + "ine" 11 == ’11’ [] == false

2.11 Coercions

2.11.1 Conversions

DETAIL

JavaScript is rather lax
Many expressions do compute something

by Christian Queinnec 17

SLIDE 18

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

[4] * [4] // 16 [] * [] // 0 [] * {} // NaN {} * [] // expected expression, got ’*’ [4] * [4, 4] // NaN {} * {} // NaN

2.12 Expressions

2.12.1 About expressions

JavaScript expressions look like C or Java expressions. JavaScript adds to Java:

in, typeof, delete

Expressions are constants (boolean, numbers, strings, null), variables, operators

and their operands, function definitions and invocations, object creations (regexps, hashtable, arrays), etc.

precedence and associativity look normal.

Operators

on numbers + - * / %, comparison,
on 32-bit integers (shift, and, or, not, xor)
on strings +, comparison
on boolean (and, or, not)
assignments = and variants += *= <<= and incrementation or decrementation

++ --

sequence ,
ternary alternative ?:

Instructions

As in C, expressions are instructions
Sequences of instructions (enclosed within curly braces) i.e., blocks
Alternative if with condition, consequence and optional alternant if else. Mul-

tiple cases are handled with switch (including default and break)

Loops while and do while including break and continue
Iterating loops with for, for in and for of
Confinement with try catch finally and throw
Within functions or generators, return and yield

by Christian Queinnec 18

SLIDE 19

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

2.13 Functions and variables

2.13.1 Variables and scope

SPECS

Variables can only be used in their scope.
The scope of a variables (resp. definition) is the area of text where that variable

(resp. definition) is available.

The environment available in some place is the set of variables that can be used

at that place.

Scope may be

– global, – restricted to a function body or – restricted to a block.

Variables are introduced by var, by functions or by implicit references. With EC-

MAscript 2015, they may also be introduced with let and const.

Variables can exist or not and, when existing, be initialized or not.

Pattern matching arguments

SPECS VIDEO Transcript Code DETAIL

Instead of variables, patterns may be used

Scope examples

VIDEO Transcript Code DETAIL

let g0; // global scope, g0 exists uninitialized g1 = 1; // global scope, g1 exists initialized function f1 (l1) { // l1 function scope const l2 = l1 + 1; // l2 block scope i f ( l1 ) { let l3 = 3; // l3 block scope g2 = l3; // g2 global scope } // l3 no longer visible let l5 = 2 * l2; // l5 rest of block scope for ( let l4 in g0 ) { // l4 block scope l1 = l4; } // l4 no longer visible } // l1, l2, l5 no longer visible // f1 global scope Exercise: compose.1 Exercise: swapfn.1 Exercise: once.2

by Christian Queinnec 19

SLIDE 20

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE The old var

VIDEO Transcript Code DETAIL

var g0; // global scope, g0 exists uninitialized function f1 (l1) { // l1 function scope // l2, l3, l4 also visible here var l2 = l1 + 1; // l2 function scope i f ( l1 ) { var l3 = 3; // l3 function scope g2 = l3; // g2 global scope } for ( var l4 in l3 ) { // l4 function scope l1 = l4; } } // f1 global scope

Unexpected captures with var

DETAIL

Scopes visualization

DETAIL

by Christian Queinnec 20

SLIDE 21

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

v1 (resp. v2) do have the same scope: the body of the function (resp. the body of

the closest enclosing function).

The scope of v3 is the rest of the enclosing block (after the assignment sign). The

scope of v4 is the body of the for loop after the in word.

As soon as a variable is available, it can be enclosed in a closure.

(See also note #1) .

2.14 Types

2.14.1 The typeof operator

DETAIL

The typeof operator takes an expression as operand, evaluates it and returns its

type that is ’number’, ’string’, ’boolean’, ’object’, ’function’ or ’undefined’

If the operand is an unexistent variable, this is not an error, its type is ’undefined’.

2.15 Functions

2.15.1 The function declaration

The function keyword creates a function
As a non anonymous declaration, function assigns the created function to a

variable

As a non anonymous expression, function allows the name to be used in the

function body. Alternate syntax examples

SPECS VIDEO Transcript Code DETAIL

by Christian Queinnec 21

SLIDE 22

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

} return fact7; })(); fact1(4) === fact2(4) fact1(4) === fact4(4) fact1(4) === fact6(4) let oldfact1 = fact1; let oldfact2 = fact2; let oldfact4 = fact4; let zero = () => 0; fact1 = fact2 = fact4 = zero;

ldfact1(4) === 24
ldfact2(4) === 24
ldfact4(4) === 0

Arrow notation

DETAIL

Functions can also be declared with =>
Parentheses around a single variable may be omitted
curly braces around a body containing a single expression may be omitted as well

as the return keyword

let fact1 = (n) => n>1 ? n*fact1(n-1) : 1; let fact2 = n => n>1 ? n*fact2(n-1) : 1; let fact3 = n => { return n>1 ? n*fact3(n-1) : 1; };

(See also note #5) 2.15.2 Embedded scopes

SPECS VIDEO Transcript Code DETAIL

Functions can be defined within functions.

by Christian Queinnec 22

SLIDE 23

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Order of evaluation

DETAIL

In the body of a function, all function declarations are processed first (to ensure

mutual recursion)

function f2 () { function f21 (x) { return 2 * x; } return f22(3); function f22 (n) { return f21(1 + n); } } f2(); // 8

2.16 Global environment

2.16.1 Characteristics of global environments

The value of a variable is looked up first in the local environment from the nearest

enclosing function to the most outer enclosing function

If not found, it is looked up in the global environment.
There is always a global environment.
The global environment is represented by an object (a hashtable).
In a browser window, this is the value of window
In Node.js, this is the value of global

let gg = 44; global.gg === global[’g’ + ’g’]; var ggg; global.ggg === global[’ggg’]; ggg = 55; global.ggg === global[’ggg’];

2.17 Closures

2.17.1 Characteristics of closures

SPECS VIDEO Transcript Code

All functions are closures.
A closure is some code paired with the environment where that closure was de-

fined.

The value of a variable is looked up first in the environment of the enclosing func-

tion then in the environment where that closure was defined, etc.

function makePrefixer (prefix) { return function (word) { return prefix + ’ ’ + word; }; } let helloer = makePrefixer(’hello’); let welcomer = makePrefixer(’welcome’); helloer(’world’); // hello world welcomer(’home’); // welcome home

by Christian Queinnec 23

SLIDE 24

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Closures and free variable

DETAIL

Alternate but similar definition
prefix is free in prefixer
prefix is said to be closed in (captured by) prefixer

function makePrefixer2 (prefix) { function prefixer (word) { return prefix + ’ ’ + word; } return prefixer; }

Closures and mutable variables

SPECS VIDEO Transcript Code DETAIL

When a function is invoked, its variables are bound to the arguments.
The invocation creates new bindings.
Closures capture bindings not values.

function makeBox (content) { return { get: function () { return content; }, set: function (v) { content = v; } }; } const box = makeBox(10); box.get() == 10; box.set(22); box.get() == 22;

Poor man’s module

SPECS VIDEO Transcript Code DETAIL

by Christian Queinnec 24

SLIDE 25

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

2.18 Objects

2.18.1 Generation of objects

JavaScript is not an Object-Oriented Language but a Prototype Based Language.
Objects (in OOP-sense) are created by classes acting as waffle makers: all waffles

do have the same behaviors (methods).

Object (in Prototype sense) are created by cloning, the daughter cell inherits all

the behaviors the mother had at cloning-time. After cloning both may evolve inde- pendently. Behaviors

VIDEO Transcript Code

Methods (in OOP parlance) are functions stored in properties of an hashtable (an
bject in JavaScript parlance)

let o = { a: 2, m1: function (b) { return this.a + b; } };

.m1(5);
.m2 = function (c) {

return this.a * c; };

.m2(5);

Invocation and this

Two ways to invoke a function

f(2, x+3)

.f(2, x+3)
When a function is invoked on an object as a method, the keyword this is bound

to that object

When a function is not invoked as a method, the keyword this is also bound to

something. The this keyword

VIDEO Transcript Code DETAIL

this is a keyword not a variable
this cannot be closed over by function
Invoking a function binds a new this

by Christian Queinnec 25

SLIDE 26

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

this and =>

VIDEO Transcript Code DETAIL

this is not changed by =>
or can be explicitly specified in invocations

by Christian Queinnec 26

SLIDE 27

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

Object.getPrototypeOf(a).squareArray = squareArray; a.squareArray(); // [100, 400, 900]

Invocation

SPECS VIDEO Transcript Code

Functions are also objects with some specific invocation methods: call, apply

and bind

2.18.2 Functions and hashtables

SPECS VIDEO Transcript Code DETAIL

Functions are also hashtables

function incr (x, dx) { dx = dx || incr.default.dx; return x + dx; } incr.default = { dx: 1 }; incr(20, 2); // 22 incr(20); // 21

Functions and default arguments

SPECS DETAIL

Default value may be specified for variables

function incr (x, dx = 1) { return x + dx; } incr(20, 2); // 22 incr(20); // 21

by Christian Queinnec 27

SLIDE 28

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

const decr = (x=100, dx) => x-dx; decr(105, 3) // 102 decr(undefined, 3) // 97 Exercise: checkargs.1

2.19 Prototypes

2.19.1 The new keyword

VIDEO Transcript Code

new allocates an object,
adds some internal information (constructor and prototype),
then calls a user’s function to initialize the object.

Constructor and instanceof

An object is linked to its constructor when created with the new keyword
Constructors are functions
All functions are associated to a prototype.
instanceof links objects and their constructor

function Thing (stuff) { this.myKind = ’Thing’; this.stuff = stuff; } let t1 = new Thing(1); let t2 = new Thing(2); t1.constructor === Thing; t1 instanceof Thing === true

by Christian Queinnec 28

SLIDE 29

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Constructor visualization

SPECS

Print this figure and pin it to your wall.

This is the most important thing to memorize from JavaScript!

Green is for implementation pointer, pink for the special constructor property,

black for regular properties. Constructor property

SPECS VIDEO Transcript Code DETAIL

The constructor property is writable
but not used to compute instanceof
You should have good reasons if you want to change it!

function Thing (stuff) { this.myKind = ’Thing’; this.stuff = stuff; } let t1 = new Thing(1); t1 instanceof Thing === true t1.constructor = undefined; t1 instanceof Thing === true delete t1.constructor; t1 instanceof Thing === true const oldThing = Thing; function Thing () {} t1 instanceof Thing === false t1 instanceof oldThing === true

return and Constructor

VIDEO Transcript Code DETAIL

By default, a constructor terminates with an implicit return this
However, you may return another value

by Christian Queinnec 29

SLIDE 30

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

function Singleton (initial) { i f ( ! Singleton.default ) { Singleton.default = initial; } return Singleton.default; } let o1 = new Singleton({a: 1}); let o2 = new Singleton({b: 3});

2.a === 1
1 === o2

Exercise: spycount.1 Exercise: memoize.1

2.19.2 Property lookup

VIDEO

All objects have a prototype
The prototype of an object is obtained with Object.getPrototypeOf()
To access a property such as o.p, p is first looked up in o, then in the prototype
f o, then in the prototype of the prototype of o, etc.

Exercise: protochain.1 Exercise: getcolor.1

Property lookup visualization Sharing behaviors

Store properties common to all instances of a constructor in the prototype of that

constructor.

function Thing (stuff) { this.myKind = ’Thing’; this.stuff = stuff; } Object.getPrototypeOf(Thing) !== Thing.prototype let t1 = new Thing(1); t1.other = 111;

by Christian Queinnec 30

SLIDE 31

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

let t2 = new Thing(2); Thing.prototype.binz = function (d) { return (this.stuff += d); } t1.binz(10); t2.binz(10);

Sharing behaviors visualization Prototype handling

Object.create(p) creates a new object which prototype is p
Object.setPrototypeOf(o, p) sets the prototype of o to be p
Sharing properties does not depend on constructors

let o = {}; let p = Object.create(o); // cloning Object.getPrototypeOf(p) === o; Object.getPrototypeOf(Object) === null; Exercise: clone.1

by Christian Queinnec 31

SLIDE 32

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Property mutation

VIDEO

Mutating a property is done in the object itself
A sort of copy-on-write

let p = { a: 1 }; let o = Object.create(p); p.a === o.a; Object.keys(o); // []

.b = 2;

Object.keys(o); // [’b’] p.b === undefined

.a = 3;

Object.keys(o); // [’a’, ’b’] p.a < o.a; p.c = 4; Object.keys(o); // [’a’, ’b’]

Property owned or inherited

Properties can be inherited from the prototype
or be proper to the object
Object.keys(o) returns the names of the proper (enumerable) properties of o
while for (let key in o) ... enumerates all the (enumerable) proper and in-

herited properties of o

Object.getOwnPropertyNames(o) returns the names of all proper (enumerable
r not) properties of o
while o.hasOwnProperty(prop) checks whether prop is a name of a proper prop-

erty of o

Finally prop in o checks whether prop is a property (proper or inherited, enu-

merable or not) of o by Christian Queinnec 32

SLIDE 33

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Property characteristics

SPECS DETAIL

Properties have several characteristics

– a name and a value – read-only or writable – enumerable or not. Non enumerable means that the property does not appear in the result of Object.keys() nor in the result of for (let key in o) ... – configurable or not. Configurable means that the characteristics of the property may be changed and the property may be deleted.

Properties may be defined or fine-tuned with Object.defineProperty(obj, prop, descriptor)
Property description may be obtained via Object.getOwnPropertyDescriptor(obj, prop)

Property characteristics

DETAIL

let ob = { a: 1 }; Object.defineProperty(ob, ’bb’, { enumerable: false , // hidden configurable: false , // cannot be deleted or modified writable: false , // immutable hence constant value: 813 });

b.bb;

// 813; Object.keys(ob); // [’a’]

b.hasOwnProperty(’bb’); // true
b.bb += 1; ob.bb;

// 813 delete ob.bb; ob.bb; // 813

Property accessors

SPECS DETAIL

Functional getter and setter may also be defined with Object.defineProperty(obj, prop, descriptor)
These getter and setter are used with a property syntax not an invocation syntax.

by Christian Queinnec 33

SLIDE 34

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Object extensibility

DETAIL

Objects are, by default, extensible: they may acquire new (own) properties
After Object.preventExtensions(obj), new (own) properties cannot be added

to obj.

Object.isExtensible(obj) recognizes such objects.
If an object is not extensible and all its own properties are non configurable (cannot

be removed) then the object is sealed and recognized by Object.isSealed(obj). Own properties may still be writable!

Object.freeze(obj) marks an object as immutable. Such objects may be rec-
gnized with Object.isFrozen(obj) A frozen object is not extensible, its own

properties are read-only and its own properties descriptions cannot be modified. Inherited properties are not impacted! 2.19.3 Iterator and iterable

SPECS VIDEO Transcript Code DETAIL

An iterator is an object with a next method that returns a value with two proper-

ties: value and a boolean done

done is true when the iterator is exhausted.

Iterable interface

SPECS DETAIL

An iterable object has a specific method that returns an iterator
Iterable objects can be iterated with for of
The name of the specific method is the value of the global variable Symbol.iterator

by Christian Queinnec 34

SLIDE 35

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

2.20 Inheritance

2.20.1 Class inheritance

SPECS VIDEO Transcript Code

Sub-classing and calls to super

Class inheritance visualization by Christian Queinnec 35

SLIDE 36

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Class inheritance revisited

SPECS

Variant using the constructor property (supposed immutable)

Class inheritance in ECMAscript 2015

VIDEO Transcript Code

class Worker { constructor (name) { this.name = name; } getSalary () { return 1; } } class Plumber extends Worker { constructor (nickname) { super(nickname); this.nickname = nickname; } getSalary () { return 10 * super.getSalary(); } }

by Christian Queinnec 36

SLIDE 37

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE Class expression

Classes may be dynamically computed
The class to extend can also be computed
However, this can only be used after calling super

2.21 Exercises of style

2.21.1 Interlude

VIDEO Transcript Code

JavaScript proposes more than one way to program
Program a counter with two operations increment and reset

Functional counter

SPECS

by Christian Queinnec 37

SLIDE 38

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE The counter is private and can only be accessed via the interface. However there is no way to know if such a function is a counter. The counter is accessed via a get/set technique but all counters have their own closures reset and increment.

The counter is not private, it can be modified by anyone. The counter is a raw

bject without more specific type however the interface shows explicitly that the object

supports increment and reset methods. All counters have their own closures reset and increment. Class-less object counter with accessors

SPECS

The counter is private and can only be accessed via the interface. However there is no way to know if such a function is a counter. The counter is accessed as a regular

property. All counters have their own closures reset and increment.

Classy object counter

SPECS

by Christian Queinnec 38

SLIDE 39

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

class Counter { constructor () { this.counter = 0; } reset (value) { return (this.counter = value); } increment () { return ++this.counter; } } let c1 = new Counter(); c1.increment() === 1 c1.increment() === 2 c1.reset(5) === 5 c1.increment() === 6 typeof c1 === ’object’ c1 instanceof Counter === true c1.counter // not encapsulated

The counter is not private, it can be modified by anyone. The counter is an object

f class Counter to which new methods can be added. However the interface shows

explicitly that the instance supports increment and reset methods. All counters share the code of their methods. Classy object with private counter

SPECS

class PrivateCounter { constructor () { let counter = 0; this.increment = function () { return ++counter; } this.reset = function (value) { return (counter = value); } } } let c1 = new PrivateCounter(); c1.increment() === 1 // increment c1.increment() === 2 // increment c1.reset(5) === 5 // reset c1.increment() === 6 // increment typeof c1 === ’object’ c1 instanceof PrivateCounter c1.counter === undefined

The counter is private and can only be accessed via the interface. The counter is an object of class PrivateCounter to which new methods can be added. However the interface shows explicitly that the instance supports increment and reset methods. All instance have their own closures reset and increment.

2.22 Library

2.22.1 Library

A language is defined by its syntax, its operators, keywords and their meaning
A language also rests on predefined libraries (functions, classes, methods, etc.)

by Christian Queinnec 39

SLIDE 40

Diffuse Javascript 2 JAVASCRIPT - THE LANGUAGE

and is enriched by more and more new libraries (for instance, DOM within browsers,

the process object for Node.js) but does not depend on them.

JavaScript library defines variables, functions, classes and methods.

Library classes and methods

More or less reflective functions in Object
Predefined methods on Strings (length, match, etc.), on Arrays (length, forEach,

etc.), on Functions (call, apply, bind), on RegExps, etc.

The Math module with max, min, trigonometric lines, sqrt, logarithm, etc.

2.23 Conclusions on the language

2.23.1 Conclusions

Taxonomy of values, see

(See also note #1)

Like other programming languages: operators, expressions, instructions
Values are typed, variables are not typed. See typeof and instanceof
Functions are closures; functions are first-class values. Arity is not checked, see

arguments

Objects are hashtables holding properties. Properties may be characterized and
enumerated. Nearly every value is an object (arrays, functions)
Methods are functions held in properties, see this
Objects are associated to a chain of prototypes to which they may delegate.
Classes, methods and super invocations are now available on top of prototypes.

Duck typing

The “type” of an object in JavaScript is defined as the set of properties and behav-

iors this object possesses.

If it quacks (i.e., it has a quack property, a nullary function) then this is a duck.

Conclusions

JavaScript

– has numerous features, – has rules with exceptions, – has weird coercions hence its laxness

JavaScript offers a variety of programming styles:

– functional, – prototype-based, – object-oriented

but JavaScript is fun!

Other interesting resources: JavaScript Garden by Christian Queinnec 40

SLIDE 41

Diffuse Javascript 3 CONCURRENCY

3 Concurrency

3.1 Foreword

Concurrency is a big word in the context of JavaScript since the code you write is run sequentially even if, underneath, the runtime looks like being concurrent. For instance, the runtime knows how to request two servers concurrently but, when these requests are completed, it will signal your code only sequentially. The appearance of concurrency is given via numerous linguistic features, conventions and usages. In this section, are successively presented:

Orphan computations
Callback
Event
Promise
Generator
Worker

3.2 Presentation

3.2.1 Event loop

SPECS

JavaScript is single-threaded that is, it evaluates only one thing at every moment.
JavaScript is non preemptive that is, when some of your code runs, this code will

run it until it terminates.

JavaScript is organized around an event loop:

– This event loop maintains a list of tasks to run. – Whenever JavaScript finishes one task, it will pick and run another one from the list. – Whenever something external happens (an HTTP request comes back, a database query returns, a click on a button, etc.) the associated handler to process that event is inserted in the list of tasks to run. Single thread

JavaScript is single-threaded
Therefore

– no need for atomic section – no need for synchronized methods (in Java parlance)

When your code runs, no other code runs: you are alone
Therefore active wait blocks everything!

by Christian Queinnec 41

SLIDE 42

Diffuse Javascript 3 CONCURRENCY Non preemptive

SPECS

JavaScript is non preemptive
When your code runs, you cannot be interrupted, you run till your code termi-

nates.

Of course, you should terminate one day!

setTimeout(() => console.log("I run"), 0); while ( true ) { } // never ends // so "I run" will not be printed

Orphan computation

SPECS VIDEO Transcript Code

With setTimeout, functions can be invoked after a given delay (at least)
these functions are only useful for their side-effects
the value they return will be ignored
the exception they might throw will be ignored (and thus becomes an uncaught

exception)

the body of the function is considered as an orphan computation.

let timeout = setTimeout( function () { // perform something... }, 100); // wait at least 100 milliseconds clearTimeout(timeout); // revocation

Uncaught exception

DETAIL

Uncaught exceptions are bad!
Uncaught exception are produced when orphan computation errs!
They may be noticed (with implementation-dependent features)
but the context of the exception is probably lost.

// Node process.on("uncaughtException", function(err) {...}); // browsers window.onerror = function(messageOrEvent, source, lineno, colno, error) { ...};

Computation chunks

Some operations have unbounded duration (file access, HTTP response, database

query, waiting for a click, etc.)

Busy waiting blocks the process, the user interface, responses to events, etc.
So computation should be composed of reactions to events.

by Christian Queinnec 42

SLIDE 43

Diffuse Javascript 3 CONCURRENCY

3.3 Callback

3.3.1 Callback

Operations which duration is unknown often takes an additional argument: a

callback representing how to process the result of the operation.

Reading a file, querying a database, fetching an URL, parsing a document, waiting

for a click are asynchronous.

An asynchronous operation returns normally as soon as the callback is registered.
The callback might be invoked later, if at all.
Invoking the callback is an orphan computation therefore the value returned by a

callback or the thrown exception will be ignored. Node callback convention

A callback in Node takes two arguments: an error and some data (in that order).
if the error is null then the data is meaningful.

const fs = require(’fs’); fs.readFile("file/name", ’utf8’, function (error, data) { i f ( error ) { // handle the error } else { // do something with data } });

Callback common mistakes

VIDEO Transcript Code

by Christian Queinnec 43

SLIDE 44

Diffuse Javascript 3 CONCURRENCY Callback hell

VIDEO Transcript Code

How to combine three asynchronous tests in Jasmine
and check the compute function taking a callback ?

describe(’combine tests’, function () { it(’combine 3 tests’, function (done) { compute(..., function (error1, result1) { // 1st test expect(error1).toBe(null); expect(result1).toBe(...); compute(..., function (error2, result2) { // 2nd test expect(error2).toBe(null); expect(result2).toBe(...); compute(..., function (error3, result3) { // 3rd test expect(error3).toBe(null); expect(result3).toBe(...); done(); // end of tests }); }); }); }); });

Synchronous or asynchronous callback

With the next two functions, the callback is invoked with the Euclidian quotient

and remainder of n and p.

Both prints 19 15
However the second always returns undefined and the result of the callback is

lost.

The second callback is said to be asynchronous since it is run as an orphan com-

putation.

function cbdivideSync (n, p, cb) { let q = Math.floor(n/p); let r = n - p * q; return cb(q, r); } function cbdivideAsync (n, p, cb) { let q = Math.floor(n/p); let r = n - p * q; setTimeout(() => cb(q, r), 0); } cbdivideSync(813, 42, console.log) // prints 19 15 cbdivideAsync(813, 42, console.log) // prints 19 15 Exercise: cbgcd.1 Exercise: cbchain.1

3.4 Events

3.4.1 Events

In Node, many objects emit various kinds of events; these objects are event emit-
ters. Events are received by functions named listeners.

by Christian Queinnec 44

SLIDE 45

Diffuse Javascript 3 CONCURRENCY

Within browsers, user’s interactions, AJAX requests, etc. also emit events received

by listeners.

// In Node.js or within browsers (using JQuery): emitter.on(’eventName’, function (...args) { ... }); emitter.emit(’eventName’, ...args);

Event emitters

SPECS

The on (or addListener) method of an event emitter adds a listener to that emitter
n a specific event name.
On a given emitter and an event name, more than one listener may be added.
Listeners can be removed with removeListener or removeAllListeners.
Listeners may be obtained with the listeners method.
The emit method of an emitter emits a named event accompanied with some data.

All the related listeners are then invoked synchronously and orderly.

The values returned by listeners are ignored but a thrown value will stop the

invocation of the remaining listeners and will become the value returned by emit. Event emitters example

SPECS VIDEO Transcript Code

// In Node.js const EventEmitter = require(’events’); class MyEmitter extends EventEmitter {} const myEmitter = new MyEmitter(); { myEmitter.on(’newListener’, function (name, f) { myEmitter === this; console.log(‘Got new listener on ${name}‘); }); myEmitter.on(’error’, console.log); // displays ’Got new listener on error’ myEmitter.on(’yell’, function (sentence) { console.log(sentence.toLowerCase()); }); // displays ’Got new listener on yell’ myEmitter.on(’yell’, function (sentence) { console.log(sentence.toUpperCase()); }); // displays ’Got new listener on yell’ myEmitter.emit(’yell’, ’Hello world’); // displays ’hello world’ // displays ’HELLO WORLD’ }

Event emission

Listeners are invoked synchronously and orderly.
To emit an event is similar to the following code:

by Christian Queinnec 45

SLIDE 46

Diffuse Javascript 3 CONCURRENCY

// myEmitter.emit(name, ...args) myEmitter.listeners(name) .forEach((listener) => listener.apply(this, [...args]); );

Comparing event and callback

Listeners are invoked synchronously, callbacks can be synchronous or asynchronous

(and mostly run as orphan computation).

An event may be multiply emitted while an asynchronous callback is often called
nly once.
For a single event, more than one listener can be present. Only one callback can

appear where a callback is needed.

Listeners can be added or removed dynamically.
Adding, removing, processing listeners signal events.
Event listeners must know their event emitter, the reverse is not necessary.

Exercise: listener.1 Exercise: completion.1

3.4.2 Event in browsers

DOM event listeners in browsers are somehow different. See excellent figure from

W3C documentation.

Listeners can be either capturing listeners or bubbling listeners See the useCapture

argument of the DOM method target.addEventListener(type, listener[, useCapture]).

Capture phase When a click arrives, DOM elements from the biggest to the small-

est (excluded) are enumerated and their capturing listeners are invoked. The stopPropagation method may abort this process.

Target phase The listeners of the smallest element (the target) are then invoked.

The preventDefault method suppresses the default behavior. The stopPropagation method may abort this process.

Bubbling phase If the event is bubbles-able, the DOM elements from the small-

est to the biggest are enumerated and the bubbling listeners are invoked. The stopPropagation method may abort this process. Event summary

Many features of node are event emitters (http.get, etc.)
The error event is often used to signal an error for an event emitter.
Callbacks are used when a computation can yield a result or an error.
Events are used when a computation can signal many other things in supplement:

progress, state change, etc.

However all events emitted without listeners are lost.

by Christian Queinnec 46

SLIDE 47

Diffuse Javascript 3 CONCURRENCY

3.5 Promise

3.5.1 Promise

VIDEO Transcript Code

A Promise is a placeholder for the result of some computation.
One may attach to a promise, functions to further its success (also called fulfill-

ment) or its failure (also called rejection).

These sequels may be attached during or even after the computation of the promise.
Once the computation of a promise is terminated with a success or a failure, the

promise is known as resolved (fulfilled or rejected) and the status of the promise cannot be altered.

cf. Promise specification
To resume, when a promise is created, its state is pending. Once terminated or

resolved, its status may be fulfilled or rejected. Promise basic signatures

A pair of functions to handle success and failure can be attached with the then

method of a promise

A function to handle a failure can be attached with the catch method of a promise
Sequels are run as orphan computations.

let promise = ... promise.then(success, failure) promise.then(success) promise.catch(failure) promise.then(success).catch(failure) // with success(result) // and failure(exception)

Promise visualization

Failures can occur within the promise computation but also within the sequels.

An uncatched throw in a sequel induces a failure.

Failures can be caught by catch sequel and fixed. A failure is fixed when a catch

sequel returns normally. The next figure illustrates the differences between a binary then and a sequence of then-catch. Red stars represent the occurrence of a failure. Question marks represent an uncaught failure. by Christian Queinnec 47

SLIDE 48

Diffuse Javascript 3 CONCURRENCY The first segment to the left represents the computation of the body of the promise which may return a value or throw an exception (marked with a red star). Segments under s or f represents the computation of the success or failure sequels. The figure on the right shows that a failure in the success sequel can be fixed by the failure sequel. However in all cases, if the failure sequel fails, the failure will become uncaught. Promise example of use

VIDEO Transcript Code

Let us suppose that pdivide takes two numbers and returns a promise.
A success sequel of this promise will receive an object with properties quotient

and remainder

But if the divider is zero, then a failure sequel wil receive a “division by zero” error.

Sequel vs continuation

DETAIL

The term continuation is often misused. A continuation, in semantics parlance,

represents the entire rest of the whole computation.

A callback only represents some computation to be done after one precise event.
We use “sequel” for a function attached to a promise. A sequel is not a continua-

tion Comparing sequel and callback

DETAIL

When a computation requires a callback, the (single) callback must be explicited

before the computation starts.

Conversely a promise specifies a computation. Multiple sequels can be attached

to that promise later or even after its resolution. by Christian Queinnec 48

SLIDE 49

Diffuse Javascript 3 CONCURRENCY Chaining sequels

Promises can be chained.
Sequels may yield a value or a promise (more exactly a then-able object).

The Promise machinery turns that result into new (successful) Promise to which new sequels can be attached.

When a sequel f throws an exception, the Promise machinery turns it into a new

failed Promise. The failure sequels of f will then be invoked with that exception and the success sequels between f and the failure sequels will be ignored.

k

s1, s5 run is

k
k

s2 runs is

k
k

ko f3 runs is

k

ko f3 runs is

k

ko f6 runs is ko f3, f4, f6 run

by Christian Queinnec 49

SLIDE 50

Diffuse Javascript 3 CONCURRENCY 3.5.2 Promise composition

Promises can be orchestrated
Promise.all and Promise.race are the basic primitive methods.
Libraries such as bluebird or when offer much more methods.

Promise.all

Promise.all takes an array (in fact an iterable) of promises and returns a new

promise, say p

If any of the given promises fails, then p fails.
If all given promises succeed, then p succeeds with the array of results.

Promise.all([promise1, promise2, ...]) .then(function([result1, result2, ...]) { ... })

Promise.race

Promise.race takes an (non-empty) array (or iterable) of promises and returns a

new promise, say p

The first given promise that resolves that is, fails or succeeds, resolves accordingly
p. The other unresolved promises continue to run but do not (cannot in fact) alter

the status of p. Attention: Libraries often offer Promise.any, a variant that succeeds if one of the given promises succeeds and fails if all given promises fail. Do not confuse Promise.any and Promise.race. Promisification

Node uses callbacks rather than promises.
Some libraries (such as bluebird) propose to “promisify” Node functions. See also

(See also note #6)

const Promise = require("bluebird"); const fs = require("fs"); Promise.promisifyAll(fs); fs.readFileAsync("file.js", "utf8").then(...)

3.5.3 Creation of promises

Promises can be created ex abrupto with new Promise
The inner computation (say the promise body) receives two (implementation-dependent)

functions to invoke after success or failure. The reject function will schedule a failure sequel(s). The resolve function is often used to schedule the invocation of the success sequel(s) (but its behavior is more complex, cf. (See also note #5) ).

Once resolved or rejected, the status of the promise cannot be modified.
The inner computation (the Promise body) starts immediately.

by Christian Queinnec 50

SLIDE 51

Diffuse Javascript 3 CONCURRENCY Example of creation of promises

VIDEO Transcript Code

let p = new Promise(function (resolve, reject) { // compute... i f ( ... ) // all goes well resolve(...); // resolve with some result } else { reject(...); // reject with some value } });

Promise resolution

DETAIL

The inner computation (the promise body) is not a sequel, it should invoke one of

resolve or reject to trigger the sequels.

Later calls of resolve or reject cannot modify the status of the promise: they

are ignored.

If neither resolve nor reject is invoked, the inner computation will die silently

and stay as pending indefinitely.

A sequel may simply return or throw to trigger its own sequels.
The resolve-d value from the inner computation or the return-ed value of a

sequel may also be a Promise or a then-able thing (object or function). The Promise machinery (more precisely, Promise.resolve method) will convert these into promises. then-able values

DETAIL

The Promise.resolve method will convert a (maybe then-able) value into a Promise.
A then-able value (object or function) possesses a then method.
This then method have the interface of an inner computation.

function isThenable (thing) { return thing !== null && ( typeof thing === ’object’ || typeof thing === ’function’ ) && typeof thing.then === ’function’; }

Promise.resolve

SPECS DETAIL

let p1 = new Promise(...); p1 === Promise.resolve(p1); let p2 = Promise.resolve(8); // fulfilled Promise p2.then(function (result) { console.log(result); // prints 8 }); let pp1 = { then: (resolve, reject) => reject(9) }; let p3 = Promise.resolve(pp1); // rejected promise p3.then(null)

by Christian Queinnec 51

SLIDE 52

Diffuse Javascript 3 CONCURRENCY

.catch((exc) => console.log(’Exc’ + result)); // prints Exc9 let pp2 = { then: (resolve, reject) => resolve(7) }; let p4 = Promise.resolve(pp2); // fulfilled promise p4.then(console.log); // prints 7

Promisification implementation

How to turn the asynchronous callback function fs.readFile into a promise ?

fs.readFileAsync = function (file, mode = ’utf8’) { return new Promise(function (resolve, reject) { fs.readFile(file, mode, function (err, data) { i f ( err ) { reject(err); } else { resolve(data); } }); }); };

Promise timeout

Create a promise that resolves with the result of a given promise only if that given

promise is resolved (i.e., fulfilled or rejected) in less than delay milliseconds.

function atMost(promise, delay) { return new Promise(function (resolve, reject) { setTimeout(function () { reject(new Error(’Too long’)); }, delay); promise.then(resolve, reject); }); }

Promise.any Promise.any takes an array of promises and return a new promise that fails if all these input promises fail. If one of the input promises succeeds then the new promise succeeds. This can be seen as the contrary of Promise.all.

Promise.any = function (promises) { // assume promises not empty: return new Promise (function (resolve, reject) { let done = promises.map(promise => false); function promiseHandler (promise, index) { promise.then(resolve, function (reason) { done[index] = true; i f ( done.every(done => done) ) { reject("All promises fail!"); } }); } promises.forEach(promiseHandler); }); }

by Christian Queinnec 52

SLIDE 53

Diffuse Javascript 3 CONCURRENCY

Exercise: sequencepromises.1 Exercise: anycouple.1 Exercise: crosscheck.1

Promise style

Chaining promises implies to return them rather than just starting them.

p1.then(function (r1) { p1.then(function (r1) { p2.then(function (r2) { return p2; ... }) }).catch(failure1) .catch(failure2) .then(function (r2) { }).catch(failure1); ... }).catch(failure2);

In the left part, p1 has two sequels and so has p2. These promises and their sequels are unrelated. In the right part, p1 is the head of a long series of sequels and failure of p2 will be first caught by failure1. Prefer the writing on the right that is less involved. Comparing promise and event

More than one listener or sequel may be attached to an event or a promise.
When an event is emitted, listeners are called synchronously. Therefore it is not

possible to listen to a past event.

It is possible to add then or catch sequels to already resolved promises.
An event may be signaled more than once. A promise gets resolved only once.

3.6 Generator

3.6.1 Coroutine

JavaScript generators are inspired by coroutines.
A coroutine is a function that can be paused and resumed.
A coroutine produces a result when paused and
can receive information when resumed.
Coroutines allow to interlace computations.

3.6.2 Generator

Generators are produced by function*
Invoking a generator produces a new iterator (with additional methods) that re-

turns objects with value and done properties.

The body of the iterator runs as an orphan computation.
The iterator is paused with yield, the argument of yield is the value returned by

the iterator.

return sets the last value of the iterator.

by Christian Queinnec 53

SLIDE 54

Diffuse Javascript 3 CONCURRENCY

function *g (start) { yield start+1; yield 2*start; return 3*start; }; let it = g(10); let r1 = it.next(); r1.value // 11 r1 = it.next(); r1.value // 20 r1 = it.next(); r1.value // 30 r1.done // true

Generator resumption

SPECS VIDEO Transcript Code

The resumer of a paused iterator can transmit information via the next method.

function *g (start) { let stop = yield start+1; return yield 2*stop; }; let it = g(10); let r1 = it.next(); r1.value // 11 r1 = it.next(21); // 21 becomes the value of stop r1.value // 42 r1 = it.next(99); // 99 becomes the returned value r1.value // 99 r1.done // true

Generator methods

SPECS VIDEO Transcript Code

In JavaScript, a computation returns a value or raises an exception.
Instead of resuming a paused iterator with some value, the resumer may throw a

value within the iterator with its throw method.

The resumer can also terminate an iterator with its return method that sets the

final value returned by the iterator.

function *g5 (start) { while ( true ) { try { start = yield start+1; } catch (exc) { start = exc; } } } let it = g5(0); let r1 = it.next(); r1.value // 1 r1 = it.throw(10); r1.value // 11 r1 = it.next(11); r1.value // 12

by Christian Queinnec 54

SLIDE 55

Diffuse Javascript 3 CONCURRENCY

r1 = it.return(99); r1.value // 99 r1.done // true Exercise: gfilter.1 Exercise: gmerger.1 Exercise: sumone2n.1

3.6.3 Generator delegation

SPECS VIDEO Transcript Code

yield may appear in loops, alternatives, etc. but not in internal functions.
yield* delegates to an iterable the production of values.

function *g3 (start) { while ( start < 5 ) { yield start++; } } function *g4 (start) { yield "start"; yield *g3(start); yield *[’s’, ’t’]; return "op"; } it = g4(0); // values: ’start’, 0, 1, 2, 3, 4, ’s’, ’t’, ’op’

Generators define sequential computations chopped into pieces that can be paused

and then resumed.

An iterator keeps in memory where it was paused that is where it will be resumed

with a value or where an exception would be thrown. by Christian Queinnec 55

SLIDE 56

Diffuse Javascript 3 CONCURRENCY Comparing generator and promises

VIDEO Transcript Code

Generators shine with promises.
Iterators can yield promises.
Helper functions (see exhaust in the example below) can manage these promises

and attach to them then and catch sequels that will resume the iterator accordingly with next and throw methods.

This allows to interleave sequential (synchronous) code with asynchronous promises

(of unknown duration)! The following example proposes a function, named portfolio, that computes the value of this portfolio.

by Christian Queinnec 56

SLIDE 57

Diffuse Javascript 3 CONCURRENCY

function* portfolio () { let wallet = JSON.parse(fs.readFileSync(’wallet.json’)); let total = 0; for ( name in wallet ) { let count = wallet[name]; let url = ‘${quoteserver}${name}‘; let body = yield http.getAsync(url); body = body.replace(/^\n\/\//, ’’); let value = JSON.parse(body)[0].l_cur; total += count * value; } return total; } exhaust(portfolio) .then((total) => { console.log(‘total=${total}‘); }).catch(console.log);

async and await

Mixing synchronous and asynchronous code is the heart of JavaScript program-

ming

Generators and promises fit well but require some helper functions
Two new syntaxes will be added to JavaScript soon (they are not present in ES6)

to get rid of these helper functions thus unencumbering code

The new keyword async qualifies a function definition as able to use the await

keyword in its body.

An async function returns a Promise.
The body of an async function is run as an orphan computation.
The new keyword await expects a promise as argument and expects its resolution.

If the promise is successful, await returns the resolved value. In case of a rejected promise, await throws the rejection value.

To sequentialize code, to confine errors with try catch eases debugging.

async function (..vars..) {..body..} // is somewhat similar to function (..vars..) { /* function exhaust as above */ return exhaust((function* () { ..body.. }).bind(this)); }

The previous example computing the value of a portfolio can be, much simply, rewrit- ten as:

async function portfolio () { let wallet = JSON.parse(fs.readFileSync(’wallet.json’)); let total = 0; for ( name in wallet ) { let count = wallet[name];

by Christian Queinnec 57

SLIDE 58

Diffuse Javascript 3 CONCURRENCY

See the next “interlude” section for other examples comparing all these various tech- niques.

3.7 Exercises of style

3.7.1 Interlude

VIDEO Transcript Code

JavaScript proposes more than one way to program.
To illustrate this, we propose to program a function, named concatenate, that

given an array of URLs collects the titles of these web pages.

To simplify code, we neglect failures.
However we will not use any framework in order to keep code simple.

by Christian Queinnec 58

SLIDE 59

Diffuse Javascript 3 CONCURRENCY

} } conc(0, {}); }

Collector with promises We will use this promisified version of https.get for the next examples.

With help of makeBodyPromise, we may now write:

by Christian Queinnec 59

SLIDE 60

Diffuse Javascript 3 CONCURRENCY

step(it.next()); } catch (e) { reject(e); } }); } function *conc () { titles = {}; for ( let url of urls ) { let title = extractTitle(yield makeBodyPromise(url)); titles[url] = title; } return titles; } return exhaust(conc); }

Collector with async/await

VIDEO Transcript Code

This example requires node-v8 to be run, node-v6 does not support async/await.

async function concatenate (urls) { let titles = {}; for ( let url of urls ) { try { let body = await makeBodyPromise(url) titles[url] = extractTitle(body); } catch (e) { titles[url] = undefined; } } return titles; } // concatenate(urls).then((titles) => titles);

Another variant with a lot more concurrency:

async function concatenate (urls) { let bodies = await Promise.all(urls.map(makeBodyPromise)); let titles = bodies.map(extractTitle); let result = {}; urls.forEach((url, index) => { result[url] = titles[index]; }); return result; } // concatenate(urls).then(titles => titles);

3.8 Worker

3.8.1 Worker

Since JavaScript is organized around an event loop, long computations must be

chopped in small pieces for the sake of reactivity.

Another solution is to use Workers.

by Christian Queinnec 60

SLIDE 61

Diffuse Javascript 3 CONCURRENCY

A worker is a separate and independent task (or process in Unix parlance) that

runs concurrently to the main event loop.

A worker is almost similar to a program running on another machine with Internet-

based relationship with its creator.

Unfortunately, the interface for Workers running in Node is different from the

interface for Workers running in browsers though some libraries may mask these differences. Workers features

The main questions are

– How to create a worker ? – What code the worker will run ? – What is the global environment of the worker ? – How to send information to a worker ? – How the worker can send back information to its creator ? – How its creator can terminate a worker ? – How a worker can terminate itself ? Worker visualization Worker common workflow

When created the worker has to get the code it will run. Meanwhile the creator is

not blocked.

The worker or the creator may send information to the other whenever they want,

even repeatedly. by Christian Queinnec 61

SLIDE 62

Diffuse Javascript 3 CONCURRENCY

After setting the appropriate handler, the worker and the creator can receive in-

formation from the other.

Workers or creator may initiate the first transmission of information.
Worker or creator are not compelled to obey a request-response sequence.
The worker may terminate itself or be terminated by its creator.

3.8.2 Workers in browsers

// Create a worker and interact with it: let w = new Worker(’url/script.js’); w.onmessage(function (result) { ... // use result.data }); w.postMessage(someInput); w.terminate(); // to terminate the worker // In the worker i.e., in url/script.js self.onerror = function (error) { ... }; importScripts(’url/otherscript.js’); self.onmessage = function (input) { ... // use input.data postMessage(someResult); }; self.close(); // to terminate the worker

Web workers global environment

The global environment of a worker is the value of self
self is not a copy of window. In particular, the DOM is not present.
self allows Ajax requests, WebSockets, access to local storage, timeout handlers,

writing to console, etc.

self can be enriched with other scripts loaded with importScripts

Information passing

A value passed to or from a worker is serialized into a string, then transmitted and

finally deserialized into a value.

Values are copied not shared!
Not all values can be transmitted! Closures, cyclic structures, prototype, errors

may not be transmitted depending on implementations.

But JSON values can safely be transmitted.

3.8.3 Workers in Node

VIDEO Transcript Code

Workers in Node.js are inspired by Unix processes.
fork starts a new process that runs the same code, again from its beginning.

What changes is the isMaster and isWorker boolean properties. by Christian Queinnec 62

SLIDE 63

Diffuse Javascript 3 CONCURRENCY

Server sockets opened before fork are shared with workers. This allows servers

to balance the load on their workers.

Node workers global environment

The global environment of a Node worker is the value of global (as every other

Node process).

The process object holds the functions and the event listeners needed to commu-

nicate with the master or workers. by Christian Queinnec 63

SLIDE 64

Diffuse Javascript 3 CONCURRENCY 3.8.4 Workers use cases

To make use of another CPU for a CPU-intensive computation.
For a computation of unknown duration

– Start a worker to poll regularly a remote server and detect if some information is present (for instance, a stock price) and satisfies some condition. – Start a farm of workers draining a queue of tasks sent by the master ∗ via files (to be importScript-ed) ∗ via modules (to be require-d) ∗ via strings (to be eval-uated) ∗ or via Blobs

Exercise: decrypt.1

Workers unification

Some NPM modules exist to mask the different API of Web workers and Node

workers:

1. workerpool
2. workerjs
3. threads.js
4. etc.

3.9 Summary

JavaScript offers a lot of constructions. Node predefined libraries uses callbacks

and events most of the time.

Events must be listened before being emitted or they are lost. Promises can acquire

new sequels even after resolution.

Events may be repeatedly emitted, promises get resolved only once.
Callbacks impose sequentiality, Promise.all offers more potential concurrency.
Workers cannot share environments but may run truely concurrently.
Generators interleave synchronous and asynchronous computations.

by Christian Queinnec 64

SLIDE 65

Diffuse Javascript 4 DISTRIBUTION

4 Distribution

4.1 Foreword

Envisioning separately servers and clients might not yield interesting applications. Nowadays, applications are diffuse that is, they must encompass multiple clients and multiple servers cooperating together to provide interesting functionalities. Depending on the power, battery level, memory size of phones, tablets or computers, some computations can be performed on servers or on clients and this can be decided even dynamically. The client-server paradigme is asymetric, clients can request servers but servers can only answer. Web socket is a new API that allows clients to open bi-directional tunnels towards servers. Once established, this connection can be used by both ends to communicate with the other endpoint. For instance, with web sockets, servers can decide, whenever they want, to push alerts to all connected clients. Here are the topics addressed below:

Client-server model
The HTTP protocol
Caching
Model-View-Controller
Servers architecture
REST style
Multiple MVC
WebSocket
Security

4.2 Client-Server relationships

4.2.1 Client-Server model

The traditional client-server model is an asymetric model where

– clients request servers – servers respond to clients

At the beginning, servers respond with HTML pages that replace the original page.

by Christian Queinnec 65

SLIDE 66

Diffuse Javascript 4 DISTRIBUTION

Servers evolve and respond with dynamic HTML that is HTML pages with JavaScript

code that can operate upon the DOM (Document Object Model) that is, the reified representation of the HTML page.

Later XMLHttpRequest allow browsers to ask for dynamic HTML page fragments,

graft them in the current DOM and link-edit new JavaScript code within the current JavaScript global environment. by Christian Queinnec 66

SLIDE 67

Diffuse Javascript 4 DISTRIBUTION

Then, requests also return XML document or JSON data interpreted by JavaScript

code and transformed into HTML for visualization.

However the underlying technology (TCP sockets) is symetric. Browsers evolve and

Web sockets offer symetry: servers can push information to connected client(s). by Christian Queinnec 67

SLIDE 68

Diffuse Javascript 4 DISTRIBUTION Client-server exchange types

A click on an anchor <a href> or an image <img src> fetches some data that

will be displayed (as a new page) by a default browser’s callback according to the MIME type of the data.

a <script> element fetches some JavaScript code that will be evaluated in the

current global environment.

an XMLhttpRequest fetches some data that will be processed by some user-specified

callback in the current global environment. Client-server exchange formats

XML (HTML reduced to its structural skeleton, independent of any visualization

information) was the format of choice. However, XML needs parsers thus needs CPU, is verbose thus needs bandwidth. Conversely, XML is ruled by grammars (XMLSchema, RelaxNG) that forbids badly formatted information thus shortening programs (format error handling is no longer necessary).

JSON is JavaScript Object notation with numbers and strings, hashtables and ar-
rays. JSON is lighter (requires less CPU and bandwidth) and needs much simpler
parsers. However formating is more versatile and more error-prone.

In both cases, data is analyzed, interpreted by JavaScript code, is used to update local information and often transformed into new HTML grafted in the current DOM. In a single page application (today’s trend), API are written in JavaScript and JSON is far easier to process than XML.

Exercise: xmljson.1

4.3 HTTP

4.3.1 HTTP

HTTP is the transport protocol used for nearly every exchange of information

by Christian Queinnec 68

SLIDE 69

Diffuse Javascript 4 DISTRIBUTION

The requestMethod (complemented with specific HTTPparameters) determines how

the network behaves: how the request is transported or cached.

The format of an HTTP request structures how servers answer. The problem of a

server is to determine what code is triggered by an HTTP request ? HTTP GET or HEAD request

HTTP is more than a transport protocol since it also brings semantics in the ex-

changes of information.

HTTP GET or HEAD request get resource named by an URL
To serve this request should not modify the server, therefore and unless forbidden,

the response may be cached by the network

To this URL may be adjoined some query parameters to further refine the query

(for instance, list books from 10th to 20th)

The client may also specify HTTP parameters to describe itself (for instance, I

accept only French, only PNG images but I support bzip2 compression)

HEAD request is similar to GET however the body of the response to a HEAD

request is empty. This allows to get the meta-information accompanying the resource such as its type or size. HTTP POST or PUT request

Upload some resource on a server
The body of the request is the resource to upload. An empty line separates the

HTTP parameters from the body. The length of the resource is specified in the Content-Length HTTP parameter. If the resource is compressed, the kind of compression should be specified in Content-Encoding HTTP parameter.

PUT specifies the name of the resource that is uploaded

by Christian Queinnec 69

SLIDE 70

Diffuse Javascript 4 DISTRIBUTION

POST asks the server to name the resource that is uploaded, the server’s answer

will contain that new name in the Location HTTP parameter.

POST is also used with HTML forms.
POST modifies the server, the network should never cache this request
PUT is idempotent, uploading again the same resource does not change the server.

HTTP DELETE request

Remove some resource held in the server
DELETE is idempotent, deleting an already deleted resource is tolerated.
POST(Create), GET(Read), PUT(Update), DELETE are the four commands providing

a CRUD application. HTTP response

The most important information in a response is the code, a human readable

explanation of the code follows that code. It is important to use the appropriate code.

The 2xx series is OK among which (200 is cacheable):

– 200 the generic OK, – 201 means “created” (in response to PUT or POST)

the 3xx series is for redirection (the response often contains a Location HTTP pa-

rameter) among which (301 is cacheable): – 301 moved permanently – 302 moved temporarily – 304 not modified (your copy is still valid) – 303 GET an equivalent resource elsewhere by Christian Queinnec 70

SLIDE 71

Diffuse Javascript 4 DISTRIBUTION – 307 redirect your request elsewhere (with same request method)

the 4xx series is for client errors among which:

– 400 the generic bad request – 403 forbidden (authentication required) – 404 resource not found – 406 cannot convert the resource into a representation accepted by the client

the 5xx series is for server errors among which:

– 500 generic internal server error – 503 service unavailable 4.3.2 HTTP and caching

Caching specification evolve from HTTP/1.0 to HTTP/1.1, we stick to the latter.
If the response is a file, the date of the last modification of that file can appear in

the HTTP response parameter Last-Modified

The client takes notice and may ask for that file again with an additional HTTP

request parameter If-Modified-Since.

The response code may be 304 Not modified if the file is still the same (the body of

the response is then empty thus sparing bandwidth) or 200 (and a body containing the new content of the file).

Of course, you can use this re-validation mechanism for any resource for which

you can track the last modification date. Caching with expiration

The previous mechanism requires clients to re-validate that is, check if their

cached copy of a resource is still valid. This is wasteful. by Christian Queinnec 71

SLIDE 72

Diffuse Javascript 4 DISTRIBUTION

The server may serve a resource with an HTTP response parameter Expires telling

the client that the resource can be cached till the expiration date.

Pay attention to timezones!
Instead of an expiration date, the server may specify an expiration duration (in

seconds) with Cache-control: max-age=. This specifies that the resource will not change in the next seconds.

The server can also impose clients to re-validate their cached resources with

Cache-control: no-cache

Exercise: clocktick.1

4.4 Model-View-Controller

4.4.1 MVC

Invented by Trygve Reenskaug in Smalltalk-76 (that is, before 1976)
MVC is a software pattern that separates input, state and output.
The model that is, the state of the application.
Controllers interpret the inputs (events, clicks, gestures, etc.) and convert them

into actions transforming the model.

Views are produced from the model and delivered as the result of an input.

Model View Controller - Components

The three components are independent
and can be developped independently.
Alternate views can be developped (CSV instead of HTML, JSON instead of SVG,

etc.)

New gesture, new types of input can be introduced with new controllers
And, of course, the model can be re-implemented but must respect the model API.

by Christian Queinnec 72

SLIDE 73

Diffuse Javascript 4 DISTRIBUTION Model View Controller - Variants

MVC is a theoretical model with many variants
A controller should have a way to report errors

– error from the model – or from the controller

Views should use the model API

– model can help and provides only the changes (for instance, changing CSS usually does not require to re-draw the entire DOM)

Views may have an internal state (holding user’s preferences for instance)
Controllers may have an internal state (collecting enough information before mak-

ing the appropriate actions on the model)

Model is usually persisted in a database.

4.4.2 Servers architecture

Inputs are HTTP requests (and HTTP responses if the server also acts as a proxy)
A framework (such as express, meteor, etc.)

has to determine which code will process the HTTP request

Quite often, the pathInfo is first considered then the requestMethod to determine

which function (or method) to invoke. Tables describing this association is usually named routes. by Christian Queinnec 73

SLIDE 74

Diffuse Javascript 4 DISTRIBUTION

Parameters of all types (HTTPparameters, queryString, etc.) are usually provided

via hashtables or variables.

The body is decoded along the Content-Type HTTPparameter
An empty Response object is also provided that the elected function has to fill

(return code, body). Once the body begins to be emitted, no additional HTTP header can be adjoined!

HTML response body is often generated with templates.

Preferred client’s languages (Accept-Language) may be taken into account.

The framework frees you of many boring tasks such as describing the available

features of the underlying server (compression, language, MIME-types supported, etc.) as well as which protocol version (HTTP/1.0 or HTTP/1.1) or which compression to use when emitting the body, etc. 4.4.3 REST style

RPC (remote procedure call) or RMI (remote method invocation) use URL contain-

ing verbs. The client asks the server to perform some operation specified as a verb. https://server/login?name=John&token=123456789qwertyui https://server/rotateLeft?photo=34 http://server/book?isbn=9780521562478&format=json

REST (Representational state transfer created by Roy Fielding in 2000) names

resources with URLs that are operated with HTTP request methods: POST(Create), GET(Read), PUT(Update), DELETE. GET https://server/photo/34?rotated=-90 GET http://server/book/9780521562478/ with Accept: application/json POST http://server/book/9780521562478/coverpage

Some patterns are often used to name resources. Naming collections, one item of

a collection, getting or setting an attribute of an item. /elements /element/id /element/id/attribute /element/id/attribute/newvalue

Many frameworks make easy to use these patterns.

Exercise: counter.1

4.4.4 Multiple MVC

The server is organized around a MVC model that reacts to HTTP requests or

responses, SQL responses, etc.

The client is organized around a MVC model that reacts to user’s interactions,

HTTP responses, etc.

The problem is to make these two (at least) MVC cooperate
via HTTP or WebSocket (and probably JSON messages)

by Christian Queinnec 74

SLIDE 75

Diffuse Javascript 4 DISTRIBUTION

4.5 WebSocket

4.5.1 WebSocket

WebSocket (WS) is a bidirectional protocol between client and server.
A connection started with HTTP may be upgraded to WS (and similarly from HTTPS

to WSS).

The WS protocol is accessed, in the browser, via a JavaScript API (somewhat sim-

ilar to the worker API)

Messages are strings (transmitting JSON objects needs JSON.stringify) but might

also be binary ArrayBuffers.

Some frameworks such as socket.io are built on top of WS.

// Browser side: let myWebSocket = new WebSocket("ws://www.websockets.org"); myWebSocket.onopen = function (evt) { alert("Connection open ..."); }; myWebSocket.onmessage = function (evt) { alert( "Received Message: " + evt.data); }; myWebSocket.onclose = function (evt) { alert("Connection closed."); }; myWebSocket.send("Hello WebSockets!"); myWebSocket.close();

Use a npm module such as ws for instance on the server.
Browsers provide their own WebSocket class.

// Server side with ws module const WebSocket = require(’ws’); const wss = new WebSocket.Server({ port: 8080 }); wss.on(’connection’, function connection (ws) { ws.on(’message’, function incoming (data) { // Broadcast to everyone else. wss.clients.forEach(function each (client) { i f (client !== ws && client.readyState === WebSocket.OPEN) { client.send(data, function (error) { i f ( error ) { console.log(‘cannot send ${error}‘); }}); } }); }); });

4.6 Security

4.6.1 Security

Open Web Application Security Project publishes regularly the top 10 security

problems that are: by Christian Queinnec 75

SLIDE 76

Diffuse Javascript 4 DISTRIBUTION

1. Injection
2. Broken Authentication and Session Management
3. Cross-Site Scripting (XSS)
4. Broken Access Control
5. Security Misconfiguration
6. Sensitive Data Exposure
7. Insufficient Attack Protection
8. Cross-Site Request Forgery (CSRF)
9. Using Components with Known Vulnerabilities
10. Underprotected APIs
The first three items are in that position for decades!
Read the document and be aware of existing solutions
Use frameworks that are safe with respect to these problems.

4.6.2 Same Origin Policy

A browser decodes, interprets or runs sequences of bytes coming from everywhere

(images, sounds, scripts, etc.): this is dangerous!

Same Origin Policy (SOP) lessens the risks
Received cookies can only be sent to the sending host (or to another host of a

broader domain if the cookie’s domain is specified). A secure property reserves cookies to https only. However document.cookie is a public property.

When receiving a page from an origin (specified as protocol://server:port/),

complete access is granted to all URLs with that same prefix. – SOP prevents mixed content where a page contains both http and https resources (mostly images) see also the HTTPparameter Upgrade-Insecure-Request

r Strict-Transport-Security.

– Within browsers, you cannot assume to read properties of JavaScript objects created from other origin. See also the document.domain property. – For XMLhttpRequests: PUT and DELETE requests cannot be sent to other

rigins but POST and GET can be sent elsewhere but without custom HTTP-

parameters.

However scripts (resp. images, css, frames, iframes) can be downloaded and run

(resp. displayed) from everywhere (to allow CDN for intance). 4.6.3 Cross-origin resource sharing

Cross-origin resource sharing (CORS) is a mechanism to allow XMLhttpRequests

to bypass SOP if the other server agrees. It allows all request methods, custom HTTP request parameters.

When the browser detects a SOP violation, it sends a “pre-flight” OPTION request to

the targeted server with information on the Origin of the embedding page, the intended request method (with Access-Control-Request-Method and the intended custom HTTP request parameters (with Access-Control-Request-Headers) by Christian Queinnec 76

SLIDE 77

Diffuse Javascript 4 DISTRIBUTION

The server analyzes these three HTTP request parameters and if it agrees, it re-

sponds with Access-Control-Allow-Origin HTTP response parameter.

The Access-Control-Allow-Origin: * means that the resource can be accessed
publicly. Otherwise Access-Control-Allow-Origin:
rigin only allows the

access to the requesting origin. Additional HTTP response parameters precise which request methods, which headers are allowed and for how long.

More importantly the Access-Control-Allow-Credentials tells whether the server

will accept cookies or not.

The browser compares the characteristics of the initial request and the constraints

returned by the server and decides if sending the initial request is appropriate. 4.6.4 API protection

Use of API should be protected from pirats but also from legal users
Use HTTPS to mask the details of authentication (mainly API key and other secure

cookies or tokens)

Implement applicative security and check if user U has the right to run service

S on object O. For instance, a user may change its name but not others’ name. However it is a simple deduction that if changing its own name triggers a PUT request such as https://.../user/123456/?newname=XX then one may also try the same request with other user identifiers!

4.7 Exercises of style

4.7.1 Interlude This is a small example of a chain of related objects ending in a row in an SQL database. Modifying an object in the browser (1), transfers the modification (2) to the corresponding object hosted on the server (via a REST API on HTTP) which in turn records it (3) in the database and broadcasts the modification via WebSocket (4) to all connected clients (5). by Christian Queinnec 77

SLIDE 78

Diffuse Javascript 4 DISTRIBUTION This code uses many features of JavaScript (closures, objects, events, promises) and two protocols (HTTP and WebSocket). It does not use any framework (ORM, WebServer, WebSocket, etc.) in order to show, focus and explain the essence of the code disembar- rassed of extra whistles or bells. Therefore, besides the usual Node modules (http, fs, events and url), it only requires two extra modules:

sqlite3 to access an SQL database (here SQLite) and
ws to manage WebSockets on the server side.

We will explain this code and its main features below. We will also propose some extensions but you may also search for other (more mature) Node modules dedicated to this same goal. The explanations will successively present:

src/dbobject.js a tiny ORM (Object Relational Mapping) that put JavaScript
bjects in correspondance with rows of SQL tables.
src/webapi.js that offers an HTTP REST API to operate on dbobjects with GET,

POST, PUT and DELETE requests.

src/browserobj.js a client library that offers browser objects linked to remote

dbobjects.

src/wsapi.js a WebSocket server that broadcasts modifications to dbobjects to

their related browser objects. The whole code as well as a small webapp (defined in file chain.js) is available with the djs-chain npm module. Fetch that code to make your own experiments. 4.7.2 Interlude - dbobject This file defines four classes: by Christian Queinnec 78

SLIDE 79

Diffuse Javascript 4 DISTRIBUTION

- Class --
- Public methods --

DB createTable, persistAll, getTables, close DBsqlite3 inherits from DB DBTable insert, get, all DBObject remove

ne different subclass for every DBTable instance

Here follow the main design decisions:

Every row is reified as a JavaScript object with properties named after the columns
f the containing table.
When an object is reified, only one copy of it exists in JavaScript memory and this

copy is always uptodate.

All objects coming from the same table are instances of the same class, a sub-

class of DBObject. This allows for custom methods specific to a single table. Not duplicating properties is also a goal.

When a reified object is modified, a promise is generated to transfer the modi-

fication into the database. All these promises are sequentialized to respect the modification order.

Methods on table: insert, get and all return promises.
The code is unsafe and only partial, many useful methods could be added and

sanity of many parameters should be checked. The next figure shows the relationships between a row in an SQL table from the database and a JavaScript object (value of the joe variable) and its chain of classes and prototypes. by Christian Queinnec 79

SLIDE 80

Diffuse Javascript 4 DISTRIBUTION Salient details (examples are in the spec/db-spec.js test file):

We use SQLite3 as an SQL database, we opt for an in-memory database that is

easy (and quick) to setup.

getTables is very specific and depends on the targeted database.
Opening a database, fetching already existing tables, creating a table, closing a

database, all yield a promise.

Types of columns are restricted to text and number (but this is not checked). An

id column holding an integer primary key is automatically added to the definition

f a table. This id column should not be mutated.
To sequentialize the commands to the database is touchy! The _enqueue method

takes a thunk (a nullary function) that yields a promise. Remember that when creating a promise, the body of the promise is immediately run. Since we want to run the promise only after all previous enqueued promises, we delay the creation

f the promise with that thunk.

We then add the obtained promise as a then sequel of the tail of self._queue. We also add a catch sequel to signal problems as events on the database object. However we return that promise since the user’s code may add its own then and catch sequels to it.

Of course to sequentialize all commands is not efficient, real ORM coalesce com-

mands (for instance two consecutive mutations of the same row), reorder non interfering commands for better performances.

All generated SQL commands use the ? placeholder for values, this lets the database

provide the correct way to handle numbers and texts. Meanwhile column names are wrapped within double quotes.

In order to share code for objects, the following chain of prototypes is used for

reified objects: – the reified object has only two properties: _table and _o, the latter containing the values associated to the columns of the table. – the prototype of the reified object contains the methods corresponding to the columns that is, setters and getters. For any modification, the setter spawns a new promise to transfer the modification towards the database.

the remove method empties the object but does not destroy it since remove is a

method!

Exercise: dbobject.1

4.7.3 Interlude - webapi The src/webapi.js file defines a tiny and simple HTTP server that offers a REST interface to operate on ServerObjects and ServerTables. The server is parameterized via a routes object. This object specifies how to process a request based on its method and path. The following table details the implemented routes: GET /table/ get all rows from table POST /table/ create one row in table GET /table/id get one row from table PUT /table/id create or replace one row from table DELETE /table/id delete one row from table GET /table/id/column get one column of one row from table PUT /table/id/column modify one column of one row from table by Christian Queinnec 80

SLIDE 81

Diffuse Javascript 4 DISTRIBUTION The routes object is statically generated from a database, getting all its tables and for each table, its columns. Once generated, the HTTP server can be started. See spec/web-spec.js for examples. Depending on the request, the routes object addresses instances of ServerTable

r ServerObject.

These objects are just facades for real instances of DBTable or

DBObject. Instances of ServerObject are transient that is, they live the duration of

the request and then vanish. Instances of ServerTable are persistent, they are created when the routes object is generated. The interface offered by ServerObject differs from the interface of DBObject since it only uses functions: allFields, getField and setField. This makes easier sub- classing ServerObject in order to override these methods (we will use that possibility for the WebSocket server). The body of HTTP responses uses the JSON format. HTTP requests are idempotent when required. The HTTP status code reflects the fate of the request.

Exercise: webapi.1

4.7.4 Interlude - browserobj The src/browserobj.js file is a client library. It offers objects and tables, instances of BRObject and BRTable. An operation on one of these objects propagates the operation to the HTTP server which, in turn, propagates the operation on the database. The trick is to associate an URL to every instance of BRObject and use HTTP requests to propagate the state changes. A reference to a remote table is created with new BRTable with an URL which will be the prefix of all URLs used to access and manage remote (server) objects. Instances BRTable offer get, insert and all, all these methods return promises. When these promises are fulfilled, the result is the one provided by the server. The result of all operations on BRTable are one or many instances of BRObject. BRObjects know their containing table. Their properties can be directly read. However all other methods remove, refresh and setProperty return promises. When these promises are successful, the result is the one provided by the server. by Christian Queinnec 81

SLIDE 82

Diffuse Javascript 4 DISTRIBUTION The server may have numerous clients modifying concurrently shared objects hosted

n the server this is why the refresh method of an object asks the server to deliver an

up to date content for the object. However this is costly and can only be initiated by the client. A better solution to let other clients be up to date with respect to the server is to use WebSockets through which the server pushes the updates towards its clients. There- fore, the library provides a WebSocket client that listens to update messages (JSON- encoded) and performs the relevant modifications that is, the modifications impacting the objects known by the client. The WebSocket client is only active when running the acceptWebSocket function. The WebSocket client modifies objects and signals these modifications. The User Interface may listen to them and react accordingly. Need a demo ? Install the djs-chain npm module, start the server with the following command, open a browser and play. npm run start As mentioned in the code, browsers come with their own WebSocket class so you don’t need a server-side library such as ws. However for asynchronous errors we do need EventEmitter, a module that browserify or webpack can provide. 4.7.5 Interlude - wsapi The final piece of our project is the src/wsapi.js files that provides the WebSocket

server. This is a tiny WebSocket server, created with mkservers (which also create the

associated HTTP server). The two servers use consecutive port numbers. The Web- Socket server maintains the list of its clients and intercepts the setField method of ServerObject in order to broadcast modifications.

Exercise: wsapi.1

4.7.6 Interlude - summary

The whole project weights 1500 lines in four files

by Christian Queinnec 82

SLIDE 83

Diffuse Javascript 4 DISTRIBUTION – Three files on the server-side – One file on the client-side.

The library is unsafe, inefficient and functionally insufficient.
However it shows in details:

– a tiny ORM – a small REST server – the basis of a CRUD generator – a websocket broadcaster

For production and development, use more useful and robust libraries!

4.8 Summary

This is the end of our journey
Thanks to the JavaScript language, great code can be done with few means on

both client and server sides

A rich ecosystem of modules, solutions, patterns already exist and is still growing

by Christian Queinnec 83

SLIDE 84

Diffuse Javascript 5 APPENDICES

5 Appendices

5.1 Links

5.1.1 Documentation

Node.js
Docker container for Node
the Docker container ready for this MOOC
Mozilla Developper Network
ECMAscript standard
npm
Jasmine
Eloquent JavaScript
JavaScript Garden
Airbnb JavaScript Style Guide or JavaScript style
Differences between versions of Node.js

5.2 Debug

5.2.1 Debug

There is an inner debugger in Node.js but not very visual. Fortunately, it is possi-

ble to use Chrome for the visualisation. $ node --inspect --debug-brk wrong.js Debugger listening on port 9229. Warning: This is an experimental feature and could change at any time. To start debugging, open the following URL in Chrome: chrome-devtools://devtools/remote/serve_file/@60cd6e859b9f557d2312f5bf532f6aec5f284980/inspector.html?experiments=true&v8only=true&ws=localhost:9229/0d10c8c6-c692-42f8-9467-1a868a452dc5 Debugger attached.

5.3 Tests

5.3.1 Testing frameworks

Many frameworks exist for testing: Jasmine, Mocha
I will use Jasmine
Take a look at some of my tests on JavaScript

Test framework features

“Behavior Driven Development” describes specifications (it should do . . . ) so we

expect this or that

Expectations may fail.
Factor code with beforeAll, beforeEach, afterEach, afterAll
Support for asynchronous code

by Christian Queinnec 84

SLIDE 85

Diffuse Javascript 5 APPENDICES 5.3.2 Jasmine framework

// This is Jasmine held in spec/js-spec.js describe("my application", function () { it("should perform concatenations", function () { expect(3 + "5").toBe(’35’); // Check if an exception is thrown: expect(function () { new Array(Number.MAX_SAFE_INTEGER+1); fail(); }).toThrow(); }); // Tell explicitly if the test is complete: it("Should eventually wake up", function (done) { function atlast () { done(); } setTimeout(atlast, 1000); // 1 second }); });

Jasmine runner

Install Jasmine with npm install jasmine
The node_modules/.bin/jasmine is the command to run. Say jasmine for the

rest of that explanation.

Run jasmine init the first time to create the default configuration named spec/support/jasmine.json
With the default configuration, test files are stored under directory spec/ and

should be named *-spec.js

Then run jasmine spec/somefile-spec.js or just jasmine to run all the test

files $ jasmine init $ jasmine spec/somefile-spec.js Started ........................................... ............................... 74 specs, 0 failures Finished in 1.054 seconds Jasmine tester

To check your own code, there is more than one way!
Write your tests (with the appropriate editor (Emacs, vi, Sublime, Atom, etc.) in a

file say spec/myAnswer-spec.js

Write your own code, defined as a Node.js module and store it in a file say myAnswer.js
From your test file, require your module.
Run jasmine spec/myAnswer-spec.js

by Christian Queinnec 85

SLIDE 86

Diffuse Javascript 5 APPENDICES

// file myAnswer.js module.exports.loaded = true; // end of file myAnswer.js // file spec/myAnswer-spec.js let m = require(’../myAnswer.js’); describe("it works", function () { it("works", function () { expect(m.loaded).toBeTruthy(); }); }); // end of file spec/myAnswer-spec.js

Jasmine asynchronous test

Testing an asynchronous function with a callback
Jasmine offers a callback done to terminate a specification

// file myAnswer.js module.exports.f = function (callback) { ... }; // end of file myAnswer.js // file spec/myAnswer-spec.js let m = require(’../myAnswer.js’); describe("it works", function () { it("works", function (done) { function mycb (error, data) { expect(error).toBeUndefined(); // check expectations on data... done(); } m.f(mycb); }); }); // end of file spec/myAnswer-spec.js

5.4 Modularity

5.4.1 Modules

The problem is to let multiple codes independently written to play nicely together.
There are several solutions:

– Packaged namespaces – Node.js modules – The webpack or browserify tools – ECMAscript 2015 modules by Christian Queinnec 86

SLIDE 87

Diffuse Javascript 5 APPENDICES 5.4.2 Packages namespaces

Use a tree of objects to structure your code

let MyTopName = { Module1: { function1a: () => { MyTopName.Module2.function2a(...) } }, Module2: { function2a: ..., subModule2A: { function2aA: ... } } }

Difficult integration of other code, long and rigid packaged names, etc. 5.4.3 Modules of Node.js

// content of module.js file: // module is the current global object // list dependencies: let other = require(’...’); // define your own functions, objects, etc. // export module.exports.f = function () { ... }; // end of module.js file // In another module: let m = require(’module.js’); // ie module.exports // use m.f()

When require-d, the file defining a module is evaluated in the following local environment:

The require machinery provides to the previous function, an implementation of the require function, an exports empty object and a module object with property exports bound to the previous empty object. by Christian Queinnec 87

SLIDE 88

Diffuse Javascript 5 APPENDICES The require machinery maintains a cache of require-d modules in order to avoid re-loading them. module.exports

DETAIL

The value of a call to require is the value of module.exports

// module double.js module.exports = (n) => 2*n; // other module let double = require(’double’); double(21); // yields 42

Modules and browser-ification

browserify or webpack transforms most Node.js code into code that can run in a

browser.

There is no require and no npm support on browser side
Browserification scans the Node code and extracts all static require calls, get

the corresponding Node modules (and their dependencies), pack them all with a specific implementation of require than can only require these modules.

Browserification provides an implementation of standard Node modules such as

http, url, etc. However not all Node modules can be implemented in the browser. by Christian Queinnec 88

Diffuse JavaScript Christian Queinnec Professor emeritus Sorbonne - - PDF document

Diffuse JavaScript

Christian Queinnec

Contents

1 Before we start...

REGISTER

2 JavaScript - the language

3 Concurrency

4 Distribution

5 Appendices
