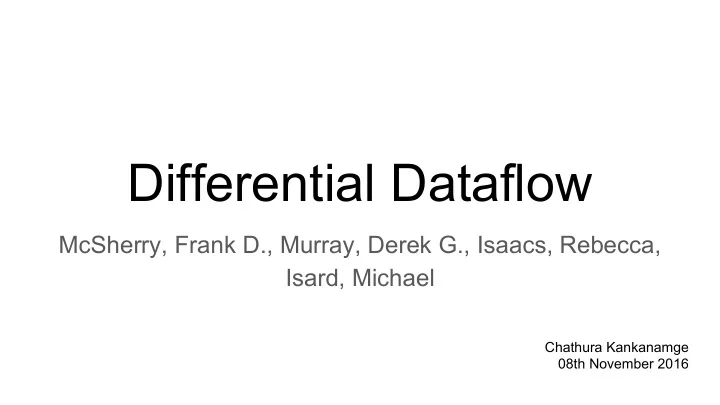

slide-1
SLIDE 1

Differential Dataflow

McSherry, Frank D., Murray, Derek G., Isaacs, Rebecca, Isard, Michael

Chathura Kankanamge 08th November 2016

slide-2
SLIDE 2

Outline

  • Motivation for Differential Dataflow
  • Key Concepts
  • Differential Dataflow in practice
  • Discussion
slide-3
SLIDE 3

Motivation

slide-4
SLIDE 4

Traditional data parallel processing

  • Take input data in batches.
  • Process and output.
  • Highly evolved - Hadoop, Spark.
  • Mostly stateless.
slide-5
SLIDE 5

Interactive - Twitter Mention Graph

  • Used to find trending #hashtags.
  • Billions of vertices and edges.
  • Millions of updates per second (storm).
  • Needs low latency of streaming and throughput of spark.
  • Similar issue with interactive analytics
slide-6
SLIDE 6

Loop Processing

  • Some algorithms require

iterations ○ Pagerank ○ Connected components

  • Usually requires transferring

entire state between iterations

  • Spark, Hadoop etc execution

times ~ stateless

slide-7
SLIDE 7

Incremental Dataflow

  • Stateful.
  • Get the differences of collections.
  • Only calculate changes.
  • Example

○ Wordcount in Hadoop Online.

  • Can deal with changes due to,

○ Loops ○ New Data

  • But NOT both!!
slide-8
SLIDE 8

Concepts

slide-9
SLIDE 9

Total vs Partial Ordering

  • Traditional dataflow systems expect total
  • rdering

○ Multiple variables are a problem

  • A partial ordering uses a time vector for
  • rdering

○ Deals well with multiple variables

  • Partial because ordering by variable x

gives only a partial ordering

1 2 3 4 5 (2, 2) (0, 0) (1, 0) (2, 0) (2, 1) (0, 1) (0, 2) (1, 2) (1, 1)

slide-10
SLIDE 10

Total vs Partial Ordering

  • Traditional dataflow systems expect total
  • rdering

○ Multiple variables are a problem

  • A partial ordering uses a time vector for
  • rdering

○ Deals well with multiple variables

  • Partial because ordering by variable x

gives only a partial ordering for x

1 2 3 4 5 (2, 2) (0, 0) (1, 0) (2, 0) (2, 1) (0, 1) (0, 2) (1, 2) (1, 1)

slide-11
SLIDE 11

Total vs Partial Ordering

  • Traditional dataflow systems expect total
  • rdering

○ Multiple variables are a problem

  • A partial ordering uses a time vector for
  • rdering

○ Deals well with multiple variables

  • Partial because ordering by variable x

gives only a partial ordering

1 2 3 4 5 (2, 2) (0, 0) (1, 0) (2, 0) (2, 1) (0, 1) (0, 2) (1, 2) (1, 1)

slide-12
SLIDE 12

Differential Dataflow

  • Computational Model

○ Defines how to process partially ordered data. ○ Defines state between iterations

  • Goals

○ Do less calculation per change ○ Converge quicker per iteration

slide-13
SLIDE 13

Timely Dataflow

  • Performs Iterative Calculations
  • Computational model with directed

graph

  • Vertices exchange messages
  • Logical Timestamps for messages
slide-14
SLIDE 14

Timely Dataflow

  • Loops denoted by,

○ Ingress - adds a counter ○ Feedback - increments a counter ○ Egress - removes a counter

  • Pointstamps - events at location

and time

slide-15
SLIDE 15

Differential Dataflow in practise

slide-16
SLIDE 16

The Connected Graph Problem

6 7 8 3 4 5 1 2

slide-17
SLIDE 17

The Connected Graph Problem

6 6 6 1 1 1 1 1

slide-18
SLIDE 18

Connected Graph with Relational Algebra

Labels Edges U Min O 1 3 3 1 4 3 3 4 4 2 2 4 2 5 5 2 1 1 2 2 3 3 4 4 5 5

slide-19
SLIDE 19

Connected Graph with Relational Algebra

Labels Edges U Min O 1 3 3 1 4 3 3 4 4 2 2 4 2 5 5 2 1 3 4 3 4 2 2 5

slide-20
SLIDE 20

Connected Graph with Relational Algebra

Labels Edges U Min O 3 1 3 4 2 4 1 3 4 3 4 2 5 2 2 5 1 1 2 2 3 3 4 4 5 5 Neighbour Labels S e l f L a b e l s

slide-21
SLIDE 21

Connected Graph with Relational Algebra

Labels Edges U Min O 1 3 4 2 5 1 1 2 2 2 Result after 1st Iteration

slide-22
SLIDE 22

Connected Graph in Timely

Concat Join Concat GroupBy +Min F e e d b a c k Egress B A C E F G I J Labels Edges Ingress I Map H E

  • Edges are available

constantly

  • Add counter at Ingress
  • Remove Counter at egress
  • Increment counter at

feedback

  • Map converts joined tuples

into node/label tuples

  • Concat performs the union
slide-23
SLIDE 23

Maintaining State in Differential Dataflow

Change in state at node b at t Cumulative state at b upto t Sum of all states at b before t

slide-24
SLIDE 24

Connected Graph

3 4 5 1 2

slide-25
SLIDE 25

Connected Graph in Differential

1 3 3 1 4 3 3 4 4 2 2 4 2 5 5 2

t= (0)

1 1 2 2 3 3 4 4 5 5

t= (0)

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

slide-26
SLIDE 26

Connected Graph in Differential

1 3 3 1 4 3 3 4 4 2 2 4 2 5 5 2

t= (0)

1 1 2 2 3 3 4 4 5 5

t= (0, 0)

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

slide-27
SLIDE 27

Connected Graph in Differential

1 3 3 1 4 3 3 4 4 2 2 4 2 5 5 2

t= (0)

1 1 2 2 3 3 4 4 5 5

t= (0, 0)

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

?

slide-28
SLIDE 28

Connected Graph in Differential

t= (0, 0)

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 1 3 3 1 4 3 3 4 4 2 2 4 2 5 5 2 1 3 4 3 4 2 2 5

slide-29
SLIDE 29

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 1 3 4 2 5 3 4 3 4 2 2

t= (0, 0)

4 2 3 1 5

slide-30
SLIDE 30

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 0)

1 3 4 2 5 3 4 3 4 2 2 4 2 3 1 5 1 1 2 2 3 3 4 4 5 5

slide-31
SLIDE 31

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 0)

1 1 3 1 4 2 2 2 5 2

slide-32
SLIDE 32

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 1)

1 1 3 1 4 2 2 2 5 2

slide-33
SLIDE 33

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 1)

1 1 3 1 4 2 2 2 5 2 1 1 2 2 3 3 4 4 5 5

t= (0, 1)

slide-34
SLIDE 34

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 1)

1 1 3 1 4 2 2 2 5 2 1 1 2 2 3 3 4 4 5 5

slide-35
SLIDE 35

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 3 3 3 1 4 4 4 2 5 5 5 2

t= (0, 1)

slide-36
SLIDE 36

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 1)

3 1 3 1 3 4 4 3 4 3 4 2 4 2 5 2 3 3 4 2 4 2 5 1 5 2 2

slide-37
SLIDE 37

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 1 4 4 3 2 1 3 1 4 2 4 3 2 1 3 2

t= (0, 1)

2 5

slide-38
SLIDE 38

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 1)

4 4 4 2 2 3 3 4 4 5 1 2 4 3 1 3 3 3 4 4

slide-39
SLIDE 39

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 1)

4 2 4 1 4 1 2 4 1 2 1 3 2 3 1 2 5 2

Cumulative Input from concat

1 1 3 1 4 1 2 2 5 2

Groupby + Min

1 1 3 1 4 2 2 2 5 2 1 1 3 1 4 1 2 2 5 2

slide-40
SLIDE 40

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 2)

4 2 4 1

slide-41
SLIDE 41

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 2)

4 2 4 1

slide-42
SLIDE 42

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 2)

2 2 2 1

slide-43
SLIDE 43

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 3)

2 2 2 1

slide-44
SLIDE 44

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 3)

2 2 2 1

slide-45
SLIDE 45

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 3)

5 2 5 1

slide-46
SLIDE 46

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 4)

5 2 5 1

slide-47
SLIDE 47

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 4)

5 2 5 1

slide-48
SLIDE 48

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 4)

5 2 5 1

slide-49
SLIDE 49

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 4)

?

slide-50
SLIDE 50

Connected Graph in Differential

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (0, 4)

?

t= (0)

?

Does not increment

slide-51
SLIDE 51

Changes to Connected Graph - I

3 4 5 1 2 Remove Undirected Edge

slide-52
SLIDE 52

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 4 2 2 4

t= (1)

slide-53
SLIDE 53

Changes to Connected Graph - I

t= (1, 0)

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

?

4 2 2 4

t= (1)

slide-54
SLIDE 54

Changes to Connected Graph - I

t= (1, 0)

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 4 2 2 4

t= (1) t= (0, 0)

?

t= (1, 0)

1 1 2 2 3 3 4 4 5 5

slide-55
SLIDE 55

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 4 2 2 4 4 2

t= (1, 0)

slide-56
SLIDE 56

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 2 4 4 2

t= (1, 0)

slide-57
SLIDE 57

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 2 4 4 2

t= (1, 0)

slide-58
SLIDE 58

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 4 4 2 3

t= (1, 0) Cumulative Input from concat

1 1 2 2 3 1 4 3 5 2

Groupby + Min

1 3 4 2 5 3 4 3 4 2 2 4 2 3 1 5 1 1 2 2 3 3 4 4 5 5

t=(0, 0)

2 4 4 2

t=(1, 0)

1 1 2 2 3 1 4 3 5 2 1 1 3 1 4 2 2 2 5 2

slide-59
SLIDE 59

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 4 4 2 3

t= (1, 1)

slide-60
SLIDE 60

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 4 4 2 3

t= (1, 1)

slide-61
SLIDE 61

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (1, 1)

4 3 4 3 2 3

slide-62
SLIDE 62

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (1, 1)

4 4 2 3

slide-63
SLIDE 63

Changes to Connected Graph - I

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (1, 2)

2 2 2 1

slide-64
SLIDE 64

Changes to Connected Graph - II

3 4 5 1 2 Add Undirected Edge

slide-65
SLIDE 65

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 1 4 4 1

t= (2)

slide-66
SLIDE 66

Changes to Connected Graph - II

t= (1, 0)

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 4 2 2 4

t= (1) t= (0, 0)

?

t= (2, 0)

1 1 2 2 3 3 4 4 5 5 1 4 4 1

slide-67
SLIDE 67

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map 1 4 4 1 1 4

t= (2, 0)

slide-68
SLIDE 68

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 0)

4 1 1 4

slide-69
SLIDE 69

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 0)

4 1 1 4

slide-70
SLIDE 70

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 0)

4 4 1 3

slide-71
SLIDE 71

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 1)

4 4 1 3

slide-72
SLIDE 72

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 1)

4 4 1 3

slide-73
SLIDE 73

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 1)

4 1 4 1 1 3

slide-74
SLIDE 74

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 1)

1 1 1 3

slide-75
SLIDE 75

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 1)

1 1 1 3 4 3

slide-76
SLIDE 76

Changes to Connected Graph - II

Concat Join Concat GroupBy +Min Feedback Egress Labels Edges Ingress Map

t= (2, 1)

?

slide-77
SLIDE 77

Discussion

slide-78
SLIDE 78

Tradeoffs in Iterative Systems

How do you deal with new data when you are iterating with old data?

  • How much state to keep (Memory)

○ Do you keep all data in memory ○ What about intermediate calculations ○ Incremental View Maintenance

  • How much work to do

○ Do everything from the beginning ○ Do work only in the nodes where new data came in

slide-79
SLIDE 79

Iterative vs Differential Dataflow

  • The flexibility of partial Ordering.

○ Iterative Ordering - (i1, j1) ≤ (i2, j2) iff i1 ≤ i2 and j1 ≤ j2. ○ Lexicographic Ordering - (i1, j1) ≤ (i2, j2) if i1 < i2 or i1 = i2 and j1 ≤ j2. ○ Programmer can choose the partial ordering.

  • Communication via Diffs

○ Only the diffs are sent around as messages ○ Nodes on both sides know the previous calculations

slide-80
SLIDE 80

Discussion

  • Is the memory for performance tradeoff justified?
slide-81
SLIDE 81

Thank You
