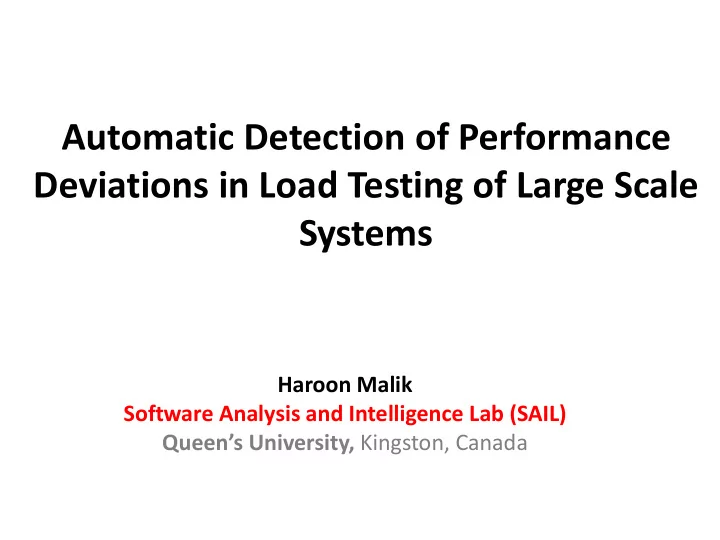

Automatic Detection of Performance Deviations in Load Testing of Large Scale Systems

Haroon Malik Software Analysis and Intelligence Lab (SAIL) Queen’s University, Kingston, Canada

Large scale systems need to satisfy performance constraints

2

PERFROMANCE PEROBLEMS

• System not responding fast enough
• Taking too much of an important resource(s)
• Hanging and/or crashing under heavy load

Symptoms Include:

• High response time
• Increased Latency &
• Low throughput under load

3

LOAD TESTING

Performance Analysts use load testing to detect early performance problems in the system before they become critical field problems

4

Environment Setup Load Test Execution Load Test Analysis Report Generation

LOAD TESTING STEPS 1 2 3 4

5

Environment Setup Load Test Execution Load Test Analysis Report Generation

LOAD TESTING STEPS 1 2 3 4

6

Environment Setup Load Test Execution Load Test Analysis Report Generation

LOAD TESTING STEPS 1 2 3 4

7

• 2. LOAD TEST EXECUTION

MONITORING TOOL LOAD GENERATOR- 1

SYSTEM

PERFORMANCE REPOSITORY LOAD GENERATOR- 2

8

Environment Setup Load Test Execution Load Test Analysis Report Generation

LOAD TESTING STEPS 1 2 3 4

9

Environment Setup Load Test Execution Load Test Analysis Report Generation

LOAD TESTING STEPS 1 2 3 4

10

Environment Setup Load Test Execution Load Test Analysis Report Generation

LOAD TESTING STEPS 1 2 3 4

11

CHALLENGES WITH LOAD TEST ANAYSIS

Limited Knowledge Large Number of Counters

1 2 3

12

CHALLENGES WITH LOAD TEST ANAYSIS

Limited Knowledge Large Number of Counters

1 2 3

13

CHALLENGES WITH LOAD TEST ANAYSIS

Limited Knowledge Large Number of Counters

1 2 3

14

I Propose 4 Methodologies

15

3 Unsupervised 1 Supervised To Automatically Analyze the Load Test Results

Use Performance Counters to Construct Performance Signature

16

%CPU Idle %CPU Busy Byte Commits Disk writes/sec % Cache Faults/ Sec Bytes received

PERFORMANCE COUNTERS ARE HIGHLY CORRELAED

CPU DISK (IOPS) NETWORK MEMORY TRANSACTIONS/SEC

17

HIGH LEVEL OVERVIEW OF OUR METHODOLOGIES

Data Preparation Signature Generation Deviation Detection

Baseline Test New Test

Sanitization Standardization

Performance Report

Input Load Test

18

Load Test Extracting Centroids Signature Data Reduction

Clustering

Load Test Random Sampling Signature

UNSUPERVISED SIGNATURE GENERATION

Random Sampling Methodology Clustering Methodology

Signature Load Test Dimension Reduction

(PCA)

Identifying Top k Performance Counters Mapping Ranking Analyst tunes weight parameter

PCA Methodology

19

SUPERVISED SIGNATURE GENERATION

Identifying Top k Performance Counters

• i. Count
• ii. % Frequency

Attribute Selection

OneR

Genetic Search

… … …

SPC1 SPC2 SPC10

. . .

Partitioning the Data

Prepared Load Test Labeling

(only for baseline)

WRAPPER Methodology

Signature

20

DEVIATION DETECTION TECHNIQUES

Using Control Chart Using Methodology- Specific Techniques

21

For Clustering and Random Sampling Methodologies For PCA and WRAPPER Methodologies

CONTROL CHART

2 4 6 8 10 12 14 16 1 2 3 4 5 6 7 8 9 10 11

Performance Counter Value Time (min)

Baseline Load Test New Load Test Baseline LCL, UCL

The Upper/Lower Control Limits (U/LCL) are the upper/lower limit of the range of a counter under the normal behavior of the system

Baseline CL

22

DEVIATION DETECTION

Clustering and Random Sampling PCA Approach

Performance Report Comparing PCA Counter Weights Baseline Signature New Test Signature

WRAPPER Approach

23

Baseline Signature New Test Signature Control Chart Performance Report Performance Report Logistic Regression Baseline Signature New Test Signature

CASE STUDY

How effective are our signature-based approaches in detecting performance deviations in load tests?

RQ

24

CASE STUDY

How effective are our signature-based approaches in detecting performance deviations in load tests?

RQ

25

Evaluation Using: Precision, Recall and F-measure An Ideal approach should predict a minimal and correct set of performance deviations.

SUBJECT OF STUDY

System: Open Source Domain: Ecommerce

Type of data:

• 1. Data From Our Experiments

with an Open Source Benchmark Application

DVD Store

26

System: Industrial System Domain: Telecom

Type of data:

• 1. Load Test Repository
• 2. Data From Our Experiments on

the Company’s Testing Platform

FAULT INJECTION

Category Faults

Software Failure CPU Stress Memory Stress Abnormal Workload Operator Errors Interfering Workload Unscheduled Replication

27

CASE STUDY FINDINGS

Effectiveness

Precision/Recall/F-measure

Practical Differences

28

CASE STUDY FINDINGS

(Effectiveness)

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 WRAPPER PCA Clustering Random Precision Recall F-Measure

 Random Sampling has the lowest effectiveness  On Avg. and in all experiments, PCA performs better than Clustering approach.  WRAPPER dominates the best supervised approach, i.e., PCA

29

CASE STUDY FINDINGS

(Effectiveness)

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 WRAPPER PCA Clustering Random Precision Recall F-Measure

30

Overall, there is an excellent balance of high precision and recall of both the WRAPPER and PCA approaches (on average 0.95, 0.94 and 0.82, 0.84 respectively) for deviation detection

Real Time Analysis Stability Manual Overhead

CASE STUDY FINDINGS

(Practical Differences)

31

REAL TIME ANALYSIS

WRAPPER--- deviations

• n a per-observation

basis. PCA --- requires a certain amount of observations (wait time).

32

STABILITY

 We refer to ‘Stability’ as the ability of an approach to remain effective while its signature size is reduced.

33

0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 45 40 35 30 25 20 15 10 5 4 3 2 1

F-Measure Signature Size Unsupervised (PCA) Supervised(Wrapper)

STABILITY

0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 1.05 60 50 40 30 20 10 4 2

F-Measure Signature Size Unsupervised (PCA) Supervised(Wrapper)

WRAPPER methodology is more stable than PCA approach

34

MANUAL OVERHEAD

WRAPPER approach requires all

• bservations of the baseline

performance counter data to be labeled as Pass/Fail

35

MANUAL OVERHEAD

Marking each observation is time consuming

36
