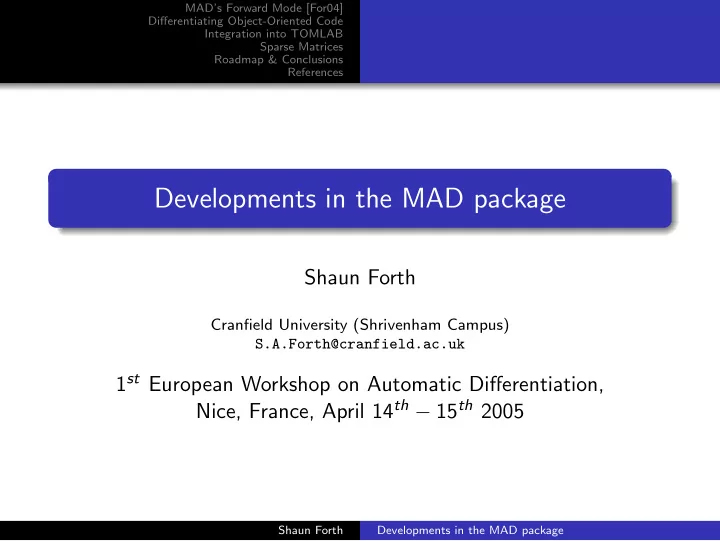

Developments in the MAD package

Shaun Forth

Cranfield University (Shrivenham Campus) S.A.Forth@cranfield.ac.uk

1st European Workshop on Automatic Differentiation, Nice, France, April 14th − 15th 2005

Shaun Forth Developments in the MAD package

MAD’s Forward Mode [For04] Differentiating Object-Oriented Code Integration into TOMLAB Sparse Matrices Roadmap & Conclusions References

Outline

1

MAD’s Forward Mode [For04]

2

Differentiating Object-Oriented Code

3

Integration into TOMLAB

4

Sparse Matrices

5

Roadmap & Conclusions

6

References
