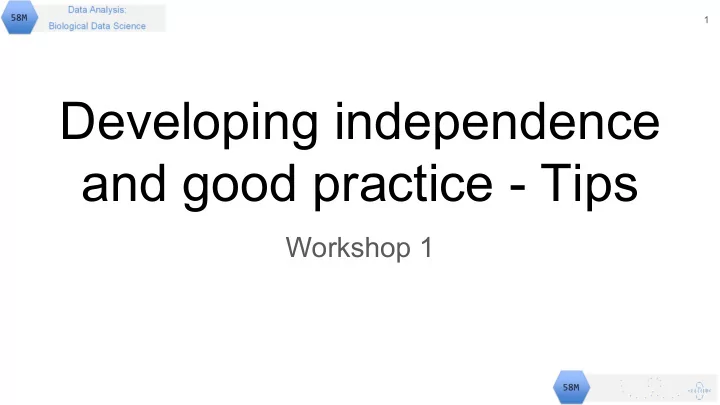

Developing independence and good practice - Tips

Workshop 1

2

Outline

Learning outcomes Brief talk covering ideas that will help in the workshop Directory structure, working directories, relative and absolute paths Housekeeping A few common error messages The pipe %>% Workshop Exercise in housekeeping, problem solving and googling An introduction to writing functions We should have plenty of time

2

3

Learning outcomes

By following the slides and applying the techniques to the workshop examples the successful student will be able to:

• rganise their work using directory structures and relative paths
• carry out standard housekeeping
• use the pipe operator %>%
• define their own functions
• use some strategies for troubleshooting and debugging

4

Paths

Absolute path or Full path the location of a filesystem object (i.e., file, directory or link) relative to the root directory.

Windows: M:/web/58M - 2018.yrk/data/beewing.txt Linux : /users/er13/web/58M - 2018.yrk/data/beewing.txt Web : http://www-users.york.ac.uk/~er13/58M%20-%202018.yrk/data/beewing.txt

Relative path the location of a filesystem object relative to the working directory.

Same directory beewing.txt Directory above ../beewing.txt In a directory called data in the wd data/beewing.txt In a directory called data in the directory above the wd ../data/beewing.txt

4

5

Directory structure and relative paths

> getwd() [1] "M:/web/58M - 2018.yrk/pracs" > dir() [1] "01DevelopingIndependenceAndGoodPracticeTips.html" [2] "01DevelopingIndependenceAndGoodPracticeTips.Rmd" [3] "02ImportingData.Rmd" ………………….

6

Directory structure and relative paths

> getwd() [1] "M:/web/58M - 2018.yrk/pracs" > dir("../data") [1] "1_trace1" [2] "2zta.pdb" [3] "beewing.txt" [4] "biomass.txt" [5] "carsdata.dta" [6] "CDK_FASTA.txt" ….

7

Directory structure and relative paths

> dat <- read.table("beewing.txt") Error in file(file, "rt") : cannot open the connection In addition: Warning message: In file(file, "rt") : cannot open file 'beewing.txt': No such file or directory > dat <- read.table("data/beewing.txt") Error in file(file, "rt") : cannot open the connection In addition: Warning message: In file(file, "rt") : cannot open file 'data/beewing.txt': No such file or directory > dat <- read.table("../data/beewing.txt") > getwd() [1] "M:/web/58M - 2018.yrk/pracs" > dir() [1] "01DevelopingIndependenceAndGoodPracticeTips.html" [2] "01DevelopingIndependenceAndGoodPracticeTips.Rmd" [3] "02ImportingData.Rmd"

8

Setting wd to source file without menu

x <- rstudioapi::getActiveDocumentContext()$path y <- unlist(strsplit(x, "/")) y <- y[-length(y)] path <- paste(y, collapse="/") setwd(path) > x <- rstudioapi::getActiveDocumentContext()$path > x [1] "Z:/My Documents/MBiol/reproducible/reproducible/pracs/mywork.R" > y <- unlist(strsplit(x, "/")) > y [1] "Z:" "My Documents" "MBiol" "reproducible" "reproducible" [6] "pracs" "mywork.R" > y <- y[-length(y)] > y [1] "Z:" "My Documents" "MBiol" "reproducible" "reproducible" [6] "pracs" > path <- paste(y, collapse="/") > path [1] "Z:/My Documents/MBiol/reproducible/reproducible/pracs" > setwd(path) install.packages("rstudioapi")

9

Typical Errors

Error in ggplot(perisummary, aes(x = season, y = para, fill = species)) : could not find function "ggplot" Is package installed? Have you done library() Error in file(file, "rt") : cannot open the connection In addition: Warning message: In file(file, "rt") : cannot open file 'data/beewing.txt': No such file or directory Have not used the correct relative path > ggplot(perisummary, aes(x = season, y = para, shape = species) ) + + geom_point(size = 2, position = position_dodge(0.9))+ + scale_shape_manual(values = c(1, 19)) + + + Help the cursor won’t return! R thinks the command is still running. You might have missed a bracket, or quote. Add what is required. You’ll get an error but the prompt will return

10 10

Google and more!

Google the error message! Google well defined questions “how do a t-test in R” http://www.cookbook-r.com/ http://r4ds.had.co.nz/ http://www-users.york.ac.uk/~er13/ Look at the image results. Use Find and Replace

11 11

The pipe: %>%

magrittr package The magrittr package offers a set of operators which make your code more readable by:

• structuring sequences of data operations left-to-right (as opposed to from the

inside and out),

• avoiding nested function calls,
• minimizing the need for local variables and function definitions,
• making it easy to add steps anywhere in the sequence of operations.

12 12

Nesting functions and intermediate variables

> dat <- 1:10 > myss <- function(v) {sum((v - mean(v))^2)} > myss(dat) [1] 82.5 > library(magrittr) > myss2 <- function(v) {(v - mean(v))^2 %>% sum} > myss2(dat) [1] 82.5 > obs <- c(4, 13, 14, 15, 13, 5) > exp <- c(2, 10, 20, 20, 10, 2) > chi <- sum((obs-exp)^2 / exp) > pchisq(chi,5,lower.tail=F) [1] 0.04486554 > sum((obs-exp)^2 / exp) %>% pchisq(.,5,lower.tail=F) [1] 0.04486554

13 13

Setting wd to source file without menu with the pipe

path <- rstudioapi::getActiveDocumentContext()$path %>% strsplit("/") %>% unlist() %>% .[-length(.)] %>% paste(., collapse = "/") setwd(path) getwd() x <- rstudioapi::getActiveDocumentContext()$path y <- unlist(strsplit(x, "/")) y <- y[-length(y)] path <- paste(y, collapse="/") setwd(path)

With the pipe Without the pipe
