Developing GraphQL APIs in Django using Graphene By Nisarg Shah Nisarg Shah Crazy Developer HELLO! Undergrad CS Student Software Developer at Tweetozy Co-creator of CoursesAround CONNECT WITH ME! iamnisarg.in nisarg1499 nisargshah14

SLIDE 1

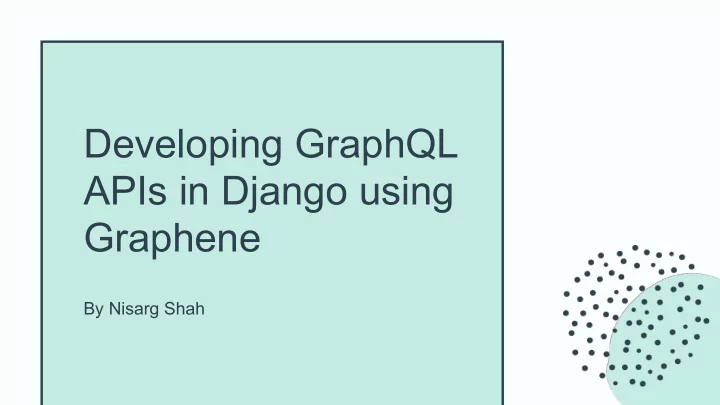

By Nisarg Shah

Developing GraphQL APIs in Django using Graphene

SLIDE 2

CONNECT WITH ME! iamnisarg.in nisarg1499 nisargshah14 HELLO!

Undergrad CS Student Software Developer at Tweetozy Co-creator of CoursesAround

Nisarg Shah

Crazy Developer

nisshah1499@gmail.com

SLIDE 3

Today's Talk

MAIN POINTS

General View on API REST APIs and GraphQL APIs Understand GraphQL Implementation using Graphene

SLIDE 4

SOME POPULAR API PROTOCOLS

SOAP
REST
and many more.....

Building Web Applications

Most web applications use APIs in their backend and

build their interface upon that.

Complete business logic in one place

SLIDE 5

Endpoints

GET https /{id}/getProfile

PUT https /{id}/talkTitle POST https /{id}/newProfile DELETE https /{profileId}

RESTful APIs

A piece of code is executed when these APIs are called.
Server returns the response to client

SLIDE 6

Problems faced in RESTful APIs

Multiple Endpoints
Over Fetching
Under Fetching

SLIDE 7

What can be the alternative?

GraphQL

SLIDE 8

GraphQL

Open Source
GraphQL is a Query

Language

Uses Schema based

system

Easy and efficient to use

SLIDE 9

Why GraphQL?

Client requests the

needed data. Client decides the query and according to that data is fetched.

SLIDE 10

And you know what...

Only one API Endpoint
No over fetching or

under fetching

Auto-generation of

API documentation

SLIDE 11

Let's learn about GraphQL

Schema : structure
Mutation : updating data on server
Queries : fetching data
Subscriptions : real time data exchange

SLIDE 12

Schema

GraphQL Object Type

⚬ Product

Fields

⚬ productId ⚬ productName ⚬ and few listed in pic

Scalar Types

⚬ Int ⚬ String ⚬ and many more...

Product Schema

SLIDE 13

Used for changing data on

server

Return the response

according to your needs

Variables passed can be

scalars or ObjectTypes

Mutation

Response from server

SLIDE 14

Using query variables for inserting data

SLIDE 15

Get data from server
Ask for specific fields on
bjects
Design query according to

needs

Query

Response from server

SLIDE 16

Realtime connection to

server

Client subscribes to an event
Server pushes data to client

when event occurs

Same syntax as queries and

mutations

Subscriptions

Response from server

subscription{ addProduct{ productName, productPrice, productDesc } } { "addProduct" : { "productName" : " Toy", "productPrice" : 500, "productDesc" : "New toy" } }

SLIDE 17

Libraries for building GraphQL APIs in Python

STRAWBERRY

456 Stars

Code-First Approach

ARIADNE

896 Stars

Schema-First Approach

GRAPHENE

5.6k+ Stars

Code-First Approach

SLIDE 18

Let's Build GraphQL APIs

We will use

SLIDE 19

Environment setup

⚬ ⚬ ⚬ ⚬

SLIDE 20

SLIDE 21

Add the following in your settings.py file

GRAPHENE = { 'SCHEMA' : 'project.schema.schema' }

SLIDE 22

Few Concepts of Graphene

SLIDE 23

ObjectType

A block which is used to

define a relation between fields and schema

SLIDE 24

Schema

Relationship between

fields in API

SLIDE 25

Resolvers
A method that helps

to answer queries

SLIDE 26

Resolvers

query($author: String!, $repoName: String!){

repo(login: $author){ repository(name: $repoName){ forkCount, updatedAt } } }

SLIDE 27

Scalars

a.k.a : Data types

SLIDE 28

AUTHENTICATION

Secure your backend API's using JWT Tokens

PAGINATION

Send a particular bunch of data instead

f complete data

MUTATIONS

Update the data on server

QUERIES

Fetch the data from server

SLIDE 29

File Structure

SLIDE 30

Used concepts : ObjectType, DjangoObjectType, resolvers, Schema

FETCHING DATA

Writing Queries

SLIDE 31

Used concepts : ObjectType, DjangoObjectType, arguments, mutate

UPDATING DATA ON SERVER

Writing Mutations

SLIDE 32

path('graphql/', csrf_exempt(GraphQLView.as_view(graphiql=True)))

GraphiQL View

Add this in your urls.py file

Write your graphql query/mutation here.... Server response

SLIDE 33

Used concepts : ObjectType, DjangoObjectType, Python slicing

SENDING A BUNCH OF DATA

Pagination

SLIDE 34

SECURING USING JWT TOKENS

Authentication

.project/schema.py settings.py

SLIDE 35

SECURING USING JWT TOKENS

Created a mutation for creating a user
Create a user
Use this mutation while login
Store this token and use for further

queries.

SLIDE 36

SECURING USING JWT TOKENS

user = info.context.user if user.is_anonymous: raise Exception("Not logged in!!")

Add this is your queries and mutations Add JWT Token in Headers prefixed by "JWT"

SLIDE 37

SECURING USING JWT TOKENS

Mutation without JWT Token

SLIDE 38

GraphQL Website : https://graphql.org/
GraphQL Blogs : Medium
HowToGraphQL : https://www.howtographql.com/
Graphene Documentation

Helpful Resources

SLIDE 39

Open Source Project

Github Repository : https://github.com/nisarg1499/django-ecom merce-graphql Building boiler plate of ecommerce by implementing GraphQL APIs in django Currently 3 active contributors

django-ecommerce

graphql

SLIDE 40

THANK YOU

FINAL WORDS

NISARG SHAH

CONNECT WITH ME! iamnisarg.in nisarg1499 nisargshah14 nisshah1499@gmail.com
