Conference on Seasonality, Seasonal Adjustment and their implications for Short-Term Analysis and Forecasting 10-12 May 2006 Developing and Improving a Moving Regression Weekly Seasonal Adjustment Program Tom Evans, Jerry Fields, Stuart Scott

slide-1
SLIDE 1

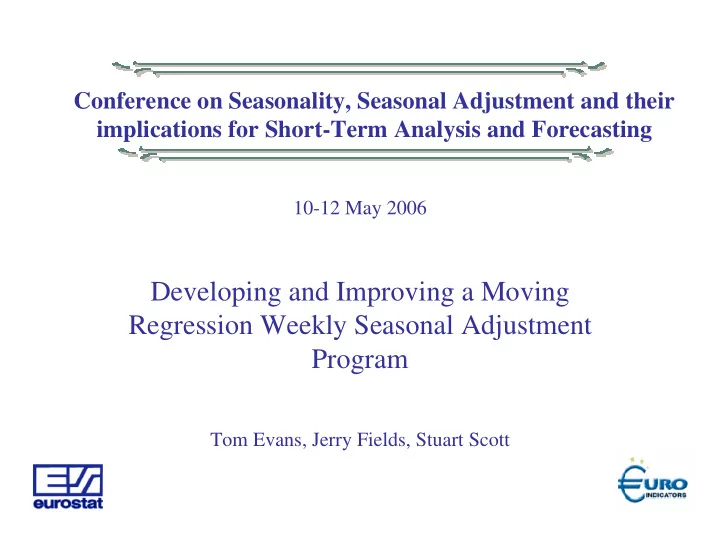

Conference on Seasonality, Seasonal Adjustment and their implications for Short-Term Analysis and Forecasting

10-12 May 2006

Developing and Improving a Moving Regression Weekly Seasonal Adjustment Program

Tom Evans, Jerry Fields, Stuart Scott

slide-2
SLIDE 2

Developing and Improving a Moving Regression Weekly Seasonal Adjustment Program

Tom Evans, Jerry Fields, Stuart Scott Bureau of Labor Statistics Washington, DC, USA

slide-3
SLIDE 3

2

Outline

  • Background
  • The CATS Programs
  • RegMOVE
  • Future Work
slide-4
SLIDE 4

3

Background

  • Standard seasonal adjustment programs

such as X-12-ARIMA and TRAMO/SEATS are for monthly and quarterly data

  • Pierce, Grupe, and Cleveland (1984) have

a deterministic approach to weekly seasonally adjustment using fixed regression with ARIMA errors

slide-5
SLIDE 5

4

Background

  • Cleveland (1993) expands on the earlier

approach by adding locally weighted regressions by year to allow for moving seasonal factors

  • Harvey, Koopman, and Riani (1997)

propose a structural time series method with splines

slide-6
SLIDE 6

5

Background

  • BLS uses a modified version of

Cleveland’s locally weighted regression program

  • BLS seasonally adjusts weekly initial

claims and continued claims from the Unemployment Insurance program

slide-7
SLIDE 7

6

The Calendar

  • Gregorian calendar has a 400-year cycle
  • 97 leap years
  • 329 52-week years

71 53-week years

  • 53-week years occur every 5.634 years on

average, ranging from 5-7 years apart

slide-8
SLIDE 8

7

The CATS Programs

  • Pierce, Grupe, and Cleveland (1984)

Calendar Adjustment and Time Series (CATS-D)

  • yt = s1t + p1t + s2t + p2t + et
slide-9
SLIDE 9

8

The CATS Programs

  • CATS-D Seasonal Component

1

2 ( ) 2 ( ) sin cos

k t i i i y y

iY t iY t w a b N N π π

=

⎛ ⎞ = + + ⎜ ⎟ ⎜ ⎟ ⎝ ⎠

∑

1

2 ( ) 2 ( ) sin cos

l i i i m m

iM t iM t c d N N π π

=

⎛ ⎞ + ⎜ ⎟ ⎝ ⎠

∑

slide-10
SLIDE 10

9

The CATS Programs

  • Projected Factors Method
  • Overall Deterministic Model

( )

t t t

y x L e β θ ′ Δ − =

slide-11
SLIDE 11

10

The CATS Programs

  • CATS-M Method (moving seasonality)

1) Fixed global regression w/o weights for y 2) Remove the trend, calendar, and outlier effects to make y* 3) Separate regressions for y* for each year with same seasonal model but different weights

slide-12
SLIDE 12

11

The CATS Programs

  • No ARIMA model for error term
  • Slope and trend terms added to design

matrix Overall Model:

t t t

y x e β ′ Δ − =

slide-13
SLIDE 13

12

The CATS Programs

  • Weighted regression

y X e β = +

1

ˆ ( ) X WX X Wy β

−

′ ′ =

slide-14
SLIDE 14

13

The CATS Programs

  • Weights are found using the model

2 2

, /

e a

where υ σ σ =

[ ]

1

(1 )(1 ) |

t t t t t x

y x e L L x a E x y I y Wy φ υ

−

= + − − = ⎡ ⎤ = + Σ = ⎣ ⎦

slide-15
SLIDE 15

14

The CATS Programs

  • ν=10 and ν=24 are similar to 3x5 and 3x9

filters

  • Changing the value of φ affects how

quickly the seasonal factors move

  • Neighboring years are more heavily

weighted

slide-16
SLIDE 16

15

The CATS Programs

  • Typically need a long series to estimate

holidays or events

  • Challenging to properly specify holidays
slide-17
SLIDE 17

16

The CATS Programs

  • Twelve events are built in the program
  • There are 10 holidays and 3 user-defined

events for UI initial claims series

  • Examples of user-defined events are

Xmas on Friday, July 4th on Wednesday, and Xmas on Sunday in week 53

slide-18
SLIDE 18

17

RegMOVE

  • The new program is called RegMOVE

since they are moving regressions

  • RegMOVE is a SAS program that calls

CATS-M to simplify execution and to integrate high-resolution graphics

  • Important to integrate diagnostics and

graphs to speed up analysis

slide-19
SLIDE 19

18

RegMOVE

  • New output files that are easily machine-

readable

  • Basic documentation
  • Additional diagnostics:

Ljung-Box at seasonal lags Bera-Jarque normality test P-values for components, coefficients and tests Differenced R2

slide-20
SLIDE 20

19

RegMOVE

slide-21
SLIDE 21

20

RegMOVE

slide-22
SLIDE 22

21

RegMOVE

slide-23
SLIDE 23

22

RegMOVE

slide-24
SLIDE 24

23

RegMOVE

slide-25
SLIDE 25

24

RegMOVE

slide-26
SLIDE 26

25

RegMOVE

slide-27
SLIDE 27

26

RegMOVE

Table 1: Global Fixed Regression Diagnostics RegMOVE ver 2.01 Execution at 13:05, 18-APR-2006 series: iclaims series begins: 1988 week: 05 series ends: 2005 week: 05

  • utput file: anova.dat

COMPONENT DoF SS MSS F p-value Holiday 13 5.7408 0.4416 208.6801 0.0000 Outliers 14 0.6662 0.0476 22.4855 0.0000 Seasonal 60 6.5367 0.1089 51.4827 0.0000 Linear trend 2 0.0001 0.0001 0.0278 0.9726 Model 89 13.3453 0.1499 70.8585 0.0000 Error 798 1.6887 0.0021 Total 887 15.0339 0.0169 R-Square= 88.77% Box-Ljung statistic (approx. chi-square) Lag Q p-value 52 261.8703 0.0000 104 398.6564 0.0000

slide-28
SLIDE 28

27

RegMOVE

Outlier estimates WK YEAR FACTOR STD. ERR. T p-value 40 1989 1.1819 0.0341 4.9071 0.0000 30 1992 1.3985 0.0340 9.8651 0.0000 30 1993 1.3369 0.0341 8.5235 0.0000 52 1993 0.8780 0.0345 -3.7721 0.0001 5 1994 1.1249 0.0340 3.4606 0.0003 3 1996 1.1737 0.0351 4.5618 0.0000 38 2001 1.1314 0.0442 2.7954 0.0027 39 2001 1.2863 0.0568 4.4354 0.0000 40 2001 1.1745 0.0623 2.5833 0.0050 41 2001 1.1738 0.0626 2.5594 0.0053 42 2001 1.1302 0.0576 2.1269 0.0169 43 2001 1.1136 0.0442 2.4328 0.0076 47 2001 1.1716 0.0393 4.0335 0.0000 48 2001 1.1736 0.0406 3.9422 0.0000 Holiday estimates HOLIDAY FACTOR STD. ERR. T p-value User 1.1065 0.0251 4.0368 0.0000 User 1.0479 0.0220 2.1301 0.0167 User 0.9185 0.0257 -3.3056 0.0005 New Years 1.0850 0.0103 7.8931 0.0000 MLK Day 0.8286 0.0169 -11.0996 0.0000 Presidential 0.9330 0.0166 -4.1875 0.0000 Easter 0.9539 0.0082 -5.7615 0.0000 Memorial Day 0.8947 0.0163 -6.8484 0.0000 4th of July 0.9544 0.0164 -2.8500 0.0022 Labor Day 0.8912 0.0166 -6.9222 0.0000 Columbus Day 0.9532 0.0178 -2.6927 0.0036 Veterans Day 0.8762 0.0166 -7.9629 0.0000 Thanksgiving 0.7996 0.0178 -12.5724 0.0000 Seasonal estimates TERM FACTOR STD. ERR. T p-value 1 0.3486 0.1822 1.9136 0.0280 2 1.7341 0.1823 9.5126 0.0000 etc.

slide-29
SLIDE 29

28

RegMOVE

Table 2: Global Fixed Regression Output RegMOVE ver 2.01 Execution at 11:47, 18-APR-2006 series: iclaims series begins: 1988 week: 05 series ends: 2005 week: 05

  • utput file: global.dat

OBSERVATION ESTIMATE RESIDUAL STD. ERR. T p-value [EFFECT FACTOR STD. ERR. T p-value] 1 395000. 395001. -0.0645 0.0128 -5.0332 0.0000 2 381000. 406394. -0.0025 0.0129 -0.1973 0.4218 3 335000. 358236. 0.0333 0.0129 2.5723 0.0051 4 316000. 326866. -0.0246 0.0180 -1.3646 0.0864 [Holiday 0.9330 0.0166 -4.1875 0.0000] 5 324000. 343474. -0.0411 0.0153 -2.6853 0.0037 6 312000. 344613. -0.0063 0.0124 -0.5080 0.3058 7 294000. 326789. -0.0145 0.0124 -1.1710 0.1210 8 276000. 311262. -0.0028 0.0125 -0.2200 0.4129 9 269000. 304204. 0.0002 0.0145 0.0114 0.4952 10 257000. 290585. 0.0255 0.0147 1.7313 0.0419 [Holiday 0.9539 0.0082 -5.7615 0.0000]

slide-30
SLIDE 30

29

RegMOVE

Table 3: Sine and Cosine Coefficients from Locally Weighted Regressions RegMOVE ver 2.01 Execution at 11:47, 18-APR-2006 series: iclaims series begins: 1988 week: 05 series ends: 2005 week: 05

  • utput file: coefs.dat

1 1988 0.3010 1 1989 0.3283 1 1990 0.3502 1 1991 0.3732 1 1992 0.3843 1 1993 0.4029 1 1994 0.4119 1 1995 0.4196 1 1996 0.4175 1 1997 0.4036 1 1998 0.3851 1 1999 0.3604 1 2000 0.3257 1 2001 0.2905 1 2002 0.2703 1 2003 0.2615 1 2004 0.2465 2 1988 1.9176 2 1989 1.9252 2 1990 1.9308 etc.

slide-31
SLIDE 31

30

Future Work

  • Additional diagnostics
  • Allow for square-root transformation
  • Possible code upgrades or rewrites
  • Improved documentation
