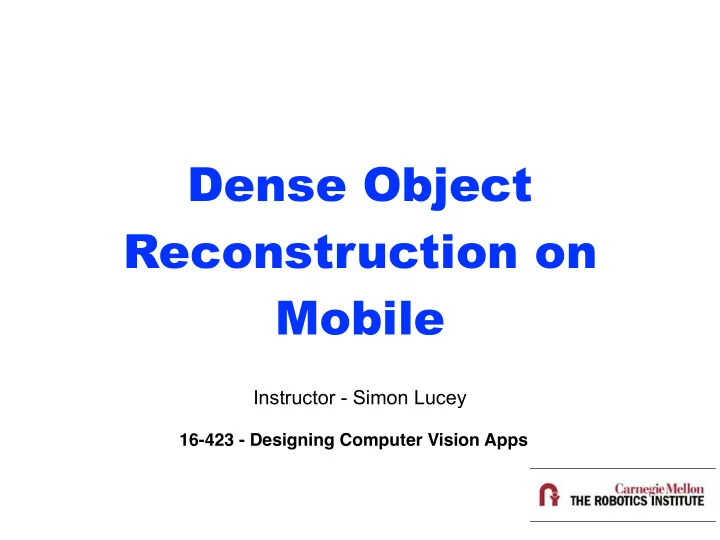

Dense Object Reconstruction on Mobile

Instructor - Simon Lucey

16-423 - Designing Computer Vision Apps

Reminder - Project Presentation

• Each team will be given approximately 2.5 minutes per

member to present (for example a 2 member team will have 5 minutes allotted).

• Each team will fill out the following form, providing a short

(must be shorter than your allotted time) YouTube clip describing your App in action.

• Teams can submit their YouTube clips through the form

http://goo.gl/forms/YoeQt0c1Hf.

• 16423 staff will select the best presentations, with the winner

receiving the the best project prize.

Today

• 3D Object Reconstruction through Motion
• 3D Object Reconstruction through Learning

123D Catch

123D Catch

Feature-Based Methods

Feature-Based Methods

Image is reduced to a sparse set of keypoints Usually matched with feature descriptors

Feature-Based Advantages

Vanishing point

Easier transition from images to geometry Wide-baseline matching

Mikolajczyk, 2007

Illumination invariance

Mikolajczyk, 2007

Feature-Based Advantages

Vanishing point

Easier transition from images to geometry Wide-baseline matching

Mikolajczyk, 2007

Illumination invariance

Mikolajczyk, 2007

Using invariant descriptors

Feature-Based Challenges ?

Small baseline

• 1. High depth uncertainty.
• H. Ha, et al. “High-quality Depth from Uncalibrated Small Motion Clip“ in CVPR 2016.

Feature-Based Challenges ?

Small baseline

• 1. High depth uncertainty.
• 2. Degenerate case of two view methods.
• H. Ha, et al. “High-quality Depth from Uncalibrated Small Motion Clip“ in CVPR 2016.

Feature-Based Challenges ?

Small baseline

• 1. High depth uncertainty.
• 2. Degenerate case of two view methods.
• H. Ha, et al. “High-quality Depth from Uncalibrated Small Motion Clip“ in CVPR 2016.
• 3. Reconstructions tend to be sparse and lack detail.

9

ECCV 1999

Feature-Based Challenges

Direct Method (ours) Feature-Based Method (ORB+RANSAC)

• Creates only a sparse map of

the world.

• Does not sample across all

available image data - edges & weak intensities.

• Needs high-resolution camera

mode (bad for efficiency and battery life).

Feature-Based Challenges

Direct Method (ours) Feature-Based Method (ORB+RANSAC)

• Creates only a sparse map of

the world.

• Does not sample across all

available image data - edges & weak intensities.

• Needs high-resolution camera

mode (bad for efficiency and battery life).

Feature-Based Challenges

Direct Method (ours) Feature-Based Method (ORB+RANSAC)

• Creates only a sparse map of

the world.

• Does not sample across all

available image data - edges & weak intensities.

• Needs high-resolution camera

mode (bad for efficiency and battery life).

Direct Methods

• Although not always perfect, a common measure of photometric

image similarity is:

• Sum of squared differences (SSD)

“Template” “Source Image” “Vector Form”

||I(p) − T (0)||2

2

SSD(p) =

   W(x1; p) . . . W(xN; p)       W(x1; 0) . . . W(xN; 0)   

I T

Review - LK Algorithm

• Lucas & Kanade (1981) realized this and proposed a method for

estimating warp displacement using the principles of gradients and spatial coherence.

• Technique applies Taylor series approximation to any spatially

coherent area governed by the warp .

12

W(x; p)

I(p + ∆p) ≈ I(p) + ∂I(p) ∂pT ∆p

Review - LK Algorithm

• Lucas & Kanade (1981) realized this and proposed a method for

estimating warp displacement using the principles of gradients and spatial coherence.

• Technique applies Taylor series approximation to any spatially

coherent area governed by the warp .

12

“We consider this image to always be static - referred to as the template.”

W(x; p)

I(p + ∆p) ≈ I(p) + ∂I(p) ∂pT ∆p

T (0)

Review - LK Algorithm

• Lucas & Kanade (1981) realized this and proposed a method for

estimating warp displacement using the principles of gradients and spatial coherence.

• Technique applies Taylor series approximation to any spatially

coherent area governed by the warp .

13

W(x; p)

I(p + ∆p) ≈ I(p) + ∂I(p) ∂pT ∆p

Review - LK Algorithm

• Lucas & Kanade (1981) realized this and proposed a method for

estimating warp displacement using the principles of gradients and spatial coherence.

• Technique applies Taylor series approximation to any spatially

coherent area governed by the warp .

14

W(x; p)

I(p + ∆p) ≈ I(p) + ∂I(p) ∂pT ∆p

∂I(p) ∂pT =    

∂I(x0

1)

∂x0T

1

. . . 0T . . . ... . . . 0T . . .

∂I(x0

N)

∂x0T

N

       

∂W(x1;p) ∂pT

. . .

∂W(xN;p) ∂pT

    x0 = W(x; p)

Results

Direct Method (ours) Feature-Based Method (ORB+RANSAC)

• H. Alismail, B. Browning, S. Lucey. "Enhancing Direct Camera Tracking with Feature Descriptors" ACCV 2016.
• H. Alismail, B. Browning, M. Kaess, S. Lucey, “Direct Visual Odometry in Low Light using Binary Descriptors”, IEEE

International Conference on Robotics and Automation (ICRA) 2017.

Results

Direct Method (ours) Feature-Based Method (ORB+RANSAC)

• H. Alismail, B. Browning, S. Lucey. "Enhancing Direct Camera Tracking with Feature Descriptors" ACCV 2016.
• H. Alismail, B. Browning, M. Kaess, S. Lucey, “Direct Visual Odometry in Low Light using Binary Descriptors”, IEEE

International Conference on Robotics and Automation (ICRA) 2017.

Results

Direct Method (ours) Feature-Based Method (ORB+RANSAC)

• H. Alismail, B. Browning, S. Lucey. "Enhancing Direct Camera Tracking with Feature Descriptors" ACCV 2016.
• H. Alismail, B. Browning, M. Kaess, S. Lucey, “Direct Visual Odometry in Low Light using Binary Descriptors”, IEEE

International Conference on Robotics and Automation (ICRA) 2017.

Today

• Direct vs. Feature based methods
• Dense SLAM
• Semi-Dense SLAM

x

Reminder: Warp Functions

“Source” “Template”

Our goal is to find the warp parameter vector ! W(x; p) x W(x; p) = warping function such that x0 = W(x; p) p = parameter vector describing warp x = coordinate in template [x, y]T x0 = corresponding coordinate in source [x0, y0]T

p

Reminder: Warp Functions

x0

“Source” “Template”

Review: Pinhole Camera

Real camera image is inverted Instead model impossible but more convenient virtual image

Adapted from: Computer vision: models, learning and inference. Simon J.D. Prince

First camera: Second camera: Substituting:

Relating Points between Views

Adapted from: Computer vision: models, learning and inference. Simon J.D. Prince

Pinhole Warp Function

• One can represent the relationship of points between views of

pinhole cameras as a warp function,

W(x; θ, λ) = π(λΩ˜ x + τ)

π @ u v w 1 A = ✓ u/w v/w ◆

“pinhole projection” “warp function”

T =  Ω τ 0T 1

• ∈ SE(3)

“pose parameters”

Pinhole Warp Function

• One can represent the relationship of points between views of

pinhole cameras as a warp function,

W(x; θ, λ) = π(λΩ˜ x + τ)

π @ u v w 1 A = ✓ u/w v/w ◆

“pinhole projection” “warp function”

∈ SE(3)

T(θ) = exp 6 X

i=1

θiAi !

“pose parameters”

Photometric Relationship

• We can employ this warp function to now express the problem as,

𝑈𝑙

𝐽𝑙−1 𝐽𝑙

𝑈𝑙

“An Invitation to 3D Vision”, Ma,

𝑈𝑙

T (xn) = I(W{xn; θf, λn}) T If

θf

λn˜ xn

“keyframe template” “f-th image”

Linearizing the Image for Pose

Baker, Simon, and Iain Matthews. "Equivalence and efficiency of image alignment algorithms." CVPR 2001.

≈ If(W{xn; θf, λn}) + Af

n∆θf

T (xn) = If(W{xn; θf ∆θ, λn})

Linearizing the Image for Pose

Baker, Simon, and Iain Matthews. "Equivalence and efficiency of image alignment algorithms." CVPR 2001.

≈ If(W{xn; θf, λn}) + Af

n∆θf

T (xn) = If(W{xn; θf ∆θ, λn})

Direct Camera Tracking

• Assuming known depths ,

{λn}N

n=1

arg min

∆θf N

X

n=1

||T (xn) − If(W{xn; θf, λn}) − Af

n∆θf||2 2

𝑈𝑙

𝐽𝑙−1 𝐽𝑙

𝑈𝑙

“An Invitation to 3D Vision”, Ma,

𝑈𝑙

T If

θf

λn˜ xn

“keyframe template” “f-th image”

Direct Camera Tracking

• Most methods employ a variant of the Lucas-Kanade algorithm for

estimating camera pose.

• Engel et al. demonstrated using a “dense” number of points does not

improve the performance of camera tracking (i.e pose estimation).

• Advantage of density stems mainly from the map estimation.
• J. Engel, V. Koltun, and D. Cremers. Direct sparse odometry. arXiv preprint arXiv:1607.02565, 2016.
• J. Engel, T. Schops, and D. Cremers. LSD-SLAM: Large-scale direct monocular slam. In European Conference on Computer Vision,

pages 834–849. Springer, 2014.

Direct Camera Tracking

• Most methods employ a variant of the Lucas-Kanade algorithm for

estimating camera pose.

• Engel et al. demonstrated using a “dense” number of points does not

improve the performance of camera tracking (i.e pose estimation).

• Advantage of density stems mainly from the map estimation.
• J. Engel, V. Koltun, and D. Cremers. Direct sparse odometry. arXiv preprint arXiv:1607.02565, 2016.
• J. Engel, T. Schops, and D. Cremers. LSD-SLAM: Large-scale direct monocular slam. In European Conference on Computer Vision,

pages 834–849. Springer, 2014.

How do we update the depths?

Direct Map Estimation

• Assuming known pose parameters ,
• Naively we could solve for the depths independently,

{θf}F

f=1

C(x, λ) = 1 F

F

X

f=1

||T (x) − If(W{x; θf, λ})||1

• R. A. Newcombe, S. J. Lovegrove and A. J. Davison "DTAM: Dense Tracking and Mapping in Real-Time”, ICCV 2011.

λn = arg min

λ C(xn, λ)

C(x, λ)

C(x, λ)

DTAM

• Newcombe et al. proposed - Dense Tracking and Mapping.
• Attempted to substitute the feature based tracking and mapping

modules of traditional VSLAM (e.g. PTAM) for dense methods.

• R. A. Newcombe, S. J. Lovegrove and A. J. Davison "DTAM: Dense Tracking and Mapping in Real-Time”, ICCV 2011.

λmax λmin

T

IF

f = 1 : F

x

• 1
• 1

DTAM

• Newcombe et al. proposed - Dense Tracking and Mapping.
• Attempted to substitute the feature based tracking and mapping

modules of traditional VSLAM (e.g. PTAM) for dense methods.

• R. A. Newcombe, S. J. Lovegrove and A. J. Davison "DTAM: Dense Tracking and Mapping in Real-Time”, ICCV 2011.

λmax λmin

T

IF

f = 1 : F

x

• 1
• 1

“Sample across inverse depths”

DTAM - Example

photometric functions and the resulting

• R. A. Newcombe, S. J. Lovegrove and A. J. Davison "DTAM: Dense Tracking and Mapping in Real-Time”, ICCV 2011.

λ-1

C(a, λ)

DTAM - Example

• R. A. Newcombe, S. J. Lovegrove and A. J. Davison "DTAM: Dense Tracking and Mapping in Real-Time”, ICCV 2011.

λ

C(b, λ)

• 1

DTAM - Example

are shown for three example

• R. A. Newcombe, S. J. Lovegrove and A. J. Davison "DTAM: Dense Tracking and Mapping in Real-Time”, ICCV 2011.

λ

C(c, λ)

• 1

DTAM - Geometric Prior

• Newcombe et al. proposed the employment of a geometric prior on

depths,

arg min

λ N

X

n=1

C(xn, λn) + g(xn)||r ⇤ λn||✏ g(x) = exp(α||rT(x)||β

2)

• 1

DTAM - Geometric Prior

• Newcombe et al. proposed the employment of a geometric prior on

depths,

arg min

λ N

X

n=1

C(xn, λn) + g(xn)||r ⇤ λn||✏ g(x) = exp(α||rT(x)||β

2)

What do you think the prior is doing?

• 1

DTAM - Video

DTAM - Video

LSD SLAM

• A drawback to DTAM is that the depth estimation is a volumetric

method and therefore requires state of the art GPU to run in real- time.

• Engel et al. recently proposed Large-Scale Direct Monocular SLAM

that circumvents this limitation.

Tracking Depth Map Estimation Map Optimization

New Image

(640 x 480 at 30Hz)

Track on Current KF:

→ estimate SE(3) transformation

Current KF

Refine Current KF

→ small-baseline stereo → probabilistically merge into KF → regularize depth map

Create New KF

→ propagate depth map to new frame → regularize depth map

Add KF to Map

→ find closest keyframes → estimate Sim(3) edges

(See Sec. 3.2, 3.5 and 3.6) (See Sec. 3.3) (See Sec. 3.4)

replace KF refine KF yes no tracking reference add to map

Current Map Take KF?

min

ξ∈se(3)

P

p

• r2

p(p,ξ)

σ2

rp(p,ξ)

• δ

min

ξ∈sim(3)

P

p

• r2

σ2

r2

σ2

• δ
• J. Engel, T. Schops, and D. Cremers. LSD-SLAM: Large-scale direct monocular slam. In European Conference on Computer Vision, pages

834–849. Springer, 2014.

LSD SLAM

• Depth map can instead be represented as a Gaussian distribution.
• Much more efficient than DTAM’s volumetric approach.
• Engel et al. also used a similar (but more efficient) geometric

prior to DTAM.

• J. Engel, T. Schops, and D. Cremers. LSD-SLAM: Large-scale direct monocular slam. In European Conference on Computer Vision, pages

834–849. Springer, 2014.

C(x, λ) = σ(x)−2||λ−1 − µ(x)||2

2

Examples in Mobile

34

ItSeez - App

ItSeez - App

Today

• 3D Object Reconstruction through Motion
• 3D Object Reconstruction through Learning

What are we now doing?

What are we now doing?

Esimating Extrinsics

u v w

Optical center Optical axis

“Image Plane” Focal length

Esimating Extrinsics

u v w

Optical center Optical axis

w =   u v w  

“Object in the world” “Image Plane” Focal length

Esimating Extrinsics

u v w

Optical center Optical axis

w =   u v w   x = x y

• “Object in the world”

“Image Plane” Focal length

Esimating Extrinsics

u v w

Optical center Optical axis

“Object in the world” “Image Plane” Focal length

Esimating Extrinsics

u v w

Optical center Optical axis

“Object in the world” “Image Plane” Focal length

Rw + τ

Esimating Extrinsics

u v w

Optical center Optical axis

x = x y

• “Object in the world”

“Image Plane” Focal length

Rw + τ

Esimating Extrinsics

u v w

Optical center Optical axis

x = x y

• “Object in the world”

“Image Plane” Focal length

Rw + τ

• A. Chang et al., “ShapeNet: An Information-Rich 3D Model Repository”, arXiv 1512.03012, 2015

Annotating 3D Images

“Taken from the Beyond PASCAL benchmark website”

Annotating 3D Images

“Taken from the Beyond PASCAL benchmark website”

Current State of the Art

CAD Selection (VGG-NET) Extrinsics Selection (VGG-NET)

. . .

. . .

image patch 3@ (224x224)

• H. Su, et al. “Render for CNN: Viewpoint Estimation in

Images Using CNNs Trained with Rendered 3D Model Views”. In ICCV 2015.

• A. Bansal, et al. “Marr Revisited: 2D-3D Alignment

via Surface Normal Prediction”. In CVPR 2016.

Current State of the Art

CAD Selection (VGG-NET) Extrinsics Selection (VGG-NET)

. . .

. . .

image patch 3@ (224x224)

• H. Su, et al. “Render for CNN: Viewpoint Estimation in

Images Using CNNs Trained with Rendered 3D Model Views”. In ICCV 2015.

• A. Bansal, et al. “Marr Revisited: 2D-3D Alignment

via Surface Normal Prediction”. In CVPR 2016.

Compressible CAD Models

Compressible CAD Models

Our Approach

• 1. Style Embedding Autoencoder

Encode style for aligned models

Our Approach

• 2. Image to Pose and Style Regressors

Regress from an rendered image to its style embedding and ground truth pose

Network Architecture

• 3. Adaptation to Natural Images

Fine tune style and pose regressors by minimizing reprojection loss on natural images.

Results
