Dealing with Hamiltonian Structure: Challenges and Successes David S. Watkins watkins@math.wsu.edu Department of Mathematics Washington State University Cortona, September 2008 p. 1 Alternating Pencils Cortona, September 2008 p. 2

slide-1
SLIDE 1

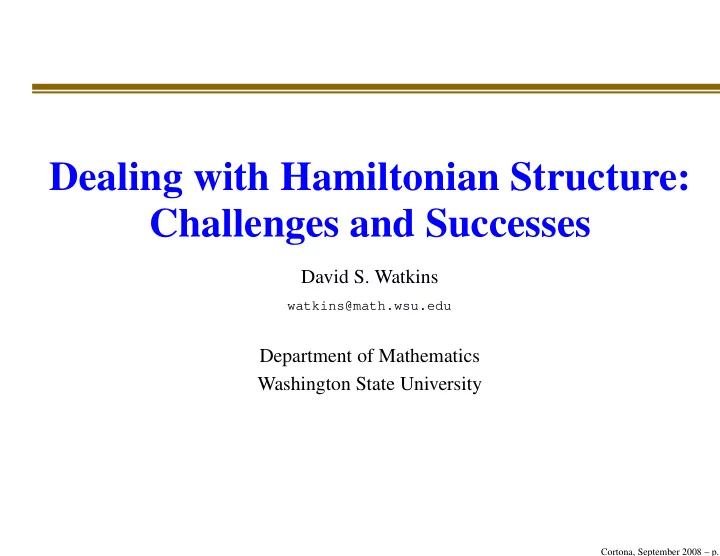

Dealing with Hamiltonian Structure: Challenges and Successes

David S. Watkins

watkins@math.wsu.edu

Department of Mathematics Washington State University

Cortona, September 2008 – p. 1

slide-2
SLIDE 2

Alternating Pencils

Cortona, September 2008 – p. 2

slide-3
SLIDE 3

Alternating Pencils

(λkAk + λk−1Ak−1 + · · · + A0)v = 0

Cortona, September 2008 – p. 2

slide-4
SLIDE 4

Alternating Pencils

(λkAk + λk−1Ak−1 + · · · + A0)v = 0 alternating, even, odd

Cortona, September 2008 – p. 2

slide-5
SLIDE 5

Alternating Pencils

(λkAk + λk−1Ak−1 + · · · + A0)v = 0 alternating, even, odd Example: anisotropic solids, Lamé equations

Cortona, September 2008 – p. 2

slide-6
SLIDE 6

Alternating Pencils

(λkAk + λk−1Ak−1 + · · · + A0)v = 0 alternating, even, odd Example: anisotropic solids, Lamé equations (λ2M + λG + K)v = 0

Cortona, September 2008 – p. 2

slide-7
SLIDE 7

Alternating Pencils

(λkAk + λk−1Ak−1 + · · · + A0)v = 0 alternating, even, odd Example: anisotropic solids, Lamé equations (λ2M + λG + K)v = 0 large, sparse matrices

Cortona, September 2008 – p. 2

slide-8
SLIDE 8

Alternating Pencils

(λkAk + λk−1Ak−1 + · · · + A0)v = 0 alternating, even, odd Example: anisotropic solids, Lamé equations (λ2M + λG + K)v = 0 large, sparse matrices compute a few smallest eigenvalues

Cortona, September 2008 – p. 2

slide-9
SLIDE 9

Alternating Pencils

(λkAk + λk−1Ak−1 + · · · + A0)v = 0 alternating, even, odd Example: anisotropic solids, Lamé equations (λ2M + λG + K)v = 0 large, sparse matrices compute a few smallest eigenvalues symmetry of spectrum

Cortona, September 2008 – p. 2

slide-10
SLIDE 10

Spectrum of an Alternating Pencil

Cortona, September 2008 – p. 3

slide-11
SLIDE 11

Reduction of Order

Cortona, September 2008 – p. 4

slide-12
SLIDE 12

Reduction of Order

(linearization)

Cortona, September 2008 – p. 4

slide-13
SLIDE 13

Reduction of Order

(linearization) same as for differential equations

Cortona, September 2008 – p. 4

slide-14
SLIDE 14

Reduction of Order

(linearization) same as for differential equations w = λv,

Cortona, September 2008 – p. 4

slide-15
SLIDE 15

Reduction of Order

(linearization) same as for differential equations w = λv, −λMv + Mw = 0

Cortona, September 2008 – p. 4

slide-16
SLIDE 16

Reduction of Order

(linearization) same as for differential equations w = λv, −λMv + Mw = 0 λ

  • G

M −M v w

  • +

K M v w

  • =
  • Cortona, September 2008 – p. 4
slide-17
SLIDE 17

Reduction of Order

(linearization) same as for differential equations w = λv, −λMv + Mw = 0 λ

  • G

M −M v w

  • +

K M v w

  • =
  • structure is preserved

Cortona, September 2008 – p. 4

slide-18
SLIDE 18

Reduction of Order

(linearization) same as for differential equations w = λv, −λMv + Mw = 0 λ

  • G

M −M v w

  • +

K M v w

  • =
  • structure is preserved

Mackey/Mackey/Mehl/Mehrmann

Cortona, September 2008 – p. 4

slide-19
SLIDE 19

Factorization

Cortona, September 2008 – p. 5

slide-20
SLIDE 20

Factorization

  • G

M −M

  • =

I

1 2G M

T 0 I −I 0 I

1 2G M

  • Cortona, September 2008 – p. 5
slide-21
SLIDE 21

Factorization

  • G

M −M

  • =

I

1 2G M

T 0 I −I 0 I

1 2G M

  • J =
  • 0 I

−I 0

  • Cortona, September 2008 – p. 5
slide-22
SLIDE 22

Factorization

  • G

M −M

  • =

I

1 2G M

T 0 I −I 0 I

1 2G M

  • J =
  • 0 I

−I 0

  • N = LTJL

Cortona, September 2008 – p. 5

slide-23
SLIDE 23

Factorization

  • G

M −M

  • =

I

1 2G M

T 0 I −I 0 I

1 2G M

  • J =
  • 0 I

−I 0

  • N = LTJL

A − λN ⇒ JTL−TAL−1 − λI

Cortona, September 2008 – p. 5

slide-24
SLIDE 24

Factorization

  • G

M −M

  • =

I

1 2G M

T 0 I −I 0 I

1 2G M

  • J =
  • 0 I

−I 0

  • N = LTJL

A − λN ⇒ JTL−TAL−1 − λI Hamiltonian matrix: (JH)T = JH

Cortona, September 2008 – p. 5

slide-25
SLIDE 25

Factorization

  • G

M −M

  • =

I

1 2G M

T 0 I −I 0 I

1 2G M

  • J =
  • 0 I

−I 0

  • N = LTJL

A − λN ⇒ JTL−TAL−1 − λI Hamiltonian matrix: (JH)T = JH Hamiltonian matrix ⇔ alternating pencil

Cortona, September 2008 – p. 5

slide-26
SLIDE 26

Special Case

Cortona, September 2008 – p. 6

slide-27
SLIDE 27

Special Case

λ

  • G

M −M v w

  • +

K M v w

  • =
  • Cortona, September 2008 – p. 6
slide-28
SLIDE 28

Special Case

λ

  • G

M −M v w

  • +

K M v w

  • =
  • G

M −M

  • =

I

1 2G M

T 0 I −I 0 I

1 2G M

  • Cortona, September 2008 – p. 6
slide-29
SLIDE 29

Special Case

λ

  • G

M −M v w

  • +

K M v w

  • =
  • G

M −M

  • =

I

1 2G M

T 0 I −I 0 I

1 2G M

  • H = J

I

1 2G

I K M −1 I −1

2G I

  • Cortona, September 2008 – p. 6
slide-30
SLIDE 30

H = J I

1 2G

I K M −1 I −1

2G I

  • Cortona, September 2008 – p. 7
slide-31
SLIDE 31

H = J I

1 2G

I K M −1 I −1

2G I

  • Don’t form H explicitly.

Cortona, September 2008 – p. 7

slide-32
SLIDE 32

H = J I

1 2G

I K M −1 I −1

2G I

  • Don’t form H explicitly.

Use a Krylov subspace method.

Cortona, September 2008 – p. 7

slide-33
SLIDE 33

H = J I

1 2G

I K M −1 I −1

2G I

  • Don’t form H explicitly.

Use a Krylov subspace method. But we want the smallest eigenvalues.

Cortona, September 2008 – p. 7

slide-34
SLIDE 34

H = J I

1 2G

I K M −1 I −1

2G I

  • Don’t form H explicitly.

Use a Krylov subspace method. But we want the smallest eigenvalues. H−1 = I

1 2G I

K−1 M I −1

2G

I

  • JT

Cortona, September 2008 – p. 7

slide-35
SLIDE 35

LQG Control Problem

Cortona, September 2008 – p. 8

slide-36
SLIDE 36

LQG Control Problem

˙ x = Ax + Bu

Cortona, September 2008 – p. 8

slide-37
SLIDE 37

LQG Control Problem

˙ x = Ax + Bu I(x, u) = ∞ 1

2xTQx + xTSu + 1 2uTRu

  • dt

Cortona, September 2008 – p. 8

slide-38
SLIDE 38

LQG Control Problem

˙ x = Ax + Bu I(x, u) = ∞ 1

2xTQx + xTSu + 1 2uTRu

  • dt

L(x, u, µ) = I(x, u) + ∞

0 µT( ˙

x − Ax − Bu) dt

Cortona, September 2008 – p. 8

slide-39
SLIDE 39

LQG Control Problem

˙ x = Ax + Bu I(x, u) = ∞ 1

2xTQx + xTSu + 1 2uTRu

  • dt

L(x, u, µ) = I(x, u) + ∞

0 µT( ˙

x − Ax − Bu) dt   0 I 0 −I 0 0 0 0 0     ˙ x ˙ µ ˙ u   −   Q −AT S −A −B ST −BT R     x µ u   = 0

Cortona, September 2008 – p. 8

slide-40
SLIDE 40

LQG Control Problem

˙ x = Ax + Bu I(x, u) = ∞ 1

2xTQx + xTSu + 1 2uTRu

  • dt

L(x, u, µ) = I(x, u) + ∞

0 µT( ˙

x − Ax − Bu) dt   0 I 0 −I 0 0 0 0 0     ˙ x ˙ µ ˙ u   −   Q −AT S −A −B ST −BT R     x µ u   = 0 skew-symmetric/symmetric

Cortona, September 2008 – p. 8

slide-41
SLIDE 41

Associated eigenvalue problem

Cortona, September 2008 – p. 9

slide-42
SLIDE 42

Associated eigenvalue problem

λ   0 I 0 −I 0 0 0 0 0     v w y  −   Q −AT S −A −B ST −BT R     v w y   = 0

Cortona, September 2008 – p. 9

slide-43
SLIDE 43

Associated eigenvalue problem

λ   0 I 0 −I 0 0 0 0 0     v w y  −   Q −AT S −A −B ST −BT R     v w y   = 0 H = A − BR−1ST BR−1BT Q + SR−1ST −AT + SR−1BT

  • Cortona, September 2008 – p. 9
slide-44
SLIDE 44

Associated eigenvalue problem

λ   0 I 0 −I 0 0 0 0 0     v w y  −   Q −AT S −A −B ST −BT R     v w y   = 0 H = A − BR−1ST BR−1BT Q + SR−1ST −AT + SR−1BT

  • Stable invariant subspace is wanted.

Cortona, September 2008 – p. 9

slide-45
SLIDE 45

Associated eigenvalue problem

λ   0 I 0 −I 0 0 0 0 0     v w y  −   Q −AT S −A −B ST −BT R     v w y   = 0 H = A − BR−1ST BR−1BT Q + SR−1ST −AT + SR−1BT

  • Stable invariant subspace is wanted.

complete eigensystem

Cortona, September 2008 – p. 9

slide-46
SLIDE 46

Working Directly with the Pencil

Cortona, September 2008 – p. 10

slide-47
SLIDE 47

Working Directly with the Pencil

Hamiltonian ⇔ alternating pencil M − λN

Cortona, September 2008 – p. 10

slide-48
SLIDE 48

Working Directly with the Pencil

Hamiltonian ⇔ alternating pencil M − λN symplectic ⇔ palindromic pencil G − λGT

Cortona, September 2008 – p. 10

slide-49
SLIDE 49

Working Directly with the Pencil

Hamiltonian ⇔ alternating pencil M − λN symplectic ⇔ palindromic pencil G − λGT Schröder (Ph.D. 2008)

Cortona, September 2008 – p. 10

slide-50
SLIDE 50

Working Directly with the Pencil

Hamiltonian ⇔ alternating pencil M − λN symplectic ⇔ palindromic pencil G − λGT Schröder (Ph.D. 2008) Kressner/Schröder/Watkins (2008)

Cortona, September 2008 – p. 10

slide-51
SLIDE 51

Working with Hamiltonian Matrices

Cortona, September 2008 – p. 11

slide-52
SLIDE 52

Working with Hamiltonian Matrices

symplectic matrix: STJS = J

Cortona, September 2008 – p. 11

slide-53
SLIDE 53

Working with Hamiltonian Matrices

symplectic matrix: STJS = J symplectic similarity transformations

Cortona, September 2008 – p. 11

slide-54
SLIDE 54

Working with Hamiltonian Matrices

symplectic matrix: STJS = J symplectic similarity transformations

  • rthogonal symplectic transformations

Cortona, September 2008 – p. 11

slide-55
SLIDE 55

Working with Hamiltonian Matrices

symplectic matrix: STJS = J symplectic similarity transformations

  • rthogonal symplectic transformations

isotropic subspace: U TJU = 0

Cortona, September 2008 – p. 11

slide-56
SLIDE 56

Working with Hamiltonian Matrices

symplectic matrix: STJS = J symplectic similarity transformations

  • rthogonal symplectic transformations

isotropic subspace: U TJU = 0 isotropy and symplectic matrices

Cortona, September 2008 – p. 11

slide-57
SLIDE 57

Difficulty Obtaining Hessenberg Form

Cortona, September 2008 – p. 12

slide-58
SLIDE 58

Difficulty Obtaining Hessenberg Form

PVL form (1981)

Cortona, September 2008 – p. 12

slide-59
SLIDE 59

Difficulty Obtaining Hessenberg Form

PVL form (1981) the desired Hessenberg form

Cortona, September 2008 – p. 12

slide-60
SLIDE 60

Difficulty Obtaining Hessenberg Form

PVL form (1981) the desired Hessenberg form Byers (1983)

Cortona, September 2008 – p. 12

slide-61
SLIDE 61

Difficulty Obtaining Hessenberg Form

PVL form (1981) the desired Hessenberg form Byers (1983) getting an isotropic Krylov subspace?

Cortona, September 2008 – p. 12

slide-62
SLIDE 62

Difficulty Obtaining Hessenberg Form

PVL form (1981) the desired Hessenberg form Byers (1983) getting an isotropic Krylov subspace? Ammar/Mehrmann (1991)

Cortona, September 2008 – p. 12

slide-63
SLIDE 63

Difficulty Obtaining Hessenberg Form

PVL form (1981) the desired Hessenberg form Byers (1983) getting an isotropic Krylov subspace? Ammar/Mehrmann (1991) new ideas needed

Cortona, September 2008 – p. 12

slide-64
SLIDE 64

Skew-Hamiltonian matrices . . .

Cortona, September 2008 – p. 13

slide-65
SLIDE 65

Skew-Hamiltonian matrices . . . . . . are easier

Cortona, September 2008 – p. 13

slide-66
SLIDE 66

Skew-Hamiltonian matrices . . . . . . are easier

skew-Hamiltonian matrix: (JK)T = −(JK)

Cortona, September 2008 – p. 13

slide-67
SLIDE 67

Skew-Hamiltonian matrices . . . . . . are easier

skew-Hamiltonian matrix: (JK)T = −(JK) H2

Cortona, September 2008 – p. 13

slide-68
SLIDE 68

Skew-Hamiltonian matrices . . . . . . are easier

skew-Hamiltonian matrix: (JK)T = −(JK) H2 more and bigger invariant subspaces

Cortona, September 2008 – p. 13

slide-69
SLIDE 69

Skew-Hamiltonian matrices . . . . . . are easier

skew-Hamiltonian matrix: (JK)T = −(JK) H2 more and bigger invariant subspaces Krylov subspaces are automatically isotropic.

Cortona, September 2008 – p. 13

slide-70
SLIDE 70

Skew-Hamiltonian matrices . . . . . . are easier

skew-Hamiltonian matrix: (JK)T = −(JK) H2 more and bigger invariant subspaces Krylov subspaces are automatically isotropic. reduction to Hessenberg form

Cortona, September 2008 – p. 13

slide-71
SLIDE 71

Skew-Hamiltonian matrices . . . . . . are easier

skew-Hamiltonian matrix: (JK)T = −(JK) H2 more and bigger invariant subspaces Krylov subspaces are automatically isotropic. reduction to Hessenberg form make use of H2

Cortona, September 2008 – p. 13

slide-72
SLIDE 72

Symplectic URV Decomposition

Cortona, September 2008 – p. 14

slide-73
SLIDE 73

Symplectic URV Decomposition

H = UR1V T = V R2U T

Cortona, September 2008 – p. 14

slide-74
SLIDE 74

Symplectic URV Decomposition

H = UR1V T = V R2U T R1 = S B 0 T T

  • and R2 =

−T BT −ST

  • Cortona, September 2008 – p. 14
slide-75
SLIDE 75

Symplectic URV Decomposition

H = UR1V T = V R2U T R1 = S B 0 T T

  • and R2 =

−T BT −ST

  • H2

Cortona, September 2008 – p. 14

slide-76
SLIDE 76

Symplectic URV Decomposition

H = UR1V T = V R2U T R1 = S B 0 T T

  • and R2 =

−T BT −ST

  • H2

eigenvalues of H

Cortona, September 2008 – p. 14

slide-77
SLIDE 77

Symplectic URV Decomposition

H = UR1V T = V R2U T R1 = S B 0 T T

  • and R2 =

−T BT −ST

  • H2

eigenvalues of H Benner/Mehrmann/Xu (199X)

Cortona, September 2008 – p. 14

slide-78
SLIDE 78

CLM Method

Cortona, September 2008 – p. 15

slide-79
SLIDE 79

CLM Method

Chu/Liu/Mehrmann (2004)

Cortona, September 2008 – p. 15

slide-80
SLIDE 80

CLM Method

Chu/Liu/Mehrmann (2004) H ← U THU

Cortona, September 2008 – p. 15

slide-81
SLIDE 81

CLM Method

Chu/Liu/Mehrmann (2004) H ← U THU H2 has special structure.

Cortona, September 2008 – p. 15

slide-82
SLIDE 82

CLM Method

Chu/Liu/Mehrmann (2004) H ← U THU H2 has special structure. span{e1} invariant under H2

Cortona, September 2008 – p. 15

slide-83
SLIDE 83

CLM Method

Chu/Liu/Mehrmann (2004) H ← U THU H2 has special structure. span{e1} invariant under H2 ⇒ span{e1, He1} invariant under H

Cortona, September 2008 – p. 15

slide-84
SLIDE 84

CLM Method

Chu/Liu/Mehrmann (2004) H ← U THU H2 has special structure. span{e1} invariant under H2 ⇒ span{e1, He1} invariant under H Extract 1-D isotropic invariant subspace.

Cortona, September 2008 – p. 15

slide-85
SLIDE 85

CLM Method

Chu/Liu/Mehrmann (2004) H ← U THU H2 has special structure. span{e1} invariant under H2 ⇒ span{e1, He1} invariant under H Extract 1-D isotropic invariant subspace. Build an orthogonal symplectic similarity transformation.

Cortona, September 2008 – p. 15

slide-86
SLIDE 86

CLM Method

Chu/Liu/Mehrmann (2004) H ← U THU H2 has special structure. span{e1} invariant under H2 ⇒ span{e1, He1} invariant under H Extract 1-D isotropic invariant subspace. Build an orthogonal symplectic similarity transformation. Deflate. (many details skipped)

Cortona, September 2008 – p. 15

slide-87
SLIDE 87

Block CLM Method

Cortona, September 2008 – p. 16

slide-88
SLIDE 88

Block CLM Method

CLM works surprisingly well.

Cortona, September 2008 – p. 16

slide-89
SLIDE 89

Block CLM Method

CLM works surprisingly well. difficulties with clusters

Cortona, September 2008 – p. 16

slide-90
SLIDE 90

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM,

Cortona, September 2008 – p. 16

slide-91
SLIDE 91

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM, Mehrmann/Schröder/Watkins (2008)

Cortona, September 2008 – p. 16

slide-92
SLIDE 92

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM, Mehrmann/Schröder/Watkins (2008) S invariant under H2

Cortona, September 2008 – p. 16

slide-93
SLIDE 93

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM, Mehrmann/Schröder/Watkins (2008) S invariant under H2 ⇒ span{S, HS} invariant under H

Cortona, September 2008 – p. 16

slide-94
SLIDE 94

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM, Mehrmann/Schröder/Watkins (2008) S invariant under H2 ⇒ span{S, HS} invariant under H Extract k-dimensional isotropic invariant subspace.

Cortona, September 2008 – p. 16

slide-95
SLIDE 95

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM, Mehrmann/Schröder/Watkins (2008) S invariant under H2 ⇒ span{S, HS} invariant under H Extract k-dimensional isotropic invariant subspace. This is

Cortona, September 2008 – p. 16

slide-96
SLIDE 96

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM, Mehrmann/Schröder/Watkins (2008) S invariant under H2 ⇒ span{S, HS} invariant under H Extract k-dimensional isotropic invariant subspace. This is more robust,

Cortona, September 2008 – p. 16

slide-97
SLIDE 97

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM, Mehrmann/Schröder/Watkins (2008) S invariant under H2 ⇒ span{S, HS} invariant under H Extract k-dimensional isotropic invariant subspace. This is more robust, more efficient,

Cortona, September 2008 – p. 16

slide-98
SLIDE 98

Block CLM Method

CLM works surprisingly well. difficulties with clusters Block CLM, Mehrmann/Schröder/Watkins (2008) S invariant under H2 ⇒ span{S, HS} invariant under H Extract k-dimensional isotropic invariant subspace. This is more robust, more efficient, but we’re still working on it.

Cortona, September 2008 – p. 16

slide-99
SLIDE 99

Cortona, September 2008 – p. 17

slide-100
SLIDE 100

Cortona, September 2008 – p. 17
