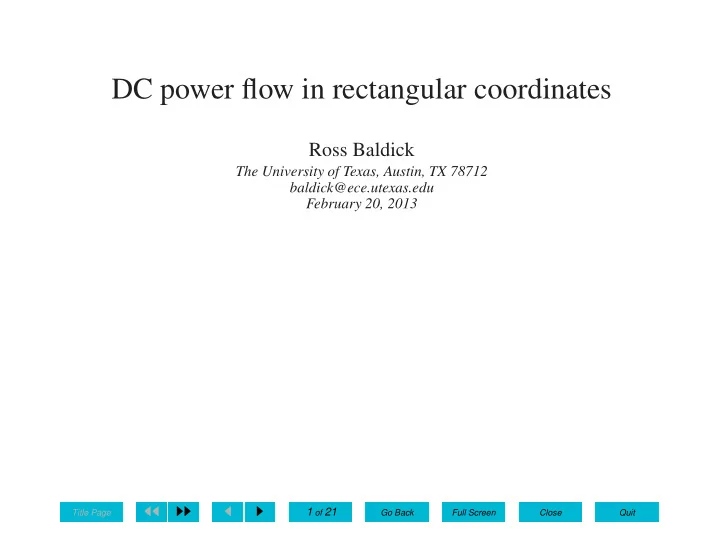

DC power flow in rectangular coordinates

Ross Baldick

The University of Texas, Austin, TX 78712 baldick@ece.utexas.edu February 20, 2013

Title Page

◀◀ ▶▶ ◀ ▶

1 of 21

Go Back Full Screen Close Quit

Abstract

“DC power flow” is an analogy between approximations to the real power components of the power flow equations and a direct current resistive circuit. It can also be interpreted as linearization of the real power components expressed in terms of phasor voltage magnitude and phase, linearized about a “flat start.” The accuracy of DC power flow for estimating real power flow is surprisingly good in many cases, although it has large errors in some cases. We explore linearization of both the real and reactive power equations expressed in terms of real and imaginary parts of the voltage phasor. We focus on linearization about a flat start, which in rectangular coordinates has the voltage phasors each with real part one per unit and imaginary part zero. The resulting approximation has relatively good performance for real power. Because of the analog with linearization in terms of polar voltage representation, we call this approximation “DC power flow in rectangular coordinates.” We also exhibit an exact solution to the power flow equations for the particular case of a lossless network. Keywords DC power flow, linearization.

Title Page

◀◀ ▶▶ ◀ ▶

2 of 21

Go Back Full Screen Close Quit

1 Introduction ∙ Exact or approximate solution of the power flow equations is essential to the planning, operation, and control of power systems. ∙ DC power flow [1, §4.1.4][2] is an analogy between an approximation to the real power components of the AC power flow equations and a related direct current circuit: – can be interpreted as linearization of the real power components in terms

• f phasor voltage magnitude and phase, that is, “polar coordinates,”

– linearization is about a “flat start,” where the voltage phasors each have magnitude one per unit and angle zero [3]. ∙ Most day-ahead locational electricity markets use DC power flow [4] or linearization.

Title Page

◀◀ ▶▶ ◀ ▶

3 of 21

Go Back Full Screen Close Quit

1.1 Accuracy of DC power flow using polar coordinates ∙ DC power flow is accurate for real power flow, except when: – angle differences across lines are large, or – voltage magnitudes deviate significantly from one per unit [3, 5, 6]. ∙ Precisely the most important conditions for evaluating limits, particularly post-contingency limits! ∙ Linearization for reactive power in terms of polar coordinates is poor.

Title Page

◀◀ ▶▶ ◀ ▶

4 of 21

Go Back Full Screen Close Quit

1.2 Rectangular coordinates ∙ Recent significant progress in power flow and optimal power flow (OPF) has used phasor voltage real and imaginary parts: – “rectangular coordinates” [7, 8, 9]. ∙ Semi-definite programming formulations of the OPF problem using rectangular coordinates have provided provably optimal solutions [10]: – may become the dominant approach to OPF. ∙ Linearization still standard currently in online applications. ∙ Consider linearization in rectangular coordinates.

Title Page

◀◀ ▶▶ ◀ ▶

5 of 21

Go Back Full Screen Close Quit

2 Formulation ∙ v ∈ ℂn is the vector of complex phasor voltages at all n buses in the transmission system, ∙ i ∈ ℂn is the vector of complex current injections into the transmission system, ∙ s ∈ ℂn is the vector of complex power injections into the transmission system. ∙ Represent v in rectangular coordinates by writing: v = 1+e+ j f, where: 1 is the vector of all ones, e, f,∈ ℝn, and j is the square root of minus 1. ∙ Define a “flat start” to be v = 1, corresponding to e = f = 0.

Title Page

◀◀ ▶▶ ◀ ▶

6 of 21

Go Back Full Screen Close Quit

Formulation, continued ∙ Y = G+ jB is the bus admittance matrix for the system: – Off-diagonal entries are equal to minus the admittance of the corresponding series elements joining corresponding buses, – Diagonal entries are the sum of the admittances joined to the corresponding buses, due to both series and shunt elements. G = Gseries +Gshunt, B = Bseries +Bshunt, where: Gshunt and Bshunt are diagonal, Gseries and Bseries are symmetric (putting aside cases such as where transformers have off-nominal turns ratios), and Gseries1 = Bseries1 = 0, where 0 is the vector (or depending on interpretation, matrix) of all zeros. – Assume Gshunt = 0.

Title Page

◀◀ ▶▶ ◀ ▶

7 of 21

Go Back Full Screen Close Quit

Formulation, continued ∙ Kirchhoff’s current law: i = Yv, = (G+ jB)(1+e+ j f), = (Gseries +Gshunt + j(Bseries +Bshunt))(1+e+ j f), = (Gseries + j(Bseries +Bshunt))(1+e+ j f), since Gshunt = 0, = Gseries1+Gseriese−(Bseries +Bshunt) f + j(Gseries f +Bseries1+Bseriese+Bshunt1+Bshunte), = Gseriese−(Bseries +Bshunt) f + j(Gseries f +Bseriese+Bshunt1+Bshunte), ∙ since Gseries1 = Bseries1 = 0. ∙ Define superscript † to mean transpose, superscript ‡ to mean Hermitian transpose (that is, transpose of complex conjugate), and diag(∙) to be a vector consisting of the diagonal elements of its argument. ∙ For any vector x and diagonal matrix D, diag ( 1x†) = x and diag ( x(D1)†) = Dx.

Title Page

◀◀ ▶▶ ◀ ▶

8 of 21

Go Back Full Screen Close Quit

Formulation, continued ∙ Then: s = diag ( vi‡) , = diag ( (1+e+ j f) ( Gseriese−(Bseries +Bshunt) f − j ( Gseries f +Bseriese+Bshunt1+Bshunte ) )†) . ∙ Linearization of s about a flat start of v = 1 preserves the affine terms and discards the purely quadratic terms: s ≈ diag ( 1 ( Gseriese−(Bseries +Bshunt) f − j ( Gseries f +Bseriese+Bshunt1+Bshunte ) )†) +diag ( (e+ j f) ( −jBshunt1 )†) , = Gseriese−(Bseries +Bshunt) f − j(Gseries f +Bseriese+Bshunt1+Bshunte) − jBshunt(e+ j f), since Bshunt is diagonal, = Gseriese−Bseries f + j(−(Bseries +2Bshunt)e−Gseries f − jBshunt1).

Title Page

◀◀ ▶▶ ◀ ▶

9 of 21

Go Back Full Screen Close Quit

Formulation, continued ∙ Separating s into real and reactive power injections: [ p q ] ≈ [ Gseries −Bseries −(Bseries +2Bshunt) −Gseries ][ e f ] − [ Bshunt1 ] . (1) ∙ Similar form to case in polar coordinates.

Title Page

◀◀ ▶▶ ◀ ▶

10 of 21

Go Back Full Screen Close Quit

3 Special case ∙ Purely quadratic terms in s are: diag ( (e+ j f) ( Gseriese−(Bseries +Bshunt) f − j ( Gseries f +Bseriese+Bshunte ))†) , ∙ which has real part: diag ( e ( Gseriese−(Bseries +Bshunt) f )† + f ( Gseries f +Bseriese+Bshunte )†) , ∙ Following Zhang and Tse [9, Appendix], if e = 0 and Gseries = 0 then the real part of the quadratic term equals zero. ∙ For given p, if we solve p = −Bseries f for f then v = 1+ j f is an exact solution to the power flow equations. ∙ Corresponding reactive power injections are: q = diag ( −1 ( Gseries f +Bshunt1 )† − f ( (Bseries +Bshunt) f )†) , = −Gseries f −Bshunt1−diag ( f ( (Bseries +Bshunt) f )†)

Title Page

◀◀ ▶▶ ◀ ▶

11 of 21

Go Back Full Screen Close Quit

Special case, continued ∙ Analogous to the DC approximation in polar coordinates where the relationship between power and angle is derived under the assumption that the voltage magnitudes are fixed, with the values of reactive injection implicitly determined: – however, DC approximation in polar coordinates is not exact even if Gseries = 0. ∙ In contrast, −Bseries f = p, (2) q = −Gseries f −Bshunt1−diag ( f ( (Bseries +Bshunt) f )†) , (3) ∙ are an exact solution to the power flow equations in the lossless case.

Title Page

◀◀ ▶▶ ◀ ▶

12 of 21

Go Back Full Screen Close Quit

4 Numerical example ∙ Consider a two bus system with: – a single line joining the two buses having series admittance 1− j10 and no shunt admittance, – one of the buses having phasor voltage held at 1+ j0 ∈ ℂ, and – the other bus having phasor voltage 1+e+ j f ∈ ℂ. ∙ We consider the exact and linearized approximations for the real and reactive power injected at the other bus as a function of the bus phasor voltage. ∙ Consider DC approximations in terms of both polar and rectangular coordinates.

Title Page

◀◀ ▶▶ ◀ ▶

13 of 21

Go Back Full Screen Close Quit

4.1 Real power

0.2 0.4 0.6 0.8 1 −1 −0.5 0.5 1 −10 −5 5 10

1+e f p Approximation in polar coordinates Approximation in polar coordinates Exact injection Approximation in rectangular coordinates

• Fig. 1. Real power injection p versus 1+e+ j f.

Title Page

◀◀ ▶▶ ◀ ▶

14 of 21

Go Back Full Screen Close Quit

Real power, continued ∙ Exact real power injection and the approximation in terms of rectangular coordinates are qualitatively close together throughout the graphed range: – approximate sensitivities also close to the actual sensitivities. ∙ DC approximation of real power in terms of polar coordinates deviates significantly from the exact value for some values of 1+e+ j f. ∙ In the half-annular region where voltage magnitudes are within 10% of 1 per unit: – for small values of voltage phasor angle, smaller than π/4 say, and voltage magnitudes close to one per unit, DC approximation of real power in polar coordinates is highly accurate. – for large angles or for voltage magnitudes deviating significantly from

• ne per unit, the approximation can be quite poor.

∙ Sensitivities of real power injection to changes in the magnitude and angle are relatively far from the actual sensitivities. ∙ Approximation of real power in rectangular coordinates is qualitatively better match to actual injection than approximation in polar coordinates.

Title Page

◀◀ ▶▶ ◀ ▶

15 of 21

Go Back Full Screen Close Quit

4.2 Reactive power

0.2 0.4 0.6 0.8 1 −1 −0.5 0.5 1 −10 −5 5 10

1+e f q Approximation in polar coordinate Exact injection Approximation in rectangular coordinates

• Fig. 2. Reactive power injection q versus 1+e+ j f.

Title Page

◀◀ ▶▶ ◀ ▶

16 of 21

Go Back Full Screen Close Quit

Reactive power, continued ∙ Approximate reactive power injections in terms of rectangular coordinates is poorer than the conventional DC approximation in terms of polar coordinates. ∙ Functional dependence on e and f is highly non-linear.

Title Page

◀◀ ▶▶ ◀ ▶

17 of 21

Go Back Full Screen Close Quit

5 Improved approximation for reactive power ∙ Following Coffrin and Van Hentenryck [11], propose piecewise linearizing reactive power while maintaining the linear approximation of real power: p = [ Gseries −Bseries ][ e f ] , ⎡ ⎣ q . . . q ⎤ ⎦ ≥ ⎡ ⎣ −(Bseries +2Bshunt) −Gseries ⋅⋅⋅ ⋅⋅⋅ ⋅⋅⋅ ⋅⋅⋅ ⎤ ⎦ [ e f ] − ⎡ ⎣ Bshunt1 ⋅⋅⋅ ⋅⋅⋅ ⎤ ⎦. ∙ where the terms ⋅⋅⋅ would be calculated from linearization about other

• perating points besides v = 1:

– could be calculated off-line.

Title Page

◀◀ ▶▶ ◀ ▶

18 of 21

Go Back Full Screen Close Quit

6 Extensions and conclusions ∙ Developed linearization of power flow in rectangular coordinates. ∙ Accurate for real power, but not for reactive power. ∙ In the lossless case without explicit representation of reactive power, non-linear power flow can be solved exactly through the solution of a linear equation and substitution to evaluate reactive power injections. ∙ Piecewise linearization may be an effective approach where reactive power is to be explicitly represented. ∙ Analogous approximations can be developed for current and complex power flow as a function of the rectangular representation [3].

Title Page

◀◀ ▶▶ ◀ ▶

19 of 21

Go Back Full Screen Close Quit

References

Allen J. Wood and Bruce F. Wollenberg. Power Generation, Operation, and

• Control. Wiley, New York, second edition, 1996.

Brian Stott, Jorge Jardim, and Ongun Alsac ¸. DC power flow revisited. IEEE Transactons on Power Systems, 24(3):1290–1300, August 2009. Ross Baldick. Variation of distribution factors with loading. IEEE Transactions

• n Power Systems, 18(4):1316–1323, November 2003.

Ross Baldick, Udi Helman, Benjamin F. Hobbs, and Richard P. O’Neill. Design

Title Page

◀◀ ▶▶ ◀ ▶

20 of 21

Go Back Full Screen Close Quit

• f efficient generation markets. Proceedings of the IEEE,

93(11):1998–2012, November 2005. Thomas J. Overbye, Xu Cheng, and Yan Sun. A comparison of the AC and DC power flow models for LMP calculations. To appear at HICCS, 2004. Ross Baldick, Krishnan Dixit, and Thomas Overbye. Empirical analysis of the variation of distribution factors with loading. In Proceedings of the IEEE Power and Energy Society General Meeting, San Francisco, California, June 2005.

• G. L. Torres and V. H. Quintana. An interior-point method for nonlinear optimal

power flow using voltage rectangular coordinates. IEEE Transactons on Power Systems, 13(4):1211–1218, November 1998.

• J. Lavaei and S. H. Low. Zero duality gap in optimal power flow problem. IEEE

Transactons on Power Systems, 27(1):92–107, February 2012.

• B. Zhang and D. Tse. Geometry of injection regions of power networks. IEEE

Transactons on Power Systems, 27(2), May 2012. Javad Lavaei and Steven Low. Zero duality gap in optimal power flow problem. IEEE Transactons on Power Systems, 2012. Carleton Coffrin and Pascal Van Hentenryck. A linear-programming approximation of AC power flows. To appear in IEEE Transactions on Power Systems, 2013.
