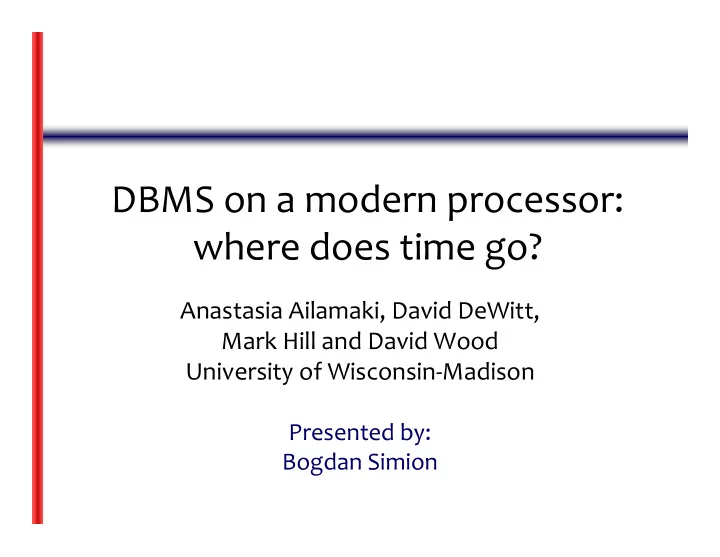

DBMS on a modern processor: where does time go?

Anastasia Ailamaki, David DeWitt, Mark Hill and David Wood University of Wisconsin‐Madison

Presented by: Bogdan Simion

Current DBMS Performance

+ =

Where is query execution time spent?

Identify performance bottlenecks in CPU and memory

Outline

• Motivation
• Background
• Query execution time breakdown
• Experimental results and discussions
• Conclusions

Hardware performance standards

• Processors are designed and evaluated with

simple programs

• Benchmarks: SPEC, LINPACK
• What about DBMSs?

DBMS bottlenecks

• Initially, bottleneck was I/O
• Nowadays ‐ memory and compute intensive apps
• Modern platforms:

– sophisticated execution hardware – fast, non‐blocking caches and memory

• Still …

– DBMS hardware behaviour is suboptimal compared to scientific workloads

Execution pipeline

FETCH/ DECODE UNIT DISPATCH EXECUTE UNIT RETIRE UNIT INSTRUCTION POOL L1 I‐CACHE L1 D‐CACHE

L2 CACHE

MAIN MEMORY

Stalls overlapped with useful work !!!

Execution time breakdown

• TC ‐ Computation
• TM ‐ Memory stalls
• TB ‐ Branch Mispredictions
• TR ‐ Stalls on Execution Resources

L1D, L1I L2D, L2I DTLB, ITLB Functional Units Dependency Stalls

TQ = TC + TM + TB + TR ‐ TOVL

DB setup

• DB is memory resident => no I/O interference
• No dynamic and random parameters, no

concurrency control among transactions

Workload choice

• Simple queries:

– Single‐table range selections (sequential, index) – Two‐table equijoins

• Easy to setup and run
• Fully controllable parameters
• Isolates basic operations
• Enable iterative hypotheses !!!
• Building blocks for complex workloads?

10% Indexed Range Selection 0% 20% 40% 60% 80% 100% B C D DBMS

Computation Memory Branch mispredictions Resource

Execution Time Breakdown (%)

• Stalls at least 50% of time
• Memory stalls are major bottleneck

Join (no index) 0% 20% 40% 60% 80% 100% A B C D DBMS 10% Sequential Scan 0% 20% 40% 60% 80% 100% A B C D DBMS Query execution time (%)

10% Indexed Range Selection 0% 20% 40% 60% 80% 100% B C D DBMS

L1 Data L1 Instruction L2 Data L2 Instruction

Memory Stalls Breakdown (%)

• Role of L1 data cache and L2 instruction cache unimportant
• L2 data and L1 instruction stalls dominate
• Memory bottlenecks across DBMSs and queries vary

Join (no index) 0% 20% 40% 60% 80% 100% A B C D DBMS 10% Sequential Scan 0% 20% 40% 60% 80% 100% A B C D DBMS Memory stall time (%)

Effect of Record Size

10% Sequential Scan

L1 instruction misses / record

5 10 15 20 25 20 48 100 200 record size

System A System B System C System D

• L2D increase: locality + page crossing (except D)
• L1I increase: page boundary crossing costs

L2 data misses / record

2 4 6 8 20 48 100 200 record size # of misses per record

Memory Bottlenecks

• Memory is important

‐ Increasing memory‐processor performance gap ‐ Deeper memory hierarchies expected

• Stalls due to L2 cache data misses

‐ Expensive fetches from main memory ‐ L2 grows (8MB), but will be slower

• Stalls due to L1 I‐cache misses

‐ Buffer pool code is expensive ‐ L1 I‐cache not likely to grow as much as L2

Branch Mispredictions Are Expensive

0% 5% 10% 15% 20% 25% A B C D DBMS Query execution time (%)

• Rates are low, but contribution is significant
• A compiler task, but decisive for L1I performance

0% 5% 10% 15% 20% 25% A B C D DBMS Branch misprediction rates

Sequential Scan Index scan Join (no index)

Mispredictions Vs. L1‐I Misses

10% Sequential Scan 3 6 9 12 A B C D DBMS Events / 1000 instr. Join (no index) 5 10 15 20 A B C D DBMS

• More branch mispredictions incur more L1I misses
• Index code more complicated ‐ needs optimization

10% Indexed Range Selection 10 20 30 40 50 B C D DBMS

Branch mispredictions L1 I-cache misses

Resource‐related Stalls

0% 5% 10% 15% 20% 25% A B C D DBMS

• High TDEP for all systems : Low ILP opportunity
• A’s sequential scan: Memory unit load buffers?

Dependency‐related stalls (TDEP) Functional Unit‐related stalls (TFU)

0% 5% 10% 15% 20% 25% A B C D DBMS % of query execution time

Sequential Scan Index scan Join (no index)

Microbenchmarks vs. TPC

CPI Breakdown

• Sequential scan breakdown similar to TPC‐D
• 2ary index and TPC‐C: higher CPI, memory stalls (L2 D&I mostly)

System B 0.5 1 1.5 2 2.5 3 3.5 sequential scan TPC-D 2ary index TPC-C benchmark Clock ticks

Computation Memory Branch misprediction Resource

System D 0.5 1 1.5 2 2.5 3 3.5 sequential scan TPC-D 2ary index TPC-C benchmark

Conclusions

• Execution time breakdown shows trends
• L1I and L2D are major memory bottlenecks
• We need to:

– reduce page crossing costs – optimize instruction stream – optimize data placement in L2 cache – reduce stalls at all levels

• TPC may not be necessary to locate bottlenecks

Five years later – Becker et al 2004

• Same DBMSs, setup and workloads (memory

resident) and same metrics

• Outcome: stalls still take lots of time

– Seq scans: L1I stalls, branch mispredictions much lower – Index scans: no improvement – Joins: improvements, similar to seq scans – Bottleneck shift to L2D misses => must improve data placement – What works well on some hardware doesn’t on other

Five years later – Becker et al 2004

• C on a Quad P3 700MHz, 4G RAM, 16K L1, 2M L2
• B on a single P4 3GHz, 1G RAM, 8K L1D + 12KuOp trace

cache, 512K L2, BTB 8x than P3

• P3 results:

– Similar to 5 years ago: major bottlenecks are L1I and L2D

• P4 results:

– Memory stalls almost entirely due to L1D and L2D stalls – L1D stalls higher ‐ smaller cache and larger cache line – L1I stalls removed due to trace cache (esp. for seq. scan, but still some for index)

Hardware – awareness is important !

References

• DBMS on a modern processor: where does

time go? Revisited – CMU Tech Report 2004

• Anastassia Ailamaki – VLDB’99 talk slides
