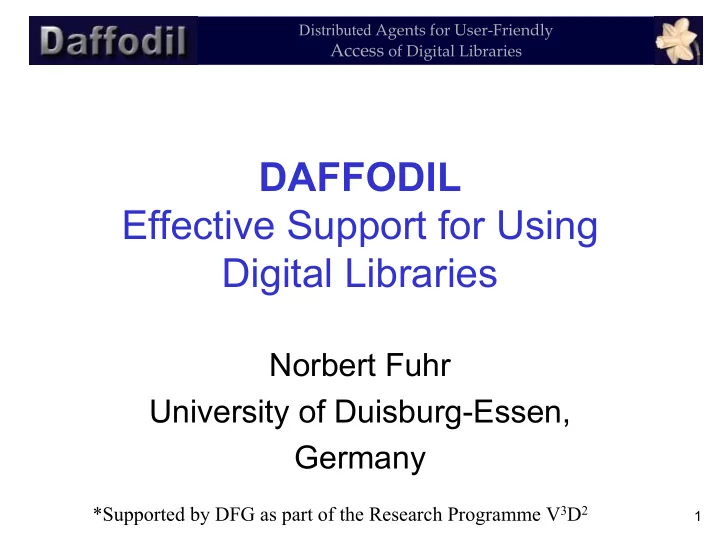

DAFFODIL Effective Support for Using Digital Libraries Norbert - - PowerPoint PPT Presentation

1

Distributed Agents for User-Friendly

Access of Digital Libraries

DAFFODIL Effective Support for Using Digital Libraries

Norbert Fuhr University of Duisburg-Essen, Germany

*Supported by DFG as part of the Research Programme V3D2

2

Distributed Agents for User-Friendly

Access of Digital Libraries

Daffodil concepts

1.

Strategic information access support

2.

Levels of system support

3.

Digital library life cycle

4.

Collaboration

5.

User-friendly integrated desktop

3

Distributed Agents for User-Friendly

Access of Digital Libraries

• 1. Strategic information access support

Levels of search activities (Bates 1990):

1.

Move: Low-level search function

(e.g. type in search term, view retrieved document)

2.

Tactic: several moves to further a search

(e.g. broaden/narrow a query)

3.

Stratagem: set of actions on a single domain

(citation database, tables of contents of journals)

4.

Strategy: complete plan for satisfying an information need

(e.g. subject search, browse relevant journals, find referenced articles)

4

Distributed Agents for User-Friendly

Access of Digital Libraries

System architecture

Stratagems

Strategic support in 4 layers Federated digital libraries

• f different

types

Strategies User-Interface Tactics Moves DL DL DL Moves – Tactics – Stratagems – Strategies – GUI

5

Distributed Agents for User-Friendly

Access of Digital Libraries

Moves

Distributed search of data from different Digital Libraries & Web sources Provide homogenous access to data and functions ~15 sources accessed

User-Interface Strategies Tactics Moves Stratagems DL DL DL Moves – Tactics – Stratagems – Strategies – GUI

6

Distributed Agents for User-Friendly

Access of Digital Libraries

Resultlist

Moves – Tactics – Stratagems – Strategies – GUI

7

Distributed Agents for User-Friendly

Access of Digital Libraries

Combined detail view

Attributes Links internal external

Moves – Tactics – Stratagems – Strategies – GUI

8

Distributed Agents for User-Friendly

Access of Digital Libraries

Tactics

User-Interface Strategies Tactics Moves Stratagems DL DL DL

Combine services Speed up search Redefine query

Moves – Tactics – Stratagems – Strategies – GUI

9

Distributed Agents for User-Friendly

Access of Digital Libraries

Extract from Result List

Moves – Tactics – Stratagems – Strategies – GUI

10

Distributed Agents for User-Friendly

Access of Digital Libraries

Stratagems

User-Interface Strategies Tactics Moves Stratagems DL DL DL

Cover an information domain Combine all retrieved information & links

Moves – Tactics – Stratagems – Strategies – GUI

11

Distributed Agents for User-Friendly

Access of Digital Libraries

Stratagems on the Desktop

– Subject Search – Author networks – Citation Search – Journal/Conference Run

12

Distributed Agents for User-Friendly

Access of Digital Libraries

Author network based stratagems:

• 1. Author network

browse

• 2. Ranking a

document result set using author centrality

Author Networks

13

Distributed Agents for User-Friendly

Access of Digital Libraries

Citation Search: Reference Tracking

A relevant document is dragged to the tool for citation tracking Documents that cite or are cited are retrieved Browsing, Inspection and Navigaton Drag and Drop Can be performed iteratively

14

Distributed Agents for User-Friendly

Access of Digital Libraries

Strategy

Complex plan to fullfill a specific task

User-Interface Strategies Tactics Moves Stratagems DL DL DL Moves – Tactics – Stratagems – Strategies – GUI

15

Distributed Agents for User-Friendly

Access of Digital Libraries

• 2. Levels of system support
• 0. Rigid system behavior
• 1. Adaptive system
• 2. Proactive system

16

Distributed Agents for User-Friendly

Access of Digital Libraries

Adaptivity

1.

Agents collect information

Library agents: content and technical aspects of connected DLs User agents: behavior of single users/user group

2.

Agents change system behavior based

• n collected info

Library agents: select preferred DLs,… User agents: offer preferred functions,…

17

Distributed Agents for User-Friendly

Access of Digital Libraries

Proactivity

Agents act without explicit invocation Implemented as event-condition-action rules, e.g.

– when query result is empty, broaden query – suggest related keywords for query – when author name is ambiguous, display

possible completions

18

Distributed Agents for User-Friendly

Access of Digital Libraries

Proactivity

19

Distributed Agents for User-Friendly

Access of Digital Libraries

• 3. Digital library life cycle

Resource selection Organizing items Evaluation of results Knowledge generation Retrieving items

20

Distributed Agents for User-Friendly

Access of Digital Libraries

Collate

Save all digital objects in a structured personal digital library Awareness:

– Keep an eye on my topics – focused crawling (BINGO!)

Discover – Retrieve – Collate – Interpret – Re-Present

21

Distributed Agents for User-Friendly

Access of Digital Libraries

Collate

Personal library:

Store Objects

• Document Metadata
• Fulltexts
• Authors
• Journals, Conferences
• Hyperlinks, Bookmarks
• Query formulations

Discover – Retrieve – Collate – Interpret – Re-Present

22

Distributed Agents for User-Friendly

Access of Digital Libraries

Personal Library

23

Distributed Agents for User-Friendly

Access of Digital Libraries

Interpret

Annotations to DL objects Creation of links between DL objects

Discover – Retrieve – Collate – Interpret – Re-Present

24

Distributed Agents for User-Friendly

Access of Digital Libraries

Re-Present

(support generation of new information) Export folders from personal library

Discover – Retrieve – Collate – Interpret – Re-Present

25

Distributed Agents for User-Friendly

Access of Digital Libraries

• 4. Collaboration

Private Group Private Public Group Private

Discover – Retrieve – Collate – Interpret – Re-Present

26

Distributed Agents for User-Friendly

Access of Digital Libraries

Collation and awareness

New objects

(by other users/ due to profile)

Notification mechanisms

(visual markers/ email)

Discover – Retrieve – Collate – Interpret – Re-Present

27

Distributed Agents for User-Friendly

Access of Digital Libraries

Collaborate interpretation

Annotation threads

Discover – Retrieve – Collate – Interpret – Re-Present

28

Distributed Agents for User-Friendly

Access of Digital Libraries

Recommendation

Recommended digital objects through collaboration:

– What do others have for me? – Who are the others? – How did others search?

Discover – Retrieve – Collate – Interpret – Re-Present

29

Distributed Agents for User-Friendly

Access of Digital Libraries

• 5. User-friendly integrated desktop

Integrate distributed services and software agents in consistent manner Provide tool chains to enable users to combine services Ensure flexible workflow with free choice

• f starting point

Hide complexity

30

Distributed Agents for User-Friendly

Access of Digital Libraries

Desktop

31

Distributed Agents for User-Friendly

Access of Digital Libraries

Search

Search Domain Specification Filter Settings and Query Composition Integrated Result Lists with Draggable Objects Navigation Detail Inspection

32

Distributed Agents for User-Friendly

Access of Digital Libraries

• 6. Evaluation

Evaluation with 28 subjects Methods: questionnaire, logging, video Tasks of different complexity Major results:

– Only for very simple tasks (known item

retrieval), other methods may be faster

– Complex tasks are supported very

effectively

33

Distributed Agents for User-Friendly

Access of Digital Libraries

• 7. Summary

Daffodil concepts

• Strategic information access support
• Levels of system support
• Digital library life cycle
• Collaboration
• User-friendly integrated desktop

Representational Model of Common Elements

Interaction

Understanding Queries Massaging Results & User Annotation Transformations Discovery Automatic Capture Interpretive Capture Managing Personal Libraries DWIM Cognitive Completion Chunking Collaboration

[Larsen & Wactlar: Summary of NSF WS on Future Directions for DLs, 2003]

Store User

35

Distributed Agents for User-Friendly

Access of Digital Libraries

Outlook

Further research

–

Support strategies

–

Path model: define/learn successful usage patterns

–

New application domains:

• additional object types,
• support re-present stage

Application for large user communities Try Daffodil: http://www.daffodil.de
