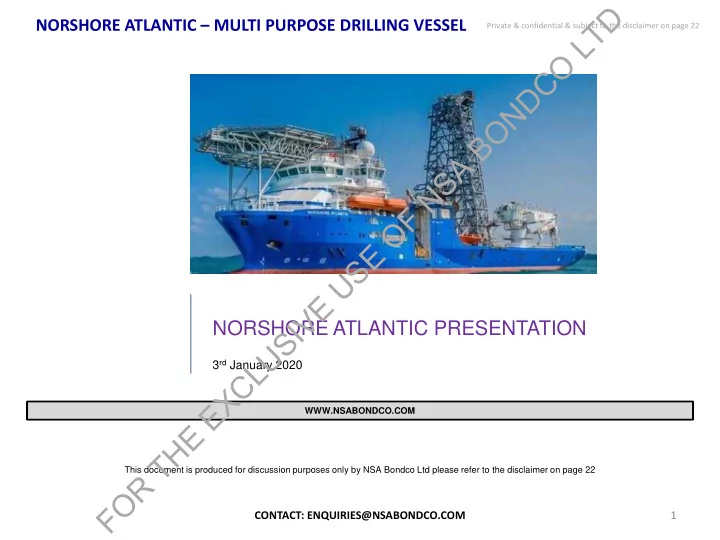

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

NORSHORE ATLANTIC PRESENTATION

3rd January 2020 1

This document is produced for discussion purposes only by NSA Bondco Ltd please refer to the disclaimer on page 22 WWW.NSABONDCO.COM

CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-2
SLIDE 2

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Table of Contents

3 Key Areas of Operation 4 Vessel Specifications 6 – 8 Operational Experience 9 Machinery Specifications 10 - 13 Drilling Equipment Specifications 5 Vessel Plan

2

14 Crane, Tank & DP Specifications

CONTACT: ENQUIRIES@NSABONDCO.COM

15 Safety Equipment 16 - 21 Corporate Structure & Photos 22 Disclaimer

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-3
SLIDE 3

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Key Areas of Operation

  • Top Hole Drilling - Water Depth Range 30 – 3,000 Metres
  • Plug & Abandonment
  • Riserless Drilling of Complete Wells to 500 Metres Water Depth
  • Slender Well Drilling
  • Well Intervention & Subsea Construction

3 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-4
SLIDE 4

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Vessel Specifications

  • General
  • Design

MT 6022XL Marin Teknikk

  • Class

DnV 1A1, SF, E0, HELDK-SH, DYNPOS AUTRO, DK+, HL (2.8), LFL*, COMF-V(3) CLEAN DESIGN, Ship Shaped Drilling Unit

  • Flag

Marshall Islands

  • IMO number

9545675

  • Year delivered

March 2014

  • Shipbuilder

Otto Marine / Batam Shipyard (Indonesia)

  • Main Dimensions
  • Length (overall)

115.4 metres

  • Beam

28.0 metres

  • Depth to main deck

9.0 metres

  • Length between perpendiculars

107.9 metres

  • Max draft

7.1 metres

  • Air draft

46.8 metres

  • Registered tonnage (gross)

8,842t

  • Registered tonnage (net)

2,652t

  • Deadweight

7,200t

  • Accommodation

32 one bed cabins and 33 two bed cabins

  • Workspace

7 offices/conference rooms (153sqm) and five day rooms (121sqm)

  • Gross deck area

1,405 SqM

  • Moon pool

7.2 metres X 7.2 metres

  • Helideck Dimensions

D value 22m (S-92)

4 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-5
SLIDE 5

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Vessel Plan

5 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-6
SLIDE 6

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Operational Experience

  • Intervention
  • NorthWest Malacca – PertaminaBluesky – Bluskye Intervention Campaign - July 2014
  • 2 wells Indonesia
  • Well intervention with DP riser – top compensated riser
  • Production increased from 50 bbl/day to 4,200 bbl/day
  • 6 hours loading at quay side => 36 hour transit to location

=> Well intervention operation 1 => 3 days (sub sea equipment downtime adjusted) => Well intervention operation 2 => 1.5 days => 36 hour transit to base and 6 hours offloading at quay side

  • Conductor Installation and Surface Casing (Top Hole Drilling)
  • South China Sea – Shell Malaysia – Malakai Pre-Drill Campaign - September 2014-January 2015
  • 1,500 ft (450 metre) water depth
  • Jetted 24 x 36 inch conductors
  • 65 ft (20 metre) long and 18 tonne heavy upper join on each conductor string
  • All within inclination limit <1 degree
  • Drilled 7 wells deviated 17 ½ inch sections down to top reservoir at 4,100 ft (1,250 metres)
  • Ran 13 3/8 inch surface casing
  • KCL mud with return to shakers using a mud recovery system
  • 13.6 tonnes/day average fuel consumption

6 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-7
SLIDE 7

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Operational Experience Continued

  • Plugging and abandonment
  • Natuna Sea – ConocoPhilips Indonesia – Belida Field Completion - November 2015-January 2016
  • 3 Subsea Wells -
  • Well intervention with DP riser – top compensated riser
  • Pulled XMT and Tubing
  • Cut and retrived 9 5/8 casing
  • Installed SL Plug and cemented
  • Cut and Retrieved WH’s
  • Retrieval of 36” Conductor and PGB

7 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-8
SLIDE 8

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Operational Experience Continued

  • Weather Conditions
  • Crane Operation – Ship to Ship
  • Max wave height

3.5 metres – 10 sec

  • Max wind speed

30 kts

  • Drilling Operation
  • Max wave height

5 metres – 11 sec

  • Max wind speed

50 kts

  • Casing Running Operation
  • Max wave height

4.5 metres – 11 sec

  • Max wind speed

40 kts

8 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-9
SLIDE 9

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Machinery Specifications

  • Propulsion
  • 2 x Rolls Royce AZP 120, each producing 3,000kW
  • Tunnel Thrusters
  • Forward – 2 x Rolls Royce TT 2400 tunnel thrusters, each producing 1,500kW
  • Aft – 1 x Rolls Royce TT 1800, producing 660kW
  • Azimuth Thrusters
  • 1 x Rolls Royce UL 2001, producing 1,500 kW
  • Power
  • Main engines

4 x MAK 9M25 and 2 x MAK 6M25 diesel engines

  • Main generators

4 x AvK DSG 125 and 2 x AvK DSG 115 diesel generators

  • Total power output

14,400kW

  • Emergency generator

1 x Caterpillar, producing 500kW

  • Speed, Consumption and Endurance
  • General service speed

13 kts

  • Consumption in transit

24-26 m3 / day

  • Consumption on direct positioning

15-17 m3 / day

  • Endurance

50 days

9 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-10
SLIDE 10

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Drilling Equipment Specifications

  • Catwalk
  • Type

NOV-CWM P10-45-HB

  • Tubular length

18.0 metres

  • Tubular diameter

36”

  • Max load

15t

  • Iron Roughneck
  • Type

NOV HydraTong ARN-200

  • Max make up torque

100,000 ft-lbs

  • Max break out torque

145,000 ft-lbs

  • Tool joint range

3 ½” – 9 ¾”

  • Mud System
  • Type

NOV

  • Mud pumps

3 x 1,600 HP 5,000 psi

  • Mud mixing skid

2 x hopper, sack cutter, chemical mix pumps

  • Mud Treatment System (system needs full refurbishment)
  • Type

GN solids control

  • Shakers

2 x GNZS594-HB

  • Mudcleaner

1 x GNZJ594-3S16N

  • Vacuum degasser

1 x GNZCQ360

  • Mud gas separator

1 x GNZYP1000A

  • Centrifugal pump

1 x GNSB8x6-14)

  • Screw conveyor

GNSC 12-24

10 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-11
SLIDE 11

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Drilling Equipment Specifications Continued

11 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-12
SLIDE 12

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Drilling Equipment Specifications Continued

  • Derrick
  • Type

NOV

  • Hook load

450mt 4-falls – 300mt 2 falls (optional 585mt)

  • Lifting height

27m (34m without top drive)

  • Top Drive
  • Type

NOV HPS-04 500t

  • SWL

450mt (optional 585mt)

  • Max rpm

180 rpm

  • Max torque

55,000 ft-lbs / 95 rpm

  • Max mud pressure

345 bar

  • Pipe handling crane
  • Type

Odim ABAS CRC 150

  • SWL crane

8t

  • SWL grippers

3.5t

  • BOP
  • Type

Cameron 18 ¾” 10K, Pilot Hydraulic

  • Configuration

2 x pipe ram, 2 x shear ram, 1 x annular (5k), H4 well head connector

  • Rotary Table
  • Size

49 ½” splitable false rotary table

12 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-13
SLIDE 13

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Drilling Equipment Specifications Continued

13 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-14
SLIDE 14

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Crane, Tank & DP System Specifications

  • Offshore Crane
  • Make

National Oilwell Varco

  • Type

AHC Knuckle Boom Crane

  • Depth

2,500 metres

  • Main winch capacity at 12 metre outreach

140t

  • Main winch capacity at 30 metre outreach

46,3 t

  • Whip line max outreach 32 metre (Man riding / Ship to ship)

20 t

  • Dynamic Positioning and Navigation Systems
  • DP3 System
  • Kongsberg K-POS SDP22 and K-POS SDP12 dynamic positioning systems
  • 2 x Simrad HiPAP 500 underwater positioning systems
  • LWT MK 15/500 (taut wire)
  • Fanbeam Mk 4.2 2000
  • Kongsberg Radius 1000 D and Seapath 200
  • 3 x DGPS systems
  • Tank Capacities
  • Fuel

1,355 m3

  • Pot water

202 m3

  • Drill water

598 m3

  • Ballast water

4,360 m3

  • Liquid mud

1,150 m3

  • Anti heeling

500 m3

  • Hydrocarbon slop

85 m3

  • Methanol

10 m3

  • Dry bulk

2 x 70 m3 and 2 x 77 m3 + optional bulk capacity on deck

14 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-15
SLIDE 15

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Safety Equipment

  • Lifesaving Equipment
  • Life boat

2 x 45 + 2 x 63 Umoe Schat Harding

  • FRC MOB boat

1 x Norsafe Magnum

  • Life rafts

2 x 101 pers Viking MES

  • Fire and Gas System
  • Fire pumps

2 x 205 m3/h – 11.7 bar

  • ESD system

K-Safe 700

  • Fire and gas monitoring

Dräger

  • PA / GA system

Zenitel

  • Fixed system

Marioff HiFog system in accommodation and machinery spaces

  • Communication
  • Area

GMDSS A3 / World Wide

  • Satellite system

KU / C-band (phone and data)

  • Telephone

All cabins and offices connected to satellite phone system

  • GSM

GSM at sea roaming service

15 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-16
SLIDE 16

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Corporate Structure

16 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-17
SLIDE 17

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Dry Dock Photo

17 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-18
SLIDE 18

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Dry Dock Photos Continued

18 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-19
SLIDE 19

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Subsea Crane Photo

19 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-20
SLIDE 20

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Photos Continued

20 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-21
SLIDE 21

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Photos Continued

21 CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D

slide-22
SLIDE 22

NORSHORE ATLANTIC – MULTI PURPOSE DRILLING VESSEL

Private & confidential & subject to the disclaimer on page 22

Disclaimer

22

This document is provided for discussion purposes only by NSA Bondco Ltd (Cayman Islands). No other party has any responsibility for this document or its contents. This document is not intended to provide, nor should you rely upon it for, accounting, legal, tax, or investment advice or recommendations. You should engage and consult with legal counsel and other professional advisors in reviewing this document and all other documents related to any transaction or other agreement concerning the Norshore Atlantic and you should conduct your own due diligence and investigations to the extent you believe necessary. The factual information contained herein has been compiled and provided using our best efforts, but it may contain errors and is neither guaranteed in any way nor a complete summary of all available or relevant data. Certain values herein have been transcribed (or have been calculated using values so transcribed) and it is possible that mistakes occurred in the transcription process, among other possible errors. We do not make any representation or warranty as to the accuracy or completeness of any information contained herein, nor do we undertake any obligation to update any information herein.

CONTACT: ENQUIRIES@NSABONDCO.COM

F O R T H E E X C L U S I V E U S E O F N S A B O N D C O L T D
