D-Star Repeater K5LET DV & DVAP ! D-Star ! Dongle Users Reflectors Local RF ! Users Patterson ! DSL Modem ! Internet 6 Mbps Patterson ! Dynamic ! Home ! (WAN) Computers Patterson ! 192.168.1.xxx Router 192.168.1.253 ! Duplexer (DMZ)

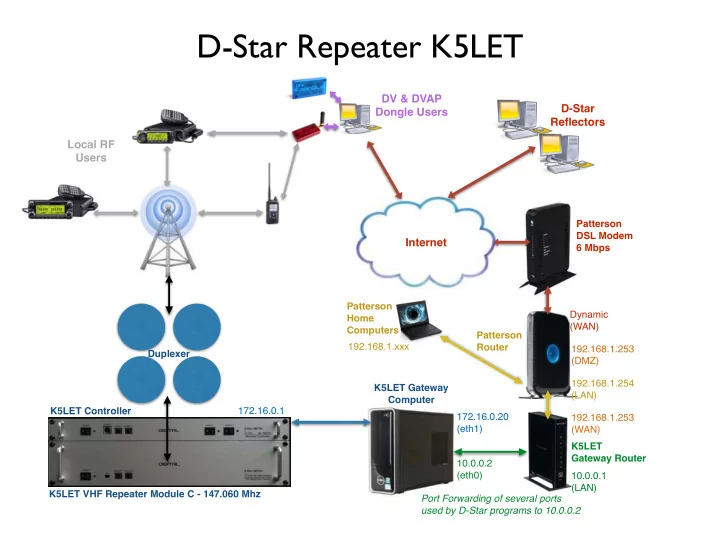

D-Star Repeater K5LET DV & DVAP ! D-Star ! Dongle Users Reflectors Local RF ! Users Patterson ! DSL Modem ! Internet 6 Mbps Patterson ! Dynamic ! Home ! (WAN) Computers Patterson ! 192.168.1.xxx Router 192.168.1.253 ! Duplexer (DMZ) 192.168.1.254 ! K5LET Gateway ! (LAN) Computer K5LET Controller 172.16.0.1 172.16.0.20 ! 192.168.1.253 ! (eth1) (WAN) K5LET ! Gateway Router 10.0.0.2 ! (eth0) 10.0.0.1 ! (LAN) K5LET VHF Repeater Module C - 147.060 Mhz Port Forwarding of several ports ! used by D-Star programs to 10.0.0.2
D-Star Repeater Software Category ! Name(s) Purpose(s) Provides backup of all relevant GW Utilities Backups files for restoration, if needed Base GW Code (ICOM), Provides basis for GW operations, Applications DPlus, DstarMonitor, linking to reflectors, DPRS, DRATS, Monlink announcements and auto-linking Apache, Tomcat, MIddleware Provides basis for applications PostgreSQL Operating System ! CentOS 5.10 Provides basis for HW/SW interaction
D-Star Repeater K5LET
K5LET D-Star Repeater Status • The K5LET gateway has been installed, configured, and registered on the D-Star US Trust system and is at the repeater site and operational. ! • The cabinet has been put in place and electrical, grounding, and ethernet run to it. ! • The tower grounding system has been upgraded. ! • The antenna, feed line, and duplexers are ready to go. ! • The next work day is tentatively scheduled for Saturday, December 28th at 9:00AM at repeater site. Weather and tower climber(s) permitting, we will put up the antenna and feed line. We will need several to serve as a ground crew for the tower work. ! • The repeater is scheduled to be delivered at the end of December / early January.
Digital Ham Access Point (D-HAP)
Digital Ham Access Point (D-HAP)
Digital Ham Access Point (D-HAP)
Digital Ham Access Point (D-HAP) • Manufactured by Hardened Power Systems in the U.S.A. ( http://www.portableuniversalpower.com ) ! • Hardened Power makes portable power systems for first responder and military use. ! • Cost with Raspberry Pi & SD Card - $290 ! • Comes with Wall charger and WiFi USB Dongle ! • Cost without RPi & SD Card - $225 ! • Accessories available: ! • DC CLA Charger - $32 ! • Solar Controller - $110 ! • Foldable 10W Powerfilm Solar Panel - $180
