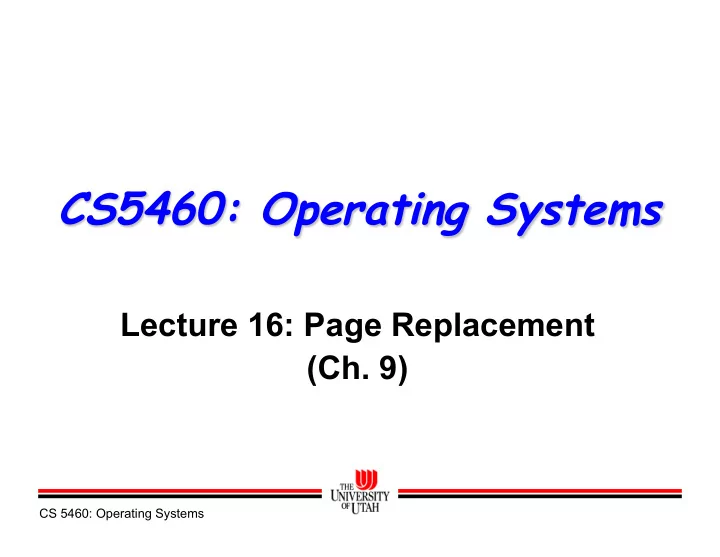

Lecture 16: Page Replacement (Ch. 9)

Last Time: Demand Paging

 Key idea: RAM is used as a cache for disk – Don’t give a process a page of RAM until it is needed – When running short on RAM, take pages away from processes – This only works if accesses to memory pages have high temporal locality

» Why don’t we care about spatial locality?

 Three basic kinds of page table entries – Valid mapping – the OS is not involved – translation performed entirely by the CPU – Invalid mapping – trap, then kernel does something special, such as kill the process – Valid but not present – trap and do demand paging  Demand paging makes the exec() system call fast

CS 5460: Operating Systems

CS 5460: Operating Systems

Timeline of a Page Fault

• 1. Trap to operating system
• 2. Save state in PCB
• 3. Vector to page fault handler
• 4. If invalid, send SIGSEGV
• 5. If valid, find or create a free

page

• a. Possibly involves disk write
• 6. Issue disk read for page
• a. Wait until request queued at

disk controller

• b. Wait for seek/latency
• c. Wait for data transfer (DMA)
• d. Wait for completion interrupt
• 7. (Optional) Schedule another

process while waiting

• 8. Take disk interrupt
• 9. Update page table
• 10. Add process to run queue
• 11. Wait for process to be

scheduled next

• 12. Restore state from PCB
• 13. Return from OS
• 14. Re-execute faulting

instruction

CS 5460: Operating Systems

Effective Access Times

 What is average access latency? – L1 cache: 2 cycles – L2 cache: 10 cycles – Main memory: 150 cycles – Disk: 10 ms à à 30,000,000 cycles on 3.0 GHz processor – Assume access have following characteristics:

» 98% handled by L1 cache » 1% handled by L2 cache » 0.99% handled by DRAM » 0.01% cause page fault

– Average access latency:

» (0.98 * 2) + (0.01 * 10) + (0.0099 * 150) + (0.0001 * 30,000,000) = 1.96 + 0.1 + 1.485 + 3000 = about 3000 cycles / access

 Moral: Need LOW fault rates to sustain performance!

CS 5460: Operating Systems

Issues in Demand Paging

 Page selection policy – When do we load a page?  Page replacement policy – What page(s) do we swap to disk to make room for new pages? – When do we swap pages out to disk?  How do we handle thrashing?

CS 5460: Operating Systems

Page Selection Policy

 Demand paging: – Load page in response to access (page fault) – Predominant selection policy  Pre-paging (prefetching) – Predict what pages will be accessed in near future – Prefetch pages in advance of access – Problems:

» Hard to predict accurately (trace cache) » Mispredictions can cause useful pages to be replaced

 Overlays – Application controls when pages loaded/replaced – Only really relevant now for embedded/real-time systems

CS 5460: Operating Systems

Page Replacement Policies

 Optimal – Throw out page used farthest in the future  Random – Works surprisingly well  FIFO (first in, first out) – Throw out oldest pages  LRU (least recently used) – Throw out page not used in longest time  NRU (not recently used) – Approximation to LRU à à do not throw out recently used pages  How should we evaluate page replacement policies?

CS 5460: Operating Systems

FIFO Page Replacement

A B C A B D A D B C B

Frame1 Frame2 Frame3  FIFO: replace oldest page (first loaded)  Example: – Memory system with three pages à à all initially free – Reference string: A B C A B D A D B C B

Result: 7 page faults

• A
• B
• C
• √
• √
• D
• A
• √
• B
• C
• √

CS 5460: Operating Systems

Optimal Page Replacement

A B C A B D A D B C B

Frame1 Frame2 Frame3  Optimal: replace page used farthest in the future  Example: – Memory system with three pages à à all initially free – Reference string: A B C A B D A D B C B

Result: 5 page faults

• A
• B
• C
• √
• √
• D
• √
• C
• √
• √
• C
• √

CS 5460: Operating Systems

LRU Page Replacement

A B C A B D A D B C B

Frame1 Frame2 Frame3  LRU: replace least recently used page  Example: – Memory system with three pages à à all initially free – Reference string: A B C A B D A D B C B

Result: 5 page faults

• A
• B
• C
• √
• √
• D
• √
• C
• √
• √
• √

 How would you implement… – Random – FIFO – Optimal – LRU – NRU  Which ones are efficient?

CS 5460: Operating Systems

CS 5460: Operating Systems

NRU Page Replacement

 Observations – LRU is pretty good approximation of OPT

» Past performance is often reasonable predictor of future performance » Captures “phase” behavior in many (but not all) applications

– Implementing true LRU requires far too much overhead

» Logically, need to update “sort order” on every memory access

 How can we approximate LRU efficiently? – Exploit “referenced” bit in modern page tables – Only replace pages that have not been recently referenced (NRU) – Periodically clear referenced bits à à enforces “recently”

» Optionally: Maintain recent history of referenced bits per-page » Example: 10010101 à à denotes times page referenced last 8 sweeps

CS 5460: Operating Systems

NRU Page Replacement

 This is a modified version of FIFO  Checks if the page at the head of the FIFO queue

has its referenced bit set

– Yes? Then clear the bit and put it at the back of the queue and look at the next page – No? Then select this page  Is this fast? What is the worst case?  This is called the “second chance” algorithm

CS 5460: Operating Systems 1 1 1

Clock Algorithm

 This is basically an

• ptimized version of second

chance

 Maintains “next” pointer

– Starts sweep there until done – Persists across invocations

 While (need more pages)

– Check referenced bit – If 0 à à add to free pool – If 1 à à reset bit

 Between sweeps

– If a process accesses page, referenced bit gets set – TLB helps here!

1

Next

Referenced

Next Next Next Next

Free! Free!

CS 5460: Operating Systems

BSD Page Replacement (NRU)

 Goal: maintain pool of free pages at all times – Avoid waiting for replacement algorithm/write during page fault – Typical goal: ~5% of main memory in free page pool  Sweeper process – Privileged (kernel) process – Scheduled whenever free page pool drops below threshold

» Low watermark (sweep) –vs- high watermark (goal)

– Sweeps through list of allocated pages doing 2nd chance

Nth Chance

 Like second chance but… – If page is referenced, clear its counter and move on – If page is not referenced, increment its counter

» If new counter == N, select this page » Otherwise move on

– If N is big, we have a really good LRU approximation

» But we spend a lot of time looking for pages

– If N == 1 we have second chance – If N == 0 we have FIFO  Lots more work exists on page replacement…

CS 5460: Operating Systems

CS 5460: Operating Systems

Belady’s Anomaly

 For some replacement algorithms – MORE pages in main memory can lead to… – MORE page faults!  This phenomenon is known as “Belady’s Anomaly”  Example: – FIFO replacement policy – Reference string: A B C D A B E A B C D E – Three pages à à 9 faults – Four pages à à 10 faults!  Interesting since we would expect that adding more

memory always helps

CS 5460: Operating Systems

Thrashing

 Working set: collection of memory currently being

used by a process

 If all working sets do not fit in memory à

à thrashing

– One “hot” page replaces another – Percentage of accesses that generate page faults skyrockets  Typical solution: “swap out” entire processes – Scheduler needs to get involved – Two-level scheduling policy à à runnable vs memory-available – Need to be fair – Invoked when page fault rate exceeds some bound  When swap devices are full, Linux invokes the

“OOM killer”

CS 5460: Operating Systems

 Who should we compete against for memory?  Global replacement: – All pages for all processes come from single shared pool – Advantage: very flexible à à can globally “optimize” memory usage – Disadvantages: Thrashing more likely, can often do just the wrong thing (e.g., replace the pages of a process about to be scheduled) – Many OSes, including Linux, do this  Per-process replacement: – Each process has private pool of pages à à competes with itself – Alleviates inter-process problems, but not every process equal – Need to know working set size for each process – Windows kernel does this

» There are Win32 API calls to set a process’s minimum and maximum working set sizes

CS 5460: Operating Systems

Important From Today

 Demand paging – What is it? What is the “effective access time”?  Page replacement policies – Random, FIFO, Optimal, LRU, NRU, … – Belady’s anomaly  Thrashing  Global vs local allocation – Concept of a process’s “working set”
