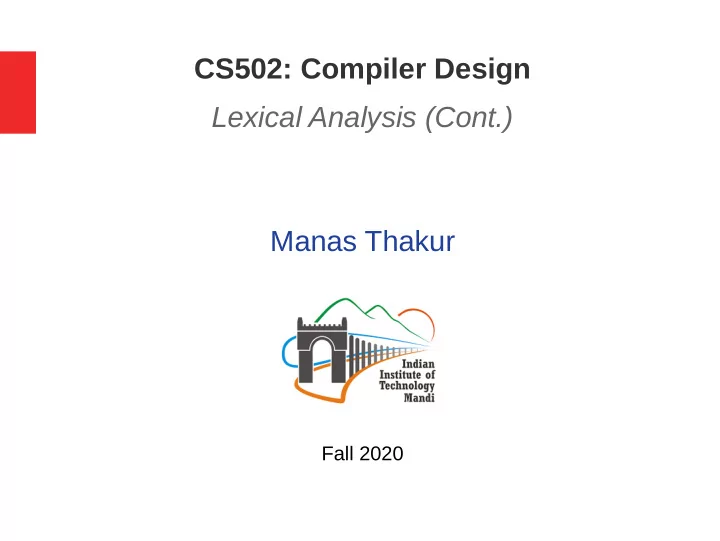

CS502: Compiler Design Lexical Analysis (Cont.) Manas Thakur

Fall 2020

Manas Thakur CS502: Compiler Design 2

Recognizing strings in regular languages

• Done using Finite Automata
• A kind of state machine

– A state denotes a remembrance of the string read so far. – An arrow from state A to state B over a character c denotes a

transition (state change).

• Formally, a finite automaton M consists of 5 components:

– Q: Set of states – Σ: Set of input symbols (alphabet) – q: Initial state – F: Set of final (accept) states – δ: Transition function

• M accepts a string w if reading w takes M to an accept state.

Manas Thakur CS502: Compiler Design 3

Regular expression to finite automata

• Exercise: Write a regular expression that accepts your fjrst

name and nothing else!

• Finite automaton that accepts “manas”:

– Q: {q0, q1, q2, q3, q4, q5} – Σ: {a..z} – q: q0 – F: {q5} – δ: {<q0,m,q1>, <q1,a,q2>, <q2,n,q3>,<q3,a,q4>,<q4,s,q5>}

• “Invisible” arrows take to an error state.

q1 m a n a s q2 q3 q4 q5 q0

Manas Thakur CS502: Compiler Design 4

Finite automaton to recognize identifiers

Regular expression: letter(letter|digit)*

q1 letter, digit

• ther

q2 q0 q3 letter digit,

• ther

Manas Thakur CS502: Compiler Design 5

Tables for the recognizer

• Two tables control the recognizer:
• To change languages, we can just change tables.

Manas Thakur CS502: Compiler Design 6

Code for the recognizer

• Given an automaton, can we write a recognizer for a token?

Manas Thakur CS502: Compiler Design 7

Classwork

• Draw an FA that recognizes strings over alphabet {a, b} with

exactly three bs.

– a*ba*ba*ba*

• Strings of length>1 starting and ending with a.

– a(a+b)*a

• Strings with third last letter as a.

– (a+b)*a(a+b)(a+b)

• Do you see non-determinism in the above two FAs?

– We have actually constructed a non-deterministic FA (the first

• ne being a deterministic FA)!
• Not for CS502:

– Conversion of NFA to DFA, minimization of DFA, ...

Manas Thakur CS502: Compiler Design 8

Automatic construction of lexers

• JavaCC: Popular lexical analyzer (and also parser) generator

javacc javac java fjle.jj Lexer in Java Input stream Tokens

• Takes regular expressions as input.
• Constructs equivalent finite automata.
• Emits code for the scanner.
• Lex/Flex: another popular lexer generator written in C.

Java Bytecode

Manas Thakur CS502: Compiler Design 9

JavaCC regexes in action

• BREAKING NEWS:

– You can start doing A1 today (spec on Moodle before eod).

Manas Thakur CS502: Compiler Design 10

Errors in lexical analysis

• It is difficult for a lexer to identify errors.

– Limited resources: e.g., no context information.

• fi (a = f(x))

– Is fi a misspelling for if, or a function identifier?

• As fi is a valid lexeme for the token identifier, the lexer must

return the token <id, fi>.

• A later phase (parser or semantic analyzer) may be able to catch

the error.

• But some errors can be caught by a lexer:

– int %x; – if (a < b);$

What should a lexer do on detecting an error?

Manas Thakur CS502: Compiler Design 11

Error handling in lexical analysis

• Panic and exit(1).
• Try to recover from the error and proceed.

Why?

• We are a compiler; not an interpreter!

Manas Thakur CS502: Compiler Design 12

Error recovery in lexical analysis

• Delete one character from the input.
• Insert a missing character into the remaining input.

– Which one?

• Replace a character by another character.
• Transpose two adjacent characters.
• Theoretical problem: Find the smallest number of

transformations (add, delete, replace) needed to convert a source program to one that consists only of valid lexemes.

– Too expensive in practice.

• In practice, most lexical errors involve a single character.

Manas Thakur CS502: Compiler Design 13

Limits of Regular Languages

• Not all languages are regular.
• Try constructing an FA for the following languages:

– L = {0n1n} – L = {wcwr | w ∈ Σ*}

Note: neither of these is a regular expression!

• FAs cannot count properly!
• However, this is a little subtle. One can construct FAs for:

– Alternating 0s and 1s

• (ε | 1)(01)*(ε | 0)

– Sets of pairs of 0s and 1s

• (01 | 10)+

Manas Thakur CS502: Compiler Design 14

What next?

• Learn a language that could recognize L = {0n1n} and

L = {wcwr | w ∈ Σ*}!

• Why do we care?

– Do you fjnd any similarity between above, and recognizing:

• Matching parentheses/blocks?
