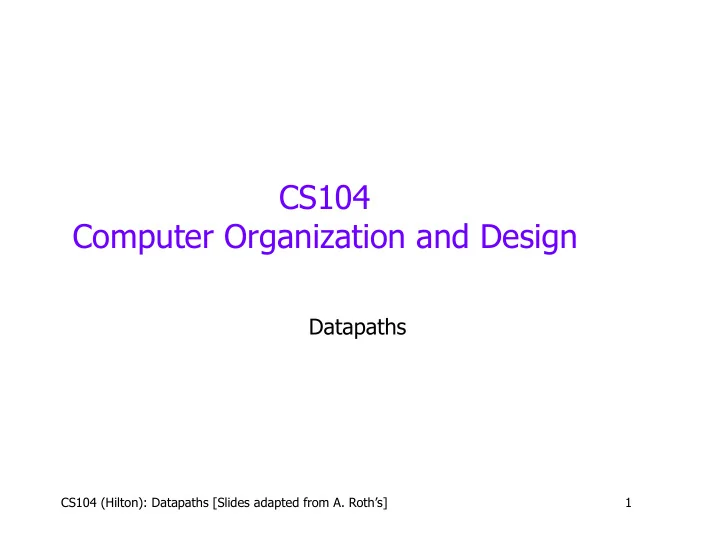

CS104 Computer Organization and Design Datapaths CS104 (Hilton): - - PowerPoint PPT Presentation

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 1

CS104 Computer Organization and Design

Datapaths

Admin

• Homework
• Homework 4 out tonight
• Due Monday March 26th
• Download/check your submissions
• Reading:
• Chapter 4
• (Maybe review 1.4)
• Midterm 2
• March 28

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 2

What did we do last week?

• Who can remind us what we did last week?

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 3

What did we do last week?

• Who can remind us what we did last week?
• Ski
• Go to the beach
• Sleep in
• Read a book
• …
• Ok, but seriously?

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 4

When last I saw you all..

• Last time I was here (Feb 27/29)
• Learned basics of logic design
• Gates (And, Or, Nor, …)
• Put gates together to make
• Muxes
• Adders
• Latches
• Flip-flops
• …

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 5

While I was at HPCA..

• Prof. Lebeck started teaching you all about datapaths
• Putting logic together to execute instructions
• Started on single-cycle datapath
• We’ll review/continue with single cycle
• Then jump into more things!

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 6

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 7

Datapath for MIPS ISA

• Consider only the following instructions

add $1,$2,$3 addi $1,2,$3 lw $1,4($3) sw $1,4($3) beq $1,$2,PC_relative_target j absolute_target

• Why only these?
• Most other instructions are the same from datapath viewpoint
• The one’s that aren’t are left for you to figure out

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 8

Start With Fetch

• PC and instruction memory
• A +4 incrementer computes default next instruction PC

P C Insn Mem

+ 4

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 9

First Instruction: add

• Add register file and ALU

P C Insn Mem Register File

s1 s2 d

+ 4

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 10

Second Instruction: addi

• Destination register can now be either Rd or Rt
• Add sign extension unit and mux into second ALU input

P C Insn Mem Register File

S X

s1 s2 d

+ 4

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 11

Third Instruction: lw

• Add data memory, address is ALU output
• Add register write data mux to select memory output or ALU output

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 12

Fourth Instruction: sw

• Add path from second input register to data memory data input

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 13

Fifth Instruction: beq

• Add left shift unit and adder to compute PC-relative branch target
• Add PC input mux to select PC+4 or branch target

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

z

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 14

Sixth Instruction: j

• Add shifter to compute left shift of 26-bit immediate
• Add additional PC input mux for jump target

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2 << 2

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 15

“Continuous Read” Datapath Timing

• Works because writes (PC, RegFile, DMem) are independent
• And because no read logically follows any write

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

Read IMem Read Registers Read DMEM Write DMEM Write Registers Write PC

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 16

What Is Control?

• 9 signals control flow of data through this datapath
• MUX selectors, or register/memory write enable signals
• A real datapath has 300-500 control signals

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2 << 2

Rwe ALUinB DMwe JP ALUop BR Rwd Rdst

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 17

Example: Control for add

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2 << 2

BR=0 JP=0 Rwd=0 DMwe=0 ALUop=0 ALUinB=0 Rdst=1 Rwe=1

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 18

Example: Control for sw

• Difference between sw and add is 5 signals
• 3 if you don’t count the X (don’t care) signals

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2 << 2

Rwe=0 ALUinB=1 DMwe=1 JP=0 ALUop=0 BR=0 Rwd=X Rdst=X

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 19

Example: Control for beq

• Difference between sw and beq is only 4 signals

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2 << 2

Rwe=0 ALUinB=0 DMwe=0 JP=0 ALUop=1 BR=1 Rwd=X Rdst=X

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 20

You all figure LW

• How would these control signals be set for LW?

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2 << 2

Rwe ALUinB DMwe JP ALUop BR Rwd Rdst

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 21

Example: Control for LW

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2 << 2

BR=0 JP=0 Rwd=1 DMwe=0 ALUop=0 ALUinB=1 Rdst=1 Rwe=1

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 22

How Is Control Implemented?

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2 << 2

Rwe ALUinB DMwe JP ALUop BR Rwd Rdst Control?

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 23

Implementing Control

• Each insn has a unique set of control signals
• Most are function of opcode
• Some may be encoded in the instruction itself
• E.g., the ALUop signal is some portion of the MIPS Func field

+ Simplifies controller implementation

• Requires careful ISA design

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 24

Control Implementation: ROM

• ROM (read only memory): think rows of bits
• Bits in data words are control signals
• Lines indexed by opcode
• Example: ROM control for 6-insn MIPS datapath
• X is “don’t care”

BR JP ALUinB ALUop DMwe Rwe Rdst Rwd add 1 addi 1 1 1 lw 1 1 1 1 sw 1 1 X X beq 1 1 X X j 1 X X

• pcode

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 25

Control Implementation: Random Logic

• Real machines have 100+ insns 300+ control signals
• 30,000+ control bits (~4KB)

– Not huge, but hard to make faster than datapath (important!)

• Alternative: random logic (random = ‘non-repeating’)
• Exploits the observation: many signals have few 1s or few 0s
• Example: random logic control for 6-insn MIPS datapath

ALUinB

• pcode

add addi lw sw beq j BR JP DMwe Rwd Rdst ALUop Rwe

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 26

Datapath and Control Timing

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

Control ROM/random logic

Read IMem Read Registers (Read Control ROM) Read DMEM Write DMEM Write Registers Write PC

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 27

Single-Cycle Datapath Performance

• Goes against make common case fast (MCCF) principle

+ Low Cycles Per Instruction (CPI): 1 – Long clock period: to accommodate slowest insn P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

Control ROM/random logic

Interlude: Performance

• Previous slide alludes to something new: Performance
• Don’t just want it to work…
• But want it to go fast!
• Three components to performance:

Number of instructions x Cycles per instruction (CPI) x Clock Period (1 / Clock frequency) Instructions Cycles Seconds Seconds —————— x ————— x ————— = —————— Program Instruction Cycle Program

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 28

Interlude: Performance

• Three components to performance:

Number of instructions <- Compiler’s Job x Cycles per instruction (CPI) x Clock Period (1 / Clock frequency) Instructions Cycles Seconds Seconds —————— x ————— x ————— = —————— Program Instruction Cycle Program

• Insns/Program: determined by compiler + ISA
• Generally assume fixed program when do micro-architecture

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 29

Micro-architectural factors

• Micro-architecture:
• The details of how the ISA is implemented
• Affects CPI and Clock frequency
• Often will look at fixed program, and consider MIPS
• Million Instructions Per Second
• MIPS = IPC * Frequency (in MHz)
• IPC = Instruction Per Cycle (1 / CPI)
• Gives “Bigger is better” number

Instructions Cycles Instructions ————— x ————— = —————— Cycle Second Second (IPC) (Frequency) (Throughput)

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 30

“Best” IPC

• For now, best we can do: IPC = 1 (CPI = 1)
• Do 1 instruction every cycle
• Later:
• Real processors can do multiple instructions at once!
• Potentially: IPC < 1!
• Best possible IPC depends on design

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 31

Performance vs ….

• 1990s: Performance at all cost
• Actually more “clock frequency” at all cost…
• Now: Care about other things
• Energy (electric bill, battery life)
• Power (cooling, also affects energy)
• Area (chip cost)
• Reliability (tolerance of transient faults: e.g., charge particle strikes)
• …
• Important metric these days “Performance / Watt”
• Throughput divided by power consumption
• Why?

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 32

Performance Modeling and Analysis

• Speaking of performance
• Making a processor takes time (years) and money (millions)
• Want to know it will perform well before you finish
• If its wrong, doing it all over is painful…
• Performance can be simulated in software
• Estimate what IPC will be
• Guide design
• This is my other job by the way…

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 33

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 34

Single-Cycle Datapath Performance

• Goes against make common case fast (MCCF) principle

+ Low Cycles Per Instruction (CPI): 1 – Long clock period: to accommodate slowest insn P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

Control ROM/random logic

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 35

Alternative: Multi-Cycle Datapath

• Multi-cycle datapath: attacks high clock period
• Cut datapath into multiple stages (5 here), isolate using FFs
• FSM control “walks” insns thru stages (by staging control signals)

+ Insns can bypass stages and exit early P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

I R D O B A

s3 s3 s3 s4 s5 s5 s5

Finite State Machine (FSM)

• FSM = States + Transitions
• Next state: function of current state + inputs
• Outputs: function of current state + inputs
• Canonical Example: Combination Lock
• Must enter 3 8 4 to unlock
• P.S. Useful in software too

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 36

Finite State Machines: Example

• Combination Lock Example:
• Need to enter 3 8 4 to unlock
• Initial State: no valid piece of combo seen

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 37

Start

Finite State Machines: Example

• Combination Lock Example:
• Need to enter 3 8 4 to unlock
• Input of 3: transition to new state
• Any other input: stay in same state

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 38

Start 1 3 0-2,4-9

Finite State Machines: Example

• Combination Lock Example:
• Need to enter 3 8 4 to unlock
• State 1:
• Input = 8? Goto state 2

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 39

Start 1 3 0-2,4-9 2 8 3 0-2,4-7,9

Finite State Machines: Example

• Combination Lock Example:
• Need to enter 3 8 4 to unlock
• State 2:
• Input = 4? Goto state 3

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 40

Start 1 3 0-2,4-9 2 8 0-2,5-9 3 3 0-2,4-7,9 3 4

Finite State Machines: Example

• Combination Lock Example:
• Need to enter 3 8 4 to unlock
• State 3:

Unlock!

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 41

Start 1 3 0-2,4-9 2 8 0-2,5-9 3 3 0-2,4-7,9 3 4

FSM in Hardware

• Flip flop (s) to hold state (s)
• Combinatorial logic to determine next state/output
• (Assumes FF enable on input_valid)

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 42

FSM Hardware Example

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 43

FSM Hardware Example

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 44

FSM Hardware Example

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 45

FSM Hardware Example

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 46

FSM Hardware Example

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 47

FSM Hardware Example

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 48

FSM Hardware Example

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 49

FSM Implementation: ROM

• Just saw: FSM implemented with sum-of-products
• Remind us what that is?
• Can also be implemented with a ROM

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 50

2(N+K) Entry ROM Inputs K Register N M Outputs N N + K K-bit input N-bit state M-bit output

FSM ROM Implementation Example

• Combination Lock (3 8 4) Example
• 4-bit input
• 2-bit state
• 64-entry ROM (indexed with S1 S0 I3 I2 I1 I0)
• Each entry needs 3 bits (S1 S0 U)
• 2 for next state
• 1 for unlock signal
• Example entries in ROM
• 0x00 = 000
• 0x03 = 010
• 0x18 = 100
• 0x13 = 010
• 0x3_ = 001

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 51

Multi-cycle Datapath FSM

• First state: Get a New Instruction
• Output signals to fetch (e.g., read enable IMEM)
• Next State: Always Decode

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 52

Next Insn Decode Insn

Multi-cycle Datapath FSM

• Second State: Decode
• Output signals to decode instruction (RdEn RegFile)
• Go to Next Insn if NOP
• Otherwise Execute

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 53

Next Insn Decode Insn Execute Insn NOP

Multi-cycle Datapath FSM

• Execute State
• Execute Insn (varies by insn type)
• Next State: Also depends on insn type
• Branches: Next Insn

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 54

Next Insn Decode Insn Execute Insn NOP Branch

Multi-cycle Datapath FSM

• Execute State
• Execute Insn (varies by insn type)
• Next State: Also depends on insn type
• ALU op: write register

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 55

Next Insn Decode Insn Execute Insn NOP Branch Writeback ALU

Multi-cycle Datapath FSM

• Execute State
• Execute Insn (varies by insn type)
• Next State: Also depends on insn type
• Load: Read Memory

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 56

Next Insn Decode Insn Execute Insn NOP Branch Writeback ALU Read DMEM Load

Multi-cycle Datapath FSM

• Execute State
• Execute Insn (varies by insn type)
• Next State: Also depends on insn type
• Store: Write Memory

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 57

Next Insn Decode Insn Execute Insn NOP Branch Writeback ALU Read DMEM Load Write DMEM Store

Multi-cycle Datapath FSM

• Read DMEM State
• Control signals enable DMEM Read
• Next state is writeback

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 58

Next Insn Decode Insn Execute Insn NOP Branch Writeback ALU Read DMEM Load Write DMEM Store

Multi-cycle Datapath FSM

• Writeback state
• Control signals enable regfile write
• Next state: Next Insn

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 59

Next Insn Decode Insn Execute Insn NOP Branch Writeback ALU Read DMEM Load Write DMEM Store

Multi-cycle Datapath FSM

• Write DMEM state
• Control signals enable memory write
• Next state: Next Insn

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 60

Next Insn Decode Insn Execute Insn NOP Branch Writeback ALU Read DMEM Load Write DMEM Store

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 61

Multi-Cycle Datapath Example: Add

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

I R D O B A

• Example: Add
• Cycle 1: Read IMEM

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 62

Multi-Cycle Datapath Example: Add

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

I R D O B A

• Example: Add
• Cycle 1: Read IMEM
• Cycle 2: Decode + Read RF

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 63

Multi-Cycle Datapath Example: Add

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

I R D O B A

• Example: Add
• Cycle 1: Read IMEM
• Cycle 2: Decode + Read RF
• Cycle 3: ALU

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 64

Multi-Cycle Datapath Example: Add

• Example: Add
• Cycle 1: Read IMEM
• Cycle 2: Decode + Read RF
• Cycle 3: ALU
• Cycle 4: Writeback + Increment PC

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

I R D O B A

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 65

Multi-Cycle Datapath Performance

• Opposite performance split of single-cycle datapath

+ Short clock period – High CPI P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

I R D O B A

Multi-cycle Data-path CPI

• CPI depends on instructions
• Branches / Jumps: 3 cycles
• ALU: 4 cycles
• Stores: 4 cycles
• Loads: 5 cycles
• Overall CPI is weighted average
• Example:
• 20% loads, 15% stores, 20% branches, 45% ALU

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 66

Multi-cycle Data-path CPI

• CPI depends on instructions
• Branches / Jumps: 3 cycles
• ALU: 4 cycles
• Stores: 4 cycles
• Loads: 5 cycles
• Overall CPI is weighted average
• Example:
• 20% loads, 15% stores, 20% branches, 45% ALU

CPI= 0.20 * 5 +

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 67

Multi-cycle Data-path CPI

• CPI depends on instructions
• Branches / Jumps: 3 cycles
• ALU: 4 cycles
• Stores: 4 cycles
• Loads: 5 cycles
• Overall CPI is weighted average
• Example:
• 20% loads, 15% stores, 20% branches, 45% ALU

CPI= 0.20 * 5 + 0.15 * 4 +

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 68

Multi-cycle Data-path CPI

• CPI depends on instructions
• Branches / Jumps: 3 cycles
• ALU: 4 cycles
• Stores: 4 cycles
• Loads: 5 cycles
• Overall CPI is weighted average
• Example:
• 20% loads, 15% stores, 20% branches, 45% ALU

CPI= 0.20 * 5 + 0.15 * 4 + 0.20 * 3 + 0.45 * 4 = 4.0

CS104 (Hilton) : Datapaths [Adapted from slides by A. Roth] 69

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 70

Multi-cycle Datapath Performance

• Single-cycle
• Clock period = 50ns, CPI = 1
• Performace = 50 ns/insn
• Multi-cycle
• Clock period = 10ns
• CPI = (0.2*3+0.2*5+0.6*4) = 4
• Performance = 40 ns/insn
• But wait…

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 71

Multi-Cycle Datapath Performance

• Did not just cut up existing logic into 5 pieces
• Also added logic (flip flops)
• So clock period not 1/5 of single cycle, but slightly longer

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

I R D O B A

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 72

Multi-cycle Datapath Performance

• Single-cycle
• Clock period = 50ns, CPI = 1
• Performace = 50 ns/insn
• Multi-cycle
• Clock period = 12ns
• CPI = (0.2*3+0.2*5+0.6*4) = 4
• Performance = 48 ns/insn
• Better, but not as exciting…
• Can we do better still?
• Have our cake (low CPI) and eat it too (high clock frequency)?

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 73

Clock Period and CPI

• Single-cycle datapath

+ Low CPI: 1 – Long clock period: to accommodate slowest insn

• Multi-cycle datapath

+ Short clock period – High CPI

• Can we have both low CPI and short clock period?

– No good way to make a single insn go faster + Insn latency doesn’t matter anyway … insn throughput matters

• Key: exploit inter-insn parallelism

insn0.fetch, dec, exec insn1.fetch, dec, exec insn0.dec insn0.fetch insn1.dec insn1.fetch insn0.exec insn1.exec

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 74

Pipelining

• Pipelining: important performance technique
• Improves insn throughput rather than insn latency
• Exploits parallelism at insn-stage level to do so
• Begin with multi-cycle design
• When insn advances from stage 1 to 2, next insn enters stage 1
• Individual insns take same number of stages

+ But insns enter and leave at a much faster rate

• Physically breaks “atomic” VN loop ... but must maintain illusion
• Automotive assembly line analogy

insn0.dec insn0.fetch insn1.dec insn1.fetch insn0.exec insn1.exec insn0.dec insn0.fetch insn1.dec insn1.fetch insn0.exec insn1.exec

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 75

5 Stage Multi-Cycle Datapath

P C Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

I R D O B A

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 76

5 Stage Pipelined Datapath

• Temporary values (PC,IR,A,B,O,D) re-latched every stage
• Why? 5 insns may be in pipeline at once, they share a single PC?
• Notice, PC not latched after ALU stage (why not?)

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 77

Pipeline Terminology

• Stages: Fetch, Decode, eXecute, Memory, Writeback
• Latches (pipeline registers): PC, F/D, D/X, X/M, M/W

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 78

Some More Terminology

• Scalar pipeline: one insn per stage per cycle
• Alternative: “superscalar” (next unit)
• In-order pipeline: insns enter execute stage in VN order
• Alternative: “out-of-order” (not covered in CSE 371)
• Pipeline depth: number of pipeline stages
• Nothing magical about five
• Trend has been to deeper pipelines

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 79

Pipeline Example: Cycle 1

• 3 instructions

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

add $3,$2,$1

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 80

Pipeline Example: Cycle 2

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

lw $4,0($5) add $3,$2,$1

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 81

Pipeline Example: Cycle 3

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

sw $6,4($7) lw $4,0($5) add $3,$2,$1

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 82

Pipeline Example: Cycle 4

• 3 instructions

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

sw $6,4($7) lw $4,0($5) add $3,$2,$1

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 83

Pipeline Example: Cycle 5

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

sw $6,4($7) lw $4,0($5) add

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 84

Pipeline Example: Cycle 6

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

sw $6,4(7) lw

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 85

Pipeline Example: Cycle 7

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

sw

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 86

Pipeline Diagram

• Pipeline diagram: shorthand for what we just saw
• Across: cycles
• Down: insns
• Convention: X means lw $4,0($5) finishes execute stage and

writes into X/M latch at end of cycle 4

1 2 3 4 5 6 7 8 9

add $3,$2,$1

F D X M W

lw $4,0($5)

F D X M W

sw $6,4($7)

F D X M W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 87

What About Pipelined Control?

• Should it be like single-cycle control?
• But individual insn signals must be staged
• Should it be like multi-cycle control?
• But all stages are simultaneously active
• How many different controllers are we going to need?
• One for each insn in pipeline?
• Solution: use simple single-cycle control, but pipeline it
• Single controller

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 88

Pipelined Control

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

CTRL xC mC wC mC wC wC

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 89

Pipeline Performance Calculation

• Single-cycle
• Clock period = 50ns, CPI = 1
• Performace = 50ns/insn
• Multi-cycle
• Branch: 20% (3 cycles), load: 20% (5 cycles), other: 60% (4

cycles)

• Clock period = 12ns, CPI = (0.2*3+0.2*5+0.6*4) = 4
• Remember: latching overhead makes it 12, not 10
• Performance = 48ns/insn
• Pipelined
• Clock period = 12ns
• CPI = 1.5 (on average insn completes every 1.5 cycles)
• Performance = 18ns/insn

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 90

Q1: Why Is Pipeline Clock Period …

• … > delay thru datapath / number of pipeline stages?
• Latches (FFs) add delay
• Pipeline stages have different delays, clock period is max delay
• Both factors have implications for ideal number pipeline stages

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 91

Q2: Why Is Pipeline CPI…

• … > 1?
• CPI for scalar in-order pipeline is 1 + stall penalties
• Stalls used to resolve hazards
• Hazard: condition that jeopardizes VN illusion
• Stall: artificial pipeline delay introduced to restore VN illusion
• Calculating pipeline CPI
• Frequency of stall * stall cycles
• Penalties add (stalls generally don’t overlap in in-order pipelines)
• 1 + stall-freq1*stall-cyc1 + stall-freq2*stall-cyc2 + …
• Correctness/performance/MCCF
• Long penalties OK if they happen rarely, e.g., 1 + 0.01 * 10 = 1.1
• Stalls also have implications for ideal number of pipeline stages

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 92

Dependences and Hazards

• Dependence: relationship between two insns
• Data: two insns use same storage location
• Control: one insn affects whether another executes at all
• Not a bad thing, programs would be boring without them
• Enforced by making older insn go before younger one
• Happens naturally in single-/multi-cycle designs
• But not in a pipeline
• Hazard: dependence & possibility of wrong insn order
• Effects of wrong insn order cannot be externally visible
• Stall: for order by keeping younger insn in same stage
• Hazards are a bad thing: stalls reduce performance

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 93

Why Does Every Insn Take 5 Cycles?

• Could /should we allow add to skip M and go to W? No

– It wouldn’t help: peak fetch still only 1 insn per cycle – Structural hazards: imagine add follows lw

PC

Insn Mem Register File

S X

s1 s2 d

Data Mem

a d

+ 4

<< 2

PC IR PC A B IR O B IR O D IR

PC F/D D/X X/M M/W

add $3,$2,$1 lw $4,0($5)

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 94

Structural Hazards

• Structural hazards
• Two insns trying to use same circuit at same time
• E.g., structural hazard on regfile write port
• To fix structural hazards: proper ISA/pipeline design
• Each insn uses every structure exactly once
• For at most one cycle
• Always at same stage relative to F

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 95

Data Hazards

• Let’s forget about branches and the control for a while
• The three insn sequence we saw earlier executed fine…
• But it wasn’t a real program
• Real programs have data dependences
• They pass values via registers and memory

Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

add $3,$2,$1 lw $4,0($5) sw $6,0($7)

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 96

Data Hazards

• Would this “program” execute correctly on this pipeline?
• Which insns would execute with correct inputs?
• add is writing its result into $3 in current cycle

– lw read $3 2 cycles ago → got wrong value – addi read $3 1 cycle ago → got wrong value

• sw is reading $3 this cycle → OK (regfile timing: write first half)

add $3,$2,$1 lw $4,0($3) sw $3,0($7) addi $6,1,$3

Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 97

Memory Data Hazards

• What about data hazards through memory? No
• lw following sw to same address in next cycle, gets right value
• Why? DMem read/write take place in same stage
• Data hazards through registers? Yes (previous slide)
• Occur because register write is 3 stages after register read
• Can only read a register value 3 cycles after writing it

sw $5,0($1) lw $4,0($1)

Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 98

Fixing Register Data Hazards

• Can only read register value 3 cycles after writing it
• One way to enforce this: make sure programs don’t do it
• Compiler puts two independent insns between write/read insn pair
• If they aren’t there already
• Independent means: “do not interfere with register in question”
• Do not write it: otherwise meaning of program changes
• Do not read it: otherwise create new data hazard
• Code scheduling: compiler moves around existing insns to do this
• If none can be found, must use nops
• This is called software interlocks
• MIPS: Microprocessor w/out Interlocking Pipeline Stages

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 99

Software Interlock Example

add $3,$2,$1 lw $4,0($3) sw $7,0($3) add $6,$2,$8 addi $3,$5,4

• Can any of last three insns be scheduled between first two
• sw $7,0($3)? No, creates hazard with add $3,$2,$1
• add $6,$2,$8? OK
• addi $3,$5,4? No, lw would read $3 from it
• Still need one more insn, use nop

add $3,$2,$1 add $6,$2,$8 nop lw $4,0($3) sw $7,0($3) addi $3,$5,4

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 100

Software Interlock Performance

• Same deal
• Branch: 20%, load: 20%, store: 10%, other: 50%
• Software interlocks
• 20% of insns require insertion of 1 nop
• 5% of insns require insertion of 2 nops
• CPI is still 1 technically
• But now there are more insns
• #insns = 1 + 0.20*1 + 0.05*2 = 1.3

– 30% more insns (30% slowdown) due to data hazards

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 101

Hardware Interlocks

• Problem with software interlocks? Not compatible
• Where does 3 in “read register 3 cycles after writing” come from?
• From structure (depth) of pipeline
• What if next MIPS version uses a 7 stage pipeline?
• Programs compiled assuming 5 stage pipeline will break
• A better (more compatible) way: hardware interlocks
• Processor detects data hazards and fixes them
• Two aspects to this
• Detecting hazards
• Fixing hazards

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 102

Detecting Data Hazards

• Compare F/D insn input register names with output

register names of older insns in pipeline

Hazard = (F/D.IR.RS1 == D/X.IR.RD) || (F/D.IR.RS2 == D/X.IR.RD) || (F/D.IR.RS1 == X/M.IR.RD) || (F/D.IR.RS2 == X/M.IR.RD) Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

hazard

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 103

Fixing Data Hazards

• Prevent F/D insn from reading (advancing) this cycle
• Write nop into D/X.IR (effectively, insert nop in hardware)
• Also reset (clear) the datapath control signals
• Disable F/D latch and PC write enables (why?)
• Re-evaluate situation next cycle

Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

hazard

nop

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 104

Aside: Insert NOP/Reset Register

• Earlier: registers support separate clock, write enable
• Useful for writes into register file
• Also useful for implementing stalls
• Registers should also support synchronous reset (clear)
• Useful for implementing stalls
• Implement as additional hardwired 0 input to FF data mux
• Resetting pipeline registers equivalent to inserting a NOP
• If NOP is all zeros
• If zero means “don’t write” for all write-enable control signals
• Design ISA/control signals to make sure this is the case

FF D Q [RST:WE] FF D Q WE 2

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 105

Hardware Interlock Example: cycle 1

(F/D.IR.RS1 == D/X.IR.RD) || (F/D.IR.RS2 == D/X.IR.RD) || (F/D.IR.RS1 == X/M.IR.RD) || (F/D.IR.RS2 == X/M.IR.RD) = 1 Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

add $3,$2,$1 lw $4,0($3)

hazard

nop

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 106

Hardware Interlock Example: cycle 2

(F/D.IR.RS1 == D/X.IR.RD) || (F/D.IR.RS2 == D/X.IR.RD) || (F/D.IR.RS1 == X/M.IR.RD) || (F/D.IR.RS2 == X/M.IR.RD) = 1 Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

add $3,$2,$1 lw $4,0($3)

hazard

nop

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 107

Hardware Interlock Example: cycle 3

(F/D.IR.RS1 == D/X.IR.RD) || (F/D.IR.RS2 == D/X.IR.RD) || (F/D.IR.RS1 == X/M.IR.RD) || (F/D.IR.RS2 == X/M.IR.RD) = 0 Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

add $3,$2,$1 lw $4,0($3)

hazard

nop

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 108

Pipeline Control Terminology

• Hardware interlock maneuver is called stall or bubble
• Mechanism is called stall logic
• Part of more general pipeline control mechanism
• Controls advancement of insns through pipeline
• Distinguish from pipelined datapath control
• Controls datapath at each stage
• Pipeline control controls advancement of datapath control

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 109

Pipeline Diagram with Data Hazards

• Data hazard stall indicated with d*
• Stall propagates to younger insns
• This is not good (why?)

1 2 3 4 5 6 7 8 9

add $3,$2,$1

F D X M W

lw $4,0($3)

F d* d* D X M W

sw $6,4($7)

F D X M W 1 2 3 4 5 6 7 8 9

add $3,$2,$1

F D X M W

lw $4,0($3)

F d* d* D X M W

sw $6,4($7)

F D X M W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 110

Hardware Interlock Performance

• Same deal
• Branch: 20%, load: 20%, store: 10%, other: 50%
• Hardware interlocks: same as software interlocks
• 20% of insns require 1 cycle stall (I.e., insertion of 1 nop)
• 5% of insns require 2 cycle stall (I.e., insertion of 2 nops)
• CPI = 1 * 0.20*1 + 0.05*2 = 1.3
• So, either CPI stays at 1 and #insns increases 30% (software)
• Or, #insns stays at 1 (relative) and CPI increases 30% (hardware)
• Same difference
• Anyway, we can do better

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 111

Observe

• Technically, this situation is broken
• lw $4,0($3) has already read $3 from regfile
• add $3,$2,$1 hasn’t yet written $3 to regfile
• But fundamentally, everything is OK
• lw $4,0($3) hasn’t actually used $3 yet
• add $3,$2,$1 has already computed $3

Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

add $3,$2,$1 lw $4,0($3)

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 112

Bypassing

• Bypassing
• Reading a value from an intermediate (µarchitectural) source
• Not waiting until it is available from primary source
• Here, we are bypassing the register file
• Also called forwarding

Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

add $3,$2,$1 lw $4,0($3)

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 113

WX Bypassing

• What about this combination?
• Add another bypass path and MUX input
• First one was an MX bypass
• This one is a WX bypass

Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

add $3,$2,$1 lw $4,0($3)

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 114

ALUinB Bypassing

• Can also bypass to ALU input B

Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

add $3,$2,$1 add $4,$2,$3

Data Mem

a d

O D IR

M/W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 115

WM Bypassing?

• Does WM bypassing make sense?
• Not to the address input (why not?)
• But to the store data input, yes

Register File

S X

s1 s2 d

Data Mem

a d

IR A B IR O B IR O D IR

F/D D/X X/M M/W

lw $3,0($2) sw $3,0($4)

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 116

Bypass Logic

• Each MUX has its own, here it is for MUX ALUinA

(D/X.IR.RS1 == X/M.IR.RD) => 0 (D/X.IR.RS1 == M/W.IR.RD) => 1 Else => 2 Register File

S X

s1 s2 d

IR A B IR O B IR

F/D D/X X/M

Data Mem

a d

O D IR

M/W

bypass

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 117

Bypass and Stall Logic

• Two separate things
• Stall logic controls pipeline registers
• Bypass logic controls MUXs
• But complementary
• For a given data hazard: if can’t bypass, must stall
• Slide #43 shows full bypassing: all bypasses possible
• Is stall logic still necessary?

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 118

Yes, Load Output to ALU Input

Stall = (D/X.IR.OP == LOAD) && ((F/D.IR.RS1 == D/X.IR.RD) || ((F/D.IR.RS2 == D/X.IR.RD) && (F/D.IR.OP != STORE)) Register File

S X

s1 s2 d

Data Mem

a d

IR A B IR O B IR O D IR

F/D D/X X/M M/W

lw $3,0($2)

stall

nop

add $4,$2,$3 lw $3,0($2) add $4,$2,$3

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 119

Pipeline Diagram With Bypassing

• Use compiler scheduling to reduce load-use stall frequency
• Like software interlocks, but for performance not correctness

1 2 3 4 5 6 7 8 9

add $3,$2,$1

F D X M W

lw $4,0($3)

F D X M W

addi $6,$4,1

F d* D X M W 1 2 3 4 5 6 7 8 9

add $3,$2,$1

F D X M W

lw $4,0($3)

F D X M W

sub $8,$3,$1

F D X M W

addi $6,$4,1

F D X M W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 120

Control Hazards

• Control hazards
• Must fetch post branch insns before branch outcome is known
• Default: assume “not-taken” (at fetch, can’t tell it’s a branch)

PC

Insn Mem Register File

s1 s2 d

+ 4

<< 2

F/D D/X X/M

PC A B IR O B IR PC IR

S X

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 121

Branch Recovery

• Branch recovery: what to do when branch is actually taken
• Insns that will be written into F/D and D/X are wrong
• Flush them, i.e., replace them with nops

+ They haven’t had written permanent state yet (regfile, DMem)

PC

Insn Mem Register File

s1 s2 d

+ 4

<< 2

F/D D/X X/M nop nop

PC A B IR O B IR PC IR

S X

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 122

Branch Recovery Pipeline Diagram

• Convention: don’t fill in flushed insns
• Taken branch penalty is 2 cycles

1 2 3 4 5 6 7 8 9

addi $3,$0,1

F D X M W

bnez $3,targ

F D X M W

sw $6,4($7)

F D

targ: addi $8,$7,1

F

targ: addi $8,$7,1

F D X M W 1 2 3 4 5 6 7 8 9

addi $3,$0,1

F D X M W

bnez $3,targ

F D X M W

targ: addi $8,$7,1

F D X M W

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 123

Branch Performance

• Back of the envelope calculation
• Branch: 20%, load: 20%, store: 10%, other: 50%
• 75% of branches are taken
• CPI = 1 + 0.20*0.75*2 = 1.3

– Branches cause 30% slowdown

• How do we reduce this penalty?

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 124

Fast Branch

• Fast branch: can decide at D, not X
• Test must be comparison to zero or equality, no time for ALU

+ New taken branch penalty is 1 – Additional insns (slt) for more complex tests, must bypass to D too

• 25% of branches have complex tests that require extra insn
• CPI = 1 + 0.20*0.75*1(branch) + 0.20*0.25*1(extra insn) = 1.2

PC

Insn Mem Register File

s1 s2 d

+ 4

<< 2

F/D D/X X/M

S X <>

O B IR A B IR PC IR

S X

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 125

Speculative Execution

• Speculation: “risky transactions on chance of profit”
• Speculative execution
• Execute before all parameters known with certainty
• Correct speculation

+ Avoid stall, improve performance

• Incorrect speculation (mis-speculation)

– Must abort/flush/squash incorrect insns – Must undo incorrect changes (recover pre-speculation state)

• The “game”: [%correct * gain] – [(1–%correct) * penalty]
• Control speculation: speculation aimed at control hazards
• Unknown parameter: are these the correct insns to execute next?

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 126

Control Speculation Mechanics

• Guess branch target, start fetching at guessed position
• Doing nothing is implicitly guessing target is PC+4
• Can actively guess other targets: dynamic branch prediction
• Execute branch to verify (check) guess
• Correct speculation? keep going
• Mis-speculation? Flush mis-speculated insns
• Hopefully haven’t modified permanent state (Regfile, DMem)

+ Happens naturally in in-order 5-stage pipeline

• “Game” for in-order 5 stage pipeline
• %correct = ?
• Gain = 2 cycles

+ Penalty = 0 cycles → mis-speculation no worse than stalling

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 127

Dynamic Branch Prediction

• Dynamic branch prediction: guess outcome
• Start fetching from guessed address
• Flush on mis-prediction (notice new recovery circuit)

PC

Insn Mem Register File

S X

s1 s2 d

+ 4

<< 2

TG PC IR TG PC A B IR O B IR

F/D D/X X/M nop nop BP

<>

Branch Prediction: Short Summary

• Key principle of micro-architecture:
• Programs do the same thing over and over (why?)
• Exploit for performance:
• Learn what a program did before
• Guess that it will do the same thing again
• Details of branch prediction: later (~1 month)
• For now, just know it can be done and is important to performance

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 128

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 129

Branch Prediction Performance

• Dynamic branch prediction
• Simple predictor: branches predicted with 75% accuracy
• CPI = 1 + 0.20*0.25*2 = 1.1
• More advanced predictor: 95% accuracy
• CPI = 1 + 0.20*0.05*2 = 1.02
• Branch mis-predictions still a big problem though
• Pipelines are long: typical mis-prediction penalty is 10+ cycles
• Pipelines have full bypassing: compiler schedules the rest
• Pipelines are superscalar (later)

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 130

Pipelining And Exceptions

• Pipelining makes exceptions nasty
• 5 insns in pipeline at once
• Exception happens, how do you know which insn caused it?
• Exceptions propagate along pipeline in latches
• Two exceptions happen, how do you know which one to take first?
• One belonging to oldest insn
• When handling exception, have to flush younger insns
• Piggy-back on branch mis-prediction machinery to do this
• What about multi-cycle operations?
• Just FYI

CS104 (Hilton): Datapaths [Slides adapted from A. Roth’s] 131

Pipeline Depth

• No magic about 5 stages, trend had been to deeper pipelines
• 486: 5 stages (50+ gate delays / clock)
• Pentium: 7 stages
• Pentium II/III: 12 stages
• Pentium 4: 22 stages (~10 gate delays / clock) “super-pipelining”
• Core1/2: 14 stages
• Increasing pipeline depth

+ Increases clock frequency (reduces period) – But decreases IPC (increases CPI)

• Branch mis-prediction penalty becomes longer
• Non-bypassed data hazard stalls become longer
• At some point, CPI losses offset clock gains, question is when?
• 1GHz Pentium 4 was slower than 800 MHz PentiumIII
• What was the point? People by frequency, not frequency * IPC
