CS/COE 1520 pitt.edu/~ach54/cs1520 React A terrible introduction - - PowerPoint PPT Presentation

▶
cs coe 1520
SMART_READER_LITE
LIVE PREVIEW

CS/COE 1520 pitt.edu/~ach54/cs1520 React A terrible introduction - - PowerPoint PPT Presentation

Sep 06, 2023 499 likes •782 views

CS/COE 1520 pitt.edu/~ach54/cs1520 React A terrible introduction to React: class Square extends React.Component { ??? render() { return ( <button className="square" onClick={ function() { alert('click'); } ??? }>

slide-1

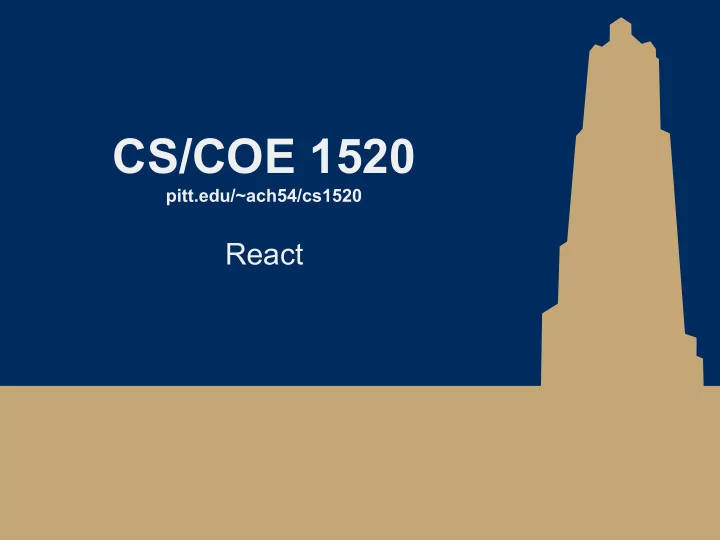

SLIDE 1

CS/COE 1520

pitt.edu/~ach54/cs1520

React

slide-2
SLIDE 2
  • class Square extends React.Component {

render() { return ( <button className="square" onClick={ function() { alert('click'); } }> {this.props.value} </button> ); } }

A terrible introduction to React:

2

??? ???

slide-3
SLIDE 3
  • Using DOM manipulation:

○ var element = document.createElement('h1'); element.setAttribute('class', 'greeting'); var tn = document.createTextNode('Hello, world!'); element.appendChild(tn);

  • Using React:

○ const element = React.createElement('h1', {className: 'greeting'}, 'Hello, world!' );

Creating new elements

3

slide-4
SLIDE 4
  • React.createElement() returns an object something like this:

○ { type: 'h1', props: { className: 'greeting', children: 'Hello, world!' } }

  • Cannot be attached directly into the DOM hierarchy

○ Must be rendered using the ReactDOM

Well, not exactly...

4

slide-5
SLIDE 5
  • A "virtual DOM"
  • Keeps a cache of data structures representing what the

rendered page should look like

  • Compute differences with the displayed DOM, and issues the

minimal amount of actual DOM manipulation calls to reflect the requested changes

ReactDOM

5

slide-6
SLIDE 6
  • ReactDOM.render(

element, document.getElementById('targetDiv') );

Using the ReactDOM

6

slide-7
SLIDE 7
  • element = <h1 className="greeting">Hello, world!</h1>;
  • Syntax extensions to JavaScript

○ "Compiled" into React.createElement() calls ■ Hence, evaluate to JS objects, and can be used as such

  • Can also embed JS expressions within JSX via {}:

○ const element = ( <h1> Hello, {getName() + "!"} </h1>; );

JSX

7

slide-8
SLIDE 8
  • As we saw, can use string literals as params with ""
  • Can also use JS expressions as params, wrapped with {}, do

not wrap the {} with "". E.g.:

○

element = <h1 className={getGreet()}>Hello, world!</h1>;

  • React DOM uses camelCase property naming convention

instead of HTML attribute names

○ class is instead className ○ tabindex is tabIndex

JSX properties

8

slide-9
SLIDE 9
  • Add this line to your page:

○

<script src="https://unpkg.com/babel-standalone@6/babel.min.js"></script>

  • Can now use JSX in future invoked scripts by setting the type

attribute to type="text/babel"

○ Will use Babel to transpile JSX into compatible JavaScript!

"Compiling" JSX

9

slide-10
SLIDE 10
  • Can use ReactDom.render() just like in the earlier example
  • How do you update JSX elements?

○ You can't! ■ They are immutable ○ You can, however, generate a new element and render that in place of the old one ■ E.g., by using the same targetDiv as the render root

Rendering JSX elements

10

slide-11
SLIDE 11
  • function Welcome(props) {

return <h1>Hello, {props.who}</h1>; }

  • const element = <Welcome who="world" />;

ReactDOM.render( element, document.getElementById('root') );

Components

11

slide-12
SLIDE 12
  • Think back to the proposed tutorial:

○ Building a tic-tac-toe board

  • Need to keep track of whether or not a square on the board

has been clicked in order to render it

○ How can we maintain this state? ■ Define our Component using classes, not functions

Encapsulation

12

slide-13
SLIDE 13
  • Well, it didn't…

○ Until ES6

But JavaScript doesn't have classes!

13

slide-14
SLIDE 14
  • class Person {

constructor(name, age) { this.name = name; this.age = age; } display() { console.log("Name: " + this.name); console.log("Age: " + this.age + "\n"); } }

ES6 classes

14

slide-15
SLIDE 15
  • Classes cannot be instantiated before their definition

○ I.e.., class definitions are not "hoisted"

  • Class methods are not constructible

○ Cannot be used on the right of a new

  • Can have generators as methods

○ Using *method_name()

  • Class bodies are evaluated in strict mode
  • All instance attributes must be defined in method bodies

ES6 class notes

15

slide-16
SLIDE 16
  • Class properties must be set outside of the class body:

○ Person.species = "Homo sapiens";

  • The static keyword can be used to define class methods

Class properties/methods

16

slide-17
SLIDE 17
  • class Student extends Person {

constructor(name, age) { super(name, age); this.classes = []; } add_class(new) { this.classes.push(new); } display() { super.display() console.log("Classes: " + this.classes + "\n"); } }

Inheritance

17

slide-18
SLIDE 18
  • class Rectangle {

constructor(height, width) { this.height = height; this.width = width; } get area() { return this.calcArea(); } calcArea() { return this.height * this.width; } }

  • const square = new Rectangle(10, 10);
  • console.log(square.area); // 100

Getter/setter methods

18

slide-19
SLIDE 19
  • Could also have defined this:

○ function Welcome(props) { return <h1>Hello, {props.who}</h1>; }

  • As:

○ class Welcome extends React.Component { render() { return <h1>Hello, {this.props.who}</h1>; } }

Back to React...

19

slide-20
SLIDE 20
  • class Clock extends React.Component {

constructor(props) { super(props); this.state = {date: new Date()}; } render() { return ( <div> <h1>Hello, world!</h1> <h2>{this.state.date.toLocaleTimeString()}</h2> </div> ); } }

  • ReactDOM.render(<Clock />, document.getElementById('root'));

But now we can use the object to encapsulate state

20

slide-21
SLIDE 21
  • Let's add these definitions:

○ componentDidMount() { this.timerID = setInterval( () => this.tick(), 1000 ); } componentWillUnmount() { clearInterval(this.timerID); } tick() { this.setState({ date: new Date() }); }

That's a boring clock...

21

slide-22
SLIDE 22
  • Never directly modify the attributes of a components .state

○ Aside from the constructor ○ Call setState()

  • Never reference the current state in a call to setState()

○ setState() calls may be performed asynchronously ○ setState() has a second form that accepts a function ■ First argument, cur state ■ Second argument, cur props

Modifying the state

22

slide-23
SLIDE 23
  • Bad:

○ this.setState({ counter: this.state.counter + this.props.increment });

  • Good:

○ this.setState((prevState, props) => ({ counter: prevState.counter + props.increment }));

Modifying state examples:

23

slide-24
SLIDE 24
  • See example

Event handling

24

slide-25
SLIDE 25
  • Brought up when we introduced JavaScript

○ Acting along similar lines to separation of structure and presentation from HTML/CSS

  • React kind of does away with that…

○ Thoughts?

Separation of markup and logic

25

slide-26
SLIDE 26
  • Allows you to write Android/iOS apps using JS and React!
  • Creates an app that will load a JS engine in a thread and run

the React Native code that you write in that

  • The UI you build via React Native will be rendered using

native UI elements to the platform that you are running on (Android or iOS)

React Native

26
