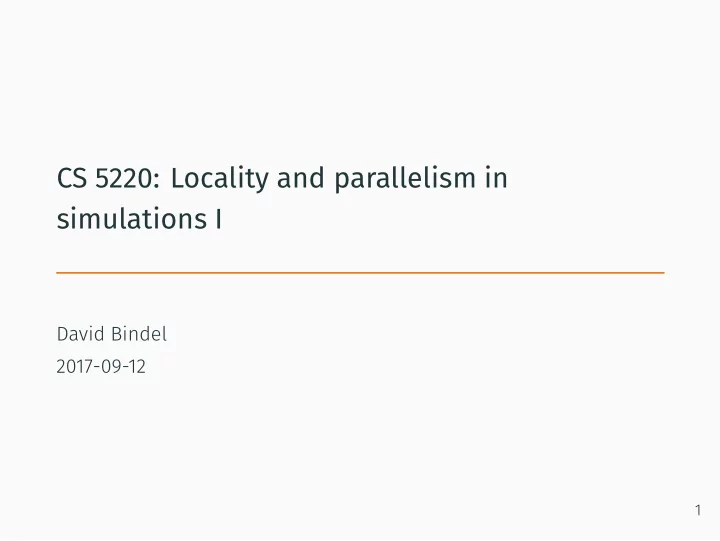

CS 5220: Locality and parallelism in simulations I

David Bindel 2017-09-12

1

Parallelism and locality

• Real world exhibits parallelism and locality
• Particles, people, etc function independently
• Nearby objects interact more strongly than distant ones
• Can often simplify dependence on distant objects
• Can get more parallelism / locality through model
• Limited range of dependency between adjacent time steps
• Can neglect or approximate far-field effects
• Often get parallism at multiple levels
• Hierarchical circuit simulation
• Interacting models for climate
• Parallelizing individual experiments in MC or optimization

2

Basic styles of simulation

• Discrete event systems (continuous or discrete time)
• Game of life, logic-level circuit simulation
• Network simulation
• Particle systems
• Billiards, electrons, galaxies, ...
• Ants, cars, ...?
• Lumped parameter models (ODEs)
• Circuits (SPICE), structures, chemical kinetics
• Distributed parameter models (PDEs / integral equations)
• Heat, elasticity, electrostatics, ...

Often more than one type of simulation appropriate. Sometimes more than one at a time!

3

Discrete events

Basic setup:

• Finite set of variables, updated via transition function
• Synchronous case: finite state machine
• Asynchronous case: event-driven simulation
• Synchronous example: Game of Life

Nice starting point — no discretization concerns!

4

Game of Life Lonely Crowded OK Born (Dead next step) (Live next step)

Game of Life (John Conway):

• 1. Live cell dies with < 2 live neighbors
• 2. Live cell dies with > 3 live neighbors
• 3. Live cell lives with 2–3 live neighbors
• 4. Dead cell becomes live with exactly 3 live neighbors

5

Game of Life

P0 P1 P2 P3

Easy to parallelize by domain decomposition.

• Update work involves volume of subdomains
• Communication per step on surface (cyan)

6

Game of Life: Pioneers and Settlers

What if pattern is “dilute”?

• Few or no live cells at surface at each step
• Think of live cell at a surface as an “event”
• Only communicate events!
• This is asynchronous
• Harder with message passing — when do you receive?

7

Asynchronous Game of Life

How do we manage events?

• Could be speculative — assume no communication across

boundary for many steps, back up if needed

• Or conservative — wait whenever communication possible
• possible ̸≡ guaranteed!
• Deadlock: everyone waits for everyone else to send data
• Can get around this with NULL messages

How do we manage load balance?

• No need to simulate quiescent parts of the game!
• Maybe dynamically assign smaller blocks to processors?

8

Particle simulation

Particles move via Newton (F = ma), with

• External forces: ambient gravity, currents, etc.
• Local forces: collisions, Van der Waals (1/r6), etc.
• Far-field forces: gravity and electrostatics (1/r2), etc.
• Simple approximations often apply (Saint-Venant)

9

A forced example

Example force: fi = ∑

j

Gmimj (xj − xi) r3

ij

( 1 − ( a rij )4) , rij = ∥xi − xj∥

• Long-range attractive force (r−2)
• Short-range repulsive force (r−6)
• Go from attraction to repulsion at radius a

10

A simple serial simulation

In Matlab, we can write npts = 100; t = linspace(0, tfinal, npts); [tout, xyv] = ode113(@fnbody, ... t, [x; v], [], m, g); xout = xyv(:,1:length(x))'; ... but I can’t call ode113 in C in parallel (or can I?)

11

A simple serial simulation

Maybe a fixed step leapfrog will do? npts = 100; steps_per_pt = 10; dt = tfinal/(steps_per_pt*(npts-1)); xout = zeros(2*n, npts); xout(:,1) = x; for i = 1:npts-1 for ii = 1:steps_per_pt x = x + v*dt; a = fnbody(x, m, g); v = v + a*dt; end xout(:,i+1) = x; end

12

Plotting particles

13

Pondering particles

• Where do particles “live” (esp. in distributed memory)?
• Decompose in space? By particle number?
• What about clumping?
• How are long-range force computations organized?
• How are short-range force computations organized?
• How is force computation load balanced?
• What are the boundary conditions?
• How are potential singularities handled?
• What integrator is used? What step control?

14

External forces

Simplest case: no particle interactions.

• Embarrassingly parallel (like Monte Carlo)!
• Could just split particles evenly across processors
• Is it that easy?
• Maybe some trajectories need short time steps?
• Even with MC, load balance may not be entirely trivial.

15

Local forces

• Simplest all-pairs check is O(n2) (expensive)
• Or only check close pairs (via binning, quadtrees?)
• Communication required for pairs checked
• Usual model: domain decomposition

16

Local forces: Communication

Minimize communication:

• Send particles that might affect a neighbor “soon”
• Trade extra computation against communication
• Want low surface area-to-volume ratios on domains

17

Local forces: Load balance

• Are particles evenly distributed?
• Do particles remain evenly distributed?
• Can divide space unevenly (e.g. quadtree/octtree)

18

Far-field forces Mine Buffered Mine Buffered Mine Buffered

• Every particle affects every other particle
• All-to-all communication required
• Overlap communication with computation
• Poor memory scaling if everyone keeps everything!
• Idea: pass particles in a round-robin manner

19

Passing particles for far-field forces Mine Buffered Mine Buffered Mine Buffered

copy local particles to current buf for phase = 1:p send current buf to rank+1 (mod p) recv next buf from rank-1 (mod p) interact local particles with current buf swap current buf with next buf end

20

Passing particles for far-field forces

Suppose n = N/p particles in buffer. At each phase tcomm ≈ α + βn tcomp ≈ γn2 So we can mask communication with computation if n ≥ 1 2γ ( β + √ β2 + 4αγ ) > β γ More efficient serial code = ⇒ larger n needed to mask communication! = ⇒ worse speed-up as p gets larger (fixed N) but scaled speed-up (n fixed) remains unchanged. This analysis neglects overhead term in LogP.

21

Far-field forces: particle-mesh methods

Consider r−2 electrostatic potential interaction

• Enough charges looks like a continuum!
• Poisson equation maps charge distribution to potential
• Use fast Poisson solvers for regular grids (FFT, multigrid)
• Approximation depends on mesh and particle density
• Can clean up leading part of approximation error

22

Far-field forces: particle-mesh methods

• Map particles to mesh points (multiple strategies)
• Solve potential PDE on mesh
• Interpolate potential to particles
• Add correction term – acts like local force

23

Far-field forces: tree methods

• Distance simplifies things
• Andromeda looks like a point mass from here?
• Build a tree, approximating descendants at each node
• Several variants: Barnes-Hut, FMM, Anderson’s method
• More on this later in the semester

24

Summary of particle example

• Model: Continuous motion of particles
• Could be electrons, cars, whatever...
• Step through discretized time
• Local interactions
• Relatively cheap
• Load balance a pain
• All-pairs interactions
• Obvious algorithm is expensive (O(n2))
• Particle-mesh and tree-based algorithms help

An important special case of lumped/ODE models.
