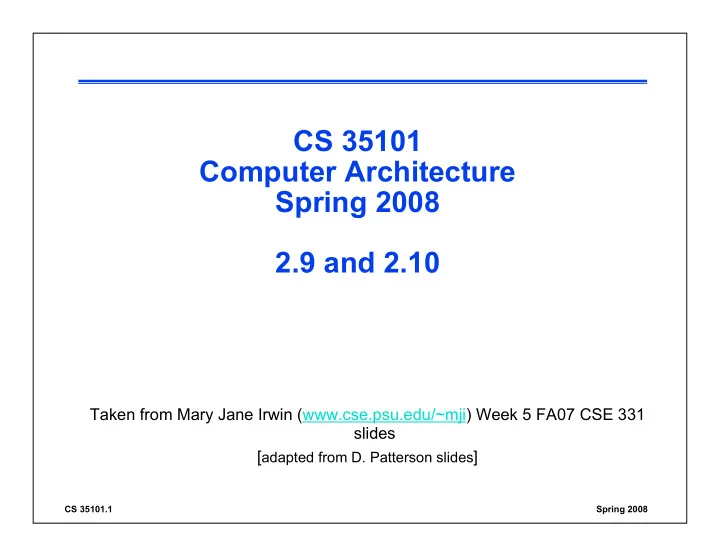

SLIDE 1

CS 35101.1 Spring 2008

CS 35101 Computer Architecture Spring 2008 2.9 and 2.10

Taken from Mary Jane Irwin (www.cse.psu.edu/~mji) Week 5 FA07 CSE 331 slides [adapted from D. Patterson slides]

SLIDE 2

CS 35101.2 Spring 2008

MIPS Operand Addressing Modes Summary

Register addressing – operand is in a register Base (displacement) addressing – operand’s

address in memory is the sum of a register and a 16-bit constant contained within the instruction

Immediate addressing – operand is a 16-bit

constant contained within the instruction

1. Register addressing
p rs rt rd funct

Register

word operand

p rs rt offset
2. Base addressing

base register

Memory

word or byte operand

3. Immediate addressing
p rs rt operand

SLIDE 3

CS 35101.3 Spring 2008

MIPS Instruction Addressing Modes Summary

PC-relative addressing – instruction’s address

in memory is the sum of the PC and a 16-bit constant contained within the instruction

Pseudo-direct addressing – instruction’s

address in memory is the 26-bit constant contained within the instruction concatenated with the upper 4 bits of the PC

4. PC-relative addressing
p rs rt offset

Program Counter (PC)

Memory

branch destination instruction

5. Pseudo-direct addressing
p jump address

Program Counter (PC)

Memory

jump destination instruction | |

SLIDE 4

CS 35101.4 Spring 2008

Review: MIPS Instructions, so far

$s1 = 0xffff0000 lui $s1, 0xffff f load upper immediate $s1 = $s2 | 0xff00

r $s1, $s2, ff00

d

r immediate

$s1 = $s2 & 0xff00 and $s1, $s2, ff00 c and immediate $s1 = not ($s2 | $s3) nor $s1, $s2, $s3 0 & 27 nor $s1 = $s2 | $s3

r $s1, $s2, $s3

0 & 25

r

$s1 = $s2 & $s3 and $s1, $s2, $s3 0 & 24 and $s1 = $s2 >> 4 (fill with sign bit) sra $s1, $s2, 4 0 & 03 shift right arithmetic $s1 = $s2 >> 4 (fill with zeros) srl $s1, $s2, 4 0 & 02 shift right logical $s1 = $s2 << 4 sll $s1, $s2, 4 0 & 00 shift left logical $s1 = $s2 + 4 addi $s1, $s2, 4 8 add immediate 0 & 22 0 & 20

OpC

$s1 = $s2 - $s3 sub $s1, $s2, $s3 subtract $s1 = $s2 + $s3 add $s1, $s2, $s3 add Arithmetic (R & I format)

Meaning Example Instr Category

SLIDE 5

CS 35101.5 Spring 2008

Review: MIPS Instructions, so far

go to 10000; $ra=PC+4 jal 2500 3 jump and link Memory($s2+102) = $s1 sh $s1, 101($s2) 29 store half $s1 = Memory($s2+102) lh $s1, 101($s2) 21 load half Memory($s2+101) = $s1 sb $s1, 101($s2) 28 store byte $s1 = Memory($s2+101) lb $s1, 101($s2) 20 load byte if ($s2<$s3) $s1=1; else $s1=0 slt $s1, $s2, $s3 0 & 2a set on less than go to $t1 jr $t1 0 & 08 jump register go to 10000 j 2500 2 jump Uncond. jump if ($s2<100) $s1=1; else $s1=0 slti $s1, $s2, 100 a set on less than immediate if ($s1 !=$s2) go to L bne $s1, $s2, L 5 br on not equal if ($s1==$s2) go to L beq $s1, $s2, L 4 br on equal Cond. branch (I & R format) 2b 23

OpC

Memory($s2+100) = $s1 sw $s1, 100($s2) store word $s1 = Memory($s2+100) lw $s1, 100($s2) load word Data transfer (I format)

Meaning Example Instr Category

SLIDE 6

CS 35101.6 Spring 2008

Review: MIPS R3000 ISA

 Instruction Categories

 Load/Store  Computational  Jump and Branch  Floating Point

coprocessor

 Memory Management  Special

 3 Instruction Formats: all 32 bits wide

R0 - R31 PC HI LO OP rs rt rd shamt funct OP rs rt 16 bit number OP 26 bit jump target Registers

R format I format

6 bits 5 bits 5 bits 5 bits 5 bits 6 bits

J format

SLIDE 7

CS 35101.7 Spring 2008

RISC Design Principles Review

Simplicity favors regularity

 fixed size instructions – 32-bits  small number of instruction formats

Smaller is faster

 limited instruction set  limited number of registers in register file  limited number of addressing modes

Good design demands good compromises

 three instruction formats

Make the common case fast

 arithmetic operands from the register file (load-

store machine)

 allow instructions to contain immediate operands

SLIDE 8

CS 35101.8 Spring 2008

(2.10) The Code Translation Hierarchy

C program compiler assembly code

SLIDE 9

CS 35101.9 Spring 2008

Compiler Transforms the C program into an assembly language program

Advantages of high-level languages

 many fewer lines of code  easier to understand and debug  …

Today’s optimizing compilers can produce

assembly code nearly as good as an assembly language programming expert and often better for large programs

 smaller code size, faster execution

SLIDE 10

CS 35101.10 Spring 2008

The Code Translation Hierarchy

C program compiler assembly code assembler

bject code

SLIDE 11

CS 35101.11 Spring 2008

SLIDE 12

CS 35101.12 Spring 2008

Assembler Does a syntactic check of the code (i.e., did you type it in correctly) and then transforms the symbolic assembler code into object (machine) code

Advantages of assembler

 much easier than remembering instr’s binary codes  can use labels for addresses – and let the assembler

do the arithmetic

 can use pseudo-instructions

e.g., “move $t0, $t1” exists only in assembler (would be

implemented using “add $t0,$t1,$zero”)

When considering performance, you should count

instructions executed, not code size

SLIDE 13

CS 35101.13 Spring 2008

The Two Main Tasks of the Assembler

 Builds a symbol table which holds the

symbolic names (labels) and their corresponding addresses



A label is local if it is used only within the file where its defined. Labels are local by default.



A label is external (global) if it refers to code or data in another file or if it is referenced from another file. Global labels must be explicitly declared global (e.g., .globl main)

Translates each assembly language

statement into object (machine) code by “assembling” the numeric equivalents of the

pcodes, register specifiers, shift amounts,

and jump/branch targets/offsets

SLIDE 14

CS 35101.14 Spring 2008

MIPS (spim) Memory Allocation

Memory

230 words 0000 0000 f f f f f f f c

Text Segment Reserved Static data Mem Map I/O

0040 0000 1000 0000 1000 8000 7f f f f f fc

Stack Dynamic data $sp $gp PC Kernel Code & Data

SLIDE 15

CS 35101.15 Spring 2008

Other Tasks of the Assembler

Converts pseudo-instr’s to legal assembly code

 register $at is reserved for the assembler to do this

Converts branches to far away locations into a

branch followed by a jump

Converts instructions with large immediates into

a lui followed by an ori

Converts numbers specified in decimal and

hexidecimal into their binary equivalents and characters into their ASCII equivalents

Deals with data layout directives (e.g., .asciiz) Expands macros (frequently used sequences of

instructions)

SLIDE 16

CS 35101.16 Spring 2008

Typical Object File Pieces

 Object file header: size and position of the following

pieces of the file

 Text (code) segment (.text) : assembled object

(machine) code

 Data segment (.data) : data accompanying the code

 static data - allocated throughout the program  dynamic data - grows and shrinks as needed

 Relocation information: identifies instructions (data)

that use (are located at) absolute addresses – not relative to a register (including the PC)

 on MIPS only j, jal, and some loads and stores (e.g.,

lw $t1, 100($zero) ) use absolute addresses

 Symbol table: global labels with their addresses (if

defined in this code segment) or without (if defined external to this code segment)

 Debugging information

SLIDE 17

CS 35101.17 Spring 2008

An Example

.data .align 0 str: .asciiz "The answer is " cr: .asciiz "\n" .text .align 2 .globl main .globl printf main:

ri

$2, $0, 5 syscall move $8, $2 loop: beq $8, $9, done blt $8, $9, brnc sub $8, $8, $9 j loop brnc: sub $9, $9, $8 j loop done: jal printf

???? ???? printf yes yes

Gbl?

0040 0024 done 0040 001c brnc 0040 000c loop 0040 0000 main 1000 000b cr 1000 0000 str

Address Symbol

jal printf 0040 0024 str 1000 0000 cr 1000 000b

Relocation Info

j loop 0040 0020 j loop 0040 0018

Data/Instr Address

SLIDE 18

CS 35101.18 Spring 2008

The Code Translation Hierarchy

C program compiler assembly code assembler

bject code

library routines executable linker machine code

main text segment printf text segment

SLIDE 19

CS 35101.19 Spring 2008

Linker

Takes all of the independently assembled code segments and “stitches” (links) them together



Faster to recompile and reassemble a patched segment, than it is to recompile and reassemble the entire program

  Decides on memory allocation pattern for the code and

data segments of each module



Remember, modules were assembled in isolation so each has assumed its code’s starting location is 0x0040 0000 and its static data starting location is 0x1000 0000

 Relocates absolute addresses to reflect the new starting

location of the code segment and its data segment

 Uses the symbol tables information to resolve all

remaining undefined labels



branches, jumps, and data addresses to/in external modules



Linker produces an executable file

SLIDE 20

CS 35101.20 Spring 2008

Linker Code Schematic

printf: . . . main: . . . jal ???? call, printf

Linker

Object file C library Relocation info

main: . . . jal printf printf: . . .

Executable file

SLIDE 21

CS 35101.21 Spring 2008

Linking Two Object Files

Hdr Txtseg Dseg Reloc Smtbl Dbg

File 1

Hdr Txtseg Dseg Reloc Smtbl Dbg

File 2 + Executable

Hdr Txtseg Dseg Reloc

SLIDE 22

CS 35101.22 Spring 2008

The Code Translation Hierarchy

C program compiler assembly code assembler

bject code

library routines executable linker loader memory machine code

SLIDE 23

CS 35101.23 Spring 2008

Loader

Loads (copies) the executable code now stored

n disk into memory at the starting address

specified by the operating system

Copies the parameters (if any) to the main

routine onto the stack

Initializes the machine registers and sets the

stack pointer to the first free location (0x7fff fffc)

Jumps to a start-up routine (at PC addr 0x0040

0000 on xspim) that copies the parameters into the argument registers and then calls the main routine of the program with a jal main
