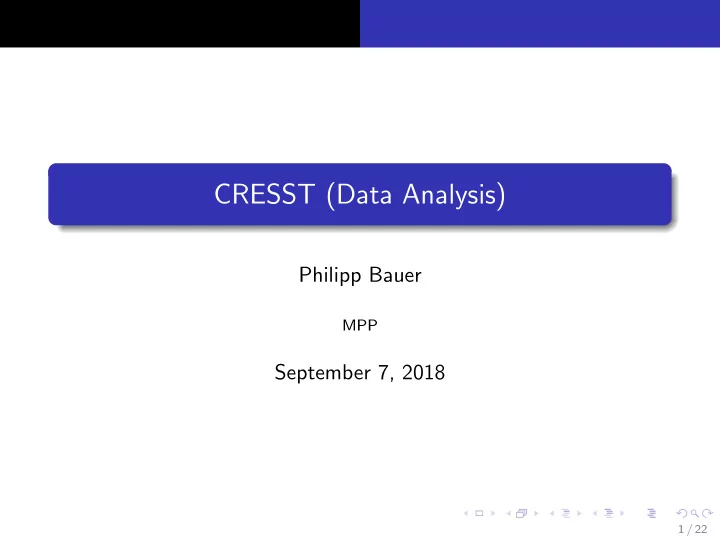

CRESST (Data Analysis)

Philipp Bauer

MPP

September 7, 2018

1 / 22

slide-2
SLIDE 2

Goal of this talk

Very brief overview over the CRESST Experiment.

2 / 22

slide-3
SLIDE 3

Goal of this talk

Very brief overview over the CRESST Experiment. Please try to spot things relevant for you and ask us about the details later.

2 / 22

slide-4
SLIDE 4

CRESST

Cryogenic Rare Event Search with Superconducting Thermometers

3 / 22

slide-5
SLIDE 5

CRESST

Cryogenic Rare Event Search with Superconducting Thermometers Direct dark matter particle detection experiment

3 / 22

slide-6
SLIDE 6

CRESST

Cryogenic Rare Event Search with Superconducting Thermometers Direct dark matter particle detection experiment Direct: interaction of natural dark matter with the detector ⇒ Rare

3 / 22

slide-7
SLIDE 7

CRESST

Cryogenic Rare Event Search with Superconducting Thermometers Direct dark matter particle detection experiment Direct: interaction of natural dark matter with the detector ⇒ Rare Cryogenic detectors → 10-20mK

3 / 22

slide-8
SLIDE 8

CRESST

Cryogenic Rare Event Search with Superconducting Thermometers Direct dark matter particle detection experiment Direct: interaction of natural dark matter with the detector ⇒ Rare Cryogenic detectors → 10-20mK Detection by energy/heat deposition measured by a special thermometer

3 / 22

slide-9
SLIDE 9

1

Detector Working Principle

2

Data Acquisition

3

Data Analysis

4

Results

4 / 22

slide-10
SLIDE 10

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Modules

5 / 22

slide-11
SLIDE 11

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Modules

5 / 22

slide-12
SLIDE 12

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Modules

Dark Blue: Absorber crystal and holdings sticks (CaWO4)

5 / 22

slide-13
SLIDE 13

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Modules

Dark Blue: Absorber crystal and holdings sticks (CaWO4) Red: Thermometers (TES)

5 / 22

slide-14
SLIDE 14

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Modules

Dark Blue: Absorber crystal and holdings sticks (CaWO4) Red: Thermometers (TES) Black: Light detector

5 / 22

slide-15
SLIDE 15

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Modules

Dark Blue: Absorber crystal and holdings sticks (CaWO4) Red: Thermometers (TES) Black: Light detector Light Blue: Scintillating and reflective foil

5 / 22

slide-16
SLIDE 16

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Modules

6 / 22

slide-17
SLIDE 17

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Thermometers

7 / 22

slide-18
SLIDE 18

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Thermometers

Superconductor stabilised within its phase transition

7 / 22

slide-19
SLIDE 19

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Thermometers

Superconductor stabilised within its phase transition

7 / 22

slide-20
SLIDE 20

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Thermometers

Superconductor stabilised within its phase transition Small temperature changes lead to big resistance changes

7 / 22

slide-21
SLIDE 21

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Thermometers

Superconductor stabilised within its phase transition Small temperature changes lead to big resistance changes Read out with a SQUID system

7 / 22

slide-22
SLIDE 22

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Thermometers

Superconductor stabilised within its phase transition Small temperature changes lead to big resistance changes Read out with a SQUID system Very sensitive (Detector threshold in the end ≈100eV)

7 / 22

slide-23
SLIDE 23

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Thermometers

Superconductor stabilised within its phase transition Small temperature changes lead to big resistance changes Read out with a SQUID system Very sensitive (Detector threshold in the end ≈100eV) Requires a temperature stabilization

7 / 22

slide-24
SLIDE 24

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Thermometers

Superconductor stabilised within its phase transition Small temperature changes lead to big resistance changes Read out with a SQUID system Very sensitive (Detector threshold in the end ≈100eV) Requires a temperature stabilization Limited linear and dynamic range

7 / 22

slide-25
SLIDE 25

Detector Working Principle Data Acquisition and processing

CRESST Detectors - Shielding and Location

8 / 22

slide-26
SLIDE 26

Detector Working Principle Data Acquisition Analysis

Continuous Data Acquisition

9 / 22

slide-27
SLIDE 27

Detector Working Principle Data Acquisition Analysis

Continuous Data Acquisition

The analog voltage output from the detector side is continuously sampled, digitized and written to disc: Rising flank: Energy deposition leads to a sharp rise (≈1ms) in temperature and re- sistance Falling flank: Detector and ther- mometer cool slowly (≈100ms) via coupling to the heatbath

10 / 22

slide-28
SLIDE 28

Detector Working Principle Data Acquisition Analysis

Continuous Data Acquisition

The analog voltage output from the detector side is continuously sampled, digitized and written to disc: Rising flank: Energy deposition leads to a sharp rise (≈1ms) in temperature and re- sistance Falling flank: Detector and ther- mometer cool slowly (≈100ms) via coupling to the heatbath

10 / 22

slide-29
SLIDE 29

Detector Working Principle Data Acquisition Analysis

Continuous Data Acquisition

The analog voltage output from the detector side is continuously sampled, digitized and written to disc: Rising flank: Energy deposition leads to a sharp rise (≈1ms) in temperature and re- sistance Falling flank: Detector and ther- mometer cool slowly (≈100ms) via coupling to the heatbath

10 / 22

slide-30
SLIDE 30

Detector Working Principle Data Acquisition Analysis

Triggering

11 / 22

slide-31
SLIDE 31

Detector Working Principle Data Acquisition Analysis

Triggering

Threshold trigger

11 / 22

slide-32
SLIDE 32

Detector Working Principle Data Acquisition Analysis

Triggering

Threshold trigger Knowledge of expected pulse shape allows filtering

11 / 22

slide-33
SLIDE 33

Detector Working Principle Data Acquisition Analysis

Triggering

Threshold trigger Knowledge of expected pulse shape allows filtering

11 / 22

slide-34
SLIDE 34

Detector Working Principle Data Acquisition Analysis

Triggering

Threshold trigger Knowledge of expected pulse shape allows filtering Triggered data is stored in the form of ”events”

11 / 22

slide-35
SLIDE 35

Detector Working Principle Data Acquisition Analysis

Triggering

Threshold trigger Knowledge of expected pulse shape allows filtering Triggered data is stored in the form of ”events”

11 / 22

slide-36
SLIDE 36

Detector Working Principle Data Acquisition Analysis

Event

12 / 22

slide-37
SLIDE 37

Detector Working Principle Data Acquisition Analysis

Event

This is where my work usually starts.

12 / 22

slide-38
SLIDE 38

Data Acquisition and processing Data Analysis Brief Result

Parameters and Cuts

Parameters derived from the events to better classify them and reject bad events that cannot be analyzed properly e.g.: Pulse Height

13 / 22

slide-39
SLIDE 39

Data Acquisition and processing Data Analysis Brief Result

Parameters and Cuts

Parameters derived from the events to better classify them and reject bad events that cannot be analyzed properly e.g.: Pulse Height

13 / 22

slide-40
SLIDE 40

Data Acquisition and processing Data Analysis Brief Result

Parameters and Cuts

Parameters derived from the events to better classify them and reject bad events that cannot be analyzed properly e.g.: Peak Position

14 / 22

slide-41
SLIDE 41

Data Acquisition and processing Data Analysis Brief Result

Parameters and Cuts

Parameters derived from the events to better classify them and reject bad events that cannot be analyzed properly e.g.: Peak Position

14 / 22

slide-42
SLIDE 42

Data Acquisition and processing Data Analysis Brief Result

Parameters and Cuts

Parameters derived from the events to better classify them and reject bad events that cannot be analyzed properly e.g.: Peak Position

14 / 22

slide-43
SLIDE 43

Data Acquisition and processing Data Analysis Brief Result

Parameters and Cuts

Parameters derived from the events to better classify them and reject bad events that cannot be analyzed properly e.g.: Right - Left Baseline

15 / 22

slide-44
SLIDE 44

Data Acquisition and processing Data Analysis Brief Result

Parameters and Cuts

Parameters derived from the events to better classify them and reject bad events that cannot be analyzed properly e.g.: Right - Left Baseline

15 / 22

slide-45
SLIDE 45

Data Acquisition and processing Data Analysis Brief Result

Energy Calibration

As a first step for the energy calibration a better measure for the pulse strength than the Pulse Height is required.

16 / 22

slide-46
SLIDE 46

Data Acquisition and processing Data Analysis Brief Result

Energy Calibration

As a first step for the energy calibration a better measure for the pulse strength than the Pulse Height is required. Two possibilities:

16 / 22

slide-47
SLIDE 47

Data Acquisition and processing Data Analysis Brief Result

Energy Calibration

As a first step for the energy calibration a better measure for the pulse strength than the Pulse Height is required. Two possibilities: Standard event fit

16 / 22

slide-48
SLIDE 48

Data Acquisition and processing Data Analysis Brief Result

Energy Calibration

As a first step for the energy calibration a better measure for the pulse strength than the Pulse Height is required. Two possibilities: Standard event fit Optimum filter

16 / 22

slide-49
SLIDE 49

Data Acquisition and processing Data Analysis Brief Result

Energy Calibration

The energy scale is fixed with a calibration measurement: 122keV ≈63.3keV (There is another step in between which insures linearity and removes time dependencies, and there are some limitations due to the dynamic range of the detector)

17 / 22

slide-50
SLIDE 50

Data Acquisition and processing Data Analysis Brief Result

Energy Calibration

The energy scale is fixed with a calibration measurement: 122keV ≈63.3keV (There is another step in between which insures linearity and removes time dependencies, and there are some limitations due to the dynamic range of the detector)

17 / 22

slide-51
SLIDE 51

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel: electron/gamma events nuclear recoils

18 / 22

slide-52
SLIDE 52

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel: electron/gamma events nuclear recoils

18 / 22

slide-53
SLIDE 53

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel: electron/gamma events nuclear recoils

18 / 22

slide-54
SLIDE 54

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel: electron/gamma events nuclear recoils

18 / 22

slide-55
SLIDE 55

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel: electron/gamma events nuclear recoils

19 / 22

slide-56
SLIDE 56

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel: electron/gamma events nuclear recoils

19 / 22

slide-57
SLIDE 57

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel: electron/gamma events nuclear recoils

19 / 22

slide-58
SLIDE 58

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel: electron/gamma events nuclear recoils

19 / 22

slide-59
SLIDE 59

Data Acquisition and processing Data Analysis Brief Result

Event selection

Rare event search experiments require not only an ultra low background environment but also a way to reject dominating

  • backgrounds. In CRESST this is done with the help of the light

channel:

20 / 22

slide-60
SLIDE 60

Analysis Results

Limits (or discoveries)

21 / 22

slide-61
SLIDE 61

Analysis Results

Thank you for your Attention!

22 / 22
