CPSC 121: Models of Computation 2018 Summer, section V01 Introduction & Motivation Meghan Allen, based on notes by Steve Wolfman, Patrice Belleville and others 1 This work is licensed under a Creative Commons Attribution 3.0 Unported

slide-1
SLIDE 1

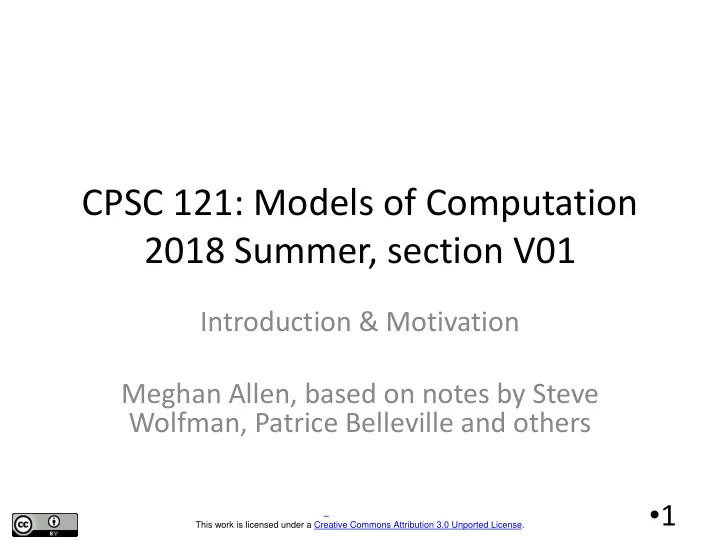

CPSC 121: Models of Computation 2018 Summer, section V01

Introduction & Motivation Meghan Allen, based on notes by Steve Wolfman, Patrice Belleville and others

  • 1

This work is licensed under a Creative Commons Attribution 3.0 Unported License.

slide-2
SLIDE 2

Learning Goals: In-Class

By the end of the unit, you should be able to:

– Give an example of how we can apply formal reasoning and computers to a simple, real-world task. – Give an example of how a computational solution to a simple task might go wrong. – Describe the two “big stories” of CS121: reasoning about computation and building computers.

2

slide-3
SLIDE 3

Outline

  • Introductions
  • Introductions Exercise
  • The CS121 Story
  • Course Administration
  • Next Lecture Notes

3

slide-4
SLIDE 4

Introductions

Meghan Allen <meghana@cs.ubc.ca> ICCS 243, ORCH 4015

  • ffice hours Mondays 3-4pm (except May 28),

Thursdays 10:30am-11:30am in ICCS 243 I also have an open door policy: If my door is open, come in and talk! And, you can make appointments with me. Additionally, you can use the many other staff

  • ffice hours (to be posted on the website soon!)

4

slide-5
SLIDE 5

Outline

  • Introductions
  • Introductions Exercise
  • The CS121 Story
  • Course Administration
  • Next Lecture Notes

5

slide-6
SLIDE 6

More Introductions

Introduce yourselves… how?

6

slide-7
SLIDE 7

Introduce yourself to me

Please take a blue paper and write

  • Your legal name
  • Your preferred name
  • Why you are taking this course
  • Something fun about yourself that you’d like

to share with me

7

slide-8
SLIDE 8

Introduce Yourselves in Groups of 4-ish

FIND ~3 people around you, preferably people you don’t know well. Form a group. Have everyone in the group introduce themselves to everyone else in the group. (Count the number of intros this takes.) Tell everyone why you’re here, your favorite career that you’ll never have, and one unusual thing about you.

8

slide-9
SLIDE 9

Problem: How Many Introductions?

Problem: How many introductions does it take for everyone in a group to meet everyone else in a group?

9

slide-10
SLIDE 10

Concept Q: Intros for 4

How many introductions does a group of 4 people take?

  • a. 3
  • b. 4
  • c. 6
  • d. 12
  • e. None of these

10

slide-11
SLIDE 11

Problem: How Many Introductions?

Problem: How many introductions does it take for everyone in a group to meet everyone else in a group?

11

To solve this problem, we need to model it more formally.

slide-12
SLIDE 12

How Many Introductions?

Model: One “introduction” is one person introducing themselves to another person. (Two people need two introductions to introduce themselves to each

  • ther.)

A group has “introduced themselves” when every group member has introduced themselves to every

  • ther member. (No self-introductions!)

12

Hi, I’m Grace H. Hi Grace, I’m Alan T. Intro #1 Intro #2

slide-13
SLIDE 13

How Many Introductions?

Problem: How many introductions does it take for a group of n people to introduce themselves?

13

slide-14
SLIDE 14

How Many Introductions?

For 2 people? For 3 people? For 4 people? For 5 people? … For n people?

14

Our examples. Should 0 and 1 be examples?

slide-15
SLIDE 15

How Many Introductions?

For 100 people? For 8675309 people? For 1526097757 people?

15

slide-16
SLIDE 16

Program for Introductions

int introductions(int n) { return n * (n - 1); } (define (introductions n) (* n (- n 1)))

16

Do you believe it? (in Java) (in BSL)

slide-17
SLIDE 17

Program for Introductions: Testing

Java version with 100: 9900

17

Do you believe it?

slide-18
SLIDE 18

Program for Introductions: Testing

Java version with 100: 9900 Java version with 8675309: 265642364

18

Do you believe it?

slide-19
SLIDE 19

Program for Introductions: Testing

Java version with 100: 9900 Java version with 8675309: 265642364 Java version with 1526097757: -645820308

19

Um.. Do you believe it? Does this fit with your “model” of computation?

slide-20
SLIDE 20

Program for Introductions: Testing

BSL version with 100: 9900 BSL version with 8675309: 75260977570172 BSL version with 1526097757: 2328974362394333292

20

Do you believe it? Will BSL always get the right answer?

slide-21
SLIDE 21

Alternate Introductions Program

;; Model in math, translate to BSL. (define (introductions n) (* n (- n 1))) ;; Model as “I know what happens ;; a) in a group of 0 people, and ;; b) when someone new enters a group.” ;; Translate to BSL. (define (introductions n) (if (= n 0) (+ (introductions (- n 1))) ; the smaller group (* 2 (- n 1))) ; the extra intros

21

Are both correct?

slide-22
SLIDE 22

Outline

  • Introductions
  • Introductions Exercise
  • The CS121 Story
  • Course Administration
  • Next Lecture Notes

22

slide-23
SLIDE 23

Questions that CPSC121 Answers

How can we prove that our formula for the number of introductions is correct? (predicate logic proof for n*(n-1) version, induction for “recursive” version) What went wrong in our Java implementation but right in our BSL implementation? (number representation) How does the computer (or DrRacket) decide if the characters of your program represent a name, a number, or something else? How does it figure out if you have mismatched " " or ( )? (DFAs) How do we model and reason about computational systems at various levels of abstraction? (propositional and predicate logic, proof, sets, functions, DFAs, relations, ...)

23

slide-24
SLIDE 24

CPSC 121: The Big Stories

Theory How do we model computational systems (programs/computers) in

  • rder to design and analyze

them? Grand goal: Reason about what is and isn’t possible to compute. Hardware How do we build devices that can compute out of real materials (“sand and rocks and water”)? Grand goal: break down a full computer into simple “gates”.

24

Bonus end goal: Develop tools to communicate computational ideas clearly and precisely.

slide-25
SLIDE 25

Our Working Computer

25

The whole thing (mostly wires connecting boxes).

slide-26
SLIDE 26

Our Working Computer (zoomed in on one “box”)

26

Just the “ALU” (Arithmetic/Logic Unit). You’ll see a pared-down version in lab in a couple of weeks.

slide-27
SLIDE 27

CPSC 121: The (By?)Products

Theory Products:

  • Propositional logic
  • Predicate logic
  • Sets and functions
  • Proof techniques (especially

induction!)

  • Finite Automata/Regular

Expressions

  • Universal machines
  • Uncomputability

Hardware Products:

  • Gates
  • Combinational circuits
  • Binary data representations
  • Sequential circuits
  • A full computer

27

slide-28
SLIDE 28

What is CPSC 121 Good For?

With CPSC121’s help, you will be able to:

  • model important problems so that they are easier to

discuss, reason about, solve, and test.

  • learn new modeling formalisms more easily.
  • communicate clearly and unambiguously with other

CS experts on complex topics.

  • characterize algorithms (CS problem solutions), such

as proving their correctness or comparing their performance.

  • critically read proofs: justifying why each step is

correct and judging what the proof means.

28

slide-29
SLIDE 29

Outline

  • Introductions
  • Introductions Exercise
  • The CS121 Story
  • Course Administration
  • Next Lecture Notes

29

slide-30
SLIDE 30

Course Administration

Explore the CPSC 121 website: http://www.ugrad.cs.ubc.ca/~cs121/2018S-Vant You are required to be familiar with the course website. Ignorance of information on the website may harm

  • you. Our course syllabus information, including grading

policies, is all on the website. At minimum: read everything in the “course info” area, skimming the detailed learning goals. Join Piazza! (access code is models)

30

slide-31
SLIDE 31

Additional Administrative Notes

We’ll double your mark on the first quiz to a max of 100%. (So, if you earn more than 50%, it will count as 100%.) BUT IT’S DUE BY NEXT CLASS! Check the Scheduling page for when labs and tutorials start.

31

slide-32
SLIDE 32

Course Communication

If you have questions about course content

– post on Piazza (also, answer your classmates’ questions on Piazza!)

If you have administrative questions (e.g. you were sick, want something regraded)

– email Eka, our course coordinator, at cpsc121v- admin@cs.ubc.ca

If you have a question that’s so personal that you don’t feel comfortable asking it in either of the ways described above, email Meghan

32

slide-33
SLIDE 33

Outline

  • Introductions
  • Introductions Exercise
  • The CS121 Story
  • Course Administration
  • Next Lecture Notes

33

slide-34
SLIDE 34

Learning Goals: In-Class

By the end of the unit, you should be able to:

– Give an example of how we can apply formal reasoning and computers to a simple, real-world task. – Give an example of how a computational solution to a simple task might go wrong. – Describe the two “big stories” of CS121: reasoning about computation and building computers.

34

slide-35
SLIDE 35

Next Lecture Learning Goals: Pre-Class

By the start of class, you should be able to:

– Translate back and forth between simple natural language statements and propositional logic. – Evaluate the truth of propositional logic statements using truth tables. – Translate back and forth between propositional logic statements and circuits that assess the truth

  • f those statements.

35

slide-36
SLIDE 36

Next Lecture Prerequisites

Read Sections 1.1 and 1.4/2.1 and 2.4 Read propositional logic supplement:

http://www.ugrad.cs.ubc.ca/~cs121/2018S- Vant/handouts/prop-circuit-xlate.html

You should have completed the open-book, untimed (two-part!) quiz on Canvas that’s due by 7PM the day before class. (You are responsible for ensuring that you have submitted the quiz by its deadline!)

36

Readings: 3rd ed in black/4th ed in red
