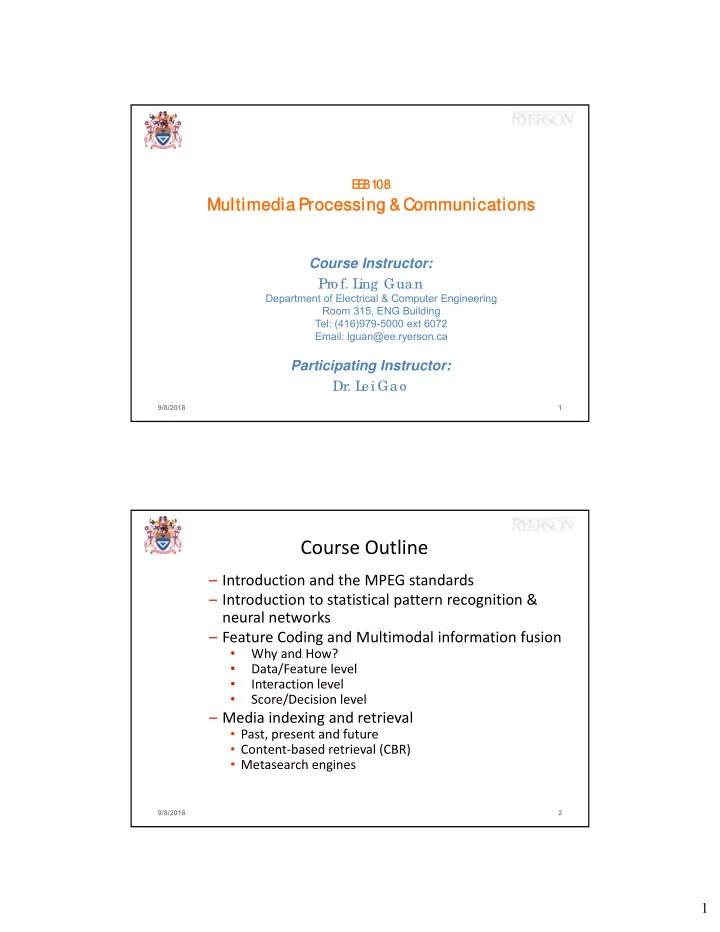

E E 810 E E 8108

Multime Multimedia ia Proce Processing ssing & & Commu Communicat nications

Course Instructor: Pro f. L ing Guan

Department of Electrical & Computer Engineering Room 315, ENG Building Tel: (416)979-5000 ext 6072 Email: lguan@ee.ryerson.ca

Participating Instructor:

• Dr. L

ei Gao

1 9/8/2018

Course Outline

– Introduction and the MPEG standards – Introduction to statistical pattern recognition & neural networks – Feature Coding and Multimodal information fusion

• Why and How?
• Data/Feature level
• Interaction level
• Score/Decision level

– Media indexing and retrieval

• Past, present and future
• Content‐based retrieval (CBR)
• Metasearch engines

2 9/8/2018

2

Course Outline (2)

– Human‐signature recognition

• Overview
• Human body movement analysis and recognition
• Human emotion recognition
• Human hand gesture recognition
• Multimedia in immersive environment

– Introduction to multimedia in immersive

environment

• Virtual reality (VR)
• Augmented reality (AR)

3 9/8/2018

Lectures and Assessment

• Lecture time
• 3 hours/week from week 1‐ week 10 (including a one week break)
• Assessment
• Project

60%

• Presentation

10%

• Report

50%

• In Class Test (Test 1) 20%
• Final Test (Test 2)

20%

• Project
• Choose your own topic
• Speak to me if you cannot find a suitable topic
• Submit your topic and a one page proposal before the Reading Week
• Presentation time: Week 13 class time
• Report due: to be determined
• Test 1: week 7 ‐ the week after reading week (1 hour, in classroom)
• Test 2: week 12 (1 hour, in classroom)

4 9/8/2018

3

Teaching Material

• Lecture notes will be available at the course website.

Check your EE8108 D2L

• References
• Multimedia Image and Video Processing, Edited by L. Guan, Y.

He and S.‐Y. Kung, CRC Press 2012, 2nd edition

• IEEE Transactions on Multimedia
• ACM Multimedia
• Other IEEE/ACM Transactions (talk to me if you need more

information)

• Proceedings IEEE Int. Conf. on Multimedia and Expo (ICME)
• Proceedings ACM Multimedia Conference

5 9/8/2018

Project Requirement

 You are required to work on a technical topic, either chosen by yourself in consultation with the instructor, or provided by the instructor. You are encouraged to choose your own topic.  The topic of your project could be one of the following:

– comparison of two or more methods you found in the literature – further development/analysis of an existing method/idea – novel approach/technique, analysis or algorithm

 A project of literature review in nature is not acceptable

6 9/8/2018

4

Project Requirement (2)

Electronically submit your project proposal on Tuesday, October 2 to lguan@ee.ryerosn.ca. You may use any programming language; MatLab, C/C++,

• etc. Your choice.

You are required to demonstrate that your system and/or algorithm works as described in your report/presentation. Ideally, you demonstrate at the presentation time. You are encouraged to work in a team of two students.

7 9/8/2018

A Note on Academic Integrity

• Please be advised to get yourself familiarized with

Ryerson’s Regulation on Academic Integrity by

– Reading Ryerson SENATE POLICY 60: ACADEMIC INTEGRITY: Pages 1 – 4 and acting accordingly.

— http://www.ryerson.ca/senate/policies/pol60.pdf

– Attending the mandatory departmental graduate seminar series which is offered every semester, covering research methods, research writing, library, ethics and integrity.

8 9/8/2018

5

Introduction and the MPEG Standards

9 9/8/2018

What is Multimedia?

 What is multimedia?

• A brief history of multimedia available at

http://people.ucalgary.ca/~edtech/688/hist.htm

 What is multimedia processing & communications (MMPC)?  What impact has signal processing brought to multimedia technology?  Where are the multimedia technologies taking us?  …?

10 9/8/2018

6

Are These the Answers?

• Multimedia is a domain of multi‐facets
• Easy to define each facet individually, but challenging to

consider them as a combined identity

• Coherent integration of media contents obtained from

different sources/sensors

• Humans are natural and generic multimedia processing

machines (human intelligence) Can we teach computers/machines to do the same via machine learning and, more general, artificial intelligence?

11 9/8/2018

What Are We Sure about MMPC?

 It offers a forum for interaction among researchers in several media processing areas  MMPC opens up opportunities for information processing that falls in‐between the domains of traditional areas, such as speech, audio, music, text, graphics, image and video  MMPC brings together the signal processing community with computer, communication and systems engineers

• IEEE Conference on Multimedia & Expo
• ACM Multimedia Conference
• Various IEEE and ACM Transactions and Journals
• …..

12 9/8/2018

7

Current Trend in MMPC

 Single media vs. multimedia: about 50% of the research in multimedia is still concerned with single media  Due to the maturity of standards, coding somehow dictates the direction of research in multimedia  Multiple media vs. multimedia  Real multimedia  Multimedia in immersive environment (VR/AR)  Intelligent multimedia plays foundational role for big data analytics  So plenty of room for new research, and your participation and contribution to this important area are very welcome

13 9/8/2018

What can be categorized as MMPC?

• Media coding and compression
• Media compression
• Compressed domain processing
• Joint audio‐video coding and processing
• Multimedia databases
• Indexing, retrieval, archiving, and management
• Authoring, sharing and editing
• Content recommendation
• Digital library
• Multimodal information fusion
• Fusibility
• Fusion levels
• Fusion of methodology
• Human‐machine interaction and perception
• Content recognition/analysis/synthesis
• Emotion/intention and attention recognition
• Analysis and recognition of human gestures and activities
• Perceptual quality and human factors

14 9/8/2018

8

What can be categorized as MMPC (2)?

• Multimedia communications
• Transport protocols
• QoS control
• Media streaming
• Error concealment and loss recovery
• Rate control and hierarchical coding
• Multimedia cloud computing
• Multimedia in immersive environment
• Media security and watermarking
• Multimedia applications
• Standards and related issues
• ITU‐T H‐series Standards for a/v communications
• MPEG Standards
• JPEG Standards
• Convergence of ITU‐T H‐series and MPEG –> H.264
• MHEG, MJEPG, HTML, VRML and more

15 9/8/2018

Why Standards?

 Instead of hiding and protecting your inventions, you publicly share your ideas with your colleagues  Standards encourage collaborations of experts to jointly work on a particular topic  Due to increased commercial interest in video communications, the need for image/video compression standards arose  The exercise in standardization proves that it can provide a powerful vehicle to promote new technology  Competition is very intense

16 9/8/2018

9

The MPEG Standards

 Coding & multimedia standards developed and managed by Motion Picture Experts Group (MPEG)

 MPEG‐1: VCD  MPEG‐2: DVD, HDTV  MPEG‐3:???  MPEG‐4: Content‐based video coding  MPEG‐7: Multimedia indexing and retrieval  MPEG‐21:???  MPEG‐A/B/C/D/E/V/M/U/H/DASH  FTV Standard For more information on MPEG standards: http://en.wikipedia.org/wiki/Moving_Picture_Experts_Group

17 9/8/2018

The MPEG‐1 Standard

 Released in 1992  A standard for coded representation of

• Moving pictures
• Associated audio
• And their combination

When used for storage and retrieval on digital media with bit rate of up to1.5 Mbit/s  Typical application – video CD (VCD)

18 9/8/2018

10

The MPEG‐2 Standard

 Released in 1994, still one of the most popular standards  A standard to provide video quality not lower than NTSC/PAL with bit rates target between 2‐10 Mbit/s  Applications

• Digital cable TV distribution
• Networked database service via ATM
• Digital video tape recorder (VTR)
• Satellite and terrestrial digital broadcasting distribution

 It also supports HDTV applications, and so pre‐emptied MPEG‐3 standard  Lost to JPEG‐2000 (MJEPG) in coding competition for digital cinema in 2002

19 9/8/2018

The MPEG‐4 Standard

 First released in 1998, and targeted at content‐based multimedia applications and low bit‐rate video coding.  Algorithms and tools for coding and flexible representation of audio/video to meet the challenges of multimedia applications  It addresses the needs for

• Universal accessibility and robustness in error‐prone environment
• High interactive functionality
• Coding of natural and synthetic data (image/graphics), setting the stage for AR
• Scalable coding
• High compression efficiency

 Bit rates:

• PSTN – 5‐64 kbit/s
• TV/film – 4 Mbit/s

 Ironically, the objective of low bit‐rate video coding was later accomplished by ITU‐T H.264, the convergence of H.263 and MPEG‐2.

20 9/8/2018

11

The MPEG‐7 Standard

 First released in 2001  Official name:

Multimedia Content Description Interface

 Objective:

• To allow efficient search for multimedia content using standardized

descriptors

 The main research issues:

• Optimum search engine
• (Content‐based) feature analysis & query design

 Unfortunately, the challenges were under‐estimated…

21 9/8/2018

 MPEG-7 Working Group focuses on description interchange (the normative components -shaded blocks in the XM)  The rest is left for open competition from industry and research organizations

MPEG-7 Architecture

AV Decoder Feature Extraction Coding Scheme Decoding Scheme Media Data AV File D/ DS MPEG-7 File Matching and Filtering

MPEG-7 Experimental Model (XM) Architecture

12

MPEG‐7 Research Issues

 Optimal search (retrieval) engine in Internet/wireless multimedia communications  Feature extraction and query design in information retrieval, especially image/video retrieval. In general, the success of MPEG‐7 is limited, but some specialized versions seems to work in well defined applications.

Feature Extraction

Standard Description Search Engine Scope of MPEG-7

The MPEG‐21 Standard

 MPEG for the 21st Century!  Aim at defining a normative open framework for multimedia delivery and consumption for use by all the players in the delivery and consumption chain.  Provide content creators, producers, distributors and service providers with equal opportunities in the MPEG‐ 21 enabled open market.  Benefit the content consumer by providing them access to a large variety of content in an interoperable manner  Never got close to this bold objective! Abolished in 2009.

http://www.chiariglione.org/mpeg/standards/mpeg‐21/mpeg‐21.htm

13

MPEG‐A

• Multimedia Application Formats (MAFs)

– Facilitate the swift development of multimedia applications and services. – Standardize MAFs for multimedia products and software. – Stimulate the increased use of MPEG technology through interoperability of different media types.

25 9/8/2018

MPEG‐B

• Systems technologies
• MPEG‐B Part 1: Binary MPEG format for XML

– Standard defining a generic binary format for encoding XML documents – Relies on schema knowledge between encoder and decoder in order for high compression efficiency. – Provides fragmentation mechanisms for ensuring transmission flexibility.

26 9/8/2018

14

MPEG‐E

• Multimedia middleware (M3W)
• Interfaces of audio/video broadcast decoding,

processing, and rendering.

• Interfaces of support API (application program

interface): interaction with remote services, resource management, component download, faulty management, integrity management.

27 9/8/2018

MPEG‐V

• Media context and control
• Provides architecture and specifies associated

information between

– virtual worlds (digital content, gaming simulation), and the real world (sensors, vision, rendering, robotics).

• A well‐defined connection between the virtual and

the real world for better design methodology and tools.

28 9/8/2018

15

MPEG‐DASH

• Suite of standards for efficient streaming of multimedia,

using existing internet infrastructure.

– Servers, CDNs, as well as proxies, caches

• Support on‐demand and live streaming.
• Provide MPEG‐4 file format and MPEG‐2 Transport

Streams.

• Control streaming sessions with DASH client.
• Enable dynamic ad‐insertion and on‐demand content.

29 9/8/2018

Other MPEG Standards

• MPEG‐C: a suite of video standards that do not fall in other well‐

established MPEG standards.

• MPEG‐D: a suite of standards for Audio technologies that do not fall

in other MPEG standards

• MPEG‐M: a suit of standards to enable design and implementation
• f media‐handling value chains.
• MPEG‐U: provides a general purpose technology with innovative

functionality that enable its use in heterogeneous scenarios such as broadcast, mobile, home network and web domains:

• MPEG‐H: Suite of standards for heterogeneous environment

delivery of audio‐visual information compressed with high efficiency.

30 9/8/2018

16

FTV Standard

FTV ‐ Free Viewpoint TV  Started in January, 2004  Objective:

• To achieve an efficient and standard method for coding and view

generation of FTV

 1st phase standardization

• Standardize the coding part of FTV as Multiview Video Coding (MVC)
• Completed in May, 2009

 2nd phase standardization

• Targeted the standardization of 3‐D Video (3DV)
• In progress

31 9/8/2018

MVC Standard

 To remove the correlation among multiview video data  Major approaches:

• Combining interview and

temporal prediction

• Motion compensation

 20‐30% bitrate savings compared to simulcast coding using H.264

Inter-view prediction structure for MVC 32 9/8/2018

17

3DV Standard

 Motivation:

• Decouple production from coding format
• MVC only optimized for 2D color video, but not for depth information

 The main research issues:

• Data format
• 3D video coding method
• Intermediate view generation

 Current progress:

• Define FTV reference model
• Adopt N view + N depth format as FTV Data Unit (FDU)

33 9/8/2018

An Instance

34

“Bullet time” from “The Matrix”. Warner Bros. 2000

18

Multimedia Information Retrieval

(Driven by Machine Learning)

• Content‐based Image and Video Retrieval

– Low‐level visual features – Relevance feedback

• Information Fusion for Retrieval

– Combining visual and audio information – Combining audio/visual and contextual information

• Visual Re‐ranking
• Large‐scale Search

– Data driven approaches – Annotation and indexing

35 9/8/2018 36

Computer-Computer Interactions Semantic Gaps Human-Computer Interactions

Research Challenges Ahead

19

Large‐scale Visual Indexing, Search and Application

• Large‐scale visual search and analysis is important.
• Efficient feature extraction.
• Suitable Data structure

– Bag‐of‐visualwords – Tree structure

• Search mechanism: term frequency‐inverse

document frequency (TF‐IDF)

• Applications

37 9/8/2018

 Iris recognition  Fingerprints recognition  Speech recognition  Face recognition  Hand gesture recognition  Emotion recognition  Human movement modeling and recognition  HSR for multimodal HCI and modality fusion

38 9/8/2018

20

Iris Recognition

• Iris – The most accurate and reliable biometric
• 249 degrees of freedom (DOF) and good discrimination

entropy

• Little changes with aging
• Reliably recognizing 9 million with no false positive

[Daugman 2002]

• The projection – 1 in 10 billion false positive: more than

the population of the planet

• Requiring the complete co‐operation of the people being

screened – highly invasive

39 9/8/2018

Fingerprint Recognition

• Also very accurate and inexpensive
• Used extensively by police and in security check

(try get into US border today!)

• Artificial fingers made of cheap and readily

available gelatin can cause serious flaw

• Highly invasive

40 9/8/2018

21

Face Recognition

• One of the most actively studied areas in HSR
• Potential applications (commercial and law reinforcement):

– Allow to access an ATM machine – Control entry to restricted areas – Recognize people in specific areas (bank, store) – Retrieve people in a specific database (police)

• The accuracy is not up to required level, and it is at least semi‐

invasive

• The most popular methods in face recognition:

– EigenFaces – Hidden Markov Model Recognition – Compressed Sensing

41 9/8/2018

Speech Recognition

• One of the most actively studied areas in HSR
• The modeling is very elegant in English language: it is

based on 50 smallest contrastive phonetic units ‐ phonemes

• Prosodic and phonetic features
• Hidden Markov Model in Recognition
• Could be very accurate with millions of features and

lengthy training

42 9/8/2018

22

Hand Gesture Recognition

• One of the most studied human body movement area
• It has found many applications
• It contributed significantly to computer vision‐based

full body human movement recognition

43 9/8/2018

Marker-based gesture HCI Natural free‐hand HCI (Magic Leap)

 Vocal emotion recognition  Emotion recognition using visual cues  Bimodal emotion recognition  3D techniques in emotion recognition  Language, culture and context independence  Realistic data collection  It is not a well studies field

Human Emotion Recognition

44 9/8/2018

23

Marker/tracker-based approaches (since 1970), then requesting

• Extensive hardware setup (lessened recently)
• Significant setup time (lessened recently)
• Invasive in nature

Computer vision-based approaches

• Mainly software based
• 2D vs 3D
• Rigid model vs non-rigid model
• Highly depending on state-of-the-art in image

processing and computer vision

Human Movement Recognition

45 9/8/2018

Dynamic fusion of mulitmodal biometrics Combine face, fingerprints, emotion, hand gesture, speech, and gait/action. Dynamically select the level of multimodality The significance

• The difficulty to simultaneously forge multiple

biometrics

• More effective HCI in the design of immersive systems

HSR in Multimodal HCI

46 9/8/2018

24

Example Areas HCI Plays a Critical Role

• Multimedia information mining
• Media indexing and retrieval
• Media manipulation
• Smart city/smart home
• Security and surveillance
• Learning of special needs
• Bioinformatics
• Creation of lifelike experience

47 9/8/2018

Transmission of Multimedia Data

 Coding and compression  Distributed video coding  Multiple‐description coding  Streaming media  Peer‐to‐peer networks  Multi‐path transmission  Resource allocation  Multimedia in the cloud

48 9/8/2018

25

H.264 PFGS Video Codec

Intra Prediction Frame Buffer1 MC ME Video MC Loop Filter DCT Bit Plane VLC IDCT DCTQ IDCTQ Entropy Coding + Frame Buffer0 Loop Filter + + + + Base-Layer Enhancement-Layer UEP Channel Coder UEP Channel Coder

H.264 PFGS Encoder (Courtesy Microsoft Research) 49 9/8/2018 50

The Original image One level DWT

9/8/2018

26

Close Relationship Between Content & Traffic

• “Forrest Gump” (Bocheck‐Chang)

51 9/8/2018

Dynamic Resource Allocation System

VBR Streams

Resource Allocation

and Admission Control Link Network Buffer/ Scheduler Source1 Source2 Source N . . . . . .

Need to determine

• determine renegotiation time
• estimate how much resource

to request

Renegotiation Points time Reserved Bandwidth 52 9/8/2018

27

Cloud Computing

A model for enabling convenient,

• n‐demand network access to a

shared pool of configurable computing resources (for ex., networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction.

Source: National Institute of Standards and Technology (NIST) http://csrc.nist.gov/publications/nistpubs/800- 145/SP800-145.pdf 53 9/8/2018

Other Research Issues

 Media security

• Data hiding & water marking
• Multimedia for security/surveillance

 Multimedia computing in the immersive environment  Wireless multimedia  Multimedia information mining  Hardware design for multimedia

54 9/8/2018

28

Other Research Issues (2)

 Pattern recognition/computer vision  Image processing and analysis  Speech processing/recognition/synthesis  Information and pattern mining  Artificial/Computational intelligence  Bioinformatics

55 9/8/2018

My Perception on Multimedia

 Indexing & retrieval: Arguably the core

• You get what you want

 Multimodality and fusion: Real multimedia  Human‐computer interaction: User friendly  Coding & transmission: Efficiency & quality in storage & delivery of multimedia data  Immersive 3D: Creation of lifelike experience  Media Security: IP and business consideration  Wireless multimedia: Make it handy

56 9/8/2018

29

Applications of Multimedia

 Healthcare & telemedicine  Life science  Arts and cultural heritage  Digital asset management  Security/Surveillance/Military  Education (distance education)  Business/service on demand  Entertainment (Digital Cinema)  Gaming  Smart universe/city/grid…

57 9/8/2018

Application in Distributed Environment

Server 1 Client 2 Client 1 Server 2 Client 3 Client 4 Server 3

Backbone Network External Network

58 9/8/2018

30

What can multimedia do for us?

59 9/8/2018
