Elliot Briggs1, Chunmei Kang2, Amit Mane2, Dan McLane2, Brian Nutter1 SDR’11 - WinnComm Europe Brussels, Belgium June 22nd – 24th

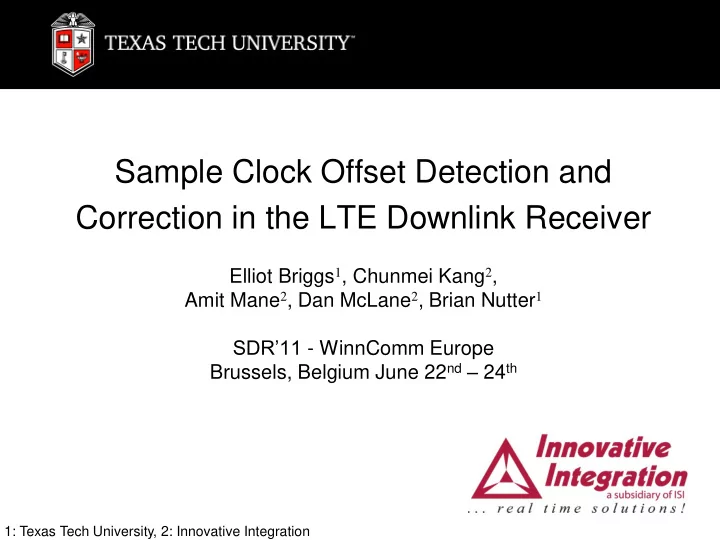

Sample Clock Offset Detection and Correction in the LTE Downlink Receiver

1: Texas Tech University, 2: Innovative Integration

Presentation Overview

• OFDM Receiver Synchronization Basics
• Mechanics of Sample Clock Offset
• Sample Clock Offset Detection
• Developed Sample Clock Correction Technique
• Results

1

OFDM Receiver Synchronization Basics

IDFT … Parallel to Serial …

D/A

Complex symbols

TX Sample clock

Add CP

~

• Freq. offset

*

WGN

channel

A/D

RX Sample clock

Serial to Parallel

Remove CP

… DFT

Single/Multiple path delay

…

Complex symbols

Signal Impairments

Traditional OFDM model example: Impairments:

• AWGN: weak (noisy) signal
• Frequency shift: errors in RF electronics (TX and RX)
• Delay: Asynchronous startup time, multiple paths
• Sample Clock Offset?

2

• 4
• 3
• 2
• 1

1 2 3 4

• 0.4
• 0.2

0.2 0.4 0.6 0.8 1 FFT bin center positions at the Receiver (subcarrier index) Ideal Orthogonal Reception

OFDM Receiver Synchronization Basics

Ideal OFDM Reception:

• The receiver’s FFT bins are

aligned with each subcarrier

• Here, at the receiver, each

subcarrier is orthogonal to the

• thers

3

OFDM Receiver Synchronization Basics

• 4
• 3
• 2
• 1

1 2 3 4

• 0.4
• 0.2

0.2 0.4 0.6 0.8 1 FFT bin center positions at the Receiver (subcarrier index) Reception with ICI from 20% Frequency Shift

OFDM Reception Affected by Frequency shift:

• Each FFT bin is misaligned by

an equal amount

• Each received subcarrier

experiences the same amount

• f ICI

4

OFDM Receiver Synchronization Basics

• 4
• 3
• 2
• 1

1 2 3 4

• 0.4
• 0.2

0.2 0.4 0.6 0.8 1 FFT bin center positions at the Receiver (subcarrier index) Reception with ICI from 5% Sample Clock Offset

OFDM Reception Affected by Sample Clock Offset:

• Each FFT bin has a

cumulative amount of shift

• The outer subcarrier positions

experience the most ICI

5

OFDM Receiver Synchronization Basics

256 512 768 1024 1280 1536 1792 2048 0.2 0.4 0.6 0.8 1 1.2 subcarrier index normalized magnitude LTE signal with 1,229 Hz sample clock offset at the receiver (40ppm total)

• 40 ppm error at the receiver

simulates the maximum error from 20 ppm clock oscillators at the transmitter and receiver

• 40ppm = 1.229 kHz , 8.2% of one

subcarrier spacing

• Here, the SNR is 50 dB before the

sampling clock error is added

6

OFDM Receiver Synchronization Basics

• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8 1

• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8 1 real imaginary LTE signal with 1,229 Hz sample clock offset at the receiver (40ppm total)

• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8 1

• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8 1 real imaginary LTE signal with 1,229 Hz sample clock offset at the receiver (40ppm total)

• A slight phase shift occurs from

fractional timing offset

• The outer subcarrier positions

are no longer orthogonal and contain energy from neighboring subcarriers

• After the phase is unwound,
• nly the ICI component remains
• The ICI appears as noise at the
• uter subcarrier locations

7

OFDM Receiver Synchronization Basics

1 200 400 600 800 1000 1200 2 4 6 8 10 12 14 16 18 subcarrier index degradation (dB) SNR Degradation vs. Subcarrier Index at Es/No = 50 dB 1 ppm 5 ppm 10 ppm 20 ppm

• ICI causes SNR degradation

which is the most severe at the

• uter subcarrier locations.
• Even a 5ppm sample clock error

can cause 6 dB of degradation when Es/No = 50 dB

2 6 10

10 3 1 1 log 10

s

• s

n

f n N E D

8

[1]

OFDM Receiver Synchronization Basics

5 10 15 20 25 30 35 40 10

• 1

10 10

1

10

2

clock offset (ppm) degradation (dB) SNR Degradation vs. SCO at Varying Es/No (subcarrier index = 1200) 20 dB 30 dB 40 dB 50 dB

• The level of degradation is

displayed for several levels of SNR

• The SNR is adversely affected,

even with modest clock offsets

9

Mechanics of Sample Clock Offset

… …

time symbol duration Cyclic prefix duration

LTE Example:

• “Extended” cyclic prefix mode
• 20 MHz mode
• Ideally, each symbol lasts only 83.33 μs

Transmitted OFDM symbols:

MHz 72 . 30 1

s

T 512

CP

N 2048

FFT

N μs 33 . 83

s FFT CP symbol

T N N T

CP CP CP 10

[2]

Mechanics of Sample Clock Offset

… …

sampled time

Received OFDM symbols:

perfect sample clock frequency: sample clock frequency is too fast:

… … … …

sample clock frequency is too slow:

μs 33 . 83

s FFT CP symbol

T N N T

error s

f T / 1 MHz 72 . 30 1

• 2560 samples will take a longer or shorter amount
• f time for the receiver to collect, depending on the
• ffset conditions
• The rate that the symbols drift from the perfect

case directly indicates the sampling clock offset magnitude.

• The direction in which the symbols drift indicate

the sampling clock offset direction

CP CP CP CP CP CP CP CP CP 11

Sample Clock Offset Detection

Any DFT-based OFDM system must have an FFT window timing synchronization component to properly align the FFT window

… …

FFT window t-2 FFT window t-1 FFT window t time CP CP CP

Any FFT timing synchronization method can give sample clock offset information

• Using the LTE Primary Synchronization Signal (PSS)
• Timing information provided every 5 ms
• Cyclic Prefix Correlation
• Timing information provided every 83.33 μs

12

Sample Clock Offset Detection

Example: (-)+100 Hz clock offset error:

• Generates (removes) 100 extra samples per second.
• This will generate (remove) 1 sample for after 120 OFDM

symbols, or 0.0083 samples to each symbol

• A +12 kHz clock offset will generate an entire sample for

each OFDM symbol

N t

• ffset
• ffset

error

t n S t n S N n f

1

] 1 [ ] [ 000 , 12 ] [

13

2 4 6 8 10 12 14 x 10

4

500 1000 1500 2000 2500 Symbol Start Location with Respect to the RX Clock (600 Hz SCO @ RX) symbol index symbol start sample index

Sample Clock Offset Detection

Hz 600 05 . 000 , 12 ] 1 [ ] [ 000 , 12 ] [

1 N t

• ffset
• ffset

error

t n S t n S N n f

• 2
• 1

1 2 2 4 6 8 10 12 x 10

4

timing drift distribution symbol-to-symbol timing offset difference frequency

000 , 135 N n

05 .

14

5 10 15 20 25 30 35 40 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 OFDM Symbol Index fractional delay (fractional samples) Fractional Delay Modulation to Compensate a 600 Hz SC Error Underflow Underflow

• SCO can be corrected if the signal is

resampled at the correct sampling rate

• Modulate the fractional delay value at

every sample to effectively resample the signal

• When the fractional delay value
• ver/underflows, repeat/skip a sample

Sample Clock Offset Detection

15

5 10 15 20 25 30 35 40 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 OFDM Symbol Index fractional delay (fractional samples) Fractional Delay Modulation to Compensate a 600 Hz SC Error Underflow Underflow

• In this example, each sample has a
• .05/2560 delay difference from the

previous sample to correct the .05/2560 from the sample clock offset.

• When a negative delay is requested, a

sample is skipped.

• Here, fewer samples are produced at

the output of the resampling filter than are input

• Ideally, the resampler produces 2560

samples per 83.33 μs

• The signal should have stationary

symbol timing after resampling

Developed Sample Clock Correction Technique

The resampler “compresses” the signal by continuously reducing the delay for each sample

1 16

Developed Sample Clock Correction Technique

• The ML timing and frequency offset estimator [3] uses the cyclic prefix
• The timing estimate is used by the loop filter and to trigger an FFT

conversion

• The frequency offset estimate is used to correct residual frequency shift

1 17

Developed Sample Clock Correction Technique

• The receiver uses feedback correction to adjust the symbol timing and

frequency correction

• The timing loop filter averages many timing estimates to get an average

window drift rate, just as in the previous example

• The delay accumulator constantly accumulates fractional delay and modulates

a fractional resampling filter

18

22 24 26 28 30 32 34 36 38 40 16 18 20 22 24 26 28 30 32 34 36 38 40 FPGA Hardware Results - 40 ppm SCO compensation performance channel Es/No (dB) measured effective Es/No (dB) perfect reception, no SCO 40 ppm SCO, no compensation 40 ppm SCO, with compensation

• Design implemented in an

X5-400M FPGA board by Innovative Integration

• Two separate clocks are

used, the frequency difference is measured

• With SCO compensation

enabled, the minimum SNR gain is around 3 dB

• SNR gains increase at higher

values of Es/No (~ 6 dB)!

FPGA Hardware Implementation Results

1 19

FPGA Hardware Implementation Results

22 24 26 28 30 32 34 36 38 40 5 10 15 20 25 30 35 40 FPGA Hardware Results - 100 ppm SCO compensation performance channel Es/No (dB) measured effective Es/No (dB) perfect reception, no SCO 100 ppm SCO, no compensation 100 ppm SCO, with compensation

• A hidden advantage to this

correction technique exists

• CP correlation reliability is

reduced when the sampling clock changes a significant amount in a single symbol duration

• Without SCO correction, the

timing synchronization fails

• With SCO correction, the SNR

values are almost identical to the 40 ppm case at 100 ppm

• The algorithm has been tested

to track as much as a 7.5 kHz sample clock error (~250 ppm)!

20

FPGA Hardware Implementation Results

2 4 6 8 10 12 14 16 10

• 3

10

• 2

10

• 1

10 400M, 16QAM, SCO=0KHz, CFO=100KHz Es/No BER measured BER theoretical BER

• CFO = 100 kHz : frequency shift of over 13 subcarrier spacings
• SCO = 7.5 kHz : ~250 ppm sampling clock offset

3 4 5 6 7 8 9 10 10

• 4

10

• 3

10

• 2

10

• 1

10 400M, QPSK, SCO=7.5KHz, CFO=100KHz Es/No BER measured BER theoretical BER

21

FPGA Hardware Implementation Results Corner Cases:

• Maintains timing lock down to 3dB SNR
• Maintains receivability:
• LTE cell ID decode, frame sync successful
• SNR = 5dB
• CFO = ±75 kHz (± 5 subcarrier spacings)
• SCO = ±4 kHz (±133.33 ppm)

22

• The developed SCO measurement and correction method

allows the LTE user equipment to be equipped with a lower cost, less precise sample clock source.

• Any timing synchronization algorithm can be employed to

generate sample clock offset measurements to be used for correction

• The measurement and correction is in the time domain,

so the algorithm is agnostic to any frequency domain information (reference symbols, training, etc).

• Can be applied to any OFDM-based standard

Conclusions

23

• May be useful for surveillance applications, maximizes

OFDM signal reception quality for any OFDM signal

Conclusions

24

References

[1] T. Pollet, P. Spruyt, and M. Moeneclaey, "The BER performance of OFDM systems using non-synchronized sampling," Proceedings of the IEEE Global Telecommunications Conference (GLOBECOM'94), San Francisco, USA, November 1994, pp. 253-257. [2] 3GPP TS 36.211 V8.9.0 “Physical Channels and Modulation”. Rel. 8. [3] J.J. van de Beek, M. Sandell, P.O. Börjesson, "ML Estimation of Time and Frequency Offset in OFDM Systems," IEEE Transactions on Signal Processing, Vol. 45, No. 7, July 1997, pp. 1800 - 1805.
