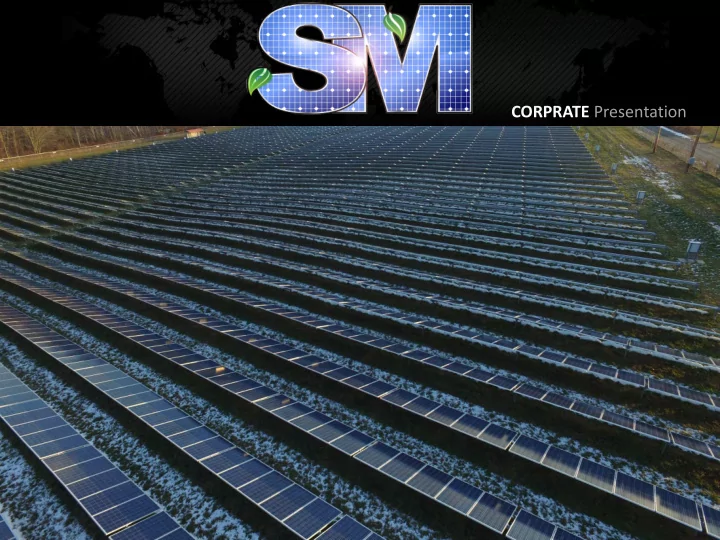

SLIDE 1
CORPRATE Presentation MISSION STATEMENT Our mission is to provide - - PowerPoint PPT Presentation
CORPRATE Presentation MISSION STATEMENT Our mission is to provide - - PowerPoint PPT Presentation
CORPRATE Presentation MISSION STATEMENT Our mission is to provide quality solar products and services in the most efficient and responsible manner, generating outstanding customer value, while remaining committed to the principles of
SLIDE 2
SLIDE 3
- Over 25 Years of design and manufacturing
experience
- 8 Million satcom systems deployed
throughout the world
- 20-Year Warranty against mechanical failure
- f the frame construction
- NABCEP certified
- Michigan Manufacturers Association
Member
- SEPA Member
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 4
SOLAR MOUNTS, LLC Capabilities
- Automotive driven high volume production
- Quality grade USA produced high strength
steel & hot dipped galvanization
- Low lead times on large projects
- Quality control based on automotive standards
- All components Made in USA
- Buy American Act (ARRA) compliant
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 5
SOLAR MOUNTS PROJECT OVERVIEW
SLIDE 6
Solar Carports/Shade Structures
- 18, 24, 33 or 36 modules per section
- Panel installation from under panels
- 10 gauge galvanized and hot-dipped steel construction
- Bolted connection - no field welding
- Rugged, weather resistant design
- Aesthetically pleasing clean design
- Material comes finished, no need for paint
- 20-year guarantee against mechanical failure
(breakage) of the frame construction
- Turn-key installations available
DESIGN | MANUFACTURING | INSTALLATION Style Options:
- Y-Frame
- T-Frame
- L-Frame
- A-Frame
- P-Frame
- Long Span
SLIDE 7
Ballasted Ground Mount
- 100% galvanized or hot-dipped material
- Only four main components
- Can be installed on uneven terrain
- UL 467 grounding mid clamps
- Mounts 60, 72, and 96 cell panels
- Non-penetrating concrete ballast footing
- Slide-in purlins for fast and easy installation
- Available in 1-high or 2-high configurations
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 8
Ballasted Roof Mount
- Wind loading up to 150 mph
- Anchor attachment options
- Integrated grounding
- UL 467 Clamps
- Minimal installation effort
- Aluminum base pans
- Low PSF roof load - starts at 3 psi
- Stackable design maximizes container load
- Tilt angle of 7°
- Custom tilt angles available
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 9
Post Driven Ground Mount
- Only three main components
- Standard tilt angles 5° - 40°
- Accommodates terrain up to 7°
- UL 467 grounding mid clamp
- Mounts 60, 72, and 96 cell panels
- C-channel (standard), I-beam, helical, and
screw posts
- Slide-in purlins for fast and easy installation
- Available in 1-high or 2-high configurations
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 10
SOLAR MOUNTS, LLC SERVICES OVERVIEW
SLIDE 11
- Experienced and diverse crews
- 1MW+ of installation per week – crew of 8
- 3 Vibratory post pounders – minimal impact
and noise
- Nationwide coverage
- Workmanship warranty
- Licensed and insured
RACKING AND MODULE INSTALLATION
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 12
- Excavation
- Site grading
- Site removal
- Stone/gravel placement
- Silt fence
- Tree/rock removal
- On-site surveys
- Other services
- Geotech
- Road construction
- Surveying post locations
- Fencing
SITE PREPARATION
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 13
- Civil wet stamps, geotechnical analysis,
site surveys
- Concept to completion
- Design services
- Custom product development
(project specific)
- In-house flexibility – work directly with
technical sales and engineering for site specific requirements
- Licensed P.E
CUSTOM ENGINEERING
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 14
- Multiple patents
- Product innovation and adjustable
features
- Custom tooling and design
- Low cost manufacturing processes
- High production/low cost automotive
tooling
- QA/QC based on auto standard
- In-house designs and engineering
TECHNOLOGY and INNOVATION
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 15
RECENT UTILITY SCALE PROJECTS
SLIDE 16
Project Size: 3.6 MW Completion Date: December 2016 Location: Berkley, MA Type of Installation: 4-High Ballasted Ground Mount Field Type: Landfill, sloping hills
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 17
Project Size: 6.6 MW Completion Date: December 2016 Location: Hudson, MA Type of Installation: 3-High Ballasted Ground Mount Field Type: Landfill, sloping hills
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 18
Project Size: 1.77 MW Completion Date: December 2016 Location: North Carver, MA Type of Installation: 3-High Ballasted Ground Mount Field Type: Landfill, sloping hills
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 19
Project Size: 1.7 MW Completion Date: October 2017 Location: Mickleton, NJ Type of Installation: Solar Carport Field Type: Sloping Landscape
DESIGN | MANUFACTURING | INSTALLATION
SLIDE 20
Project Size: 7.8 MW Completion Date: September 2016 Location: Edison, NJ Type of Installation: Ballasted Ground Mount Field Type: Landfill with slopping hills
DESIGN | MANUFACTURING | INSTALLATION
