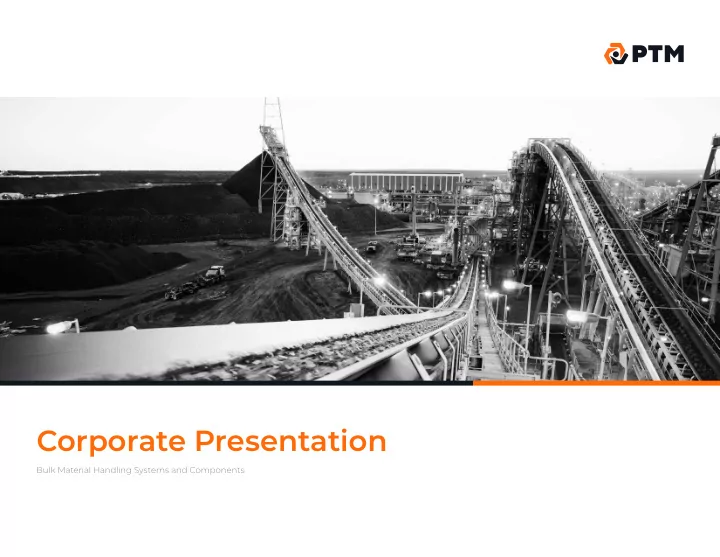

Corporate Presentation

Bulk Material Handling Systems and Components

2

Contents

• Company Overview
• Bulk Material Handling Systems
• Telescopic Loading Spouts
• Components
• Additional Equipment and Steel Structures
• Control Cabinets
• Certifjcates
• Contacts

3

JSC ‘‘PTM’’ is a progressive machine-building enterprise that provides effjcient and high-quality solutions in conveyor technology sector for the mining, metallurgical, petrochemical and energy industries. Our company offers a full range of services: from concept development and design to production and on- site support by competent experienced specialists. The enterprise is equipped with modern technological and high-precision working machines which allow to ensure stable automated manufacturing of high quality products in a short time. A number of machines have been designed by order in Germany specifjcally for our company. There are patents for hot-formed conveyor rollers and a conveyor fmight. The company is included in the list of import-substituting enterprises under the Ministry of Industry and Trade of the Russian Federation.

Company Overview

4

Bulk Material Handling Systems

5

Overland Belt Conveyors

• belt width up to 3000 mm
• belt speed up to 6,3 m/s
• gradient up to 20o (straight belt), up to 45o (chevron belt)
• capacity up to 6000 m3/h

Underground Belt Conveyors

• belt width up to 1600 mm
• belt speed up to 5 m/s
• gradient up to ±18o
• capacity up to 6000 m3/h

Overhead Conveyors

• belt width up to 3000 mm
• belt speed up to 3,2 m/s
• capacity up to 3400 m3/h

Pipe Conveyors

• utside diameter up to 900 mm
• belt speed up to 6,5 m/s
• gradient up to 30o
• capacity up to 7000 m3/h

6

Z-type Conveyors

• belt width up to 2000 mm
• belt speed up to 4 m/s
• gradient up to 90o
• capacity up to 3500 m3/h

Retractable Conveyors

• belt width up to 2500 mm
• belt speed up to 3,2 m/s
• conveyor length up to 120 m
• capacity up to 3400 m3/h

Mobile Stackers

• travel speed up to 0,4 m/s
• belt width up to 2500 mm
• boom length up to 20 m
• capacity up to 500 m3/h

7

Telescopic Loading Spouts

8

Telescopic Loading Spouts

Telescopic loading spout (TLS) is designed for dust-free load onto an

• utdoor storage area or ships.

It consists of a fixed platform with a drive unit mounted on it and a mobile telescopic spout. Three cables provide the movement process. There are sensors of extreme positions, cable break, clogging and material level installed on the equipment. TLS is completed with a control cabinet, a cable reel and a terminal box.

Technical Specifications

Capacity up to 2000 m3/h Flange diameter up to 900 mm Granulometric composition

• f bulk material

up to 400 mm Length (min / max) 3000 mm / 20000 mm IP IP54 and higher Power 380 / 220 V

9

Components

10

• 1. roller shell made of tube and has no weld bead
• 2. roller shaft made of rolled steel
• 3. inner shields
• 4. shielded bearing
• 5. set of multiple lab sealings
• 6. rotary seals
• 7. outer protective sleeve
• 8. metal protective cover
• 9. locking ring

Hot-formed Conveyor Rollers

Hot-formed (HF) roller is effjcient in any operational conditions with any kind of

• cargo. Design service life is rated up to 50 000 hours if conditions are met.

Main Advantages of HF Roller:

• increased lifetime;
• the belt is stable to attrition due to absence of sharp edges in a roller

housing;

• internal roller space is sealed with rotary seal;
• doesn't need any additional balancing;
• can be used on high-speed conveyors;
• lack of vibrations makes conveyor more silent;
• HF rollers have more solid construction than standard ones;
• initial and rotary resistance is lower than standard rollers have.

11

We offer a wide range of components for different types of conveyors. Our enterprise is maximally automated and tooled up with the most modern equipment from the world's leading manufacturers. The quality of products is provided by automation of technological support and preproduction as well as implementation of the quality management system ISO 9001:2015 (certified by Bureau Veritas).

Conveyor Rollers

• carrying
• cleaning
• impact
• disc
• defmector

Conveyor Idlers

• trough idlers (with different types of rollers)
• self-align
• garlands

Conveyor Pulleys

• drive
• non-drive
• lined
• with holdfast couplings or key-and-slots

12

Additional Equipment and Steel Structures

13

Our enterprise produces various types of steel structures. All products are manufactured according to individual projects for each specific order taking into account all customer's requirements as well as the impact of external factors. Our technical department specialists calculate and design a complete set of technical documentation for the manufacture of the entire range of products. All metal structures are coated with powder polymer paint to protect them from the agressive effects of the ambient conditions.

Additional Equipment and Steel Structures

• Conveyor Flights
• Drive Stations
• Take-up Stations
• Protective Covers
• Charging Chutes
• Flare Boards
• Construction and Non-standard Metal Structures

14

Control Cabinets

15

Our company offers services of control cabinets design and construction to solve the task of managing technological equipment in order to achieve

• ptimal production, economic and technical parameters of its work.

Range of Services

• inspection of an object to be automated
• preparation of technical requirements specifjcation
• engineering design
• equipment supply
• supervising installation and assembling of control cabinets and

engineering work stations

• commissioning work
• instruction and consulting of customer's staff
• warranty and after warranty servicing

General Properties

• rated voltage, kV: 0,23; 0,4; 0,69
• frequency, Hz: 50-60
• engine power controlled by low-voltage package, kW: 0,18-400
• motor control: direct start, soft start, frequency control
• design: wall, fmoor
• execution: general purpose industrial version
• climatic modifjcation: UHL4 (GOST), other —by custom order
• protection class: IP30, IP54

The construction of control cabinets is carried out in strict accordance with the developed design and technical documentation on the element base of such world manufacturers as Schneider Electric, ABB, Siemens, etc.

16

Industries

Our company offers control cabinets for the majority of industries.We approach to each customer individually taking into account the latest trends in the industry.

Mining Power Construction

• automated control of conveyor lines;
• electric lightning;
• automatization of lifting machines;
• automatization of rail vehicles, trolley unloading mechanisms;
• automation of drainage pumps, ventilation fans;;
• positioner control cabinets.
• complete automation of power distribution;
• emergency protection and all other processes of power plants operations;
• automation of joint operation of plants with a search for the optimal mode
• f each of them and the station as a whole;
• control cabinets for electric drives for general industrial use.
• control cabinets for loading / unloading bulk materials;
• control cabinets for lifting machines;
• crane control panels.

17

Machine Agriculture Wood-working Housing and Public Utilities

• electric power supply of conveyors, cargo carriers and other power

equipment;

• control cabinets for electric valves and control valves and other actuators;
• control cabinets for overhead-track hoist;
• crane control panels;
• control cabinets of welding manipulators;
• modernization of machine tools.
• control cabinets of dosing lines and mixing;
• control cabinets of grain cleaning and grain drying complexes;
• automatic climate control systems;
• cabinets (boards) of ventilation control, pumping equipment;
• control cabinets of milking machines.
• wood processing control cabinets;
• force control cabinets when gluing.
• control cabinets of boiler rooms, pumping stations;
• automatic lighting control systems;
• automation of water treatment and water transport;
• automation of sewage and storm water disposal systems

18

Certificates

Certificate of Conformance Quality Management System ISO 9001:2015 Bureau Veritas Certificate of Conformance Belt stationary conveyors, mobile, fmying conveyors up to 3000mm №TC RU C-RU MH04.B00351 Certificate of Conformance Belt conveyors №TC RU C-RU MH04.B00232 Certificate of Conformance Underground conveyors №TC RU C-RU.AA71.B00252 Certificate of Conformance Low-voltage devices in sets №TC RU C-RU.ИМ43.В.00989 Certificate of Conformance Terminal boxes №TC RU C-RU.ИМ43.В.00984 Typical Product Certification TP TC 010/2011 Telescopic loading device for dust-free loading №ЕАЭС RU CT-RU AT15.B.01008 Declaration of Compliance TP TC 004_2011, TP TC 020_2011 Telescopic loading device for dust-free loading ЕАЭС №RU Д-RU AT15.B.02347 Declaration of Compliance TP TC 010_2011 Telescopic loading device for dust-free loading ЕАЭС №RU Д-RU AT15.B.02346

JSC ''PTM''

• ul. Khimicheskaya, 11-1

Taganrog, Rostov obl. 347913 Russian Federation phone: +7 (8634) 329-410 fax: +7 (8634) 329-411 email: offjce@ptmash.com www.ptmash.com

Contact us
