SLIDE 1

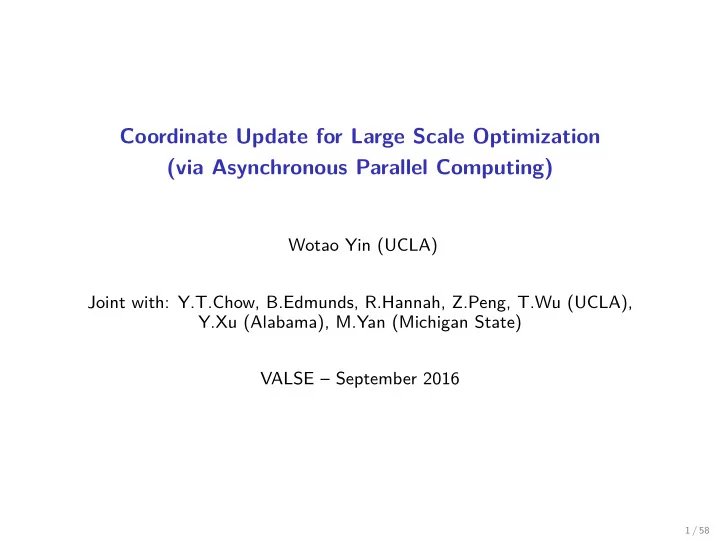

Coordinate Update for Large Scale Optimization (via Asynchronous Parallel Computing)

Wotao Yin (UCLA) Joint with: Y.T.Chow, B.Edmunds, R.Hannah, Z.Peng, T.Wu (UCLA), Y.Xu (Alabama), M.Yan (Michigan State) VALSE – September 2016

1 / 58

SLIDE 2

How much do we need parallel computing?

SLIDE 3

Back in 1993

2 / 58

SLIDE 4

2006

3 / 58

SLIDE 5

2014–2016

4 / 58

SLIDE 6

35 Years of CPU Trend

1995 2000 2005 2010 2015 Number

f CPUs

Performance per core Cores per CPU

D. Henty. Emerging Architectures and Programming Models for Parallel Computing, 2012.

5 / 58

SLIDE 7

Today: 4x ADM 16-core 3.5GHz CPUs (64 cores total)

6 / 58

SLIDE 8

Today: Tesla K80 GPU (2496 cores)

7 / 58

SLIDE 9

Today: Octa-Core Headsets

8 / 58

SLIDE 10

Free lunch is over!

9 / 58

SLIDE 11

How to use all the cores available?

SLIDE 12

Parallel computing

Agent Agent Agent t1 t2 tN · · ·

Problem

10 / 58

SLIDE 13

Parallel speedup

definition:

speedup = serial time parallel time

Amdahl’s Law: N agents, ρ percent of computing is parallel

ideal speedup = 1 (ρ/N) + (1 − ρ)

10 10

2

10

4

10

6

10

8

5 10 15 20 Number of processors Speedup 25% 50% 90% 95%

11 / 58

SLIDE 14

Parallel speedup

ε := parallel overhead (e.g., startup, synchronization, collection)
real world:

speedup = 1 (ρ/N) + (1 − ρ) + ε

10 10

2

10

4

10

6

10

8

2 4 6 8 10 Number of processors Speedup 25% 50% 90% 95% 10 10

2

10

4

10

6

10

8

5 10 15 20 Number of processors Speedup 25% 50% 90% 95%

when ε = N when ε = log(N)

12 / 58

SLIDE 15

Sync versus Async

Agent 1 Agent 2 Agent 3

idle idle idle idle

Synchronous (wait for the slowest)

Agent 1 Agent 2 Agent 3

Asynchronous (non-stop, no wait)

13 / 58

SLIDE 16

Sync versus Async

Sync Async Sync Wait

Latency
Bus Contention
Memory Contention
Theory
Scalability

Good Better

14 / 58

SLIDE 17

Compute more, communicate less CPU speed ≫ streaming speed = O(bandwidth) ≫ response speed = 1 latency

15 / 58

SLIDE 18

Decompose-to-parallelize optimization models

SLIDE 19

Large-sum decomposition

minimize

x∈Rm

r(x) + 1 N

N

i=1

fi(x)

interested in large N
nice structures: fi’s are smooth and r is proximable
Stochastic approximation methods: SG, SAG, SAGA, SVRG, Finito

pro: faster than batch methods con: update entire x ∈ Rm; model is restricted

16 / 58

SLIDE 20

Coordinate descent (CD) decomposition

minimize

x∈Rm

f(x1, . . . , xm) + 1 m

m

i=1

ri(xi)

f is smooth, ri can be nonsmooth
update variables in a (shuffled) cyclic, random, greedy, or parallel fashion

pro: faster than the full-update method con: nonsmooth functions need to separable

17 / 58

SLIDE 21

Solution overview

1. Re-formulate a problem into

x = T(x) (use dual variables, operator splitting)

2. Apply coordinate update (CU): at iteration k, select ik, do

xk+1

i

=

T(xk)

i

if i = ik xk

i

therwise.
3. Parallelize CU without sync or locking

18 / 58

SLIDE 22

Async-parallel coordinate update

SLIDE 23

Brief history of async-parallel fixed-point algorithms

1969 – a linear equation solver by Chazan and Miranker;
1978 – extended to the fixed-point problem by Baudet under the

absolute-contraction1 type of assumption.

For 20–30 years, mainly solve linear, nonlinear and differential equations by

many people

1989 – Parallel and Distributed Computation: Numerical Methods by

Bertsekas and Tsitsiklis. 2000 – Review by Frommer and Szyld.

1991 – gradient-projection itr assuming a local linear-error bound by Tseng
2001 – domain decomposition assuming strong convexity by Tai & Tseng

1An operator T : Rn → Rn is absolute-contractive if |T (x) − T (y)| ≤ P |x − y|, component-wise, where

|x| denotes the vector with components |xi|, i = 1, ..., n, and P ∈ Rn×n

+

and ρ(P ) < 1.

19 / 58

SLIDE 24

Simple demo

x2 update is delayed; distance to solution increases!

20 / 58

SLIDE 25

Simple demo

x2 update is delayed; distance to solution increases!

21 / 58

SLIDE 26

Simple demo

x2 update is delayed; distance to solution increases!

22 / 58

SLIDE 27

Simple demo

If x1 is updated much more frequently than x2 then divergence is likely.

23 / 58

SLIDE 28

Previous theory: absolute-contractive operator

Absolute-contractive operator T : Rn → Rn:

if |T(x) − T(y)| ≤ P|x − y|, component-wise, where |x| denotes the vector with components |xi|, i = 1, ..., n, and P ∈ Rn×n

+

and ρ(P) < 1.

Interpretation: the full update xk+1 = Txk must produce x1, x2, . . . that

lie in nested shrinking boxes

Result: stable to async-parallelize xk+1 = Txk; some but few applications

24 / 58

SLIDE 29

Randomized coordinate selection

select xi to update with probability pi, where mini pi > 0
benefits:
much more applications
automatic load balance
drawback:
require either global memory or communication
pseudo-random number generation takes time
practice:
despite theory, full randomization is unnecessary
enough to shuffle coordinates once

25 / 58

SLIDE 30

Proposed method and theory

SLIDE 31

ARock2: Async-parallel coordinate update

problem: x = T(x)
x = (x1, . . . , xm) ∈ H1 × · · · × Hm
sub-operator Si(x) := xi − (T(x))i
algorithm: each agent randomly picks ik ∈ {1, . . . , m}:

xk+1

i

←

xk

i − ηkSi(xk−dk),

if i = ik xk

i ,

therwise.
assumptions: nonexpansive T, no locking (dk is a vector), atomic update
guarantee: almost sure weak convergence under proper ηk

2Peng-Xu-Yan-Y. SISC’16 26 / 58

SLIDE 32

Nonexpansive operator T

Problem: find x such that x = T(x)

r

0 = S(x) where T = I − S.

Assumption (nonexpansiveness)

The operator T : H → H is nonexpansive, i.e., T(x) − T(y) ≤ x − y ∀x, y ∈ H.

Assumption (existence of solution)

FixT := {x ∈ H : x = T(x)} is nonempty.

27 / 58

SLIDE 33

Krasnosel’ski˘ i–Mann (KM) iteration

fixed-point problem: find x such that

x = T(x)

KM iteration: T is nonexpansive, pick η ∈ [ǫ, 1 − ǫ], iterate:

xk+1 = xk − η (I − T)

S

(xk)

why important: generalizes gradient descent, proximal-point algorithm,

prox-gradient, operator-splitting algorithms such as alternating projection, Douglas-Rachford and ADMM, parallel coordinate descent, . . .

28 / 58

SLIDE 34

weak case: if T has a fixed point and is nonexpansive, then weak

converge to a fixed point, Sxk2 = o(1/k)

strong case: if T is contractive, then has a unique fixed point and linear

convergence

29 / 58

SLIDE 35

ARock convergence

notation:

m = # coordinates
τ = max async delay
for simplicity, uniform selection pi ≡

1 m

Theorem (Known max delay)

Assume that T is nonexpansive and has a fixed point. Use step sizes ηk ∈ [ǫ,

1 2m−1/2τ+1), ∀k. Then, with probability one, xk ⇀ x∗ ∈ FixT.

Consequence:

O(1) step size if τ ∼ √m
no need to sync until at least p > O(√m)

30 / 58

SLIDE 36

Stochastic (unbounded) delays

jk,i: delay of xi at iteration k
Pℓ := Pr[maxi{jk,i} ≥ ℓ]: iteration-independent distribution of max delay
∃ B ∋ ∀k, |jk,i − jk,i′| < B: xi’s delays are even old at each iteration

Theorem

Assume that T is nonexpansive and has a fixed point. Fix c ∈ (0, 1). Use fixed step size η = cH for either of the following cases:

1. if

ℓ(ℓPℓ)1/2 < ∞, set H =

1 +

1 √m

ℓ P 1/2

ℓ

(ℓ1/2 + ℓ−1/2)−1

2. if

ℓ ℓP 1/2 ℓ

< ∞, set H = 1 +

2 √m

ℓ P 1/2

ℓ

−1

Then, with probability one, xk ⇀ x∗ ∈ FixT.

31 / 58

SLIDE 37

Arbitrary unbounded delays

jk,i: async delay of xi at iteration k
jk = maxi{jk,i}: max delay at iteration k
lim inf jk < ∞: all but finitely many iterations have a bounded delay

Theorem

Assume that T is nonexpansive and has a fixed point. Fix c ∈ (0, 1) and R > 1. Use step sizes ηk = c

1 +

Rjk−1/2 √m(R − 1)

−1

. Then, with probability one, xk

bnd ⇀ x∗ ∈ FixT.

Optionally optimize R based on {jk}.

32 / 58

SLIDE 38

Numerical results

SLIDE 39

TMAC: A Toolbox of Async-Parallel, Coordinate, Splitting, and Stochastic Methods

C++11 multi-threading (no shared-memory parallelism in Matlab)
Plug in your operators, get free coordinate-update and async-parallelism
github.com/uclaopt/tmac
committers: Brent Edmunds, Zhimin Peng
contributors: Yerong Li, Yezheng Li, Tianyu Wu
supports: Windows, Mac, Linux

33 / 58

SLIDE 40

ℓ1 logistic regression

model:

minimize

x∈Rn

λx1 + 1 N

N

i=1

log 1 + exp(−bi · aT

i x)

, (1)

sparse numerical linear algebra are used for datasets: news20, url

5 10 15 20 Threads 5 10 15 20 Speedup sync async ideal

dataset “news20”

5 10 15 20 Threads 5 10 15 20 Speedup sync async ideal

dataset “url”

34 / 58

SLIDE 41

Nonnegative matrix factorization

model:

minimize

X,Y ≥0

A − XT Y 2

F ,

(2)

despite nonconvex, amenable to parallel coordinate descent

50 100 150 200 Time(s) 104 105 106 107 108 Objective 1 core 2 cores 4 cores 8 cores 16 cores 5 10 15 20 Threads 5 10 15 20 Speedup async ideal 35 / 58

SLIDE 42

Practical issue: coordinate friendly structure

SLIDE 43

Coordinate friendly (CF) structure

CU is fast only if the subproblems are simple
require: cost

each CUi(z) = O 1

mcost[z → Tz]

for all z, i

CF is found on most first-order methods for structured problems3
May require caching and maintaining extra variables
May require switch orders in operator splitting
3Z. Peng, T. Wu, Y. Xu, M. Yan, and W. Yin, Coordinate Friendly Structures, Algorithms and Applications,

Annals of Math Sci. and App., 2016.

36 / 58

SLIDE 44

Single-operator examples

matrix-vector multiplication
separable functions
box-type constraints
sum of sparsely supported functions (arising in graphical models)
many loss functions of the form f(Ax), where f is (nearly) separable

37 / 58

SLIDE 45

Composed operators

there are 9 rules for CF T1 ◦ T2, which cover widely many examples
general principles:
T1 ◦ T2 inherits the weaker separability property of the two
CF T1 ◦ T2 generally requires T1 to be CF and T2 to be either cheap,

easy-to-maintain, or directly CF.

If T1 is separable or cheap, requirement on T2 is weakened.

38 / 58

SLIDE 46

Examples

Operator-splitting algorithms for the following problems are CF
total variation image processing
portfolio optimization
most sparse optimization problems
linear and second-cone programs
most ERM and SVMs

39 / 58

SLIDE 47

Practical issue: nonseparable nonsmoothness

SLIDE 48

Coordinate descent (CD) illustration

40 / 58

SLIDE 49

CD fails on nonseparable nonsmooth functions

2 2 4 4 4 4 6 6 6 6 6 6 8 8 8 8 8 8 10 1 10 1 1 2 1 2

5
4
3
2
1

1 2 3 4 5

5
4
3
2
1

1 2 3 4 5

Rotated weighted ℓ1-norm. CD fixed-point is not stationary!

41 / 58

SLIDE 50

smooth f(x1, x2)

p1 = ∇1f(x1, x2) p2 = ∇2f(x1, x2) = ⇒

p1

p2

= ∇f(x1, x2)
nonsmooth r(x1, x2)

q1 ∈ ∂1r(x1, x2) q2 ∈ ∂2r(x1, x2) = ⇒

q1

q2

∈ ∂r(x1, x2)

(however, “= ⇒” holds if r is separable.)

42 / 58

SLIDE 51

What do we want to solve?

total variation minimization:

minimize

x

TV(x) + 1 2Ax − b2

optimization over a graph G = (N, E)

minimize

x

(i,j)∈E

f(xi − xj) +

i∈N

gi(xi)

consensus optimization (decentralized computing)

minimize

x1,...,xm

f1(x1) + f2(x2) + · · · + fm(xm) subject to x1 = x2 = · · · = xm

43 / 58

SLIDE 52

second-order cone program

minimize

x1,...,xm

cT x + 1 2xT Bx subject to A1x1 + A2x2 + · · · + Amxm = b x1 ∈ Q1, x2 ∈ Q2 . . . , xm ∈ Qm

extended monotropic program

minimize

x1,...,xm

g1(x1) + g2(x2) + · · · + gm(xm) + f(x) subject to A1x1 + A2x2 + · · · + Amxm = b where gi are nonsmooth and extended-valued

44 / 58

SLIDE 53

Solution overview

1. Re-formulate a problem into

x = T(x) (use dual variables, operator splitting)

2. Apply coordinate update (CU): at iteration k, select ik, do

xk+1

i

=

T(xk)

i

if i = ik xk

i

therwise.
3. Parallelize CU without sync or locking

45 / 58

SLIDE 54

Primal-dual splitting for extended monotropic program

minimize

x1,...,xm

g1(x1) + g2(x2) + · · · + gm(xm) + f(x) subject to A1x1 + A2x2 + · · · + Amxm = b

function f is smooth and nonseparable
primal-dual splitting with a special metric: a new parallel algorithm
sk+1 = sk + γ(Axk − b)

xk+1

i

= proxηgi

xk

i − η(∇if(xk) + AT i sk + 2γAT i Axk − 2γAT i b)

, i = 1, . . . , m

Jacobi style
Gives async-parallel algorithms for: LP, QP, SOCP, multi-block

ADMM-able problems (no matrix inversions)...

46 / 58

SLIDE 55

CT recovery: full vs random coordinate update

284 × 284, 90 beam projections, 362 measurements each beam
TV minimization partitioned to 284 columns (blocks), run 100 epochs

47 / 58

SLIDE 56

Portfolio optimization simulation

minimizex 1 2x⊤Qx risk , subject to x ≥ 0 buy ,

m

i=1

xi ≤ 1

limit

,

m

i=1

ξixi ≥ c

return

,

reformulation:

minimize

x

risk + ιD1(x) + ιD2(x) where D1 = {buy} and D2 = {limit, return}

full update based on 3-splitting operator (Davis-Y.’15)

zk+1 = T3S(zk)

48 / 58

SLIDE 57

Full vs random coordinate update

49 / 58

SLIDE 58

More applications

SLIDE 59

Linear equations (asynchronous Jacobi)

require: invertible square matrix A with nonzero diagonal entries
let D be the diagonal part of A; then

Ax = b ⇐ ⇒ (I − D−1A)x + D−1b

T x

= x.

T is nonexpansive if I − D−1A2 ≤ 1, i.e., A is diagonal dominating
xk+1 = Txk recovers the Jacobi algorithm

50 / 58

SLIDE 60

Algorithm 1: ARock for linear equations Input : shared variables x ∈ Rn, K > 0; set global iteration counter k = 0; while k < K, every agent asynchronously and continuously do sample i ∈ {1, . . . , m} uniformly at random; add − ηk

aii ( j aij ˆ

xk

j − bi) to shared variable xi;

update the global counter k ← k + 1;

51 / 58

SLIDE 61

Sample code

loadData (A, d a t a f i l e n a m e ) ; loadData (b , l a b e l f i l e n a m e ) ; #pragma omp p a r a l l e l num threads ( p ) shared (A, b , x , para ) { // A, b , x , and para are passed by r e f e r e n c e c a l l Jacobi (A, b , x , para )

r ARock (A, b , x , para ) ;

}

p: the number of threads
A,b,x: shared variable
para: other parameters

52 / 58

SLIDE 62

Jacobi worker function

f o r ( i n t i t r =0; i t r <ma x itr ; i t r ++) { // compute the update f o r the a s s i g n e d x [ i ] // . . . #pragma omp b a r r i e r { // w r i t e x [ i ] i n g l o b a l memory } #pragma omp b a r r i e r } Jacobi needs the barrier directive for synchronization

53 / 58

SLIDE 63

ARock worker function

f o r ( i n t i t r =0; i t r <ma x itr ; i t r ++) { // pick i at random // compute the update f o r x [ i ] // . . . // w r i t e x ( i ) i n g l o b a l memory } ARock has no synchronization barrier directive

54 / 58

SLIDE 64

Minimizing proximable+proximable functions

problem and operator

minimize

x

f(x) + g(x) ⇐ ⇒ z∗ = reflγf ◦ reflγg

TPRS

(z∗). recover x∗ = proxγg(z∗)

TPRS: Peaceman-Rachford splitting4
ARock gives async-parallel algorithms for
linear programs, second-order cone programs (inverting matrices)
ADMM-able problems

4reflective proximal map: reflγf := 2proxγf − I. The maps reflγf , reflγg and thus

reflγf ◦ reflγg are nonexpansive

55 / 58

SLIDE 65

Parallel/distributed ADMM

structure: m convex functions fi; one convex function g
consensus problem:

minimize

x

m

i=1 fi(A(i)x) + g(x)

assign g to the master, and assign fi and Ai to worker i

Master Worker Worker Worker

......

async: master does not need to wait for all workers to communicate

56 / 58

SLIDE 66

Async-parallel decentralized computing

a graph of connected agents: G = (V, E).
decentralized consensus optimization problem:

minimize

xi∈Rd,i∈V f(x) := i∈V fi(xi)

subject to xi = xj, ∀(i, j) ∈ E

each agent keeps fi private and only talks to neighbors
resulting async-algorithm: no global clock, no coordinator

57 / 58

SLIDE 67

Summary of async-parallel coordinate update:

applicable to many problems
faster than full update and scalable

Papers: UCLA CAM reports

15-37

theory

16-13

problem structure, applications

16-37

C++11 solver: github.com/uclaopt/tmac

16-64

unbounded delay

Thank you!

58 / 58
