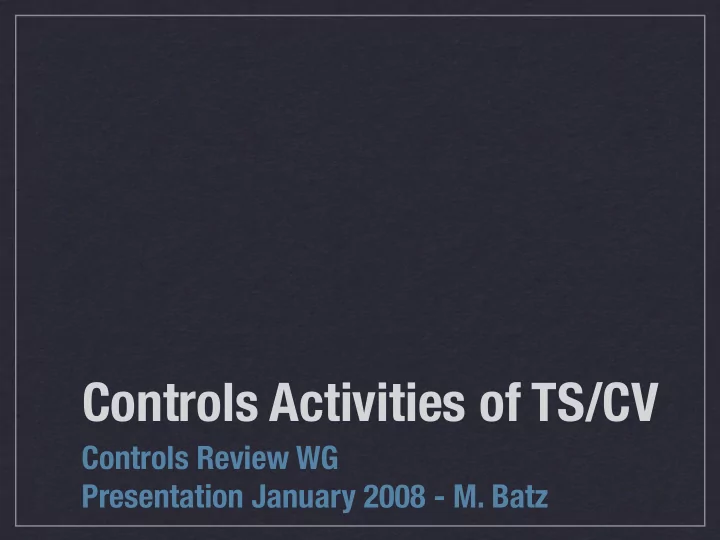

Controls Activities of TS/CV Controls Review WG Presentation - PowerPoint PPT Presentation

Jun 11, 2023 •124 likes •566 views

Controls Activities of TS/CV Controls Review WG Presentation January 2008 - M. Batz Table of contents Installation park Organisation Architecture Outlook The park Installations Installation value ~ 500 MCHF 35.000 installations/equipment

  1. Controls Activities of TS/CV Controls Review WG Presentation January 2008 - M. Batz

  2. Table of contents Installation park Organisation Architecture Outlook

  3. The park

  4. Installations Installation value ~ 500 MCHF 35.000 installations/equipment ~1500 different processes located in 530 buildings

  5. COOLING TOWER LHC LHC 1

  6. COOLING TOWERS 237

  7. PUMPING INSTALLATION 289

  8. Automation & Instrumentation ~25% of equipment value including instrumentation & hardware & development 5% to 50% depending on the size of project ~400 PLC’s installed Schneider Premium single & redundant, SIEMENS S5, S7, S-series, Landis, Trane

  9. EXAMPLE OF S5 INSTALLATION PS AREA

  10. CONTROL CUBICLE ED29 358

  11. ED35 SEPTA MEYRIN

  12. EXAMPLE OF LEGACY SYNOPTICS PS BOOSTER COOLING

  13. RELAY CONTROL AND INTERFACE 361

  14. SCADA & Data Acquisition ~1% of equipment value Licences 1.8 MCHF (WIZCON) + 0.4 MCHF PCVue Development ~ 3 MCHF Hardware ~ 0.1 MCHF

  15. COOLING - WIZCON WEST ZONE

  16. VENTILATION - WIZCON LHC 18

  17. COOLING - PCVUE TOF

  18. ALARM SCREEN - PCVUE TOF

  19. Organisation

  20. Activities

  21. External to TS/CV TS/CV TS/CV

  22. External to TS/CV TS/CV TS/CV Process equipment & instrumentation

  23. External to TS/CV TS/CV TS/CV Electricity & process control Process equipment & instrumentation

  24. External to TS/CV TS/CV TS/CV Premium S5 Landis Automation Quantum S7 Trane TS Electricity & process control Process equipment & instrumentation

  25. External to TS/CV TS/CV TS/CV Interfaces Premium S5 Landis Automation Quantum S7 Trane TS Electricity & process control Process equipment & instrumentation

  26. External to TS/CV TS/CV TS/CV Interfaces Data Acquisition Premium S5 Landis Automation Quantum S7 Trane TS Electricity & process control Process equipment & instrumentation

  27. External to TS/CV TS/CV TS/CV SCADA S c a d a S o l u t i o n s Interfaces Data Acquisition Premium S5 Landis Automation Quantum S7 Trane TS Electricity & process control Process equipment & instrumentation

  28. External to TS/CV TS/CV TS/CV TIM SCADA S c a d a S o l u t i o n s Interfaces Data Acquisition Premium S5 Landis Automation Quantum S7 Trane TS Electricity & process control Process equipment & instrumentation

  29. Structure

  30. TS/CV Process, Instrumentation, Electricity, Controls, Automation, Interfaces, Data Acquisition, SCADA

  31. TS/CV Process, Instrumentation, Electricity, Controls, Automation, Interfaces, Data Acquisition, SCADA Preliminary Design Standardisation Specifications

  32. TS/CV Process, Instrumentation, Electricity, Controls, Automation, Interfaces, Data Acquisition, SCADA Preliminary Design Standardisation Specifications Turn Key Contracts New Installations RESA GESCO AFR GTD ACTENIUM 7VV7 ZEC SPIE CCM ... C194

  33. TS/CV Process, Instrumentation, Electricity, Controls, Automation, Interfaces, Data Acquisition, SCADA Preliminary Design Standardisation Specifications Turn Key Contracts Maintenance New Installations Contracts RESA GESCO AFR GTD SPIE ArcInfo CEGELEC C194 AFR ACTENIUM 7VV7 ZEC SPIE CCM ... C194

  34. CERN Contracts HP SCHNEIDER PCs SIEMENS ... Site Licences TS/CV Process, Instrumentation, Electricity, Controls, Automation, Interfaces, Data Acquisition, SCADA Preliminary Design Standardisation Specifications Turn Key Contracts Maintenance New Installations Contracts RESA GESCO AFR GTD SPIE ArcInfo CEGELEC C194 AFR ACTENIUM 7VV7 ZEC SPIE CCM ... C194

  35. CERN Contracts IT Services HP SCHNEIDER Network CMF DFS PCs SIEMENS Authentication WTS ... Site Licences AD/LDAP TS/CV Process, Instrumentation, Electricity, Controls, Automation, Interfaces, Data Acquisition, SCADA Preliminary Design Standardisation Specifications Turn Key Contracts Maintenance New Installations Contracts RESA GESCO AFR GTD SPIE ArcInfo CEGELEC C194 AFR ACTENIUM 7VV7 ZEC SPIE CCM ... C194

  36. CERN Contracts IT Services AB Services HP SCHNEIDER Network CMF DFS HP SCHNEIDER PCs SIEMENS Authentication WTS SIEMENS ... Site Licences AD/LDAP TS/CV Process, Instrumentation, Electricity, Controls, Automation, Interfaces, Data Acquisition, SCADA Preliminary Design Standardisation Specifications Turn Key Contracts Maintenance New Installations Contracts RESA GESCO AFR GTD SPIE ArcInfo CEGELEC C194 AFR ACTENIUM 7VV7 ZEC SPIE CCM ... C194

  37. Architecture

  38. PCVUE ARCHITECTURE NEW SYSTEMS

  39. Outlook

  40. CERN Contracts Set-up VMWare licence contract Electrical material from SCHNEIDER Integrate obligations of material availability (SCHNEIDER), e.g.: FIPIO I/Os stop of production & spares stop within 3 months Power converter productions & spares stop with 3 months Set-up official and systematic communication of contractual and technical evolutions to all users

  41. IT Services Set-up Service Level Agreements satisfying user needs. e.g.: extend services system configurations set-up a single entry point for all services Improve network analysis Set-up 24/7 services for essential systems Expand licence management & procurement for industrial environments

  42. AB Services Central PLC spares inventory Local spare parts management Set-up central official PLC expertise support, e.g.: technical support firmwares high-end knowledge in hardware, software Set-up official 24/7 support for CCR

  43. Conclusion Main focus is on processes & field equipment Ressources are mainly subcontracted SCADA systems are essential for time efficient remote operation of installations by TS/CV operation TS/CV external services have important impact on quick failure recovery Consolidation of (legacy) systems very long
