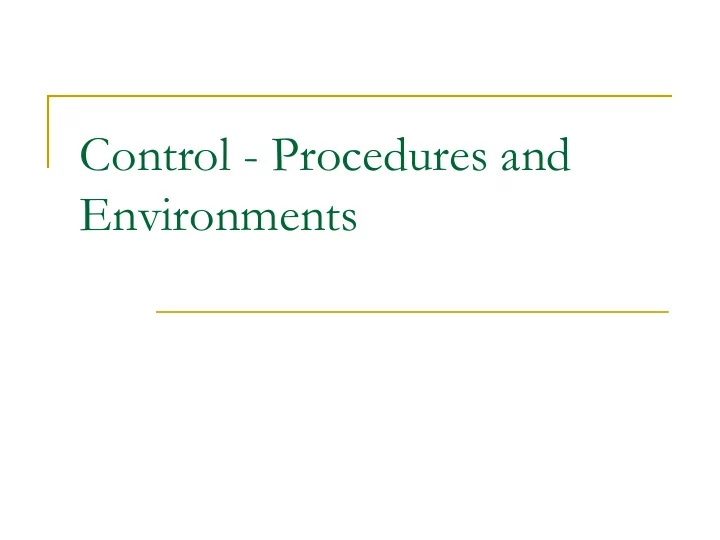

Control - Procedures and Environments Control Procedure definition - - PowerPoint PPT Presentation
Control - Procedures and Environments Control Procedure definition and activation: A procedure is a mechanism in a programming language for abstracting a group of actions or computations. The group of actions is called the body of the
Procedure definition and activation:
A procedure is a mechanism in a programming language for
abstracting a group of actions or computations.
The group of actions is called the body of the procedure. A procedure is represented by a specification including
A name,
The types and names of parameters.
The type of the return value.
We shall not make a significant distinction between a function
and a procedure, although differences exist.
2
Procedure definition and activation:
Example:
//C++ code void intSwap (int &x, int &y) //Specification { int temp = x; //Body x = y; //Body y = temp; //Body }
Formal Parameters
3
Procedure definition and activation:
A procedure is called or activated by stating its
Example:
intSwap(a, b);
Actual Parameters
4
Procedure definition and activation:
A call to the procedure transfers control to the
In some languages, control can be returned to the
5
Procedure definition and activation:
Example:
//C++ code void intSwap (int &x, int &y) { if (x == y) return; int temp = x; x = y; y = temp; }
If x is equal to y, the function will exit here
6
Procedure definition and activation:
In some languages such as FORTRAN, to call a
CALL INTSWAP (A, B)
In FORTRAN, procedures are called subroutines.
7
Procedure definition and activation:
In some languages, procedure and function declarations
are written in a form similar to constant declarations:
Example: ML
(* ML code *) fun swap (x, y) = let val t = !x in x:= !y y:= t end;
8
Procedure definition and activation:
In such ML case, we can say that a procedure declaration
creates a constant procedure value.
It associates a symbolic name (the name of the procedure)
with the value.
A procedure communicates with the rest of the program
through its:
Parameters
Non-local references (references to variables outside the procedure body)
9
Procedure Semantics:
When a block is encountered during execution, it
The memory allocated for the local objects of the
10
Procedure Semantics:
When a block is encountered during execution, it
The memory allocated for the local objects of the
11
Procedure Semantics:
int x; void B(void){ int i; i = x/2; } void A(void){ int x, y; B(); } main(){ A(); return 0; }
x x y i
Global Environment Activation Record of A Activation Record of B Using Lexical Scoping, which x is this?
12
Procedure Semantics:
int x; void B(void){ int i; i = x/2; } void A(void){ int x, y; B(); } main(){ A(); return 0; }
x x y i
Global Environment Activation Record of A Activation Record of B Using Lexical Scoping, which x is this?
The global environment is called the defining environment of B The activation record of A is called the calling environment of B
13
Procedure Semantics:
int x; void B(void){ int i; i = x/2; } void A(void){ int x, y; B(); } main(){ A(); return 0; }
x x y i
Global Environment Activation Record of A Activation Record of B Using Lexical Scoping, which x is this?
The global environment is called the defining environment of B The activation record of A is called the calling environment of B The x is that of the defining environment : The global x
14
Procedure Semantics:
A procedure may have multiple calling
However, a procedure will have one defining
15
Parameter Passing Mechanisms:
Pass by value. Pass by reference. Pass by value result. Pass by name and delayed evaluation.
16
Parameter Passing Mechanisms:
Pass by value:
The value of the parameter is evaluated.
The parameter is passed as a constant.
It’s value cannot be modified, or if modified does not affect the actual parameter.
This is by far the most common mechanism for parameter passing.
In Java, all primitive data types are passed by value.
17
Parameter Passing Mechanisms:
Pass by value (C):
void increment (int x){ x++; } increment (y); A copy of y is made and passed to x. Changing x DOES NOT change y.
18
Parameter Passing Mechanisms:
Pass by reference:
The location of the parameter is passed.
The formal parameter becomes an alias to the actual parameter.
Any change in the formal parameter affects the actual parameter.
In FORTRAN, passing by reference is the only allowed parameter passing mechanism.
In C++ and Pascal, passing by reference is specified using an extra syntax.
19
Parameter Passing Mechanisms:
Pass by reference (C):
void increment (int &x){ x++; } increment (y); x becomes an alias of y. Changing x affects y. The & before x specifies passing by reference.
20
Parameter Passing Mechanisms:
Pass by reference:
If FORTRAN only allows passing by reference. How is a call such as inc(2) achieved? A temporary variable is located, initialized with 2, and
passed.
This mimics passing by value in a passing by reference
mechanism.
21
Parameter Passing Mechanisms:
Pass by Value-Result:
This mechanism achieves a similar result to passing by reference.
No actual alias is established.
A copy of the actual parameter is made, used in the procedure, and then copied back to the actual parameter.
Also known as copy-in, copy-out.
Also known as copy-restore.
22
Parameter Passing Mechanisms:
Pass by Name and Delayed Evaluation:
The actual parameter passed to the procedure is NOT
evaluated until it is actually used in the called procedure.
23
Parameter Passing Mechanisms:
Pass by Name and Delayed Evaluation:
Example:
Void inc(int x) { … x++; } inc(a[i]);
a[i] only evaluated here! If i somehow changed in procedure inc before this point, BIG problem!! We will not be incrementing the actually intended a[i]
24
Parameter Passing Specification:
Parameter passing specification is different than
Parameter passing mechanisms are tied closely
25
Parameter Passing Specification:
In Ada for example, we can specify parameters as
In:
Cannot be legally assigned a new value inside the procedure, or otherwise have its value changed!
More like a constant.
Out:
Can only be assigned to.
Its value can never be used.
In Out :
Both
The meaning of such words is exactly what we can expect. Any programs violating the rules above is considered erroneous! 26
Type Checking of Parameters:
In strongly typed languages:
Procedure calls must be checked so that the actual
parameters agree in type and number with the formal parameters.
Procedures may not have a variable number of
parameters.
Rules must be stated for type compatibility.
27
Procedure Environments, Activations, and
In block structured language with recursion, such as C and
Algol like languages, we need a stack to store various scope information.
In stack based runtime environments:
An environment pointer is needed to point to the current activation.
A control link is needed to point to the previous activation record of the block from which control passed to the current block and to which control will return.
28
Dynamic Memory Management:
In an imperative language such as C, the automatic
allocation and deallocation of storage occurs only for activation records on the stack.
Space is allocated for an activation record on the stack
when a procedure is called, and deallocated when the procedure exits.
Explicit dynamic allocation and use of pointers is also
available under manual programmer control using a heap
29
Dynamic Memory Management:
However, the use of the heap has many problems
Creation of garbage. Dangling references.
Languages with significant needs of heap storage
30
Dynamic Memory Management:
Automated memory management falls into two
Garbage collection: the reclamation of previously
allocated but no longer used storage.
The maintenance of the free space available for
allocation.
31
Dynamic Memory Management:
Maintaining free space:
A contiguous block of memory is usually provided by the
The free space is maintained by a list of free blocks.
When a block of certain size needs to be allocated, the memory manager searches the list of free blocks for a free block with a large enough space.
If a block is found, it is allocated, and the list of free blocks is updated.
32
Dynamic Memory Management:
Maintaining free space:
When a block is freed, such blocks are also returned to
the list of free blocks.
When blocks are freed, they must be joined with
immediately adjacent blocks to form the largest contiguous block of free memory. This is called coalescing.
33
Dynamic Memory Management:
Maintaining free space:
However, even with joining adjacent blocks to form
larger blocks, because there is no one single large block, it is possible for a large allocation to fail, even though there is enough total space in smaller scattered blocks!
Memory must occasionally be compacted by moving all
free blocks together and coalescing them into one block.
34
Dynamic Memory Management:
Maintaining free space: Combine them into one block: coalescing Two adjacent free blocks Compact all free space together
35
Dynamic Memory Management:
Maintaining free space:
Coalescing: combine two adjacent free blocks to form
Compaction: move all free space together from around
memory to form the largest possible free space block.
Compaction also enhances performance.
36
Dynamic Memory Management:
Reclamation of Storage:
Recognizes when a block of storage is no longer
referenced, either directly or indirectly through pointers.
This is a much more difficult task than the maintenance
37
Dynamic Memory Management:
Reclamation of Storage:
Two main methods have been used: Reference counting Mark and Sweep
38
Dynamic Memory Management:
Reference Counting:
Tries to reclaim space as soon as it is no longer
referenced.
Each block of allocated storage contains an extra count
field that stores the number of references to this block from
When the reference count is zero, the block is freed, but be
careful, the block itself may contain references to others, so indeed it may not be freed also!
39
Dynamic Memory Management:
Drawbacks of Reference Counting:
Memory space is wasted to store the counter Maintaining the counters is a significant overhead!
40
Dynamic Memory Management:
Mark and Sweep:
Is a lazy method.
It puts off reclaiming any storage until the allocator runs out of space.
It looks for all storage that can be referenced and moves all unreferenced storage back to the free space.
This is performed using two passes.
41
Dynamic Memory Management:
Mark and Sweep:
First pass: Follows all pointers recursively, starting with the current
environment or symbol table, and marks each block of storage reached.
Requires a bit of storage for marking. Second pass: Sweeps linearly through memory, returning unmarked
blocks to the free list.
42
Dynamic Memory Management:
Drawbacks of Mark and Sweep:
An extra bit of storage is needed. The two passes through memory causes a significant
delay in processing each time the garbage collector is invoked: could be a few seconds every couple of minutes!
This delay may be very unacceptable in interactive
applications requiring immediate response.
43
Dynamic Memory Management:
Enhancement of Mark and Sweep (Stop and Copy):
Memory can be split into two halves.
Memory is allocated from one half at a time.
During the marking pass, all reached blocks that should be marked are immediately copied to the unused half.
No extra bit for marking is needed !
This is called stop and copy.
44
Dynamic Memory Management:
Enhancement of Mark and Sweep (Stop and
Once all reached blocks are copied, the used and
unused halves are interchanged.
Compaction is therefore done automatically as such. However, copying is still an overhead!
45
Dynamic Memory Management:
Generational Garbage Collection:
Invented in the 1980’s and significantly reduces
processing delays.
A permanent storage area is made available. Allocated objects that survive long enough are simply
copied to the permanent space, and NEVER deallocated during subsequent storage reclamations.
46
Dynamic Memory Management:
Generational Garbage Collection:
The garbage collector only needs to search only a very
small section of memory for newer storage allocations.
It is still possible for the permanent memory to become
exhausted.
However, this process has proven to work very well.
47
Contribution by Ethan Henry – Sitraka http://java.quest.com/
The Java Virtual Machine has 2 primary jobs:
Execute Code Manage Memory
It also does stuff like managing locks Most other functions are really not part of the
49
Allocate Memory from OS Manage Java Allocations
including heap compaction
Remove Garbage Objects
Java Virtual Machine Specification 2.4.6
50
Objects become garbage when there are no
This is not to suggest that garbage collectors
51
Objects become garbage when they’re no
The root set consists of:
static reference fields in classes local references
Exact versus Non-Exact Garbage Collectors
52
Root Set Heap
Elements within the root set directly refer to objects within the
heap of the JVM
Reference variables within those objects refer to further objects
within the Heap (indirectly reachable from the Root Set)
53
Sun Classic Sun HotSpot IBM
54
Mark, Sweep & Compact
Mark: identify garbage Sweep: Find garbage on heap, de-allocate it Compact: collect all empty memory together
Eligibility for garbage collection is determined
Compaction is just copying the live objects so
there’s one large, contiguous block of free memory 55
The main problem with classic mark, sweep
Pause time is proportional to the number of
not the amount of garbage
56
Sun improved memory management in the
The heap is separated into two regions:
New Objects Old Objects
57
The idea is to use a very fast allocation
The New Object Regions is subdivided into
Eden, where objects are allocated 2 “Survivor” semi-spaces: “From” and “To”
58
The Eden area is set up like a stack - an
When the Eden area is full, the GC does a
The labels on the regions are swapped
“To” becomes “From” - now the “From” area has
59
The next time Eden fills objects are copied
There’s a “Tenuring Threshold” that
Note that one side-effect is that one survivor
60
The old object region is for objects that will
The hope is that because most garbage is
61
Eden SS1 SS2 Old Eden SS1 SS2 Old Eden SS1 SS2 Old Eden SS1 SS2 Old
First GC Second GC
Eden SS1 SS2 Old
New Object Region Old Object Region
62
Running the JVM with -verbosegc will show
[GC 1667K->1295K(1984K), 0.0101756 secs] [GC 1807K->1434K(1984K), 0.0223998 secs] [GC 1946K->1574K(2112K), 0.0116185 secs] [Full GC 1574K->1574K(2112K), 0.0830561 secs] [GC 3454K->2081K(4672K), 0.0495951 secs] [GC 4001K->2599K(4672K), 0.0274256 secs] [GC 4519K->3101K(5056K), 0.0308995 secs] [Full GC 3101K->3101K(5056K), 0.1452472 secs] [GC 7039K->4131K(9452K), 0.0777414 secs] [GC 8227K->5174K(9452K), 0.0627538 secs] [GC 9270K->6209K(10348K), 0.1125570 secs]
63
-Xincgc Sun also has an incremental collector that
Pause times are smaller but overall
[Inc GC 3566K->3950K(5120K), 0.0309922 secs] [GC 4078K->3594K(5184K), 0.0264542 secs] [Inc GC 3594K->3978K(5120K), 0.0272683 secs] [GC 4106K->3627K(5120K), 0.0272381 secs] [Inc GC 3627K->4011K(5056K), 0.0285464 secs] [GC 4139K->3666K(5184K), 0.0281388 secs]
64
-Xconcgc Concurrent GC allows other threads to keep
Available in JDK 1.4.1 [GC 1463K->1093K(2560K), 0.0089573 secs] [GC 1093K(2560K), 0.0053470 secs] [GC 1094K(2560K), 0.0092867 secs] [GC 1604K->1228K(2560K), 0.0104823 secs] [GC 1228K(2560K), 0.0062662 secs] [GC 1234K(2560K), 0.0097820 secs] [GC 1740K->1373K(2560K), 0.0115875 secs]
65
Future JVMs will include the ability to run GC
This is already available in BEA’s JRockit
http://www.jrockit.com
66
Improved single-heap mark, sweep &
Uses parallel marking in JDK 1.3.0 and
IBM’s JVM provides a much more detailed
67
After the IBM JVM GC has identified garbage
compacting allocated memory finalizing pending dead objects removing weakly reachable objects increasing the heap space for more on weak refs, see
http://developer.java.sun.com/developer/technicalArticles/ALT/Re fObj/
68
<AF[9]: Allocation Failure. need 2064 bytes, 4096 ms since last AF> <AF[9]: managing allocation failure, action=1 (0/16086056) (34768/34768)> <GC: Tue Sep 03 18:07:42 2002 <GC(9): freed 2345744 bytes in 234 ms, 14% free (2380512/16120824)> <GC(9): mark: 226 ms, sweep: 8 ms, compact: 0 ms> <GC(9): refs: soft 0 (age >= 1), weak 0, final 0, phantom 0> <AF[9]: managing allocation failure, action=3 (2380512/16120824)> <GC(9): need to expand mark bits for 19659768-byte heap> <GC(9): expanded mark bits by 53248 to 307200 bytes> <GC(9): need to expand alloc bits for 19659768-byte heap> <GC(9): expanded alloc bits by 53248 to 307200 bytes> <GC(9): expanded heap by 3538944 to 19659768 bytes, 30% free> <AF[9]: completed in 2974 ms>
69
<AF[20]: Allocation Failure. need 24 bytes, 29793 ms since last AF> <AF[20]: managing allocation failure, action=1 (0/37167760) (1956200/1956200)> <GC: Tue Sep 03 18:09:36 2002 <GC(20): freed 20688256 bytes in 467 ms, 57% free (22644456/39123960)> <GC(20): mark: 453 ms, sweep: 14 ms, compact: 0 ms> <GC(20): refs: soft 0 (age >= 6), weak 0, final 41, phantom 0> <GC(20): stop threads time: 405, start threads time: 56> <AF[20]: completed in 961 ms>
70
Not a simple topic There are no universal magic values - every
Things to tune:
Memory Size
overall size, individual region sizes
GC parameters
Minimum/maximum % of free heap,
Type of GC - single heap, generational,
71
sets the initial heap size
sets the maximum heap size
sets the size of the per-thread stacks
sets the percentage of minimum free heap space - controls heap expansion rate
sets the percentage of maximum free heap space - controls when the VM will return unused heap memory to the OS
72
sets the ratio of the old and new generations in the heap. A NewRatio of 5 sets the ratio of new to old at 1:5, making the new generation occupy 1/6th of the overall heap defaults: client 8, server 2
sets the minimum and maximum sizes of the new object area,
sets the ratio of the survivor space to the eden in the new object
1:1:6, making each survivor space 1/8th of the new object region default: 25
73
This option instructs the JVM to push memory use to the limit: the overall heap is around 3850MB, the memory management policy defers collection as long as possible, and (in some VMs) some GC activity is done in parallel. Because this option sets heap size, do not use in conjunction with the -Xms or -Xmx
74
-Xgcpolicy:<optthruput | optavgpause>
Setting gcpolicy to optthruput disables concurrent mark.
Users who do not have pause time problems (as seen by erratic application response times) should get the best throughput with this option. Optthruput is the default setting.
Setting gcpolicy to optavgpause enables concurrent mark
with its default values. Users who are having problems with erratic application response times caused by normal garbage collections can alleviate those problems at the cost of some throughput when running with the
75
http://java.sun.com/docs/hotspot/gc http://java.sun.com/docs/performance http://www-
76
What won’t the garbage collector clean up?
77
Allocated Reachable Live “Loiterer” Handled by GC
78
How do you identify these loitering objects? You need to
identify specific use cases for your application that
get a tool that lets you inspect what’s on the heap
look at the difference - are those the objects you
are any unnecessary objects still being
79
See some reviews on
80
Track down what objects are loitering Track the instances to their allocation point Decide when they should become
81
82
