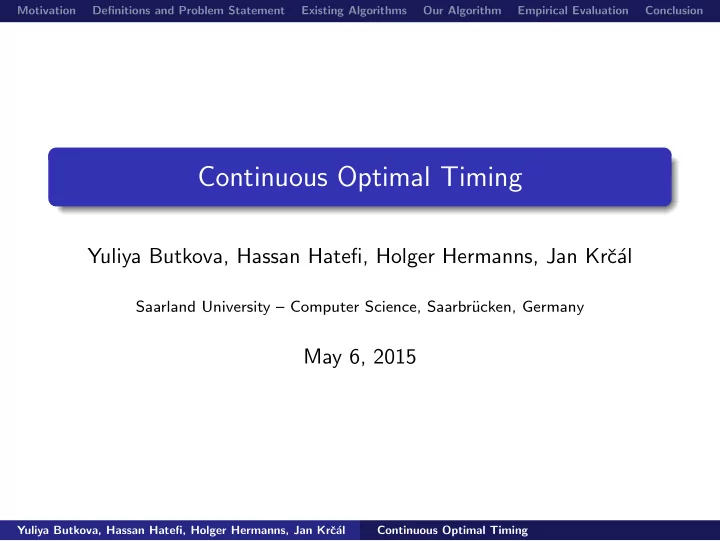

Continuous Optimal Timing

Yuliya Butkova, Hassan Hatefi, Holger Hermanns, Jan Krˇ c´ al

Saarland University – Computer Science, Saarbr¨ ucken, Germany

May 6, 2015
