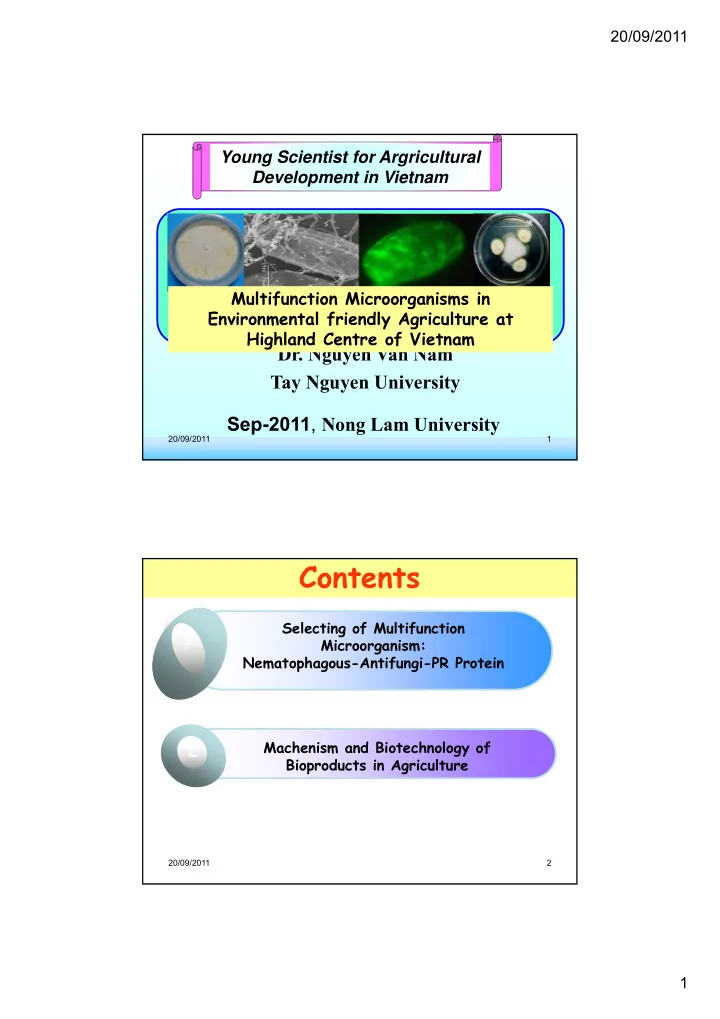

SLIDE 1

20/09/2011 1

Sep-2011, Nong Lam University

• Dr. Nguyen Van Nam

Tay Nguyen University

Multifunction Microorganisms in Environmental friendly Agriculture at Highland Centre of Vietnam Young Scientist for Argricultural Development in Vietnam

20/09/2011 1

Contents

1

Machenism and Biotechnology of Bioproducts in Agriculture

2

Selecting of Multifunction Microorganism: Nematophagous-Antifungi-PR Protein

1

20/09/2011 2

SLIDE 2

20/09/2011 2

The Agriculture of highland centre will deal with Problems at in near future

Destroyed Forest

Drough

Ecology change

Agriculture problem

20/09/2011 3

• Support the seed faster

germination

• Enhence developing crop

root

• Help plant root to use

water more effective

• Fix nitrogen from air
• Promotion plant growth
• Change immobie mineral
• Degrade organic materials
• Biosynthesis antibiotic
• Produce induced system

resistance

• Help plant resisting to

stress Soil microorganism function

What microorganism help us

20/09/2011 4

SLIDE 3

20/09/2011 3

Bioproducts Appling on the field soil Screening on function medium Clear zone, nematophagous, antifungi, PR protein Selected fungi, Microorganis Study on machenism

Experimental procedures

Isolation of fungi, microorganism Pure micro-isolates

20/09/2011 5

Isolation of Microoganism at Highland centre

20/09/2011 6

SLIDE 4

20/09/2011 4

Screening of nematophagous fungi

Name Infected egg (%) Second

• stage

juvenil e Auxarthron reticulatum DY-2 73.5 Aspergillus sp1. GR-4 0.0 Aspergillus sp2. GR-5 0.0 Hypocrea lixii DY-16 84.6 + Fusarium sp. DY-43 0.0 Lecanicillium antilanum B-3 100.0 + Paecilomyces variotii DG-3 71.1 Rhizopus microsporus VS-9 0.0 Trichoderma harzianum DY-19 60.1 Trichoderma sp. DY-26 0.0 Trichoderma aureoviride DY-59 0.0 Trichoderma sp. GR-1 0.0 Verticillium saksenae A-1 100.0 + 20/09/2011 7

Competitive interaction of chitinolytic fungi and with Fusarium Antifungal activity of antagonistic fungi

Isolate Competition Replacement by

• F. solani

Auxarthron reticulatum DY-2

• +

Hypocrea lixii DY-16 +++

• Lecanicillium antilanum B-3
• Paecilomyces variotii DG-3

+++

• Rhizopus microsporus VS-9

++

• Trichoderma harzianum DY-19

+++

• Trichoderma aureoviride DY-59

+++

• Verticillium saksenae A-1
• ++

20/09/2011 8

SLIDE 5

20/09/2011 5

Hơn 50 chủng Trichoderma được phân lập và lưu giữ tại Đăk Lăk

20/09/2011 9

Các dòng Trichoderma phân lập tại Đăk Lăk

20/09/2011 10

SLIDE 6

20/09/2011 6

Sp. Host

• 1. T. Harzianum
• 2. T. Koningii
• 3. T. Minutisporum
• 4. T. Asperellum
• 5. T. Viride
• 6. T. astroviride
• 7. T. erinaceum

Coffee, ruber, black papper, cacao Coffee, black papper Coffee, black papper Coffee, black papper Coffee, black papper Coffee, black papper

Identified Trichoderma at highland centre

20/09/2011 11

Antagonistic of Tri on plant disease fungi A: T1-F.solani, B: T7-F.solani, C: Đối chứng D: T1-F. oxysporum, E: T7- oxysporum, F: Đối chứng

A B C F E D

20/09/2011 12

SLIDE 7

20/09/2011 7

Mutalist of Trichoderma on plant

A B D C A B

20/09/2011 13

Degrading organic material in nature

20/09/2011 14

SLIDE 8

20/09/2011 8

0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 1 3 5 7 Time after incubation (h) R e d u c in g s u g a r ( u m o l/m l)

Glucosamine Saccharide Materials-National Research Lab. (GSM-NRL) http://altair.chonnam.ac.kr/~nrlgsml/

Fungal chitinases digest cell walls of Fusarium macroconidia

Reducing sugar from hyphae released by fungal chitinases

Chitinases digest chitin in fungal cell walls

Intact cell wall

Digested cell wall

Reducing sugar

20/09/2011 15

2 4 6 8 10 12 14 16 18 20 1 2 3 4 5 6 7 Time (day) Biomass (ug/ml) PDB medium YPG medium

Fungal biomass Alkali insoluble material Fungal chitin Hyphae

Fungal biomass in culture medium

Extraction of chitin from cell walls

20/09/2011 16

SLIDE 9

20/09/2011 9

Purification of enzym chitinase from antagonistic fungi

20/09/2011 17

Degraded products from enzym chitinase of Trichoderma

20/09/2011 18

SLIDE 10

20/09/2011 10

      [(GlcNAc)2] [(GlcNAc)5] Hydrolysis products from Fusarium solani biomass by crude enzyme DG-3 (GlcNAc) Enzyme Crude chitinase Chi 32 Chi 46

0 5 10 15 20 Retention time (min)

[(GlcNAc)2] [(GlcNAc)2] (GlcNAc)

Chitinases digest chitin in fungal cell walls

Hydrolysis products from Fusarium chitin

0.0 0.1 0.2 0.3 0.4 0.5 Substrate R educing sugar (umol/ml)

1 hour 3 hour 5 hour

Fus chi Fus hyp Fus chi Fus hyp Chi 32 Chi 46

20/09/2011 19

Bioactivity of Fungus Peacilomyces varioti

Chitinases producer Nematode egg parasitism

We hypothesis that chitinases from DG-3 play a role in parasitic process.

Whether chitinases play a role in this competition and parasitism

20/09/2011 20

SLIDE 11

20/09/2011 11

Fungi parasitized on namatode eggs

20/09/2011 21

The fungus-invaded Meloidogyne eggs by fungus DG-3. The hyphae binded to eggshell by SEM (A) Hyphae in side the egg by a microscope ( x 400).

Bioactivity of Fungus Peacilomyces varioti

Percentage of infected Meloidogyne eggs by chitinolytic fungi DG-3

Rate of parasitized eggs by DG-3 fungi

20 40 60 80 100

1 2 3 4 5

Time (day) Percentage of parasitized egg (%)

20/09/2011 22

SLIDE 12

20/09/2011 12

Percentage of infected nematode eggs by crude chitinases Control Treatment with enzymes Enzymes effect on nematode eggshells

Transparency eggs treated by chitinases Intact egg

20/09/2011 23

Anion exchange (DEAE-Sephadex A-50), filtration chromatography (Sephadex G-100) and chitinase activity staining (0.01% glycol chitin as a substrate in gel) of purified chi32 (F-1) and chi46 (F-3) separated on 12% SDS-PAGE gel under reducing and non-reducing condition. 40µl of proteins were loaded in each lane. The gels were stained with Coomassive brilliant blue R-250 and with Calcofluor white M2R. Lane A (F-1 and F-3), molecular weight marker (Amersham Biosciences); lane B (F-1), crude enzyme; lane C (F-1) flow thought protein; lane D (F-1) anion exchange column; lane F (F-1), filtration column; lane F, G, H (F-1), chitinase activity-stained of crude enzyme (F), anion exchange column (G); filtration column (H). B, C (F-3), anion exchange and filtration chromatography; D (F- 3) chitinase activity-stained in non-denaturing sample buffer.

Chi32 and Chi46 were purified from P. variotii DG-3

20/09/2011 24

SLIDE 13

20/09/2011 13

F-3 chitinase is similar to family 18, class 3. three domains, enzyme structure from Trichoderma sp.

Chi32 D P Y Q T N V V Y T G Q D F V S P D L F Chi46: D A X X

Y R S V A Y F V N W A

20/09/2011 25

Trimmer Tetramer Pentamer Hexamer Enzymatic hydrolysis products of chitin

• ligomers by Chi32 (on

the left) and Chi46 (on the right). (GlcNAc)n, Standard chitin oligomer, Hydrolysis products by HPLC from: Trimer (A) Tetramer (B) Pentamer (C) Hexamer (D) .

Catalytic of Chi32 and Chi46 on chitin oligomers

Exo-type Endo-type

20/09/2011 26

SLIDE 14

20/09/2011 14

• Time course of chitin
• ligomer degradation and

product formation by Chi32 (on the left) and Chi46 (on the right)

• Mixture reactions were

performed in 50 mM citrate buffer (pH 4) at 37oC for 0, 30, 60, 90 and 120 min.

• The products in 3 µl of

reaction were separated by HPLC in the 20 min run.

• ■-: (GlcNAc)1
• -: (GlcNAc)2
• ▲-: (GlcNAc)3
• ●-: (GlcNAc)4
• ○-: (GlcNAc)5
• -: (GlcNAc)6.

Time course of catalytic of Chi32 and Chi46 on chitin oligomers

Trimer (A, E) Tetramer (B, F) Petamer (C, G) Hexamer (D, H)

20/09/2011 27

Effective rate of nematode eggs by enzymes

Enzyme After treatment 1 day 2 day 3 day 4 day Control 5.1 ± 1.9c 10.3 ± 1.3b 12.3 ± 3.3c 13.3 ± 0.3d Crude chitinase 6.5 ± 0.5c 15.8 ± 3.1b 11.7 ± 0.3c 20.0 ± 2.0c Chi32 14.1 ± 1.1b 14.6 ± 2.4b 18.3 ± 1.7b 22.5 ± 2.5c Chi46 25.6 ± 2.6a 25.4 ± 2.7a 30.0 ± 1.0a 32.6 ± 1.4a Chi32+Chi46 13.8 ± 0.2b 18.8 ± 0.2ab 18.5 ± 0.5b 29.5 ± 1.5ab Serratia Chitinase 8.4 ± 1.9c 14.4 ± 1.9b 19.5 ± 4.5b 25.0 ± 3.6bc

20/09/2011 28

SLIDE 15

20/09/2011 15

A B C D E F 10µm

• M. incognita eggs damaged by

Chi46. (A): The intact egg, untreated with enzyme (B): The enzyme-treated egg under light microscope. (C): The intact egg, untreated with enzyme (D): The enzyme-treated egg under fluorescence microscope, staining with 0.01% Fluorescent Brightener 28.

Visualization of effect of enzyme on nematode eggs

20/09/2011 29

Protein and chitinase activity of B-3 culture supernatant from DEAE- Sephadex column chromatography. Chitinase Protease Glucanase Peak 4 ? Purification of chitinases from other fungi B-3

20/09/2011 30

SLIDE 16

20/09/2011 16

Effect of B-3 purified enzymes from DAED Sephadex column chromatography on eggshell structure (% clear eggs)

Treatment 1 day incubation 3 day incubation 5 day incubation Protease 19.3a ± 5.2 22.2ab ± 4.8 25.4a ± 2.1 Chitinase 18.9a ± 3.1 26.3a ± 4.0 29.4a ± 5.1 Protease plus chitinase 24.6a ± 8.9 26.1a ± 0.9 36.0a ± 4.4 Glucanase 0.0b ± 0.0 11.5bc ± 3.4 12.6b ± 2.7 Peak 4 0.0b ± 0.0 8.1c ± 0.4 8.6b ± 0.8 Water (control) 0.0b ± 0 7.9c ± 8.3 8.4b ± 6.8 Rate (%) of damaged eggs by B-3 enzymes fractionated from DEAE- Sephadex chromatography.

20/09/2011 31 20 40 60 80 100 120 140 160 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 Fractions (5 ml) P rotein (m g/m l)

1 2 3 4 5 6 7 8 E n z ym e activity (U/m l)

Protein Chitinase Chitosanase Protease

Protein, Chitinase, Protease and chitosanase activity of A-1 supernatant from Sephadex G-150 column chromatography. The protein was eluted with in 20 mM sodium acetate buffer (pH 5).

23kDa Chi 23 kDa

20/09/2011 32

SLIDE 17

20/09/2011 17

10 20 30 40 50 60 70 80 90 100 Không nhúng M1 M2 M3 M4 M6 B Dòng nấm

Hiệu lực diệt côn trùng Hiệu lực diệt côn trùng

Screening insect-parsitized fungi

20/09/2011 33

Developing bioproducts for biocontrol

20/09/2011 34

SLIDE 18

20/09/2011 18

20/09/2011 35

Control of Meloidogyne on Cucumber by chitinolytic fungi

15 galls/root 11 galls/root 13 galls/root 20galls/root 0 galls/root A-1+Ne B-3+Ne A-1+B-3+Ne Ne Control

20/09/2011 36

SLIDE 19

20/09/2011 19

Applying

• n control

Nematode

• n black

papper

20/09/2011 37

• A. T7, B. T22, C. no treatment
• D. C07
• E. DY16 F. Comecial products

20/09/2011 38

SLIDE 20

20/09/2011 20

Applying on control Nematode on coffee

20/09/2011 39

Antifungal activity from Cinnamon compounds

20/09/2011 40

SLIDE 21

20/09/2011 21

• 2. Materials and Methods

Preparation of crude extracts from C. cassia bark

99% MeOH (2 L) at 30 oC for 7 days Whatman No.2 At 40 oC

• C. cassia bark (DW 500g)

Extraction Filtration Evaporation

Dissolve in MeOH

• C. cassia crude extracts

(CCE) 100 mg/ml Crude extracts (DW 20g)

Cut into 3 cm

Evaporator

Effects of C. cassia crude extract against root-knot nematode

• EXP. I

20/09/2011 41

Name of plant species Plant parts tested Phytopathogenic fungus Phy Rhi Fus Col Bot Perilla ocymoides Leaf

• Leucaena glauca

Leaf

• Artemisia

capillaris thumb Leaf

• +
• Cymbopogon

nardus Leaf

• Aster sp.

Seed

• Phyllanthus

urinaria Plant

• Azadirachta indica

Seed

• Mentha spicata

Leaf

• Mentha gracilis

Leaf

• Senecio aureus

Leaf +

• +
• Cassia glauca

Plant

• Tagetes erecta

Plant

• Name of plant

species Plant parts tested Phytopathogenic fungus Phy Rhi Fus Col Bot Mimosa pudica Flower

• Leucaena glauca

Leaf

• Cassia angustifolia

Leaf

• Albizia lebbeck

seed

• Allium fistulosium

Seed

• Zingiber officinale

Bulb

• ++

+ +

• Alpinia galanga L.

Bulb + ++ ++ + ++ Glycyrrhiza uralensis Bulb ++ + + + + Polygonum multiflorum Root

• Ganoderma lucidum

Root

• Lonicera japonica

Root

• Chrysanthemum

Flower

• Luffa cylindrica

Fruit

• Cinnamomum verum

Bark

• +++

+

• In vitro antifungal activity of crude methanolic extracts from medicinal

plants against five important plant pathogens under agar diffusion assay

20/09/2011 42

SLIDE 22

20/09/2011 22

Antifungal activity of solvent fraction of cinnamon compound

Solvent Compound concentration Mycelial inhibition after treatment (% ± SD) At 10 h At 30h n-Hexane 5.0% 100.0 ± 0.0a 100.0 ± 0.0a 2.5% 94.5 ± 4.7a 98.5 ± 0.2a 1.0% 65.5 ± 11.0b 59.4 ± 4.0b Chloroform 5.0% 89.6 ± 5.8a 67.3 ± 7.4b 2.5% 56.5 ± 6.9bc 55.9 ± 3.0b 1.0% 45.0 ± 1.6cd 30.3 ± 8.4c Crude extract 5.0% 38.5 ± 3.3de 14.5 ± 2.3de 2.5% 26.8 ± 1.9ef 11.4 ± 2.6de 1.0% 8.5 ± 1.5gh 7.0 ± 3.3de Ethyl acetate 5.0% 21.2 ± 1.6fg 18.1 ± 1.7cd 2.5% 19.1 ± 1.6fg 11.4 ± 1.8de 1.0% 8.4 ± 1.8gh 3.7 ± 0.9e n-Butanol 5.0% 2.4 ± 1.7h 12.0 ± 1.6de 2.5% 0.6 ± 0.1h 8.7 ± 1.2de 1.0% 0.6 ± 0.1h 7.3 ± 2.0de

20/09/2011 43

1 2 3 4 A B C 1, 0% 2, 1% 3, 5% 4, 10% A, normal hyphae B, effected hyphae C, hyphal tip swollen

20/09/2011 44

SLIDE 23

20/09/2011 23

F 4 F 3 F 2 F 1

1 2 3 4 5 F-1 F-2 F-3 F-4

A B

F-1 F-2 F-3 F-4

TLC of compounds from different solvent fractions of cinnamon extract (A), crude compound in methanol (1), hexane fraction (2), ethyl acetate fraction (2), cloroform fraction (4) and n-butanol fraction (5), major compounds (F-1, F-2, F-3 and F-4) were separated in mobile phase of hexane:ethylacetate (80:20, v/v) and detected at 253 nm UV light. Separated compound in methanol after TLC (B), separated compounds in silica gel plates were cut and dissolved again in methanol and evaporated by vacuum at 40oC and then dissolved in methanol with final concentration of 10 % compound

20/09/2011 45

O O

• Fig. 10. The 1H NMR (A), 13C NMR (B) spectra, and the chemical structure (C) of compound purified from CCE

1H (proton) NMR (300MHz, CDCl3):

δ = 2.04 (s, 3 H), 4.67 (d, J = 6.4 Hz, 2 H), 6.24 (dt, J = 16.0, 6.4 Hz, 1 H), 6.60 (d, J = 16.0 Hz, 1 H), 7.19–7.35 (m, 5 H) (Fig. 13A);

13C NMR (75MHz, CDCl3): δ = 1.22,

65.29, 123.35, 126.81 (2 C), 128.28, 128.81 (2 C), 134.41, 136.38, 171.05 (Fig. 13B); Barbero et al. (2008)

A B C

C11H12O2 Cinnamyl acetate

Plant Resources Science Lab.

Chemical structure of cinnamyl acetate

20/09/2011 46

SLIDE 24

20/09/2011 24

Antifungal activity from TLC fraction

Concentration 1, 0% 2, 0.5% 3, 1% 4, 2%

20/09/2011 47

Antifungal activity of compounds from TLC- based fractions at concentration

• f 1%, and

2%

20/09/2011 48

SLIDE 25

20/09/2011 25

Effects of fungicidal compound I separated by silica gel plates on hyphal morphology of Rhizoctonia solani was observed by a microscope (at 40 × magnification). (A) Healthy hyphae growing on control place, (B) lightly affected hyphae with transparency cytoplasm at 0.5 % compound concentration, (C) shrinkage hyphae treated with 1% compound concentration, and (D) swollen and abnormality of hyphal tips (solid arrow) and collapsed hyphae (spared arrow) at 2% compound concentration at 1 hour after treatment by contact phase.

• Comp. I

20/09/2011 49 Fig 12. Morphology of M. incognita treated for 40 min with 1.0% methanol as control (A) and 125 µg/ml of cinnamyl acetate isolated from C. cassia bark (B). The pictures were taken under a microscope at 100x magnification.

A B Nguyen Van Nam Nematicidal activities of cinnamyl acetate Control cinnamyl acetate

20/09/2011 50

SLIDE 26

20/09/2011 26

• 1. Nguyen VN, Kim YJ, Oh KT, Jung WJ, Park RD. 2007. The

role of chitinase from Lecanicillium antillanum B-3 in parasitism to root-knot nematode Meloidogyne incognita eggs. Biocontrol Science and Technology 10: 1047-1058.

• 2. Nguyen VN, Kim YJ, Oh KT, Jung WJ, Park RD. 2008. The

antifungal activity of chitinases from Trichoderma aureoviride DY-59 and Rhizopus microsporus VS-9. Current Microbiology 56:28-32.

• 3. Van-Nam Nguyen, In-Jae Oh, Young-Ju Kim, Kil-Yong Kim,

Young-Cheol Kim, Ro-Dong Park. 2008. Purification and characterization of chitinases from Meloidogyne incognita egg-parasitic fungus Paecilomyces variotii DG-3. Journal of Industrial Microbiology and Biotechnology. (2009) 36:195- 203

20/09/2011 51

• 4. Van-Nam Nguyen, Dang-Minh-Chanh Nguyen, Dong-

Jun Seo, Ro-Dong Park, Woo-Jin Jung. 2009. Antimycotic activities of Cinnamon-derived compounds against Rhizoctonia solani in vitro. Biocontrol, DOI 10.1007/s10526-009-9220-2

• 5. Dang-Minh-Chanh Nguyen, Van-Nam Nguyen, Dong-

Jun Seo, Ro-Dong Park, Woo-Jin Jung Nematicidal activity of extracted compounds from medicinal plants against pine wood nematode (Bursaphelenchus xylophilus), 2009. Nematology.

20/09/2011 52

SLIDE 27

20/09/2011 27

Harman, Plant disease, 2000 Glucosamine Saccharide Materials-National Research Lab. (GSM-NRL) http://altair.chonnam.ac.kr/~nrlgsml/ Carmen et al. phytopathology, 1999

Future development chitinase and chitinolytic fungi in biological control

Recombinant chitinase gene microorganisms

Chitinase products Resistance plant Antagonists

Chitinolytic fungi Cht

• 3. Plant compound

for biocontro

• 2. Systemic resistence

from Fungal chitin

• ligomer

1

20/09/2011 53

Glucosamine Saccharide Materials-National Research Lab (GSM-NRL) Homepage : http://altair.chonnam.ac.kr/~nrlgsml/

20/09/2011 54
