Consolidation Real Soils nonlinear stress is not proportional to strain elastoplastic strain is not fully recovered upon unloading viscoelastic stress-strain response is time dependent nonconservative

slide-1

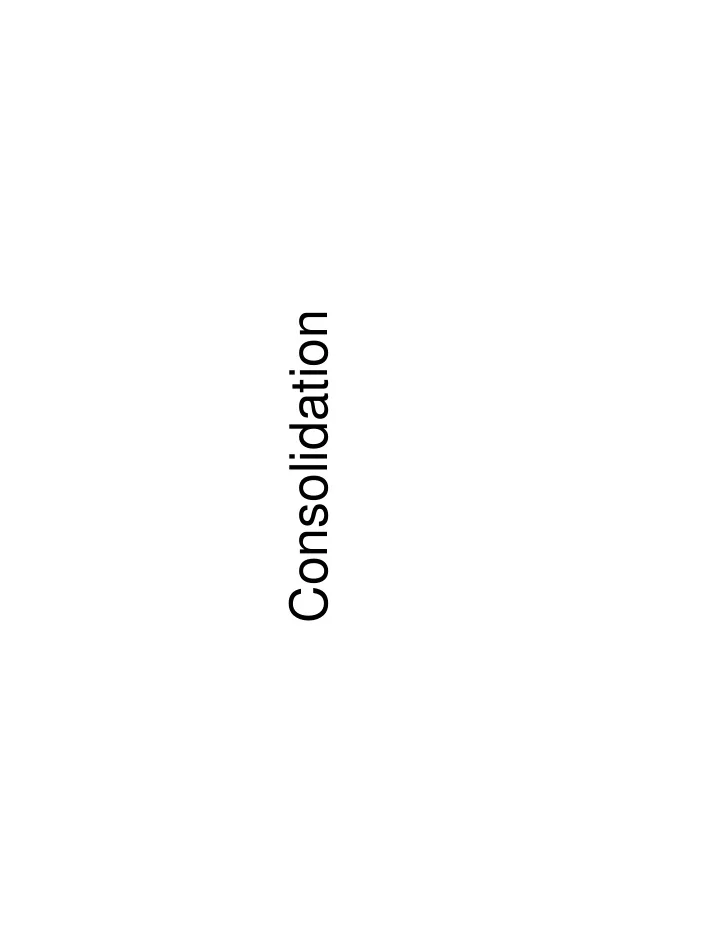

SLIDE 1

Consolidation

slide-2
SLIDE 2

Real Soils

  • nonlinear – stress is not proportional to strain
  • elastoplastic – strain is not fully recovered upon unloading
  • viscoelastic – stress-strain response is time dependent
  • nonconservative – stress-strain response is history dependent
slide-3
SLIDE 3

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.3a

slide-4
SLIDE 4

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.3b

slide-5
SLIDE 5

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Coefficient of volume change

∆ ∆′ Figure 8.4a

slide-6
SLIDE 6

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Constrained Modulus

∆′ ∆ M 1

slide-7
SLIDE 7

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Coefficient of compressibility

∆ ∆′ Figure 8.4b

slide-8
SLIDE 8

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.5a

slide-9
SLIDE 9

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.5b

slide-10
SLIDE 10

free water surface Effective stress Neutral stress Total stress ´ =  u = wd  = wd lake bed

d

slide-11
SLIDE 11

free water surface

z

Effective stress Neutral stress Total stress ´ = ´z u = w(z+d)  = satz + w(z+d) lake bed

d

slide-12
SLIDE 12

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

slide-13
SLIDE 13

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

slide-14
SLIDE 14

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

slide-15
SLIDE 15

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

slide-16
SLIDE 16

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.8

slide-17
SLIDE 17

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

slide-18
SLIDE 18

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

slide-19
SLIDE 19

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.6

slide-20
SLIDE 20

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

8 9 10 11 12 13

CL CL ML CH SP CH

Figure 8.9a

slide-21
SLIDE 21

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.15a

slide-22
SLIDE 22

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.9c

slide-23
SLIDE 23

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.9d

slide-24
SLIDE 24

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.9h

slide-25
SLIDE 25

(Holtz & Kovacs, An Introduction to Geotechnical Engineering, 1981)

Figure 8.9h
