Consistency in SDN Aurojit Panda, Wenting Zheng, Xiaohe Hu, Arvind Krishnamurthy, Scott Shenker Distributed SDN Today Replicated Replicated Replicated Controller Controller Controller Consistency Layer Switch Switch Switch Switch

slide-1
SLIDE 1

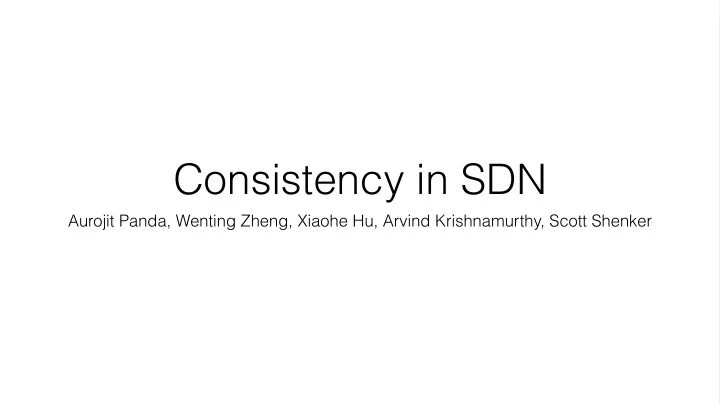

Consistency in SDN

Aurojit Panda, Wenting Zheng, Xiaohe Hu, Arvind Krishnamurthy, Scott Shenker

slide-2
SLIDE 2

Distributed SDN Today

Switch Switch Switch Switch Switch Switch

Consistency Layer

Replicated Controller Replicated Controller Replicated Controller

slide-3
SLIDE 3

Distributed SDN Today

Switch Switch Switch Switch Switch Switch

Consistency Layer

Replicated Controller

Sequences Events

Replicated Controller Replicated Controller

slide-4
SLIDE 4

Distributed SDN Today

Switch Switch Switch Switch Switch Switch

Consistency Layer

Replicated Controller

Sequences Events Today: Paxos, Raft, etc. used to implement serializability

Replicated Controller Replicated Controller

slide-5
SLIDE 5

Our Approach

Switch Switch Switch Switch Switch Switch

Consistent Policy Database Consistency Layer

Independent Controller Independent Controller Independent Controller

slide-6
SLIDE 6

Our Approach

Switch Switch Switch Switch Switch Switch

Consistent Policy Database

Respond instantaneously

Consistency Layer

Independent Controller Independent Controller Independent Controller

slide-7
SLIDE 7

Our Approach

Switch Switch Switch Switch Switch Switch

Consistent Policy Database

Eventual Correctness Respond instantaneously

Consistency Layer

Independent Controller Independent Controller Independent Controller

slide-8
SLIDE 8

Our Approach

Switch Switch Switch Switch Switch Switch

Consistent Policy Database

Eventual Correctness Respond instantaneously

Consistency Layer

Consistent view of policy

Independent Controller Independent Controller Independent Controller

slide-9
SLIDE 9

Performance

  • Allows greater scalability and resilience.
slide-10
SLIDE 10

Performance

  • Allows greater scalability and resilience.
  • Faster convergence: we do better than when consistency is used.
slide-11
SLIDE 11

Performance

  • Allows greater scalability and resilience.
  • Faster convergence: we do better than when consistency is used.

Convergence Time in Data Centers

0.2 0.4 0.6 0.8 1 0.5 1 1.5 2 2.5 3 3.5 4 4.5 CDF Convergence Time (ms) SCL Coordination

slide-12
SLIDE 12

Performance

  • Allows greater scalability and resilience.
  • Faster convergence: we do better than when consistency is used.

Convergence Time in Data Centers

0.2 0.4 0.6 0.8 1 0.5 1 1.5 2 2.5 3 3.5 4 4.5 CDF Convergence Time (ms) SCL Coordination

Convergence Time in AS topology

0.2 0.4 0.6 0.8 1 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 CDF Convergence Time (S) SCL Coordination

slide-13
SLIDE 13

Correctness

  • Our approach ensures:
slide-14
SLIDE 14

Correctness

  • Our approach ensures:
  • Eventually all controllers agree on the sequence of network events seen.
slide-15
SLIDE 15

Correctness

  • Our approach ensures:
  • Eventually all controllers agree on the sequence of network events seen.
  • Eventually each controller and network agree on state of the network.
slide-16
SLIDE 16

Correctness

  • Our approach ensures:
  • Eventually all controllers agree on the sequence of network events seen.
  • Eventually each controller and network agree on state of the network.
  • Therefore eventually computed and installed states are correct.
slide-17
SLIDE 17

Correctness

  • Our approach ensures:
  • Eventually all controllers agree on the sequence of network events seen.
  • Eventually each controller and network agree on state of the network.
  • Therefore eventually computed and installed states are correct.
  • Assuming deterministic controllers and idempotent switch updates.
slide-18
SLIDE 18

What about Consistency?

slide-19
SLIDE 19

What about Consistency?

  • Correctness: Needed to ensure flow tables, controllers are correct.
slide-20
SLIDE 20

What about Consistency?

  • Correctness: Needed to ensure flow tables, controllers are correct.
  • Programmability: Needed to make it easier to program networks.
slide-21
SLIDE 21

What about Consistency?

  • Correctness: Needed to ensure flow tables, controllers are correct.
  • Programmability: Needed to make it easier to program networks.
  • Performance: Needed for faster convergence.
slide-22
SLIDE 22

What about Consistency?

  • Correctness: Needed to ensure flow tables, controllers are correct.
  • Programmability: Needed to make it easier to program networks.
  • Performance: Needed for faster convergence.
slide-23
SLIDE 23

Why Does This Work?

  • Networks are open world systems.
slide-24
SLIDE 24

Why Does This Work?

  • Networks are open world systems.
  • Open World: Truth resides in an external entity (e.g., network).
slide-25
SLIDE 25

Why Does This Work?

  • Networks are open world systems.
  • Open World: Truth resides in an external entity (e.g., network).
  • Closed World: Truth resides in the system itself (e.g., a database).
slide-26
SLIDE 26

Why Does This Work?

  • Networks are open world systems.
  • Open World: Truth resides in an external entity (e.g., network).
  • Closed World: Truth resides in the system itself (e.g., a database).
  • With open world systems
slide-27
SLIDE 27

Why Does This Work?

  • Networks are open world systems.
  • Open World: Truth resides in an external entity (e.g., network).
  • Closed World: Truth resides in the system itself (e.g., a database).
  • With open world systems
  • Truth can be recovered from the external system.
slide-28
SLIDE 28

Why Does This Work?

  • Networks are open world systems.
  • Open World: Truth resides in an external entity (e.g., network).
  • Closed World: Truth resides in the system itself (e.g., a database).
  • With open world systems
  • Truth can be recovered from the external system.
  • Consistency with ground truth is more important than within the system.
slide-29
SLIDE 29

Why is this relevant?

slide-30
SLIDE 30

Sources of Network Updates

Planned Updates Network Events

slide-31
SLIDE 31

Sources of Network Updates

Planned Updates Network Events Policy updates, link recovery, etc. Link failures, switch failure, etc.

slide-32
SLIDE 32

Sources of Network Updates

Planned Updates Network Events Policy updates, link recovery, etc. Link failures, switch failure, etc. Working Network → Working Network Broken Network → Working Network

slide-33
SLIDE 33

Sources of Network Updates

Planned Updates Network Events Policy updates, link recovery, etc. Link failures, switch failure, etc. Working Network → Working Network Broken Network → Working Network Goal

slide-34
SLIDE 34

Sources of Network Updates

Planned Updates Network Events Policy updates, link recovery, etc. Link failures, switch failure, etc. Working Network → Working Network Broken Network → Working Network Maintain correctness during transition Minimize time to connectivity restored. Goal

slide-35
SLIDE 35

Sources of Network Updates

Planned Updates Network Events Policy updates, link recovery, etc. Link failures, switch failure, etc. Working Network → Working Network Broken Network → Working Network Maintain correctness during transition Minimize time to connectivity restored. Consistency helps (required?) Consistency adds latency. Goal

slide-36
SLIDE 36

Edge-Core Separation

Fabric Provides connectivity Routing, Traffic Engineering

slide-37
SLIDE 37

Edge-Core Separation

Fabric Provides connectivity Edge Richer Policies Endhost ACLs Traffic Priorities

slide-38
SLIDE 38

Conclusion

  • Existence proof that controller consistency is not necessary.
  • In fact slows down network recovery in response to failures.
  • Should we require consistency for SDN controllers?
  • Question is similar to the ACID vs NoSQL debate in data stores.
slide-39
SLIDE 39

Open Questions

  • What about data plane consistency?
  • Ensures each packet processed according to consistent policy.
  • Do we need data plane consistency?
  • For planned updates: Helps with correctness during policy changes.
  • For network events: Adds latency before connectivity is restored.
