Conformal RT and 3D-CRT planning Dott. Paola Chiovati , Medical - - PowerPoint PPT Presentation

▶
conformal rt and 3d crt planning
SMART_READER_LITE
LIVE PREVIEW

Conformal RT and 3D-CRT planning Dott. Paola Chiovati , Medical - - PowerPoint PPT Presentation

Nov 29, 2022 159 likes •929 views

Conformal RT and 3D-CRT planning Dott. Paola Chiovati , Medical Physicist, CRO Aviano E-mail : pchiovati@cro.it Picture dr. Mascarin Pediatrician and Radiation Oncologist CRT- 3DCRT PLANNING WORLD HEALTH ORGANIZATION PATIENT SET UP CRT

slide-1
SLIDE 1

Picture dr. Mascarin – Pediatrician and Radiation Oncologist

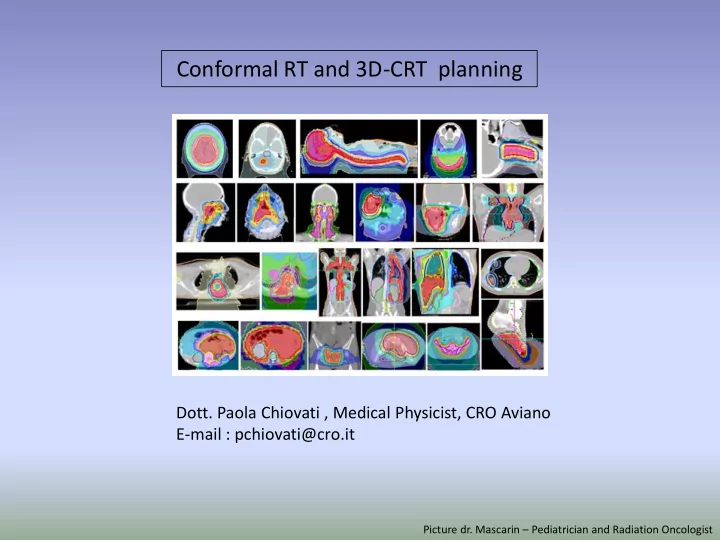

Conformal RT and 3D-CRT planning
