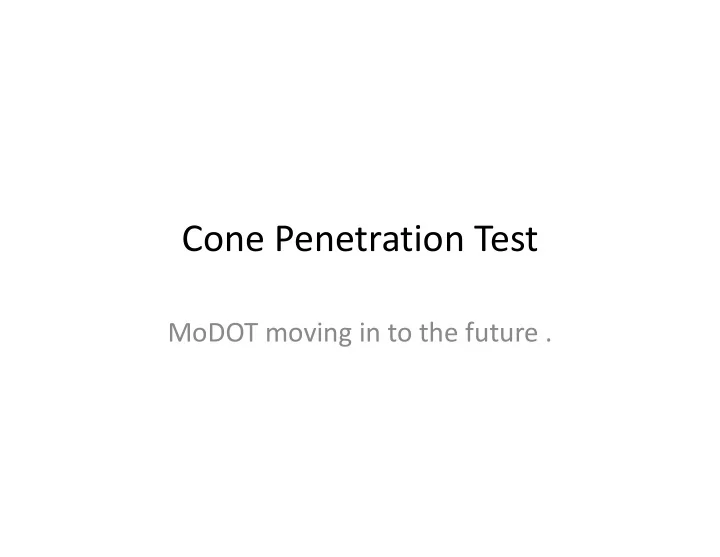

Cone Penetration Test

MoDOT moving in to the future .

slide-2
SLIDE 2

Cone Penetration Test (CPT)

  • A method used to determine the Geotechnical

properties of soils and delineating soil stratigraphy.

slide-3
SLIDE 3

CPT Program @ MoDOT

  • The program got started

in 1997.

  • The main goal was to

use digital technology to accurately determine geotechnical properties

  • f soils.
  • To accurately predict

static resistance of a driven pile using both tip and sleeve resistance to derive this.

  • To be used alternative

to Standard Penetration Test (SPT).

slide-4
SLIDE 4

SPT VS CPT

  • Its fair to say that CPT provides a better soil

characterization than SPT. When no improvements are made to the current SPT method, with all its variations and uncertainties , the split spoon should be placed in the same cabinet as the slide rule and the fax machine.

slide-5
SLIDE 5

SPT VS CPT

Use in Missouri:

  • Southeast District – Bootheel of Missouri
  • Counties - 7
  • Bridge Count – 697
  • Geology – Quaternary System (>250’ of sand)
slide-6
SLIDE 6

SPT VS CPT

SPT

  • Very messy process
  • Long turnaround time
  • Inaccurate blow counts
  • Operator errors

CPT

  • No Bentonite required
  • Quicker turnaround time
  • Accurate blow counts
  • Minimized operator errors
slide-7
SLIDE 7

SPT VS CPT

Mud Rotary Drilling Mud Rotary Drilling

slide-8
SLIDE 8

CPT Equipment (Past)

  • CME 850
slide-9
SLIDE 9

CPT Equipment (Past)

  • Rod Push System
slide-10
SLIDE 10

CPT Equipment (Past)

Anchors Rod Basket

slide-11
SLIDE 11

CPT Equipment (Past)

Old Beams Hammer

slide-12
SLIDE 12

CPT Equipment (Past)

  • Old Computer
slide-13
SLIDE 13

CPT Equipment (Past)

  • Old Computer in Jeep
slide-14
SLIDE 14

Equipment (Current)

Hogentogler Track- Mounted Rig. Push Capacity – 10 Ton Pull Capacity - 15 Ton Power - 29 Hp diesel Manufacture - Vertek (Hogentogler) Classification - Light Hydraulic Power Auger System.

slide-15
SLIDE 15

Equipment (Current)

slide-16
SLIDE 16

Equipment (Current)

  • Computer and Truck Box
slide-17
SLIDE 17

Software

  • Hogentogler - Digital Cone Plot
  • Geologismiki – Cone Data Analysis
  • gINT – Cone Boring Plots & Data Stroage
slide-18
SLIDE 18

Software

  • Hogentogler
  • Digital Cone Plot – Data Acquisition software

for the cone. Plots are quickly generated and

  • utput in tabular form for use with other

programs.

slide-19
SLIDE 19

Software

  • Geologismiki (Analysis)
  • CPET-IT – Bearing Capacity, Settlement Calc ,

Pile Calc., Dissipation Interpretation.

  • CLiq – Liquefaction, Settlement Analysis.
  • Liq SV – Liquefaction (calculation using blow

counts N60 as raw data).

  • StoneC – Stone columns.
slide-20
SLIDE 20

Software

  • gINT – Geotechnical and Geoenvironmental

software

  • Used to produce boring plots.
  • Used to store cone data.
  • Used to archive information.
slide-21
SLIDE 21

Software

  • Old Seismic Log
  • Old Log
slide-22
SLIDE 22

Software

  • Old Log
  • Old Log
slide-23
SLIDE 23

Software New Outputs

  • Bearing Capacity
  • Pile Capacity Graph
slide-24
SLIDE 24

Software

  • LPile Sheet
  • Liquefaction
slide-25
SLIDE 25

Future

  • Geoprobe 2060 CPT
  • Vertek Track Base

System

slide-26
SLIDE 26

QUESTIONS?
