Conceptual Engineering for Commuter Rail within the Eureka Subdivision Corridor November 22, 2010 In association with Project Funding Funding for this project was made possible by the U.S. Department of Transportation, Texas Department of

slide-1
SLIDE 1

In association with

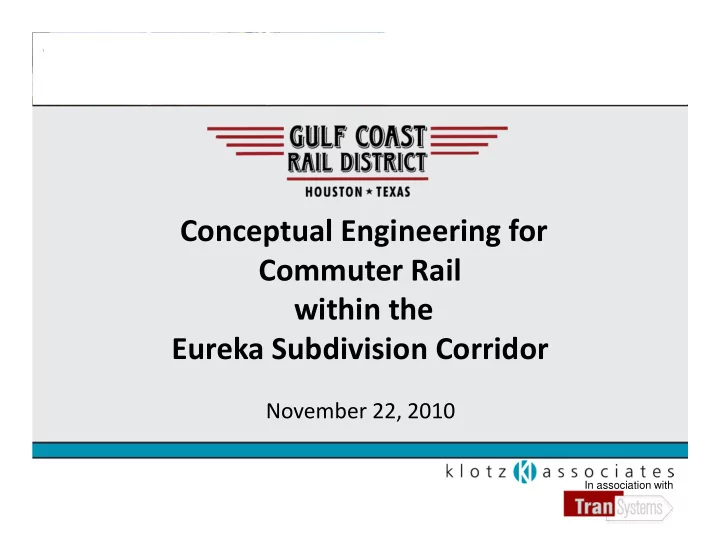

Conceptual Engineering for Commuter Rail within the Eureka Subdivision Corridor

November 22, 2010

slide-2
SLIDE 2

In association with

Project Funding

Funding for this project was made possible by the U.S. Department of Transportation, Texas Department of Transportation and the Gulf Coast Rail District.

slide-3
SLIDE 3

In association with

Project Overview

  • Synthesize Previous Studies
  • Corridor Model Update
  • Current Train Operations Impacts
  • Commuter Rail Implementation Requirements

– Rail Facilities – Ancillary Facilities – Operations and Connectivity

slide-4
SLIDE 4

In association with

slide-5
SLIDE 5

In association with

Modeling Parameters

  • Average Operating Speed – 45mph
  • Distance Based Fares - $6.00 max.
  • Headways (20 Min Peak Hour / 30 Min Off-Peak)
  • Wait Times – Peak – 4 min / Off-Peak – 6 min
  • Sufficient Train & Passenger Capacity Available
  • METRO Solutions Phase II Fully Implemented
  • Park & Ride Service Discontinued outside Beltway 8
  • No other changes to LRT and connecting bus routes
slide-6
SLIDE 6

In association with

Modeling Comparison

Assumption METRO

HGAC Commuter Rail Connectivity Study GCRD Eureka Commuter Rail Study

Number of Stations 4 8 10 Headways (Peak/Off Peak) 15/30 20/30 20/30 Speed (MPH/Avg) 59 45-50 45 Travel Time (minutes) 38* 84*** 69*** Forecast (2019) YR-2015 Hempstead to Downtown 11,000-12,000* N/A N/A Hempstead to IH 610 2,700-3,000** N/A 2,640 Forecast (2035) YR-2030 Hempstead to Downtown 21,000-22,000* 6,904 18,816 Hempstead to IH 610 4,500-5,000** N/A 6,353

* - Grand Parkway to Downtown ** - Grand Parkway to IH610 *** - Hempstead to Downtown

slide-7
SLIDE 7

In association with

Commuter Rail Operations

  • Train Sets
  • Train Schedule
  • Inter-City Passenger Rail
slide-8
SLIDE 8

In association with

Freight Rail Operations

  • Existing Operations
  • Existing Facilities
slide-9
SLIDE 9

In association with

Terminal Facilities

  • Northwest Mall
slide-10
SLIDE 10

In association with

Terminal Facilities

  • US 290 & IH 610
slide-11
SLIDE 11

In association with

Terminal Facilities

  • Interim Station
slide-12
SLIDE 12

In association with

Interim Terminal Bus Needs (Peak)

  • Downtown – 8
  • Texas Medical Center (TMC) – 5
  • Greenway Plaza – 3
  • Galleria / Uptown – 2
  • Total Peak Hour Busses - 18
slide-13
SLIDE 13

In association with

Feasible ?

  • Yes
  • UPRR - a Partner at the Table
  • Track in Good Condition
  • Willing Station Host Communities
  • Ridership Validated
  • CBD Access Needed
slide-14
SLIDE 14

In association with

Status of the Corridor

  • US 290 - LOS Projections
  • 2035 RTP Update –

$ 80B in projects dropped

  • TxDOT Funding Uncertain
  • US 290 Improvements Slowed
  • Hempstead Managed Lanes – Toll Viable?
  • Non-Attainment / Air Quality Issues
