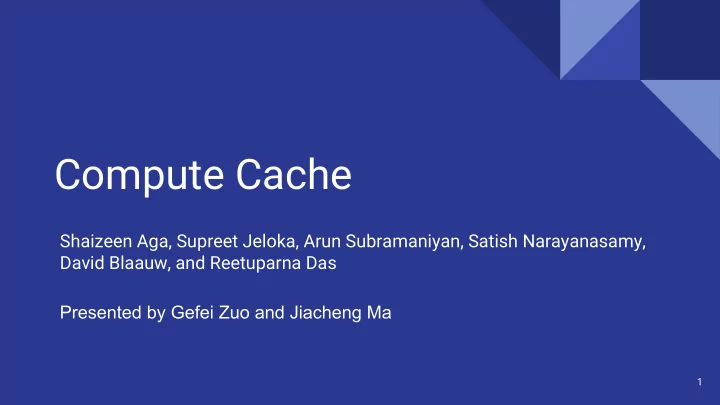

Compute Cache
Shaizeen Aga, Supreet Jeloka, Arun Subramaniyan, Satish Narayanasamy, David Blaauw, and Reetuparna Das
1
Presented by Gefei Zuo and Jiacheng Ma
Agenda
- Motivation
- Goal
- Design
- Evaluation
- Discussion
2
Compute Cache Shaizeen Aga, Supreet Jeloka, Arun Subramaniyan, - - PowerPoint PPT Presentation
Compute Cache Shaizeen Aga, Supreet Jeloka, Arun Subramaniyan, - - PowerPoint PPT Presentation
Compute Cache Shaizeen Aga, Supreet Jeloka, Arun Subramaniyan, Satish Narayanasamy, David Blaauw, and Reetuparna Das Presented by Gefei Zuo and Jiacheng Ma 1 Agenda Motivation Goal Design Evaluation Discussion 2
SLIDE 2
SLIDE 3
Motivation
- Data-centric applications
- High degree data-parallelism of applications
- Time and energy spent on moving data >> actual computing
3
SLIDE 4
Goal
In-place computation in caches
- Massive parallelism: new vector instructions (SIMD)
- Less data movement: new cache organization
- Low area overhead: reuse existing circuits
4
SLIDE 5
Design Overview
5
Cache hierarchy Cache Geometry In-place compute
- 2. bit-line computing
- 1. ISA
- 3. operand locality
- 4. execution management
- 5. cache
coherence
SLIDE 6
Design: ISA
6
SLIDE 7
Design: bit-line computing
Background: 6 transistors bit-cell, two stable states
7
Read: 1. Precharge BL=1 BLB=1 2. Assert word line 3. Sense amplifier detects voltage difference Write: 1. Drive BL, #BL to desired value, ~BL==BLB 2. Assert word line
SLIDE 8
Design: bit-line computing cont.
8
Logical operation: 1. Precharge BL=Vref, BLB=Vref 2. Activate two rows (WLi, WLj) 3. Sensing BL => AND, sensing BLB => NOR ○ BL or BLB is sensed as ‘1’ only if two activated bits are both ‘1’ XOR = wired-NOR(NOR, AND)
SLIDE 9
Design: operand locality
Operand locality requirement: physically share the same set of bitlines Design choices:
- All ways in a set mapped to the
same block partition.
- Use part of the set-index bits to
select bank and block position.
9
Need only at most 12 bits to guarantee operand locality. 2^12=4K=pagesize Page-alignment guarantees operand locality
SLIDE 10
Design: operand locality cont.
When cannot achieve perfect locality: one additional vector logic unit per cache controller
- High area overhead
○ 16MB L3 with 512 sub-arrays = 128 * 64B logic units
- High latency (14 cycles vs 22 cycles)
- High energy consumption (60%~80% energy spent on H-Tree wire transfer)
10
SLIDE 11
Design: execution management
Enhanced cache controller:
- Break instruction into operations
○
- perations’ operands are at most one single cache block
- Deploy key to block
○ for cc_search
- Split instructions into multiple instructions
○ if the operands are too long ○ by raise a pipeline exception
11
instruction OP OP OP OP cc_search key key key key
SLIDE 12
Design: operation cache level
Operate on the cache level where:
- that is highest
- that contains all operands
Example:
- cc_and
- perands: A, B, C
○ A in L2, B in L2, C in memory
- perform operation in L3
12
SLIDE 13
Design: cache coherence & memory model
- No influence to cache coherence
○ Cache coherence requests are responded first ○ When a request comes: i. The cache-line is unlocked ii. The cache-line is marked invalid (maybe) iii. The cache-line is re-fetched
- No influence to memory model
○ fence instruction is still usable in CC
13
SLIDE 14
Evaluation
- Environment
○ SniperSim (simulator) & McPAT (power) ○ 8 core CMP with 32K L1d, 256K L2 and 16M L3
- Benchmarks
○ WordCount: cc_search ○ StringMatch: cc_cmp ○ DB-BitMap: cc_or, cc_and ○ Bit Matrix Multiplication: cc_clmul ○ Checkpointing: cc_copy
14
SLIDE 15
Evaluation
- Delay
○ negligible impact on the baseline read/write ○ and/or/xor: 3x latency than simple access ○ the rest: 2x
- Energy
○ cmp/search/clmul: 1.5x ○ copy/buz/not: 2x ○ rest: 2.5x
- Area
○ 8% overhead
15
SLIDE 16
Evaluation: Benefits
16
53x
data parallelism latency reduction
90% 89% 71% 92%
runtime is shortened data movement is reduced key distribution
BMM: 3.2x Wordcount: 2x StringMatch: 1.5x DB-BitMap: 1.6x
SLIDE 17
Evaluation: different configuration
17
in-place vs. near-place
- compute inside cache
- compute inside cache controller
L1 vs. L2 vs. L3
CC_L3 still accesses L1 and L2
SLIDE 18
Summary & Weakness
- Compute in cache!
○ Compute inside cache with bit-line hacking ○ A bunch of instructions ○ High throughput ○ Great power efficiency ○ Few area overhead
- Weakness:
○ how about moving data to L3? This may cost more energy...
18
SLIDE 19
Discussion
- In-Cache Computing vs. In-Memory Computing
○ Which do you think is better?
- Any idea to perform more complex operation?
○ For example, add? See Prof Das’ following work.
- How about make cache computing more programmable?
○ Something like FPGA?
19
