Complex fractures of the distal humerus and their complications SOTS, Stockholm January 20th 2010 Lars Henrik Frich. MD PhD Distal Humeral Fractures Goals Restoration of articular surface Early motion Union

slide-1
SLIDE 1

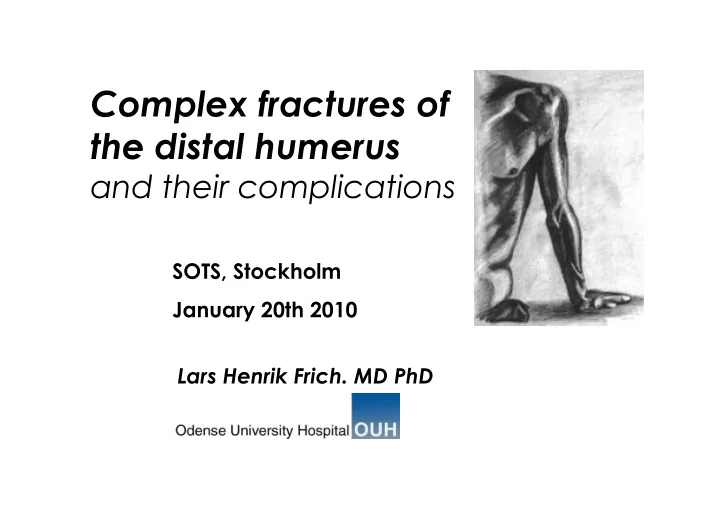

Complex fractures of the distal humerus

and their complications

SOTS, Stockholm January 20th 2010 Lars Henrik Frich. MD PhD

slide-2
SLIDE 2

Distal Humeral Fractures

  • Goals

– Restoration of articular surface – Early motion – Union

  • Problems !
slide-3
SLIDE 3

Demographics

Distal humerus fractures – Approx. 2% of all fractures – 15% of all humerus fractures.

slide-4
SLIDE 4

Trauma mechanisms

  • High velocity injury in

younger patients

slide-5
SLIDE 5

Trauma mechanism

  • Low energy fall
slide-6
SLIDE 6

Fracture patterns

  • Shear force
  • Coronal plane

fractures

– Capitellum – Trochlea

slide-7
SLIDE 7

Fracture Patterns (AO)

B A C 1 2 3

slide-8
SLIDE 8

Complex (triplane fractures)

  • +/- comminution
slide-9
SLIDE 9

Outline

  • History
  • Challenges & Problems
  • Treatment options
  • Complications
  • (my) Concept
slide-10
SLIDE 10

Historical overview

  • Pionering operative tactics

Lambotte 1913

  • ”Bag-of- bones”

Eastwood 1937 Brown & Morgan 1971

  • Stabl fixation

» Morrey et al 1981

  • Precontoured plates

Shawn O’Driscol 2002

slide-11
SLIDE 11

Challenges & Problems

  • Complex anatomy and

Biomechanics

  • Limited bonemass
  • Crushed (avital) joint surface
  • Lack of (surgical) experience
slide-12
SLIDE 12

Distal humerus Bone stock

pQCT

slide-13
SLIDE 13

Crushed (low)fractures

  • Imaging

– CT (allways) – 3-D reconstruction – MRI (seldom)

slide-14
SLIDE 14

Treatment Modalities & Techniques

slide-15
SLIDE 15

Non-operative treatment

91 years old lady

slide-16
SLIDE 16

6 months

slide-17
SLIDE 17

Surgical Technique

  • Straight Incision

“around” the

  • lecranon to

avoid flap necrosis

slide-18
SLIDE 18

Surgical technique

  • Identify and

release the Ulnar nerve

slide-19
SLIDE 19

Triceps Sparing/Split

slide-20
SLIDE 20

Olecranon-osteostomy

  • Olecranon
  • steotomy is

seldom nescesary (fix with a plate)

slide-21
SLIDE 21

ORIF Technique

  • K wires
  • Screws
slide-22
SLIDE 22

ORIF Technique

Classical 90 technique (AO)

slide-23
SLIDE 23

ORIF Technique

  • Parallel plates
  • Precontoured

plates

  • Locking screws
slide-24
SLIDE 24

ORIF Technique Double-column fixation

slide-25
SLIDE 25

Difficult fractures to treat

  • Low fractures
  • Tri-plane fractures
  • Comminuted fractures
  • Poor soft tissues
  • Open fractures
slide-26
SLIDE 26

Coronal Shear Fracture type 1-3

Milch type fractures

slide-27
SLIDE 27

Coronal Shear fractures

  • 1% of all elbow fractures
  • Uniquely difficult to repair

Dubberly: 2006

slide-28
SLIDE 28

Type 1 CS Fracture

slide-29
SLIDE 29

Type 1 CS Fracture

slide-30
SLIDE 30

Type 1 CS Fracture

slide-31
SLIDE 31

Type 3 CS Fracture

slide-32
SLIDE 32

Medial Collum Fracture (Milch type II)

slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35

Anglestabl plate

  • steosynthesis
slide-36
SLIDE 36

Results

  • Conservative treatment

– Patients with limited functions manage with limited ROM

  • Surgical treatment

– 75 % can expect good outcome

Ring & Jupiter 1999

slide-37
SLIDE 37

Elbow Kinematics

  • Painfree and stable

function:

  • 100° flexion
  • 100° Supination

/pronation

Morrey et a.l JBJS 63A:1981

slide-38
SLIDE 38

Results (review)

  • Wide range of

injury and treatment are reported

  • Small series
  • Union rates are

excellent (91%

  • 100%)
  • MEPS
  • 84%-100% good to

excellent

  • utcomes
  • Flexion arc 90º-

106º

  • Complication-rate

high

slide-39
SLIDE 39

McKee type 4

slide-40
SLIDE 40

Hemi arthroplasty

slide-41
SLIDE 41

Hemi-Arthroplasty for Acute Distal Humerus Fractures

Indications

  • “Elderly” osteopenic

low demand patients

  • Adequate fixation of

a comminuted distal humeral fracture is unlikely to be achieved with ORIF

LATITUDE ANATOMIC™- Tornier

slide-42
SLIDE 42

Complex fractures

  • 82 Years old

lady

  • Ostepososis
slide-43
SLIDE 43

Total Elbow Replacement

slide-44
SLIDE 44

Arthroplasty for Acute Distal Humerus Fractures

Indications

  • “Elderly”
  • steopenic low

demand patients

  • Supracondylar

fracture with pre- existing arthritis

  • Unstable pseud-

arthroses

DISCOVERY, Biomet

slide-45
SLIDE 45

Full methal jacket

slide-46
SLIDE 46

Open Fractures

60 Years Male - Liver Disease

slide-47
SLIDE 47

Minimal osteosynthesis External Mobile Fixation

Post-OP 6 weeks

slide-48
SLIDE 48

Minimal osteosynthesis External Mobile Fixation

3 months post OP

slide-49
SLIDE 49

Gunshot (low velocity)

slide-50
SLIDE 50

Temporary DJDII

slide-51
SLIDE 51

DJD2 Chronic Instability applications

slide-52
SLIDE 52

Complications

  • Mal-union
  • Pseud-arthroses
  • Stiffness
  • Infection
  • Neuro-vascular
  • Neuropathy
  • Heterotopic bone
  • (Early) Arthrosis
slide-53
SLIDE 53

Review article 30 % Complications

– Inadequate

  • steosynthesis

– Ulnar nerve palsies – Non-union – Malunion – Infection

Ring & Jupiter JSES 1999

slide-54
SLIDE 54

Complications

Early

  • 37 cases AO type C
  • Precontoured

parallel plates

  • 53% complications
  • 16% nerve injuries
  • J Orthop Trauma 2009

Late

  • 30 cases
  • Posttraumatic

arthritis in 80% after 19 years (12-25)

  • Despite optimal

surgical treatment

  • JBJS 2007; 89A:1524
slide-55
SLIDE 55

Approach related Complications

  • Incisional
  • Olecranon
  • steotomy

– Non-union – Malunion – Hardware failure – Pain

  • Triceps split

– Extension defecits – Weekening of the Triceps – Triceps reflecting approach better that division of the tendon – J Shoulder Elbow Surg 2007:849

slide-56
SLIDE 56

Aproach Related Complications

slide-57
SLIDE 57

TriplaneFracture

62 years old lady

slide-58
SLIDE 58

Poor reduction Stable osteotomy?

slide-59
SLIDE 59
slide-60
SLIDE 60

26 years old Male, Top-Skier

slide-61
SLIDE 61

Poor reduction Stable osteotomy?

slide-62
SLIDE 62

Double pseud-arthrosis

8 months Post-OP

slide-63
SLIDE 63

Complications Ulna osteotomy

20 years old male

slide-64
SLIDE 64

Ulna osteotomy related complications

  • 25 cases
  • Tension band

wiring.

  • 36% of bad quality
  • 1 pseudarthrosis

– Chirurgie de la Main 28, 2009:

  • 94 cases
  • Different

techniques

  • 19% symptomatic

fixations

– Journalagent.com 2009

slide-65
SLIDE 65

46 years old male (Alcoholic)

slide-66
SLIDE 66

44 years old male Car accident

slide-67
SLIDE 67

Post OP Radial nerve paresis

slide-68
SLIDE 68

10 months Post-OP

slide-69
SLIDE 69

Re-Osteosynthesis

slide-70
SLIDE 70

Neuro-vascular lesions

  • Less frequent
  • Serious
slide-71
SLIDE 71

Heterotopic ossification

slide-72
SLIDE 72

Stiffness/HO

slide-73
SLIDE 73

Heterotopic Bone

  • Gofton et al.

J hand Surg 2003

  • 13% of cases
  • Recommended

prophylaxis with Indomethacin.

  • Leugmair et al.

J Shoulder Elbow Surg 2008

  • 11 % of cases
  • Most impotant

complication that limited ROM

slide-74
SLIDE 74

Entrapment radial nerve

slide-75
SLIDE 75

Radial nerve entrapped under the plate

slide-76
SLIDE 76

Reoperations in 20% of trauma cases

  • Insufficient
  • steosynthesis
  • Poor access
  • Poor reduction
  • Incorrect use of

implants

  • Underestimation of

soft tissue lesions Review 2006

  • Incomplete

understanding of trauma mechanism

  • Not daytime

surgery

  • Surgical

experience !

slide-77
SLIDE 77

How to avoid complications

  • Experienced

surgeons

  • Daytime surgery
  • Centralized

Treatment

slide-78
SLIDE 78

Summary Distal Humerus

  • Preoperative planning

– CT scans – Approach (posterior)

  • ORIF successful in the majority of patients

– Reestablish jointsurface anatomally – Stability between distal fragment og Humeral shaft

  • Early Rehabilitation

– Active and passive ROM

  • Severe bone loss (low demand seniors)

– Consider primary elbow arthroplasty !

– TEA or hemiarthropasty

slide-79
SLIDE 79

Don’t do an Olecranon osteotomy unless you have to!

slide-80
SLIDE 80

Princip-based after-treatment

  • Rehabilitation

– Infra-clavicular block/ catheter – Early ROM – (CPM)
