Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon -64 L eo Perrin Dmitry Khovratovitch firstname.lastname@uni.lu University of Luxembourg March 3, 2014 Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum,

slide-1
SLIDE 1

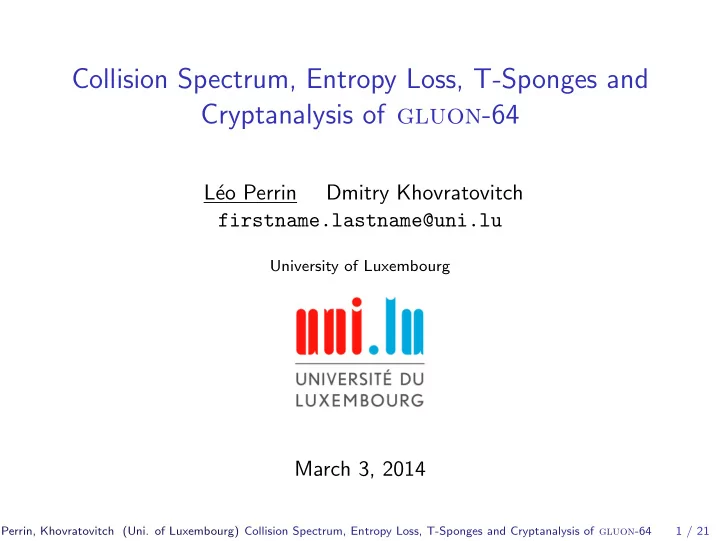

Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64

L´ eo Perrin Dmitry Khovratovitch firstname.lastname@uni.lu

University of Luxembourg

March 3, 2014

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 1 / 21

slide-2
SLIDE 2

Random functions

What happens when a random function is used to update the internal state of a cryptographic primitive?

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 2 / 21

slide-3
SLIDE 3

Random functions

What happens when a random function is used to update the internal state of a cryptographic primitive?

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 2 / 21

slide-4
SLIDE 4

Known Results CPS and Iterated (Pre)-Images Applications to Cryptography Application to gluon-64 Conclusion

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 3 / 21

slide-5
SLIDE 5

Plan

Known Results CPS and Iterated (Pre)-Images Applications to Cryptography Application to gluon-64 Conclusion

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 3 / 21

slide-6
SLIDE 6

Random Functions Statistics

Flajolet and Odlyzko (89), on a random functions g : S → S:

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 4 / 21

slide-7
SLIDE 7

Random Functions Statistics

Flajolet and Odlyzko (89), on a random functions g : S → S:

  • Distribution of the preimages sizes for a

$

← S: P[g(x) = a has k solutions for a

$

← S] = e−1/k!

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 4 / 21

slide-8
SLIDE 8

Random Functions Statistics

Flajolet and Odlyzko (89), on a random functions g : S → S:

  • Distribution of the preimages sizes for a

$

← S: P[g(x) = a has k solutions for a

$

← S] = e−1/k!

  • (Expected) size of iterated image: |gi(S)| ≈ |S|

i/2

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 4 / 21

slide-9
SLIDE 9

Random Functions Statistics

Flajolet and Odlyzko (89), on a random functions g : S → S:

  • Distribution of the preimages sizes for a

$

← S: P[g(x) = a has k solutions for a

$

← S] = e−1/k!

  • (Expected) size of iterated image: |gi(S)| ≈ |S|

i/2

  • (Expected) cycle and tail length:
  • π|S|

8

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 4 / 21

slide-10
SLIDE 10

Random Functions Statistics

Flajolet and Odlyzko (89), on a random functions g : S → S:

  • Distribution of the preimages sizes for a

$

← S: P[g(x) = a has k solutions for a

$

← S] = e−1/k!

  • (Expected) size of iterated image: |gi(S)| ≈ |S|

i/2

  • (Expected) cycle and tail length:
  • π|S|

8

  • ...

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 4 / 21

slide-11
SLIDE 11

Random Functions Statistics

Flajolet and Odlyzko (89), on a random functions g : S → S:

  • Distribution of the preimages sizes for a

$

← S: P[g(x) = a has k solutions for a

$

← S] = e−1/k!

  • (Expected) size of iterated image: |gi(S)| ≈ |S|

i/2

  • (Expected) cycle and tail length:
  • π|S|

8

  • ...

For functions chosen uniformly at random among all the functions from S to itself (random mappings).

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 4 / 21

slide-12
SLIDE 12

Using state shrinking/presence of trees

  • Trees and output shrinking used to attack A5/1 (Golic 97, Biryukov
  • et. al. 01).

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 5 / 21

slide-13
SLIDE 13

Using state shrinking/presence of trees

  • Trees and output shrinking used to attack A5/1 (Golic 97, Biryukov
  • et. al. 01).
  • Shrinking of the state space of mickey observed by Hong and Kim

(05), studied by R¨

  • ck (08).

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 5 / 21

slide-14
SLIDE 14

Plan

Known Results CPS and Iterated (Pre)-Images Applications to Cryptography Application to gluon-64 Conclusion

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 6 / 21

slide-15
SLIDE 15

Collision Probability Spectrum (cps)

Definition (Collision Probability Spectrum)

We call Collision Probability Spectrum (cps) of g : S → S the set {ck}k≥1 ck = P[g(a + x) = g(a) has k solutions].

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 7 / 21

slide-16
SLIDE 16

Collision Probability Spectrum (cps)

Definition (Collision Probability Spectrum)

We call Collision Probability Spectrum (cps) of g : S → S the set {ck}k≥1 ck = P[g(a + x) = g(a) has k solutions].

Definition

The average number of non-zero roots is denoted κ and called collision average: κ =

  • k≥1

ck · k − 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 7 / 21

slide-17
SLIDE 17

Output Shrinking

Let Vk = {x0 ∈ S, g(x0 + y) = g(x0) has k solutions}. ⇒ |Vk| = ck · |S|

slide-18
SLIDE 18

Output Shrinking

Let Vk = {x0 ∈ S, g(x0 + y) = g(x0) has k solutions}. ⇒ |Vk| = ck · |S| Let g have CPS {c1 = c2 = 1/2}.

slide-19
SLIDE 19

Output Shrinking

Let Vk = {x0 ∈ S, g(x0 + y) = g(x0) has k solutions}. ⇒ |Vk| = ck · |S| Let g have CPS {c1 = c2 = 1/2}. V1 V2 S

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 8 / 21

slide-20
SLIDE 20

Output Shrinking

Let Vk = {x0 ∈ S, g(x0 + y) = g(x0) has k solutions}. ⇒ |Vk| = ck · |S| Let g have CPS {c1 = c2 = 1/2}. V1 V2 S

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 8 / 21

slide-21
SLIDE 21

Output Shrinking

Let Vk = {x0 ∈ S, g(x0 + y) = g(x0) has k solutions}. ⇒ |Vk| = ck · |S| Let g have CPS {c1 = c2 = 1/2}. V1 V2 S

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 8 / 21

slide-22
SLIDE 22

Output Shrinking

Let Vk = {x0 ∈ S, g(x0 + y) = g(x0) has k solutions}. ⇒ |Vk| = ck · |S| Let g have CPS {c1 = c2 = 1/2}. V1 V2 S Lost!

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 8 / 21

slide-23
SLIDE 23

Output Shrinking

Let Vk = {x0 ∈ S, g(x0 + y) = g(x0) has k solutions}. ⇒ |Vk| = ck · |S| Let g have CPS {c1 = c2 = 1/2}. V1 V2 S Lost! |g(Vk)| = ck k · |S|

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 8 / 21

slide-24
SLIDE 24

Output Shrinking

Let Vk = {x0 ∈ S, g(x0 + y) = g(x0) has k solutions}. ⇒ |Vk| = ck · |S| Let g have CPS {c1 = c2 = 1/2}. V1 V2 S Lost! |g(Vk)| = ck k · |S| Independence Assumption: In what follows, we assume that x ∈ g(Vk) and x ∈ Vj are independent for any k, j.

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 8 / 21

slide-25
SLIDE 25

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-26
SLIDE 26

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S)

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-27
SLIDE 27

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S)

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-28
SLIDE 28

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S)

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-29
SLIDE 29

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S)

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-30
SLIDE 30

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-31
SLIDE 31

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-32
SLIDE 32

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-33
SLIDE 33

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-34
SLIDE 34

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-35
SLIDE 35

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-36
SLIDE 36

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-37
SLIDE 37

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-38
SLIDE 38

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-39
SLIDE 39

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1 4 3 2 1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-40
SLIDE 40

Iterated Output Shrinking and Collision Trees

g : S → S has CPS {c3 = 1}; # iterations <

  • |S|

S g(S) g2(S) g3(S) g4(S) |gi(S)| ∼ |S| i · κ/2

4 3 2 1 4 3 2 1

#{ nodes in tree rooted in gi(S)} ∼ κ 4 · i2

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 9 / 21

slide-41
SLIDE 41

Known cps’s

Function κ |S|/|gi(S)| tree size mickey’s update function 0.625 2−1.7 · i 2−2.7 · i2 Random mapping 1 2−1 · i 2−2 · i2 gluon-64’s update function 6.982 21.8 · i 20.8 · i2

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 10 / 21

slide-42
SLIDE 42

Plan

Known Results CPS and Iterated (Pre)-Images Applications to Cryptography Application to gluon-64 Conclusion

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 11 / 21

slide-43
SLIDE 43

The t-sponge Construction

... ... Id g g g g g IV IS1 ISk ISk+1 ISk+d Absorption Squeezing c r m1 ... mk ⊕ ⊕ d1 ... dj

  • c: capacity
  • r: bitrate
  • m1, ..., mk:

Message

  • d1, ..., dj: Digest
  • g: random

function

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 12 / 21

slide-44
SLIDE 44

Flat Sponge Claim Revisited

If g is a function with collision average κ, then finding collisions with Q queries succeeds with probability Q2 2c+1 ·

  • 1 + κ − 1

2r

  • .

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 13 / 21

slide-45
SLIDE 45

Flat Sponge Claim Revisited

If g is a function with collision average κ, then finding collisions with Q queries succeeds with probability Q2 2c+1 ·

  • 1 + κ − 1

2r

  • .

Intuition: S has size 2c+r. Collisions occur because of the “trimming” of the bitrate (2r/2c+r = 2c) and because of inner-collisions (κ/2c+r).

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 13 / 21

slide-46
SLIDE 46

Keyed Walk

Definition

Given a space S, functions gk : S → S and a sequence of keys {k1, ..., km}, a keyed walk starting in x0 is such that xi+1 = gki(xi).

slide-47
SLIDE 47

Keyed Walk

Definition

Given a space S, functions gk : S → S and a sequence of keys {k1, ..., km}, a keyed walk starting in x0 is such that xi+1 = gki(xi). Example:

  • Keys: {k1, k2, k3}
  • Sequence: {k1, k3, k3, k1, k2}
  • Functions: gki, i = 1, 2, 3.
slide-48
SLIDE 48

Keyed Walk

Definition

Given a space S, functions gk : S → S and a sequence of keys {k1, ..., km}, a keyed walk starting in x0 is such that xi+1 = gki(xi). Example:

  • Keys: {k1, k2, k3}
  • Sequence: {k1, k3, k3, k1, k2}
  • Functions: gki, i = 1, 2, 3.

x0 x1 gk1 gk2 gk3

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 14 / 21

slide-49
SLIDE 49

Keyed Walk

Definition

Given a space S, functions gk : S → S and a sequence of keys {k1, ..., km}, a keyed walk starting in x0 is such that xi+1 = gki(xi). Example:

  • Keys: {k1, k2, k3}
  • Sequence: {k1, k3, k3, k1, k2}
  • Functions: gki, i = 1, 2, 3.

x0 x1 gk1 gk2 gk3 x2 gk1 gk2 gk3

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 14 / 21

slide-50
SLIDE 50

Keyed Walk

Definition

Given a space S, functions gk : S → S and a sequence of keys {k1, ..., km}, a keyed walk starting in x0 is such that xi+1 = gki(xi). Example:

  • Keys: {k1, k2, k3}
  • Sequence: {k1, k3, k3, k1, k2}
  • Functions: gki, i = 1, 2, 3.

x0 x1 gk1 gk2 gk3 x2 gk1 gk2 gk3 x3 gk1 gk2 gk3

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 14 / 21

slide-51
SLIDE 51

Keyed Walk

Definition

Given a space S, functions gk : S → S and a sequence of keys {k1, ..., km}, a keyed walk starting in x0 is such that xi+1 = gki(xi). Example:

  • Keys: {k1, k2, k3}
  • Sequence: {k1, k3, k3, k1, k2}
  • Functions: gki, i = 1, 2, 3.

x0 x1 gk1 gk2 gk3 x2 gk1 gk2 gk3 x3 gk1 gk2 gk3 x4 gk1 gk2 gk3

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 14 / 21

slide-52
SLIDE 52

Keyed Walk

Definition

Given a space S, functions gk : S → S and a sequence of keys {k1, ..., km}, a keyed walk starting in x0 is such that xi+1 = gki(xi). Example:

  • Keys: {k1, k2, k3}
  • Sequence: {k1, k3, k3, k1, k2}
  • Functions: gki, i = 1, 2, 3.

x0 x1 gk1 gk2 gk3 x2 gk1 gk2 gk3 x3 gk1 gk2 gk3 x4 gk1 gk2 gk3 x5 gk1 gk2 gk3

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 14 / 21

slide-53
SLIDE 53

Let t be such that t ∈ gi

k1(S)

slide-54
SLIDE 54

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4

slide-55
SLIDE 55

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g?

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-56
SLIDE 56

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g?

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-57
SLIDE 57

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-58
SLIDE 58

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Collision tree

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-59
SLIDE 59

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Collision tree x′ ... x′

u′−1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-60
SLIDE 60

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Collision tree x′ ... x′

u′−1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-61
SLIDE 61

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Collision tree x′ ... x′

u′−1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-62
SLIDE 62

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Collision tree x′ ... x′

u′−1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-63
SLIDE 63

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Collision tree x′ ... x′

u′−1

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-64
SLIDE 64

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Collision tree x′ ... x′

u′−1

Finding element in g−i

k1 (t)

C ≈ |S| κ/2

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-65
SLIDE 65

Let t be such that t ∈ gi

k1(S)

|g−i

k1 (t)| ≈ i · κ/2

|Tree| ≈ i2 · κ/4 x0 ... t g? xu g? g−i

k1 (t)

Collision tree x′ ... x′

u′−1

Finding element in g−i

k1 (t)

C ≈ |S| κ/2 Finding element in collision tree: C ≈ |S| i · κ/4

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 15 / 21

slide-66
SLIDE 66

Consequences in Cryptography

Let m = m0||...||mn||0||0||...||0 (a message ending with z 0’s) and d = H(m).

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 16 / 21

slide-67
SLIDE 67

Consequences in Cryptography

Let m = m0||...||mn||0||0||...||0 (a message ending with z 0’s) and d = H(m).

  • If H is a t-sponge then we can find a preimage for d in time

2c · 2r+2 κ · z .

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 16 / 21

slide-68
SLIDE 68

Consequences in Cryptography

Let m = m0||...||mn||0||0||...||0 (a message ending with z 0’s) and d = H(m).

  • If H is a t-sponge then we can find a preimage for d in time

2c · 2r+2 κ · z .

  • If H is a Davies-Meyer based hashfunctions with internal state size n:
  • With padding: preimage found in time 2n+1/κ
  • No padding: preimage found in time 2n+2/(z · κ)

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 16 / 21

slide-69
SLIDE 69

Consequences in Cryptography

Let m = m0||...||mn||0||0||...||0 (a message ending with z 0’s) and d = H(m).

  • If H is a t-sponge then we can find a preimage for d in time

2c · 2r+2 κ · z .

  • If H is a Davies-Meyer based hashfunctions with internal state size n:
  • With padding: preimage found in time 2n+1/κ
  • No padding: preimage found in time 2n+2/(z · κ)
  • More?

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 16 / 21

slide-70
SLIDE 70

Plan

Known Results CPS and Iterated (Pre)-Images Applications to Cryptography Application to gluon-64 Conclusion

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 17 / 21

slide-71
SLIDE 71

Description of gluon-64

  • Lightweight hash function.

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 18 / 21

slide-72
SLIDE 72

Description of gluon-64

  • Lightweight hash function.
  • t-sponge, r = 8, c = 128

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 18 / 21

slide-73
SLIDE 73

Description of gluon-64

  • Lightweight hash function.
  • t-sponge, r = 8, c = 128
  • g = Φ ◦ ρd+4 ◦ pad

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 18 / 21

slide-74
SLIDE 74

Description of gluon-64

  • Lightweight hash function.
  • t-sponge, r = 8, c = 128
  • g = Φ ◦ ρd+4 ◦ pad

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 18 / 21

slide-75
SLIDE 75

Description of gluon-64

  • Lightweight hash function.
  • t-sponge, r = 8, c = 128
  • g = Φ ◦ ρd+4 ◦ pad

Possible (with a SAT-solver) to enumerate the solutions of (ρ10 ◦ pad)(x + a) = (ρ10 ◦ pad)(a)

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 18 / 21

slide-76
SLIDE 76

5 10 15 20 0.1 0.2 0.3 0.4 k ck CPS gluon-64 CPS random function

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 19 / 21

slide-77
SLIDE 77

5 10 15 20 0.1 0.2 0.3 0.4 k ck CPS gluon-64 CPS random function c1 = 0.065, κ = 6.982 = 22.80 c1 = 0.368, κ = 1.000 = 20

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 19 / 21

slide-78
SLIDE 78

5 10 15 20 0.1 0.2 0.3 0.4 k ck CPS gluon-64 CPS random function c1 = 0.065, κ = 6.982 = 22.80 c1 = 0.368, κ = 1.000 = 20 Preimage search for m ending with z zeroes: C = 2c · 2r+2 κ · z = 2c · 147 z

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 19 / 21

slide-79
SLIDE 79

Plan

Known Results CPS and Iterated (Pre)-Images Applications to Cryptography Application to gluon-64 Conclusion

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 20 / 21

slide-80
SLIDE 80

Conclusion

  • Not permutation =

⇒ iterated output shrinking and quadratic collision trees.

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 21 / 21

slide-81
SLIDE 81

Conclusion

  • Not permutation =

⇒ iterated output shrinking and quadratic collision trees.

  • The cps allows more precise estimations of these.

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 21 / 21

slide-82
SLIDE 82

Conclusion

  • Not permutation =

⇒ iterated output shrinking and quadratic collision trees.

  • The cps allows more precise estimations of these.
  • More precise flat sponge claim for t-sponge and easier preimage

search = ⇒ Use large bitrate!

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 21 / 21

slide-83
SLIDE 83

Conclusion

  • Not permutation =

⇒ iterated output shrinking and quadratic collision trees.

  • The cps allows more precise estimations of these.
  • More precise flat sponge claim for t-sponge and easier preimage

search = ⇒ Use large bitrate!

  • For gluon-64, preimage for hash of unkown message ending with z

zeroes needs 2c · (147/z).

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 21 / 21

slide-84
SLIDE 84

Conclusion

  • Not permutation =

⇒ iterated output shrinking and quadratic collision trees.

  • The cps allows more precise estimations of these.
  • More precise flat sponge claim for t-sponge and easier preimage

search = ⇒ Use large bitrate!

  • For gluon-64, preimage for hash of unkown message ending with z

zeroes needs 2c · (147/z).

  • 500 B of zeroes: C = 2126.2

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 21 / 21

slide-85
SLIDE 85

Conclusion

  • Not permutation =

⇒ iterated output shrinking and quadratic collision trees.

  • The cps allows more precise estimations of these.
  • More precise flat sponge claim for t-sponge and easier preimage

search = ⇒ Use large bitrate!

  • For gluon-64, preimage for hash of unkown message ending with z

zeroes needs 2c · (147/z).

  • 500 B of zeroes: C = 2126.2
  • 1 MB of zeroes: C = 2115.3

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 21 / 21

slide-86
SLIDE 86

Conclusion

  • Not permutation =

⇒ iterated output shrinking and quadratic collision trees.

  • The cps allows more precise estimations of these.
  • More precise flat sponge claim for t-sponge and easier preimage

search = ⇒ Use large bitrate!

  • For gluon-64, preimage for hash of unkown message ending with z

zeroes needs 2c · (147/z).

  • 500 B of zeroes: C = 2126.2
  • 1 MB of zeroes: C = 2115.3
  • 1 GB of zeroes: C = 2105.3

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 21 / 21

slide-87
SLIDE 87

Conclusion

  • Not permutation =

⇒ iterated output shrinking and quadratic collision trees.

  • The cps allows more precise estimations of these.
  • More precise flat sponge claim for t-sponge and easier preimage

search = ⇒ Use large bitrate!

  • For gluon-64, preimage for hash of unkown message ending with z

zeroes needs 2c · (147/z).

  • 500 B of zeroes: C = 2126.2
  • 1 MB of zeroes: C = 2115.3
  • 1 GB of zeroes: C = 2105.3

Thank you!

Perrin, Khovratovitch (Uni. of Luxembourg) Collision Spectrum, Entropy Loss, T-Sponges and Cryptanalysis of gluon-64 21 / 21
