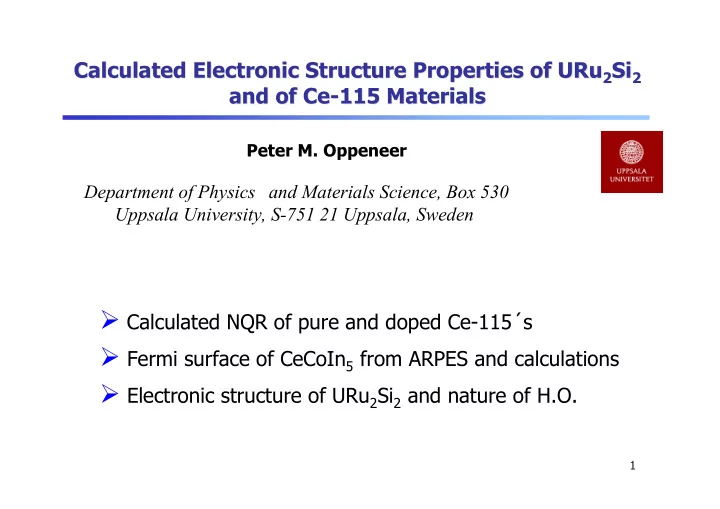

Calculated Electronic Structure Properties of URu Calculated Electronic Structure Properties of URu2

2Si

Si2

2

and and

• f Ce-115 Materials
• f Ce-115 Materials

Peter M. Oppeneer

Department of Physics and Materials Science, Box 530 Uppsala University, S-751 21 Uppsala, Sweden

Calculated NQR of pure and doped Ce-115´s Fermi surface of CeCoIn5 from ARPES and calculations Electronic structure of URu2Si2 and nature of H.O.

Hvar Conference September 2008

2

Collaboration Collaboration

Uppsala Saad Elgazzar Jan Rusz Michi-To Suzuki Martin Amft URu2Si2 John Mydosh Ce-115 ARPES J.D. Denlinger Jim Allen Feng Wang R.S. Singh

• K. Rossnagel

V.S. Zapf M.B. Maple NQR Ce-115´s Nick Curro Ricardo Urbano Ben-Li Young

• S. Lebegue

P.G. Pagliuso Long D. Pham E.D. Bauer J.L. Sarrao

• Z. Fisk

Hvar Conference September 2008

3

Computational methodology Computational methodology

All electron, full-potential, fully-relativistic electronic structure calculations, mainly FL-APW and FPLO codes. Density-functional theory based computational investigations Exchange-correlation treated on LSDA, GGA, LSDA+U, GGA+U levels

f-electron behavior: f-localized f-itinerant LDA f-core DFT+U LDA,GGA

Hvar Conference September 2008

4

The Hidden Order of URu The Hidden Order of URu2

2Si

Si2

2

Over 2 decades of much exp. & theo. research, yet no firm understanding of the underlying physics (talks John Mydosh & Brian Maple)

No valid electronic structure model No clue where, how and by what mechanism

the FS is gapped

Now: valid electronic structure model Explains most of known properties of URu2Si2 Detailed picture of FS “hot spots”, FS gapping

and symmetry-breaking

Proposal for mechanism of the H.O. Prediction of various quantities for future exps.

T P LMAF HO

SC

PM

Hvar Conference September 2008

5

Our calculations Our calculations

PM, LMAF, and variation of exchange-interaction J to go continuously PM <=> SMAF <=> LMAF Compute properties & compare to existing exp. data 1. Our codes give precisely same result 2. Explain first PM & LMAF phases 3. Zoom in on the HO state T P LMAF HO

SC

PM Important notion from experiment: “adiabatic continuity” = HO & LMAF very similar BUT not the same OP!

Hvar Conference September 2008

6

Theoretical models for the HO Theoretical models for the HO

• Santini & Amoretti (1994) Quadrupolar order*
• Barzykin & Gorkov (1995)

three-spin correlations

• Kasuya (1997)

U dimerization

• Ikeda & Ohashi (1998)

d-spin density wave

• Okuno & Miyake (1998)

CEF & quant. fluctuations*

• Chandra, et al (2002)

Orbital currents

• Dora & Maki (2003)
• unconv. SDW
• Mineev & Zhitomirsky (2005) SDW
• Kiss & Fazekas (2005)

Octupolar order*

• Varma & Zhu (2006)

Helicity order

• ...

*localized f models >> But no microscopic, ab initio model

Hvar Conference September 2008

7

Our new electronic structure model of URu2Si2

Explains the following properties:

lattice constant (0.5%) magnetic moment 0.39 μB energy scale 7 K compensated metal Hall effect - number of holes FS gapping at EF infrared optical spectra jump in resistivity anisotropy of resistivity AFM order under pressure nesting vector breaking of time-reversal

& body-centering

dispersive f-dominated

bands near EF () de Haas-van Alphen ? ARPES (new exp. coming)

Hvar Conference September 2008

8

Earlier computed FS for LMAF phase Earlier computed FS for LMAF phase

Yamagami & Hamada, Physica B 284, 1295 (2000)

Very large difference with regard to previous result (2000) ! is in the center, Z at top; 3 bands. 2 bands

Hvar Conference September 2008

9

One key feature of HO: FS gapping

FS gapping: resistivity, C/T Nernst effect Hall effect IR optics …

Jeffries et al, PRL 99 (2007)

Extraction of k-averaged gap ~5 - 11 meV

Maple et al, PRL 56, 185 (1986) Jeffries et al, PRL 99 (2007) Palstra et al, PRB 33 (1986) Behnia et al, PRL 94 (2005)

Hvar Conference September 2008

10

LMAF LMAF vs

• vs. PM: A small gapping ??

. PM: A small gapping ??

A X M

. . . .

• .
• R

.

. .

• LMAF and PM phase bands are very close!

Simple tetragonal BZ

• f AFM phase

Hvar Conference September 2008

11

Fermi Fermi surface gapping visualized surface gapping visualized

A X M

• R
• PM

LMAF A large gapping

Rugged, arm-shaped FS sheet disappears completely

>> Often speculated, but never microscopically identified

Hvar Conference September 2008

12

Fermi surface cross section in Fermi surface cross section in z=0 z=0 plane plane

• X
• Two entangled FS sheets in PM phase,

break-up in LMAF phase

LMAF PM EF Degenerate crossing at EF

Hvar Conference September 2008

13

Influence of gapping: Computed Influence of gapping: Computed resistivity resistivity jump jump

[AFM PM ]/PM(J || c) = 620% [AFM PM ]/PM(J || a) = 160%

Computed T=0 resistivity change from gapping:

Anisotropy 4:1

Experiment at T=17.5K:

HO /PM (J ||c) = 400% HO /PM (J || a) =100%

Large 0+2-background at 17K subtracted, but no other correction

Anisotropy 4:1

Hvar Conference September 2008

14

Compensated metal, carrier density Compensated metal, carrier density

Somewhat larger exc.-splitting:

Carrier density:

PM: nh ~ 0.08/ U-atom LMAF: nh ~0.0185/ U-atom

nh ne

Factor of 4! Hall resistivity exp:

0.017 < nh (HO) < 0.021

Kasahara et al. PRL 99, 116402 (2007) Oh et al. PRL 98, 016401 (2007)

PM: nh ~0.1 / U-atom

Hvar Conference September 2008

15

Optical conductivity Optical conductivity

Bonn et al, PRL 61, 1305 (1988) 35 meV 12 meV

E||a

Calculated change in a below 40 meV Larger effect predicted for E||c Calculated ()

Hvar Conference September 2008

16

Fermi surface nesting in Fermi surface nesting in z=0 z=0 plane plane

• X
• Nesting in the LMAF phase is supposed

to be close to nesting in HO phase

LMAF PM

0.6a* 0.4a*

Neutron experiments give nesting at vectors Q=(1±0.4, 0, 0) Wiebe et al. PRB 69, 132418 (2004) Wiebe et al. Nat. Phys. 3, 96 (2007)

Hvar Conference September 2008

17

Continuous variation PM <=> SMAF <=> LMAF Continuous variation PM <=> SMAF <=> LMAF

• X
• LMAF

PM

Varied the exchange-splitting to go gradually from PM to SMAF to LMAF

EF

Moment: 0 μB <=> 0.04 μB <=> 0.16 μB <=> 0.39 μB (orbitally dominated)

The smallest energy is sufficient to cause a topological FS transition! Entangled FS sheets break-up already for the smallest moments!

Hvar Conference September 2008

18

Fermi surface Fermi surface “ “hot spots hot spots” ”

FS instability at degenerate crossing points, which we identify as “hot spots” for HO/AFM transition The system can remove the FS instability through a spontaneous symmetry breaking! From the calculations: breaking of bc and time-reversal symmetry needed Consistent with experiment for both HO / LMAF Hot spots for HO /AFM : eight lines ~Z to -Z

Hvar Conference September 2008

19

FS gapping at FS gapping at “ “hot spots hot spots” ” quantified quantified

• X
• LMAF

PM Gapping vs. longitudinal U-moment

• = (Jex) or = (Mz)

even function of Mz

(k)-varies between 0 and 700K on FS Exp.: k-independent average gap on FS ( 50-100K)

Hvar Conference September 2008

20

Importance of collective AF modes Importance of collective AF modes

INS sees collective long-lived AF mode in HO which freezes to static AF order in LMAF =>> “signature of HO” Response at HO/LMAF nesting vector 1.4a* doesn’t change Villaume et al, PRB 78 (2008) Dynamical AF response also seen with RXMS in HO

Hvar Conference September 2008

21

Model for the HO order parameter Model for the HO order parameter

T P LMAF HO PM

Mz

(1) 0

Mz

(1) = 0

Collective long-lived AF mode is a weak actor, on small energy scale (7K) but couples to a huge FS gapping (700K) Mediates changes in macroscopic thermodynamic properties Different OP in HO and LMAF <M>=0 in HO, can not be OP <> not zero in HO “dynamical symmetry breaking” Predictions:

• Large orbital moment
• spectrum (E||c)
• location & size of gap

Hvar Conference September 2008

22

ARPES & Fermi surface of CeCoIn ARPES & Fermi surface of CeCoIn5

5

How does the FS of a Kondo lattice material evolve with temperature below T* -> 0 K ? Investigate archetypical case CeCoIn5 FS studied in detail by dHvA down to mK Use ARPES at T*/2 Compare with FS calculations Small to large ?

Hvar Conference September 2008

23

Two-fluid model for CeCoIn5 Kondo lattice

Heavy-electron fluid below T* “Kondo impurity fluid” above T*

T*~45 K

Nakatsuji, Pines & Fisk, PRL 92 (2004) dHvA confirms large FS with f ’s embedded

f=(1–T/T*) fraction of delocalized heavy electrons, f=0.42 at 26K

Localized f-moment, single-ion Kondo behavior

“large FS” “small FS” “half expanded”?

Hvar Conference September 2008

24

De Haas-van Alphen experiments

Shishido et al., JPSJ 71 (2002)

2-D character FS sheets

Good agreement with f-itinerant LDA calculations

• ’
• ’
• Small 3-D

FS sheets

Elgazzar et al, PRB 69 (2004)

Hvar Conference September 2008

25

Calculated dHvA frequencies Ce-115´s

For CeRhIn5 better agreement with f-core calculations, but for CeCoIn5 better with f-valence calculations

CeCoIn5 (deloc. f ) CeRhIn5 (loc. f )

• Exp. F

Elgazzar et al, PRB 69 (2004)

Hvar Conference September 2008

26

f f-localized vs

• localized vs.

. f f-itinerant

• itinerant Fermi surface

Fermi surface

c1

• j

c2

(a) f-itinerant (b) f-core

’

• ’
• R

A M

2

• 1

3 1 2

X

• c3

131 133 135

Partially 3Dim. Fermi surface Easy for dHvA, difficult for ARPES Elgazzar et al, PRB 69 (2004) Oppeneer et al, JMMM (2007)

Hvar Conference September 2008

27

ARPES Fermi surface maps, T=26 K ARPES Fermi surface maps, T=26 K

Fermi surface maps of CeCoIn5 from 90 eV to 125 eV showing kz-evolution of the FS contours (full BZ period, -> )

• sheet clearly visible, with kz-modulation

>> position of kz in BZ

• R

A M

3 1 2

X

Hvar Conference September 2008

28

Comparison with calculated FS contours Comparison with calculated FS contours

Overplot with f-itinerant contours Overplot with f-core contours Exp. contours

At 26K definitely best agreement with f-localized FS

Hvar Conference September 2008

29

Effect of Effect of k kz

z-broadening

• broadening

No broadening With kz- broadening >> Even better agreement with f-core

At TT*/2 the FS remains contracted!

Hvar Conference September 2008

30

NQR of pure and doped Ce-115 NQR of pure and doped Ce-115’ ’s s

Can we compute ab initio NQR’s for these materials? Effect of Cd and Sn doping on NQR frequencies? Connection to the Ce f-electron behavior?

Hvar Conference September 2008

31

Calculated NQR frequencies Calculated NQR frequencies

NQR frequencies measured for CeMIn5

115In: I =9/2, large μN & Q 59Co: I =7/2, large μN & Q

HQ = eVzzQ 4I(2I 1) 3Iz

2 I(I +1)

[ ]

Quadrupolar interaction Hamiltonian: NQR frequency:

(Nuclear quadrupole moment Q, spin I )

Q = 3eVzzQ 2I(2I 1)h

Vzz calculated EFG

M

T = Co, Rh, Ir c a b

M M

In(1) In(2)

Hvar Conference September 2008

32

Pure Ce-115 compounds Pure Ce-115 compounds

NQR frequencies very well described New window on the f-behavior via NQR of ligand atom CeCoIn5 weakly localized f ’s (U3 eV), CeIrIn5 somewhat

more localized f ’s (U6 eV), CeRhIn5 localized f ’s (at 4-5 K!)

Physical picture consistent with that from de Haas-van Alphen

• Exps. N. Curro

MHz

Hvar Conference September 2008

33

Doped Ce-115 Doped Ce-115’ ’s: Tuning from SC to AFM s: Tuning from SC to AFM

Pham et al, PRL 97 (2006)

Tuning CeCoIn5 to AFM through Cd doping on In

=> Connection between AFM fluctuations and unconv. SC

Measured NQR spectrum

Hvar Conference September 2008

34

NQR spectrum of NQR spectrum of Cd-doped Cd-doped CeCoIn CeCoIn5

5

impurity

FS of CeCoIn5 becomes more like CeRhIn5 with Cd doping

doping

Hvar Conference September 2008

35

NQR spectrum of NQR spectrum of Sn-doped Sn-doped CeRhIn CeRhIn5

5

Gives possibility to estimate Sn distribution over In(1) and (2)

Good calculated NQR spectrum doped CeRhIn5

Rusz et al, PRB 77 (2008)
