Coherence and Correlations in Transport through Quantum Dots Rolf J. Haug Abteilung Nanostrukturen Institut fr Festkrperphysik and Laboratory for Nano and Quantum Engineering Gottfried Wilhelm Leibniz Universitt Hannover Germany

slide-1
SLIDE 1

nanostrukturen

uni hannover

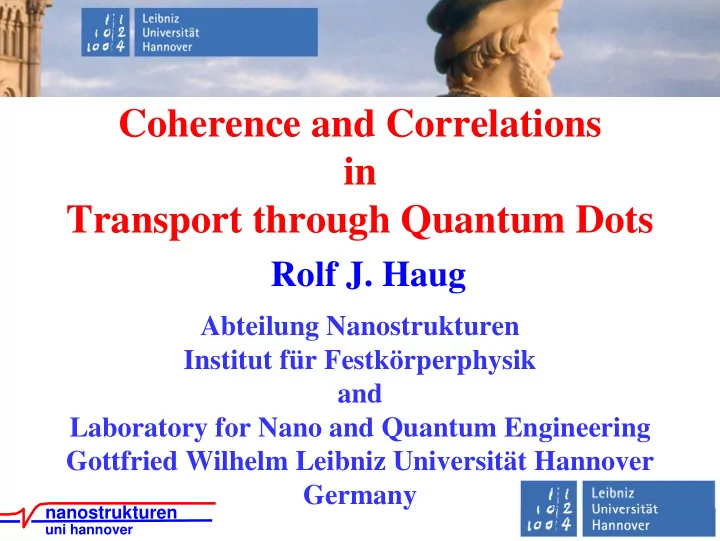

Coherence and Correlations in Transport through Quantum Dots

Rolf J. Haug

Abteilung Nanostrukturen Institut für Festkörperphysik and Laboratory for Nano and Quantum Engineering Gottfried Wilhelm Leibniz Universität Hannover Germany

slide-2
SLIDE 2

nanostrukturen

uni hannover

Gottfried Wilhelm Leibniz (1676 – 1716 in Hannover) binary numbers as mentioned in a letter to Rudolf August von Wolfenbüttel in January 1697 (new-year letter)

slide-3
SLIDE 3

nanostrukturen

uni hannover

Overview

  • spin effects in quantum dots
  • shot noise measurements
slide-4
SLIDE 4

nanostrukturen

uni hannover

Technology

  • lithography (GaAs/AlGaAs heterostructures)
  • 1. optical lithography
  • 2. electron beam lithography
  • 3. direct writing with AFM
  • self-organized growth

quantum dots (InAs, InP, Ge)

lattice mismatch between InAs and AlAs (GaAs): 7% Stranski-Krastanov growth

IOX

  • +

1 µm

5 nm GaAs 5 nm AlGaAs 15 nm AlGaAs:Si 15 nm AlGaAs GaAs

AFM-Tip

Oxide 2DEG

Depletion

AFM-Tip Heterostructure

Oxide

Water

+ _

slide-5
SLIDE 5

nanostrukturen

uni hannover

500 nm

  • Phys. Rev. Lett. 90, 196601 (2003)
  • Appl. Phys. Lett. 91, 133116 (2007)
  • Appl. Phys. Lett. 92, 013126 (2008)
  • Appl. Phys. Lett. 83, 1163 (2003)
  • Appl. Phys. Lett. 85, 806 (2004)
  • Phys. Rev. B (2008)
  • Phys. Rev. Lett. 93, 196801 (2004)
  • Phys. Rev. Lett. 92, 156401 (2004)
  • Phys. Rev. Lett. 93, 026801 (2004)
  • Phys. Rev. B 74, 165325 (2006)
  • Phys. Rev. B 74, 195324 (2006)
  • Phys. Rev. B 76, 153311 (2007)

0.0 0.1 0.2 0.3 0.4 0.5 0.6 1 2

C/r0 (nJ/K) Te (K) 2 4 6 8 10 12 20 40 60 80 100 20 40 60 Rxy (kΩ) B (T)

ν = 1 ν = 1/2 Rxx (kΩ) ν = 1/3 ν = 2/5 ν = 2/3

Other Fields of Research

  • quantum Hall effect and fractional quantum Hall effect
  • transport in quantum rings
  • transport through double and triple dots
slide-6
SLIDE 6

nanostrukturen

uni hannover

Spin-Resolved Tunneling through Quantum Dots

  • Europhys. Lett. 54, 495 (2001)

B g

B

μ = Δ

Zeeman energy spin-resolved spectroscopy

  • f the local density of states

spin-polarized current in a magnetic field

g = - 0.12

slide-7
SLIDE 7

nanostrukturen

uni hannover

Anisotropy of Spin Splitting: Spin-Orbit Interaction

⊥

B

//

B

⊥

B

//

B

disc-like quantum dot

  • Phys. Rev. Lett. 94, 226404 (2005)

Bychkov-Rashba (structure, 0,054meV) dominates over Dresselhaus (bulk, 0.012meV) for dots in 10nm quantum well

spin splitting

GaAs quantum dots extreme anisotropy: holes in SiGe/Ge structure

  • Phys. Rev. Lett. 96, 086403 (2006)

g=6.2 0

slide-8
SLIDE 8

nanostrukturen

uni hannover

Interaction Effect in High Magnetic Fields

strong coupling in InAs quantum dots Fermi edge singularity (Mahan 1967)

interaction of charge on dot with states in the emitter

E

F

  • Phys. Rev. B 62, 12621 (2000)
  • Phys. Rev. B 74, 035329 (2006)

InAs dots between AlAs barriers

slide-9
SLIDE 9

nanostrukturen

uni hannover

Many Electrons in Magnetic Field

Keller, PRB 64 (2001) Stopa PRL 88. 256804 (2003)

  • Phys. Rev. B 66, 161305(R) (2002)

single-electron tunneling conductance within Coulomb blockade vanishes for large T

regular tiles – chequer board periodicity of one flux quantum

slide-10
SLIDE 10

nanostrukturen

uni hannover

Spin-Spin Interaction: Kondo Effect

  • spin ½ on dot forms singlet with

spins in leads

  • transport via virtual state at Fermi

energy involving spin flips

  • finite conductance in Coulomb

valley

Kondo, Prog. Theor. Phys. 32, 37 (1964) Glazman and Raikh, JETP Lett. 47, 452 (1988) Ng and Lee, Phys. Rev. Lett. 61, 1768 (1988) Goldhaber-Gordon et al., Nature 391, 156 (1998) Cronenwett et al., Science 281, 540 (1998) Schmid et al., Physica B 256, 182 (1998)

  • 140
  • 120
  • 100
  • 80

0.000 0.025 0.050

G (e²/h) VB (mV)

Kondo

  • Phys. Rev. Lett. 90, 196601 (2003)
slide-11
SLIDE 11

nanostrukturen

uni hannover

Spin Polarization in High Magnetic Fields

dot: 2 Landau levels edge/core leads: spin polarized edge channels spin down: strong amplitude spin up: weak amplitude

Ciorga et al. Phys. Rev. B 61, R16315 (2000)

New J. Phys. 8, 298 (2006)

slide-12
SLIDE 12

nanostrukturen

uni hannover

Spin Blockade versus Kondo Effect

spin blockade Kondo effect spin polarized leads necessary both spins in the leads necessary

slide-13
SLIDE 13

nanostrukturen

uni hannover

  • with increasing B:

spin blockade increases, Kondo effect decreases

  • rigin: spin polarization of edge
  • intermediate regime: both effects visible

spin structure

Transition between Spin Blockade and Kondo Effect in Dots with Many Electrons

  • Phys. Rev. Lett. 96, 046802 (2006)

Kondo spin blockade

  • Phys. Rev. Lett. 96, 176801 (2006)

shell structure

slide-14
SLIDE 14

nanostrukturen

uni hannover

B (T) 1.7 1.9 2.1 2.3 2.5

  • 0.4
  • 0.5
  • 0.6
  • 0.7
  • 0.8
  • 0.9
  • 1.0
  • 1.1
  • 1.2

V (mV)

G

Source Drain

VG

1 µm

x20 x1

  • Phys. Rev. Lett. 96, 176801 (2006)

Spin Structures

100 electrons different spin configurations

slide-15
SLIDE 15

nanostrukturen

uni hannover

Shot Noise

  • electrical current

barrier

DC DC + AC

slide-16
SLIDE 16

nanostrukturen

uni hannover

Shot Noise

DC DC + AC

SPoisson = 2eI (single barrier) correlations can suppress noise

eI S 2 α =

Fano factor

Ugo Fano

  • U. Fano, Phys. Rev. 72, 26 (1947)
  • W. Schottky,

Annalen der Physik, 57, 541 (1918)

slide-17
SLIDE 17

nanostrukturen

uni hannover

Shot Noise Measurement

  • direct measurement of current noise

spectrum ( PRB 66, 161303R (2002) )

  • reduction of shot noise due to

Coulomb blockade

  • S = α·2eI with

measurement resolution: ΔS ~10-30 A2/Hz 1 kΩ resistor @ 300 K: S = 1.6 ·10-23 A2/Hz

x x

E E

Θ = 1 τ

C C

Θ = 1 τ

T = 1.5 K

( )

2

2 1

C E C E

Θ + Θ Θ Θ − = α

2 4 6 8 10 20 40 60 20 40 60 80 100 120 50 100 150 200

Vsd = 131 mV 120 mV

S ( 10

  • 30A

2/Hz)

f (kHz)

100 mV

I (pA) VSD (mV)

ED

S=2eI

slide-18
SLIDE 18

nanostrukturen

uni hannover

( )

2 2 2 C E C E

Θ + Θ Θ + Θ = α

236 238 240 242 0.6 0.7 0.8 0.9 1.0 0.0 0.2 0.4 0.6 Fano factor α

VSD (mV)

I (nA)

Noise at Fermi Edge Singularity

B = 15 T T = 0.4 K

  • Phys. Rev. B 75, 233304 (2007)

strong additional noise suppression due to Fermi edge singularity

( )

γ −

− ∝ Θ

th E

V V

EF

PRB 62, 12621 (2000); PRB, 74, 035329 (2006)

( )

γ −

− ∝ Θ

D F E

E E

ED

slide-19
SLIDE 19

nanostrukturen

uni hannover

Transport through Coupled Quantum Dots

  • Phys. Rev. Lett. 96, 246803 (2006)

stacks of InAs dots

  • 26. ICPS, IOP 171, 233 (2002)
slide-20
SLIDE 20

nanostrukturen

uni hannover

Shot Noise in Transport through Coupled Quantum Dots

  • Phys. Rev. Lett. 96, 246803 (2006)

Fano factor

enhancement

  • 186.5
  • 187.0

0.6 0.8 1.0 1.2 1.4 V (mV) Fano Factor α

slide-21
SLIDE 21

nanostrukturen

uni hannover

Electron Bunching

  • compare: electron bunching for single quantum dots

– observed for 2 accessible states with different tunnelling rates

e.g. Phys. Rev. B 69, 113316 (2004); Gustavsson et al, Phys. Rev. B 74, 195305 (2006); Zachrin et al, Phys. Rev. Lett. 98, 066801 (2007) I t

slide-22
SLIDE 22

nanostrukturen

uni hannover

EL < ER

Electron Bunching

here: two molecular states for coherently coupled dots – energies aligned: symmetric system and equal rates ⇒ α < 1 – energies detuned: asymmetric distribution and tunnelling rates ⇒ bunching EL = ER

slide-23
SLIDE 23

nanostrukturen

uni hannover

Quantum Coherence

  • theory (Kiesslich, Berlin)
  • coherent coupling of QDs
  • dephasing due to phonon absorption

and emission

  • reproduces super-Poissonian noise and

temperature dependence ε (mV)

  • Phys. Rev. Lett. 99, 206602 (2007)
slide-24
SLIDE 24

nanostrukturen

uni hannover

  • shot noise caused by randomness of tunneling events
  • suppression of randomness

– by driven electron pump – electrons at well defined times → no noise expected

Putting Electrons on a String

5 10 50 100 150 200

S(f) (fA

2/Hz)

f (kHz)

S = α·S0

slide-25
SLIDE 25

nanostrukturen

uni hannover

400 nm FFT

~

U1 U2

I/V

E

Noise Suppression in an Electron Pump

  • electrons pumped by actively driven barriers

(Blumenthal et al, Nat. Phys. 2007, Kaestner et al, arXiv:0707.0993)

  • quantized current plateaus I = nef

– n electrons per cycle; repetition frequency f

  • noise suppressed for quantized pumping

10 20 10 20 2 4 6 8 10 12 14 10 20 I = 1.0 ef I = 1.6 ef I = 2.0 ef S (fA

2 / Hz)

f (kHz)

1 2 3

  • 160
  • 140
  • 120
  • 100
  • 80

10 I / ef U1 (mV) S (fA

2/ Hz)

  • Appl. Phys. Lett. 92, 082112 (2008)

f = 400 MHz

slide-26
SLIDE 26

nanostrukturen

uni hannover

Shot Noise and Electron Counting in Quantum Dots

ε (mV) ε (mV) 0.0

  • 0.1
  • 0.2
  • 0.3

2.7 K 1.4 K

I (nA)

  • 186.5
  • 187.0

0.5 1.0 1.5 V

SD (mV)

1.4 K 2.7 K

Fano Factor α

  • Phys. Rev. B 66,161303 (2002)
  • Phys. Rev. B 69, 113316 (2004)
  • Phys. Rev. B 70, 033305 (2004)
  • Phys. Rev. B 75, 233304 (2007)
  • Phys. Rev. Lett. 96, 246803 (2006)
  • Phys. Rev. Lett. 99, 206602 (2007)

single dots coupled dots

  • Phys. Rev. B 76, 155307 (2007)
  • Appl. Phys. Lett. 92, 082112 (2008)

noise in electron pump bimodal counting statistics

slide-27
SLIDE 27

nanostrukturen

uni hannover

  • P. Barthold
  • C. Fühner
  • J. Könemann
  • A. Nauen
  • N. Maire
  • M. Rogge
  • F. Hohls
  • H. W. Schumacher,
  • B. Kästner
  • K. Pierz
  • K. Eberl
  • W. Wegscheider, G. Abstreiter
  • O. Schmidt, U. Denker
  • D. Grützmacher
  • D. Reuter, A.D. Wieck
  • H. Frahm
  • V. Fal‘ko, E. McCann
  • B. Altshuler
  • T. Brandes, G. Kiesslich,
  • E. Schöll
