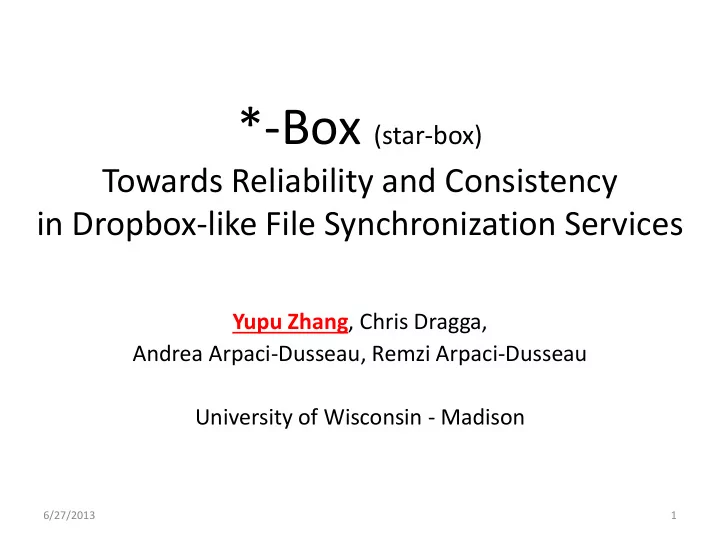

*-Box (star-box)

Towards Reliability and Consistency in Dropbox-like File Synchronization Services

Yupu Zhang, Chris Dragga, Andrea Arpaci-Dusseau, Remzi Arpaci-Dusseau University of Wisconsin - Madison

6/27/2013 1

slide-2
SLIDE 2

Cloud-Based File Synchronization Services

  • Exploding in popularity

– Numerous providers: Dropbox, Google Drive, SkyDrive … – Large user base: Dropbox has more than 100 million users

  • Key benefit

– Automatic synchronization across clients/devices – Reliable data storage on the server through replication

“your stuff is safe in Dropbox and will never be lost”

  • Dropbox tour, page 1

6/27/2013 2

slide-3
SLIDE 3

Is Your Data Really Safe?

  • Data corruption

– Uploaded from local machine to cloud – Propagated to other devices/clients

6/27/2013 3

slide-4
SLIDE 4

1

  • Crash consistency

– Inconsistent data ends up everywhere – “Out-of-sync” synchronization 1 1 2

Is Your Data Really Safe?

6/27/2013 4

1 1

after reboot sync client thinks everything is in sync

slide-5
SLIDE 5

Your Data is NOT Really Safe

  • False sense of safety

– Many copies do NOT always make your data safe

  • Why?

– Semantic gap between local file system and cloud – Separately designed and loosely linked

6/27/2013 5

slide-6
SLIDE 6

Project *-Box (star-box)

  • Goal

– Close the gap between local file system and cloud – Provide * without too much infrastructure changes

  • * represents desired properties

– e.g., reliable, consistent, fast, private …

  • Currently focus on two properties

– Reliable: Data corruption – Consistent: Crash consistency

6/27/2013 6

slide-7
SLIDE 7

Outline

  • Introduction
  • Data Corruption
  • Crash Consistency
  • Current Status
  • Conclusion

6/27/2013 7

slide-8
SLIDE 8

Corruption Problem

  • Data corruption is not uncommon

– Comes from disk media, firmware, controllers

[Bairavasundaram07, Anderson03]

– Remains local w/o synchronization

  • With synchronization

– Corruption may propagate and pollute other copies

  • Synchronization is a double-edged sword

– Make sure synchronized data is good

6/27/2013 8

slide-9
SLIDE 9

I1 I

Dedup

NOT a duplicate duplicate

Disk

Background

9 6/27/2013

Dropbox Client

Local Database

File System Dropbox Server

Name Attributes

foo I

Inotify

Rsync

C1 C2 C3 D1 D2 foo [v0] (4MB data chunks) foo: inode

NO offline changes

D2’

  • verwrite D2

foo was modified I’ read foo (chunk by chunk) D1 … … C1’ C2 C3 4KB data blocks D2’ C1’ foo [v1] (4MB data chunks)

Name Attributes

foo I’ Changed Multiple Times

slide-10
SLIDE 10

D1 D1 D1 D1

Disk

M1 I

Inject Corruption

10 6/27/2013

File System Dropbox Server Inotify

C1 C2 C3 D2 foo [v0] (4MB data chunks) … … Corrupt D1 foo: inode 4KB data blocks

slide-11
SLIDE 11

I I

Local Database

Name Attributes

foo I

Dedup

Disk

Start Client

11 6/27/2013

Dropbox Client File System Dropbox Server Inotify

Rsync

C1 C2 C3 D1 D2 foo [v0] (4MB data chunks) D1 … …

NO offline changes

foo: inode 4KB data blocks

slide-12
SLIDE 12

I I’ D1 D1

Dedup

NOT a duplicate

Disk

I

Data Write

12 6/27/2013

Dropbox Client

Local Database

File System Dropbox Server Inotify

Rsync

C1 C2 C3 D2 foo [v0] (4MB data chunks) D2’

  • verwrite D2

foo was modified read foo (chunk by chunk) … … C1’ D2’ C1’ foo [v1] (4MB data chunks) D1 foo: inode 4KB data blocks

Name Attributes

foo I

Name Attributes

foo I’

slide-13
SLIDE 13

I I’ D2 D1 D1

Dedup

NOT a duplicate

Disk

I

Metadata Change

13 6/27/2013

Dropbox Client

Local Database

File System Dropbox Server Inotify

Rsync

C1 C2 C3 D2 foo [v0] (4MB data chunks) touch -m foo’s metadata was changed read foo (chunk by chunk) … … C1’ D2’ C1’ foo [v1] (4MB data chunks) D1 foo: inode 4KB data blocks

Name Attributes

foo I

Name Attributes

foo I’

slide-14
SLIDE 14

More Results

FS Service Data Writes

Metadata Changes

mtime ctime atime ext4 (Linux) Dropbox L G L G L G L

  • wnCloud

L G L G L L FileRock L G L G L L HFS+ (Mac OS X) Dropbox L G L G L L

  • wnCloud

L G L G L L GoogleDrive L G L G L L SugarSync L G L L L Syncplicity L G L G L L

  • Corruption is propagated when there is a change to file data
  • Even if there is no data change, corruption may still be uploaded

6/27/2013 14

L: Local corruption G: Global corruption

slide-15
SLIDE 15

Summary

  • Bad bits are promoted to resilient bad bits

– ALL copies polluted – Cloud copies protected by checksum

  • Fundamental problem, not implementation bugs

– FS monitoring services only provide file-level notification – Sync clients cannot tell legitimate changes from corruption

  • Redundant data on the cloud is not fully utilized

– If corruption can be detected, local FS can recover from corruption using cloud copies

6/27/2013 15

slide-16
SLIDE 16

Outline

  • Introduction
  • Data Corruption
  • Crash Consistency
  • Current Status
  • Conclusion

6/27/2013 16

slide-17
SLIDE 17

Crash Recovery Techniques

  • Copy-on-write (e.g., ZFS, btrfs)

– Always roll back to a consistent version

  • Journaling (e.g., ext4)

– Data journaling mode

  • Both data and metadata are logged
  • Provide data consistency

– Ordered journaling mode

  • Only journal metadata
  • Data blocks are written before metadata is logged
  • Cannot guarantee data consistency

6/27/2013 17

slide-18
SLIDE 18

Disk

I I I’ I’ I’ D1’

1. Write dirty data blocks to home locations 2. Write metadata blocks to journal 3. Write journal commit block to the journal 4. Checkpoint journaled metadata blocks to home locations

Ordered Mode

18 6/27/2013

File System

D1 D2 D2’ D1

  • verwrite D1 &D2

D2’ 1 2 C 3 4 foo: inode 4KB data blocks … D1’ 1 Journal / Log

slide-19
SLIDE 19

Disk

I I’ I’ I D1’

  • Crash during step 1

– Write dirty data blocks to home locations

Crash in Ordered Mode

19 6/27/2013

File System

D1 D2 D2’ D1

  • verwrite D1 &D2

D2’ 1 foo: inode 4KB data blocks … D1’ 1 Consistent Data Inconsistent Data

slide-20
SLIDE 20

Ext4 Ordered Mode + Dropbox

  • Case 1

– Inconsistent data is propagated

  • Case 2

– Consistent data is NOT synchronized

6/27/2013 20

slide-21
SLIDE 21

I I’ I

Disk

D1

Dedup

Case 1 Crash

21 6/27/2013

Dropbox Client File System Dropbox Server Inotify

Rsync

C1 C2 C3 D2 foo [v0] (4MB data chunks) D2’ … … foo: inode 4KB data blocks

  • verwrite D1 &D2

D1’ D1’ crash AFTER database is changed inconsistent data

  • n disk

Local Database

Name Attributes

foo I

Name Attributes

foo I’ NOT fully updated foo was modified

slide-22
SLIDE 22

I I C1

Dedup

Disk

Case 1 Reboot

22 6/27/2013

Dropbox Client

Local Database

File System Dropbox Server Inotify

Rsync

C2 C3 D1 D2 foo [v0] (4MB data chunks) D1’ … … foo: inode 4KB data blocks C1’ foo [v1] (4MB data chunks) inconsistent data D1’ D2 on cloud

Name Attributes

foo I’ NOT fully updated

Sync!

inconsistent data

  • n disk
slide-23
SLIDE 23

I I’ I

Disk

D1

Dedup

Case 2 Crash

23 6/27/2013

Dropbox Client

Local Database

File System Dropbox Server Inotify

Rsync

C1 C2 C3 D2 foo [v0] (4MB data chunks) D2’ … … foo: inode 4KB data blocks

  • verwrite D1 &D2

(O_SYNC) D1’ D1’ D2’ crash BEFORE database is changed consistent data

  • n disk

Name Attributes

foo I

slide-24
SLIDE 24

I I C1

Dedup

Disk

Case 2 Reboot

24 6/27/2013

Dropbox Client

Local Database

File System Dropbox Server Inotify

Rsync

C2 C3 D1 D2’ foo [v0] (4MB data chunks) D1’ … …

NO offline changes

foo: inode 4KB data blocks Server and other devices still have v0 This machine has v1

Name Attributes

foo I

NO sync!

consistent data

  • n disk
slide-25
SLIDE 25

Recover using Data on Cloud?

  • Data on server does not always reflect a

consistent state on disk

– Dropbox uploads data asynchronously – Dropbox reorders file uploading – Actively modified files may get delayed

  • When crash occurs, files on server could be

inconsistent with respect to disk

6/27/2013 25

slide-26
SLIDE 26

Summary

  • Inconsistent content gets propagated
  • “Out-of-sync” files may exist

– Different client/devices see different versions of the same file

  • Need in-depth communication between local

FS and cloud

– Cloud has very weak sense of actual FS state

6/27/2013 26

slide-27
SLIDE 27

Outline

  • Introduction
  • Data Corruption
  • Crash Consistency
  • Current Status
  • Conclusion

6/27/2013 27

slide-28
SLIDE 28

Current Status of *-Box

  • Finished

– Data checksumming in ext4 – Dropbox-aided corruption recovery in ext4 – Fine-grained inotify in Linux

  • Add a ranged file-update notification
  • Adapt ownCloud (an open-source sync service) to use it
  • In-progress

– Use in-memory snapshot to facilitate crash recovery in ext4 ordered mode

6/27/2013 28

slide-29
SLIDE 29

Outline

  • Introduction
  • Data Corruption
  • Crash Consistency
  • Possible Solutions
  • Conclusion

6/27/2013 29

slide-30
SLIDE 30

Conclusion

  • Many copies do NOT always make your data safe

– Propagation of corrupt data and inconsistent state – Synchronized files are out-of-sync

  • Propose *-Box project

– Solve problems by reducing the semantic gap between existing local FS and cloud storage

  • Ultimately may need a cohesive system that provides

capabilities unachievable in isolation

6/27/2013 30

slide-31
SLIDE 31

Thank you! Questions?
