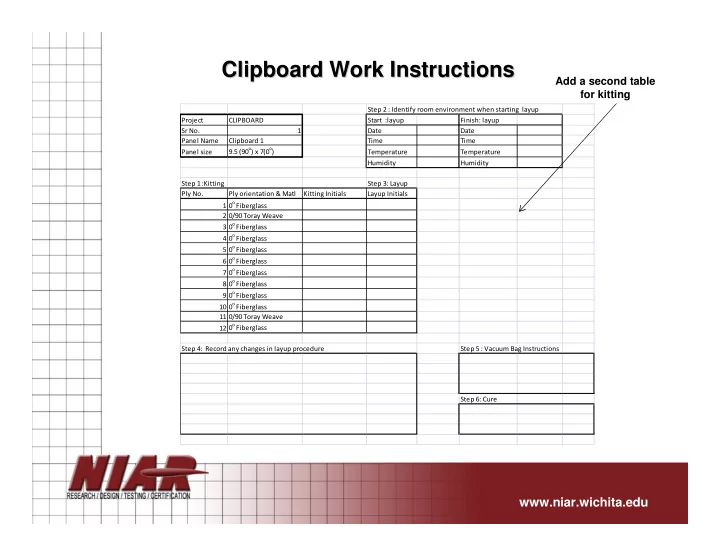

Clipboard Work Instructions Clipboard Work Instructions Add a second table for kitting Step 2 : Identify room environment when starting layup Project CLIPBOARD Start :layup Finish: layup Sr No. 1 Date Date Panel Name Clipboard 1

SLIDE 1

www.niar.wichita.edu

Clipboard Work Instructions Clipboard Work Instructions

Step 2 : Identify room environment when starting layup Project CLIPBOARD Start :layup Finish: layup Sr No. 1 Date Date Panel Name Clipboard 1 Time Time Panel size 9.5 (90o) x 7(0o) Temperature Temperature Humidity Humidity Step 1 :Kitting Step 3: Layup Ply No. Ply orientation & Matl Kitting Initials Layup Initials 1 0o Fiberglass 2 0/90 Toray Weave 3 0o Fiberglass 4 0o Fiberglass 5 0o Fiberglass 6 0o Fiberglass 7 0o Fiberglass 8 0o Fiberglass 9 0o Fiberglass 10 0o Fiberglass 11 0/90 Toray Weave 12 0o Fiberglass Step 4: Record any changes in layup procedure Step 5 : Vacuum Bag Instructions Step 6: Cure

Add a second table for kitting

SLIDE 2

www.niar.wichita.edu

Clipboard Layup and Bagging Schematic Clipboard Layup and Bagging Schematic

Tool Tool Release Film Release Film

1ea.Woven fiberglass plies 1ea.Woven fiberglass plies 6ea.Woven Carbon plies 6ea.Woven Carbon plies

Release Film Release Film Nylon Bag Nylon Bag Breather Breather

1ea.Woven fiberglass plies 1ea.Woven fiberglass plies

Sealant Sealant Tape Tape Caul Sheet Caul Sheet

SLIDE 3

www.niar.wichita.edu

Wall Plaque Layup and Bagging Schematic Wall Plaque Layup and Bagging Schematic

Tool Tool Release Film Release Film

1ea. surfacing film with LSP
1ea. surfacing film with LSP
4ea. OML woven carbon plies
4ea. OML woven carbon plies

Release Film Release Film Nylon Bag Nylon Bag Breather Breather

1ea.woven fiberglass plies 1ea.woven fiberglass plies

Sealant Sealant Tape Tape Caul Sheet Caul Sheet

4ea. IML woven carbon plies
4ea. IML woven carbon plies

5 lb density hex. core 30 degree bevel
