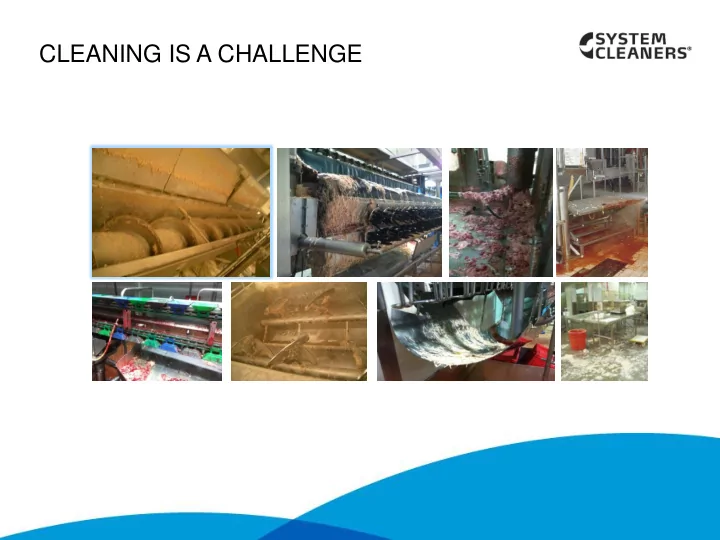

CLEANING IS A CHALLENGE

Competition on price & quality

Multiple production lines Variation in products on each line Attention to specific demands like allergen/kosher/hallal

YOUR CHALLENGES ARE MANY

Peoples lives and health are at risk when dealing with production of food. Focus on a hygienic and safe handling of food and beverages in order to have happy and healthy customers.

YOUR FOCUS IS ON

Superior cleaning EVERY time!

Residues of fat and protein can lead to serious problems such as food poisoning.

Salmonella Yersinia Listeria Shigella Clostridium botulinum Campylobacter Enterobacter Citrobacter Bacillus cereus Staphylococcus aureus Pathogenic escherichia coli

OUR FOCUS IS THE SAME

Bacillus cereus Salmonella Staphylococcus aureus Clostridium botulinum Campylobacter Enterobacter Citrobacter Shigella Yersinia Listeria Pathogenic Escherichia coli

NO WORRIES RESULT IN GOOD SLEEPING AT NIGHT

Manual cleaning:

• Central
• De-central

Automatic cleaning:

• Central
• De-central

Mobile cleaning:

COSTUMIZED SOLUTIONS

Satellite stations

ATLAS: Basic model (1 chemical) MIMAS: Adavanced and flexible (4 chemicals)

Chemical pump station

TRITON: Capacity: 7 – 13 US gal/min Power: 1.5 hp – 3 hp Users: 1 – 8 users

Pump stations

METIS: Capacity: 32 – 53 US gal/min Power: 7,5 hp – 10 hp Users: 1 – 6 RBS/VBS: Capacity: 317 US gal/min Power: 3 hp – 6 x 10 hp Users: Up to 36

MANUAL CENTRAL CLEANING

Main station

CALLISTO: Capacity: 32 -53 US gal/min Power: 1,5 hp – 3 hp 7,5 hp – 10 hp Users: 1 – 6

Satellite stations:

ATLAS: Basic model (1 chemical) TARVOS: Basic model with limited flexibility (2 chemicals) MIMAS: Advanced and flexible (4 chemicals)

MANUAL DE-CENTRAL CLEANING

PLC

LOGO: 1 program / 6 segments LOGIC: 4 programs / 9 segments ADVANCED: Multiple posibilities

Satellite station

CALYPSO: Advanced and flexible as Mimas, but for PLC control (3 chemical)

Chemical pump station

TRITON: Capacity: 7 – 13 US gal/min Power: 1,5 hp – 3 hp

Pump stations

METIS: Capacity: 32 – 53 US gal/min Power: 7,5 hp – 10 hp RBS/VBS: Capacity: Up to 317 US gal/min Power: 1,5 hp – 3 hp 7,5 hp – 10 hp

AUTOMATIC CENTRAL CLEANING

PLC

LOGO: 1 program / 6 segments LOGIC: 4 programs / 9 segmentes ADVANCED: Multiple posibilities

Satellite station

CALYPSO: Advanced and fleksible as Mimas, but for PLC control (3 chemical)

Main station

LEDA: Capacity: 32 – 53 US gal/min Power: 1,5 hp – 3 hp 7,5 hp – 10 hp

AUTOMATIC DE-CENTRAL CLEANING

Scrubbing High flow and low pres (3 – 10 BAR) High pres (60 – 150 BAR) Boosted water (10 – 40 BAR)

WHY BOOSTED WATER PRESSURE?

Better impact Less or non aerosols Less temperature loss

EFFICENCY - ECONOMY - ENVIRONMENT

High pressure Low pressure

Economically beneficial

• Shorter cleaning time
• More available

production time

• Less expenses for wages
• Less wear and tear on

production equipment

Time Water Foam Disinf. Elec. Maintenance

EFFICENCY - ECONOMY - ENVIRONMENT

EFFICENCY - ECONOMY - ENVIRONMENT

– Avoid aerosols (inhaling) – Good surface impact – Better temperature transmission – Less cleaning time – Less expenses to salary – Less damages on production machinery / floor and walls / technical installations – Less noise – Less vibrations (white fingers) – Better working environment

BOOSTED WATER – WHY!

• Financial well consolidated partner
• Technological leading
• Wide product program
• Robust, reliable and user friendly equipment
• Education in product, use and maintenance
• Service at a high level
• Constant focus on development
• Dokumentation of same high quality as the equipment

WHY SYSTEM CLEANERS?

• Same cleaning pattern – ”no mondays”
• Cleaning of areas difficult to acces
• Gentle cleaning where necessary – electronic components
• It is easy – the equipment do the job
• Safe work force and thereby salary
• Safe time which can be used as production time
• Adapt the cleaning to the level of pollution – less wearing on

equipment

• Less need for spare / wearing parts
• Increased safety for personel – as an example it can be mentioned

that a screw conveyr can be dangerous to clean manually, as it has to run while cleaning

AUTOMATIC CLEANING – WHY?

• Spiral freezer
• Eviscerator
• Mixers / Tanks
• Plate freezer
• Screw conveyor
• Scalding chambers
• Conveyor cleaning
• Filler cleaning

AUTOMATIC CLEANING – WHERE?

SYSTEM CLEANERS

• Started in a Gararge by 5 people,
• f whom 3 is still in the company
• More than 20 years experience
• Approximately 50 employees
• System Cleaners is credit rated

AAA company

• Best in class in automation and
• pen plant cleaning
• 95% of the sale is for export

System Cleaners

• More than 23,000 food and beverage sites have

chosen System Cleaners as their supplier for manual and automatic cleaning solutions

• Systems are sold in app. 70 countries around the world
• System Cleaners have companies in Denmark, USA and Vietnam

System Cleaners Globally

1990 ‘91 ‘92 ‘93 ‘94 ’95 ‘96 ‘97 ’98 ’99 2000 ‘01 ‘02 ‘03 ‘04 ‘05 ‘06 ‘07 ‘08 ‘09 2010 ‘11 ‘12 Own factory at Halkjærvej 17 From garage to rented facilities at Virkelyst Bought Halkjærvej 15 Expansion of Halkjærvej 17 due to increased sale Establishing in Hanoi Establishing in Kansas, USA G 1 G 2 Institution line G 3 G 4

History

G5 presentation

G5 presentation

G5 presentation - Benefits

General:

• Larger capacity on the pumps - more users on equipment.
• New updated design with cabinets in stainless steel.

Water:

• Optimized flow when rinsing reduces the water consumption with 25%.
• Constant outlet pressure reduces the water consumption additionally 5%.

Service:

• Easy access with simple standard tools results in quick and effective service.
• Protection against dry run ensures unnecessary stop of production and expensive

repairs on the pump.

G5 presentation - Benefits

Chemical dosing:

• New dosing valve with large regulation range replaces the existing

chemical limiters, needle valves and grey and yellow dosing valves.

• Precise and constant dosing ensures optimal effect of the planned amount
• f chemistry.

Operation:

• A quick guide on the cabinet and a short instruction of the equipment

makes it fast and easy to operate.

• Operation- and error indicator light gives the operator a clear and quick

information regarding the status of the equipment.
