Class Outline: Anterior Anatomy 5 minutes Breath of Arrival and Attendance 5 minutes Howdy Partner 35 minutes Anterior Anatomy using Power Point Presentation 5 minutes Overview of skeletal segments 5 minutes Quick drawing of

slide-1
SLIDE 1

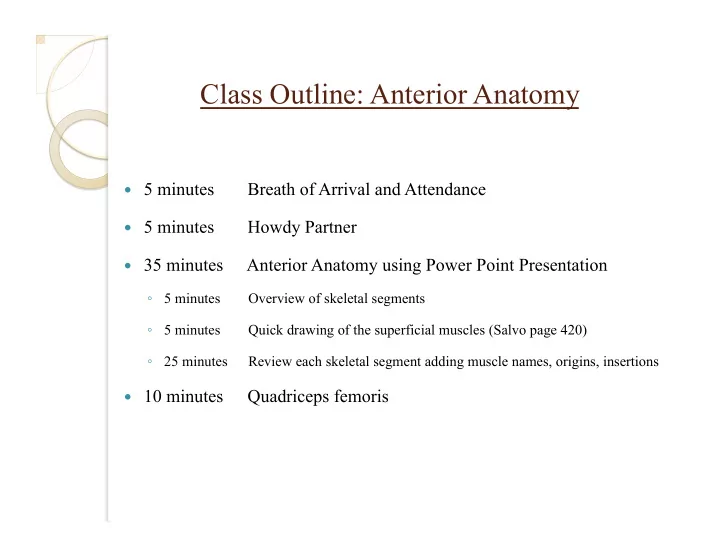

Class Outline: Anterior Anatomy

 5 minutes

Breath of Arrival and Attendance

 5 minutes

Howdy Partner

 35 minutes

Anterior Anatomy using Power Point Presentation

  • 5 minutes

Overview of skeletal segments

  • 5 minutes

Quick drawing of the superficial muscles (Salvo page 420)

  • 25 minutes

Review each skeletal segment adding muscle names, origins, insertions  10 minutes

Quadriceps femoris

slide-2
SLIDE 2

Classroom Rules

Punctuality- everybody's time is precious:

  • Be ready to learn by 9:00, we'll have you out of here by 1:30
  • Tardiness: arriving late, late return after breaks, leaving early

The following are not allowed:

  • Bare feet
  • Side talking
  • Lying down
  • Inappropriate clothing
  • Food or drink except water
  • Phones in classrooms, clinic or bathrooms

You will receive one verbal warning, then you'll have to leave the room.

slide-3
SLIDE 3

Anterior Anatomy

Names, locations, and shapes of muscles

slide-4
SLIDE 4

Anterior Skeletal Segments

Giving names to the bones on the back of the body.

slide-5
SLIDE 5

Anterior Anatomy

As we explore the skeletal segments, label them with the images supplied.

slide-6
SLIDE 6

The Big Picture

slide-7
SLIDE 7

Head

Bones: cranium, face bones, mandible (lower jaw)

slide-8
SLIDE 8

Neck

Bones: cervical spine

slide-9
SLIDE 9

Trunk

Bones: thoracic spine, lumbar spine, and rib cage

slide-10
SLIDE 10

Shoulder Girdle

Bones: collar bone (clavicle) and shoulder blade (scapula)

slide-11
SLIDE 11

Arm (upper extremity)

Bones: arm bone (humerus), forearm bones (radius and ulna), and hand bones

slide-12
SLIDE 12

Pelvic Girdle

Bones: pelvic bones and tail bone (sacrum and coccyx)

slide-13
SLIDE 13

Thigh

Bones: thigh bone (femur) and knee cap (patella)

slide-14
SLIDE 14

Leg

Bones: lower leg bones (tibia and fibula)

slide-15
SLIDE 15

Foot

Bones: foot bones

slide-16
SLIDE 16

Anterior Muscles

Giving names, shapes and locations to muscles

slide-17
SLIDE 17

Let’s draw the superficial muscles!

slide-18
SLIDE 18

Head These muscles will be covered in Class 11a: Muscles of the Head / Neck

slide-19
SLIDE 19

Neck Details in a future class, but for now this is SCM

slide-20
SLIDE 20

Trunk Thorax and Lumbar Vertebrae

slide-21
SLIDE 21

Trunk Muscle: pectoralis major (pecs) Origin: medial ribcage and clavicle Insertion: proximal arm (humerus)

slide-22
SLIDE 22

Trunk Muscle: pectoralis major (pecs) Origin: medial ribcage and clavicle Insertion: proximal arm (humerus)

slide-23
SLIDE 23

Trunk Muscle: rectus abdominis (abs) Origin: medial pelvis Insertion: medial ribcage

slide-24
SLIDE 24

Trunk Muscle: rectus abdominis (abs) Origin: medial pelvis Insertion: medial ribcage

slide-25
SLIDE 25
slide-26
SLIDE 26

Arm

slide-27
SLIDE 27

Arm Muscle: deltoid (anterior deltoid) Origin: shoulder girdle Insertion: arm (humerus)

slide-28
SLIDE 28

Arm Muscle: deltoid (anterior and middle deltoid) Origin: shoulder girdle Insertion: arm (humerus)

slide-29
SLIDE 29

Arm Muscle: biceps brachii (biceps) Origin: shoulder girdle Insertion: forearm (radius)

slide-30
SLIDE 30

Arm Muscle: biceps brachii (biceps) Origin: shoulder girdle Insertion: forearm (radius)

slide-31
SLIDE 31

Forearm Muscle: forearm flexors Origin: distal arm (humerus) Insertion: fingers

slide-32
SLIDE 32

Forearm Muscle: forearm flexors Origin: distal arm (humerus) Insertion: fingers

slide-33
SLIDE 33

Pelvis Gluteal muscles

slide-34
SLIDE 34

Pelvis Muscle: TFL (tensor fascia latae) Origin: pelvis Insertion: fascia ( iliotibial band )

slide-35
SLIDE 35

Pelvis Muscle: TFL (tensor fascia latae) Origin: pelvis Insertion: fascia ( iliotibial band )

slide-36
SLIDE 36

Thigh

Bones: thigh bone (femur) and knee cap (patella)

slide-37
SLIDE 37

Thigh Muscle: sartorius Origin: pelvis Insertion: proximal leg (tibia)

slide-38
SLIDE 38

Thigh Muscle: sartorius Origin: pelvis Insertion: proximal leg (tibia)

slide-39
SLIDE 39

Thigh Muscle: quadriceps femoris (quads) Origin: pelvis and thigh Insertion: upper leg (proximal tibia)

slide-40
SLIDE 40

Thigh Muscle: adductor group Origin: pelvis Insertion: thigh (femur)

slide-41
SLIDE 41

Leg

slide-42
SLIDE 42

Leg Muscle: tibialis anterior Origin: anterior leg (tibia) Insertion: medial foot

slide-43
SLIDE 43

Leg Muscle: peroneus longus Origin: lateral leg (fibula) Insertion: medial foot

slide-44
SLIDE 44

Positioning of Leg Muscles tibialis anterior soleus

slide-45
SLIDE 45

Review of Muscle Names

slide-46
SLIDE 46

Pectoralis major Rectus abdominis Deltoid Biceps brachii Forearm flexors TFL Sartorius Quadriceps Tibialis anterior Peroneus longus

slide-47
SLIDE 47

Trapezius Rhomboids Levator scapula Erector spinae Lats Deltoid Triceps Forearm extensors Gluteus maximus Gluteus medius Biceps femoris Semitendinosus Semimembranosus Gastrocnemius Soleus

slide-48
SLIDE 48

OIA’s (origin, insertion, and action)

Belly The wide central portion of a skeletal muscle. Tendon Cord-like structure anchoring the end of a muscle to a bone. Origin Tendinous muscle attachment on the less movable bone. Insertion Tendinous muscle attachment on the more movable bone. Action The movement caused by the contraction of a muscle.

slide-49
SLIDE 49

Quadriceps Femoris

slide-50
SLIDE 50

Rectus femoris Origin: anterior inferior iliac spine (ASIS) Insertion: patella tibial tuberosity Action: flex the hip (femur) extend the knee (tibia)

slide-51
SLIDE 51

Vastus medialis Origin: medial lip of linea aspera Insertion: patella tibial tuberosity Action: extend the knee (tibia)

slide-52
SLIDE 52

Vastus lateralis Origin: lateral lip of linea aspera gluteal tuberosity Insertion: patella tibial tuberosity Action: extend the knee (tibia)

slide-53
SLIDE 53

Vastus intermedius Origin: anterior and lateral shaft of the femur Insertion: patella tibial tuberosity Action: extend the knee (tibia)

slide-54
SLIDE 54

Quadriceps Femoris

slide-55
SLIDE 55

Posterior Anatomy

Names, locations, and shapes of muscles
