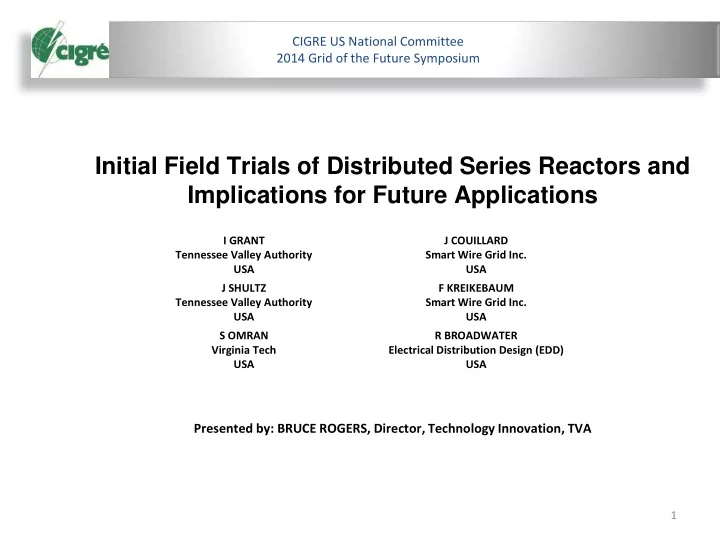

CIGRE US National Committee 2014 Grid of the Future Symposium Initial Field Trials of Distributed Series Reactors and Implications for Future Applications I GRANT J COUILLARD Tennessee Valley Authority Smart Wire Grid Inc. USA USA J SHULTZ F

slide-1
SLIDE 1

CIGRE US National Committee 2014 Grid of the Future Symposium

Initial Field Trials of Distributed Series Reactors and Implications for Future Applications Ian Grant

Tennessee Valley Authority

Presented by: BRUCE ROGERS, Director, Technology Innovation, TVA

I GRANT Tennessee Valley Authority USA J COUILLARD Smart Wire Grid Inc. USA J SHULTZ Tennessee Valley Authority USA F KREIKEBAUM Smart Wire Grid Inc. USA S OMRAN Virginia Tech USA R BROADWATER Electrical Distribution Design (EDD) USA 1

slide-2
SLIDE 2

Distributed Series Reactor

2

slide-3
SLIDE 3

Background

The Distributed Series Reactor is a self contained device, powered by induction from a transmission line conductor, that increases the series impedance of a circuit by injecting series reactance. The concept was first demonstrated in 2002 – 2003 and has been demonstrated in pilot installations on HV transmission lines.

3

slide-4
SLIDE 4

Equivalent Circuit

4

With secondary winding shorted, injection is negligible

slide-5
SLIDE 5

DSR Characteristics (typical)

5

Model Rated Current (A) Injection Mode Inductance at Rated Current (μH) Reactance added per DSR* (p.u.) 115 kV 138 kV 161 kV 230 kV

750 750 47

1.34e-4 9.30e-5 6.84e-5 3.35e-5

1000 1000 42

1.20e-4 8.31e-5 6.11e-5 2.99e-5

1500 1500 37

1.05e-4 7.32e-5 5.38e-5 2.64e-5

For a 161 kV line, assume 5 spans per mile and a device at each end of each span i.e. 10 devices per mile. Approximate impedance increase = 20%

slide-6
SLIDE 6

Example Application in Meshed Grid

6

39 BUS SYSTEM

– Baseline MW: 1904 MW – Increase in ATC possible: 638 MW (33.5%) – Increase in line availability from 59% to 93%

G1 G8 G10 2 30 1 G2 G3 G9 G4 G5 G6 G7 39 9 8 7 5 4 3 18 37 25 17 26 28 29 38 24 27 15 14 12 13 10 11 32 34 20 19 21 22 35 23 36 16 6 31

slide-7
SLIDE 7

Communication and Control

7

Manual or automatic control through preset trigger points (e.g. line current), Power Line Carrier, Cell phone Individual information display available in control center for each DSR

slide-8
SLIDE 8

Pilot Test at TVA

8

100 DSRs installed on 17 spans of 21 mile 161 kV line at TVA Approximately 10 minutes to install each DSR

slide-9
SLIDE 9

Prototype DSR Installation at TVA

TVA - 14.5 Miles of ACSR 795.0-26/7

9

slide-10
SLIDE 10

DSR Installation

Clamshell construction. The two halves are positioned on the line and secured together with a torque wrench The devices run self diagnostics and can be remotely tested Each module can be triggered at a predefined set point or controlled remotely

10

slide-11
SLIDE 11

Pilot Test Results

11

  • Total Impedance Increase (33 DSRs / Phase @ 47 µH / DSR): .226 % (degree of

control limited by number of available devices and a test line that was longer than

  • ptimal for the demonstration)
  • Devices performed as expected over 4-step range
  • Devices also successfully used to adjust phase imbalance
  • Single point failure of communication system identified for necessary design upgrade
  • DSRs presently considered unsuitable for bundled conductor use, although technically

feasible

slide-12
SLIDE 12

Future Applications

12

  • Success of pilot opens path to more critical applications
  • Simplest application is reduction of maximum contingency load for postponement of

line uprate

  • Ability to quickly relocate DSRs reduces cost to individual projects
  • Extreme case for portion of HV grid to have dynamically assigned line loading for

selected goals, e.g. minimize system losses

  • Future designs may provide capacitive injection to reduce reactive impedance
  • Future designs with high speed controls may be low cost alternative to FACTS
slide-13
SLIDE 13

The IEEE 39 bus standard test system converted to a three phase system with 345kV lines

13

slide-14
SLIDE 14

Structure Type: 3L11Utility: Houston Lighting & Power Company

Reference: EPRI, Transmission Line Reference Book - 345kV and above

The 345kV Line Configuration

14

slide-15
SLIDE 15

Unbalanced: Positive Sequence:

Positive Sequence Z is derived from the Unbalanced Model Z using the symmetrical components transformation

Line Impedance Models

15

slide-16
SLIDE 16

75 900 1950 3525 5550 675 1650 3750

1000 2000 3000 4000 5000 6000

141% 143% 145% 147% 149% 141% 143% 145% 147% 149% Positive Sequence Unbalanced

  • No. of DSRs deployed

System Loading (%)

Line5-6 Line6-7 Line13-14 Total

DSR Design for Load Growth

16

slide-17
SLIDE 17

5 10 15 20 25 30 35 40 141% 143% 145% 147% 149% Slope (MW/DSR) System Loading (%)

Positive Sequence Unbalanced Slope (MW/DSR) for different System Loading % 141% 143% 145% 147% 149% Positive Sequence 33.60 2.93 1.41 0.81 0.54 Unbalanced 4.09 1.75 0.80

Unbalanced vs. Positive Sequence Impedance Model

17

slide-18
SLIDE 18

DSR Design for Single Contingency: Unbalanced Impedance Model

18

slide-19
SLIDE 19

DSRs Deployed and Load Supplied

19

slide-20
SLIDE 20

Lines with DSRs Reinforced Lines

1500 DSR

  • n line5-6

75 DSR on line13-14

The Selected Design at 140% System Loading

20

slide-21
SLIDE 21

DSR Design vs. Line Reinforcement for Single Contingency and Load Growth: Economic Evaluation

21

slide-22
SLIDE 22
  • Determine the maximum MW supplied to

load while handling all single contingencies

– Case1: Three Lines Reinforced with No DSR – Case2: Three Lines Reinforced with DSR

  • Economic assessment of both cases

Economic Evaluation

22

slide-23
SLIDE 23
  • Case1: With Three Lines Reinforced
  • 125% loading is reached
  • Case2: With Three Lines Reinforced and

DSRs Deployed

  • 140% loading is reached and selected as a

desired DSR Design due to its technical merits

– Fewer number of DSRs deployed. – Least % change in lines impedance.

Economic Evaluation Results

23

slide-24
SLIDE 24

Reinforced Line Length (miles) Line2-3 37 Line6-7 29 Line15-16 29

  • Cost of 345 kV, single circuit = 1298 $k /mile
  • Total length of the reinforced lines = 95 miles.

Case % Loading Max MW supplied MW increase Base 100% 6309.4 Case1 125% 7886.6 1577.2 Case2 140% 8833.1 946.5

  • Max MW supplied at different % loading:

Data for the Economic Study

24

slide-25
SLIDE 25
  • Cost of 95 miles of line =

95 x 1298 k$ = 123.31 $M

  • Cost for 1577.2 MW of load increase =

123.31 $M

  • Cost per MW of load increase for

reinforcing lines = 123.31 $M/1577.2 MW = 78,182 $/MW

Line Reinforcement Cost

25

slide-26
SLIDE 26
  • For the selected DSR design, a loading of

140% is achieved using 1575 DSR modules.

  • DSR worth in terms of transmission line

value:

– Cost of 946.5 MW of load increase =

946.5 MW x 78,182.8 $/MW = 74 $M

– Thus the equivalent value of 1 DSR =

74 $M/1575 DSRs = 46,984 $/DSR

DSR Design Cost: Unbalanced Model

26

slide-27
SLIDE 27

Questions

27
