DECOMET laboratory- UMR-CNRS 7177 Magic ligand There is something in the air ! Air Fe +II Fe +III H 2 0 Chimie de coordination avec les ligands organiques de type salicyl hydrazine : quand les bonnes surprises se succdent ! Research

0 downloads 3 Views 4,08 MB Size Report

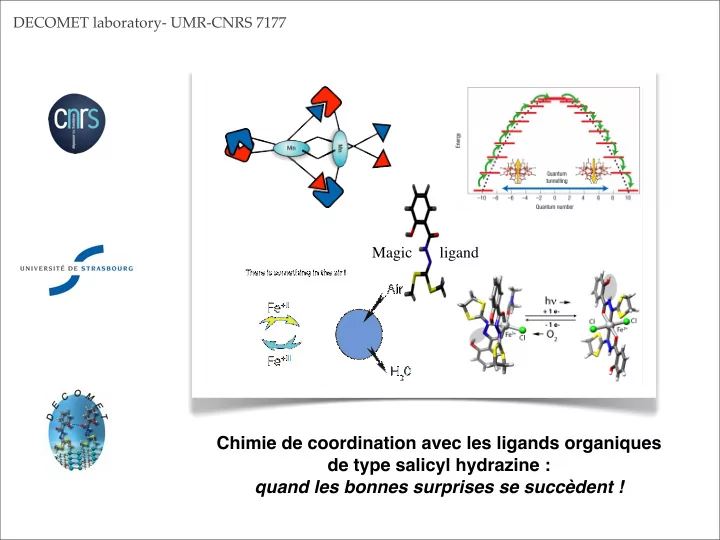

  1. DECOMET laboratory- UMR-CNRS 7177 Magic ligand There is something in the air ! Air Fe +II Fe +III H 2 0 Chimie de coordination avec les ligands organiques de type salicyl hydrazine : quand les bonnes surprises se succèdent !

  2. Research topics in 2000 Coordination chemistry <-> molecular magnetism Single Molecule Magnet Intermetallic compounds [Mn 12 (CH 3 COO) 16 (H 2 O) 4 O 12 ] (CaMn 2 Ge 2 ) T B = 5 K T N = 675 K T. Lis, Acta Cryst., 1980 , B36, 2042 R.Welter, J.MMM., 1998 , 187, 278 D. Gatteschi et al , Nature , 1993 , 365 New magnetic materials - New magnetic systems ?

  3. Methodology 5) Full magneto-crystal chemistry. 4) Binuclear 1) Ligands design. complexes 3) Crystal and 2) Mononuclear magnetic parameters complexes determination 1) Ligands design. 1) Ligands design.

  4. 2-hydroxy-1,3-dithiolan-2-ylidenehydrazide benzoïque acid (H 2 L_2) Orthorhombic space group : P n a 2 1 Formula : C 10 H 10 N 2 O 2 S 2 Asymmetric unit of H 2 L_2 Supramolecular packing of H 2 L_2 along the a axis

  5. 2-hydroxy[bis(methylthio)methylene]hydrazide benzoique acide (H 2 L_3) Orthorhombic space group : P b c a Formula : C 10 H 12 N 2 O 2 S 2 Asymmetric unit of H 2 L_3 They run together ! supramolecular packing of H 2 L_3 along the b axis

  6. They run again ! ---> ligands ready for the competition?

  7. 8

  8. Iron complexes Synthesis and Magnetic Properties of New Mono- and Binuclear Iron Complexes with Salicyloylhydrazono Dithiolane Ligand , Bouslimani, N.; Clément, N.; Rogez, G.; Turek, P.; Bernard, M.; Dagorne, S.; Martel, D.; Cong, H. N.; Welter, R. Inorg. Chem.; (Article); 2008; 47(17); 7623-7630.

  9. A photo reduction process

  10. Fe +III complex --- Ligand -1 (basic form)

  11. Fe +II complex --- Ligand O (acid form)

  12. Synthesis and Magnetic Properties of New Mono- and Binuclear Iron Complexes with Salicyloylhydrazono Dithiolane Ligand Bouslimani, N.; Clément, N.; Rogez, G.; Turek, P.; Bernard, M.; Dagorne, S.; Martel, D.; Cong, H. N.; Welter, R. Inorg. Chem.; (Article); 2008; 47(17); 7623-7630.

  13. [Fe +2 ]

  14. [Fe +3 ]

  15. Light Induced Reduction of Iron (III) to Iron (II) Only one exemple founded in 1955 - EDTA/not well characterized Large application in electricity production and storage at low cost : Patent (2009)

  16. Proposed mecanism

  17. Easy access to iron on earth

  18. Photo device given 310 mV et 15 μ A. Easy technology Low cost ‘green’

  19. Power vs I : a classical cell !

  20. Other applications • Energy storage • Chemical reduction process : Cu 2+ --> Cu +1 for instance • Nanoelectronics : molecular switch induced by light ✴ Depollution (Cr VI -> Cr III ) ✴ etc...

  21. Other candidates O N N H HL 6 O O O N N N S S N N N H H H S S OH OH H 2 L 7 H 2 L 2 HL 5 Spontaneous Reduction of High-Spin Fe III Complexes Supported by Benzoic Hydrazide Derivative Ligands. N. Bouslimani, N. Clément , C. Toussaint, S. Hameury, P. Turek, S. Choua, S. Dagorne, D. Martel c and R. Welter European Journal of Inorganic Chemistry, (2009), 3734-3741

  22. 2010 --> I. S. 2, private compagny

  23. Another application of photo reduction

  24. + 2 FeCl 3 4HCl +

  25. Fe(DMF) 62+ + FeCl 42- H 4 L

  26. DARK LIGHT

  27. Molecular magnetism 32

  28. 2004 : starting point : paramagnetic dimers Iron(III) dimer Synthesis and Magnetic Properties of New Mono- and Binuclear Iron Complexes with Salicyloylhydrazono Dithiolane Ligand , Bouslimani, N.; Clément, N.; Rogez, G.; Turek, P.; Bernard, M.; Dagorne, S.; Martel, D.; Cong, H. N.; Welter, R. Inorg. Chem.; (Article); 2008; 47(17); 7623-7630.

  29. Fe(III) 2 (µ-OMe) 2 (HL_2) 4 complex (Electronic configuration) Antiferro : -30 cm -1

  30. R. Welter et al., J. AM. CHEM. SOC. 2006 , 128, 3140 - 3141 Strongest ferromagnetic interaction to date for Mn III -Mn III dimers !

  31. Mn(III) 2 (µ-OMe) 2 (HL_2) 4 complex (DFT calculations) J = +18,2 cm -1 ( D = -0.35 cm -1 , E /| D | = 0.19) R. Welter et al., J. AM. CHEM. SOC. 2006 , 128, 3140 - 3141 Magnetic orbitals in Mn(III) 2 (µ-OMe) 2 (HL (2) ) 4 alpha HOMO (blue) and HOMO-1 (red)

  32. Mn(III) 2 (µ-OMe) 2 (HL_2) 4 complex (Electronic configuration)

  33. ? ?

  34. Symmetric = AF Asymmetric = Ferro ? First example Same structure as Mn2 with strong ferro coupling Novel Cr-III dinuclear complexes supported by salicyloylhydrazono dithiolane and dithiane ligands: Synthesis, stability, crystal structures and magnetic properties Clement Nicolas, Toussaint Clement, Rogez Guillaume, Loose Claudia, Kortus Jens, Brelot Lydia, Choua Sylvie, Dagorne Samuel, Turek Philippe, Welter Richard. Dalton Trans. (2010) 39, 19, 4579-4585

  35. Acknowledgments Laboratoire ‘ D ensité E lectronique et CO ordination MET allique’ DECOMET ( UMR CNRS-7177 ) B.Malaman - I. Ijaali - V.Klosek - G.Venturini - A.Vernière - N.Hansen ✞ , K. Halich, P. Braunstein, N. Bouslimani, A et C Beghidja, N. Clément, K. Cheaib, D. Specklin, C. Toussaint, M. Guth, D. Welsch, D. Martel,..
